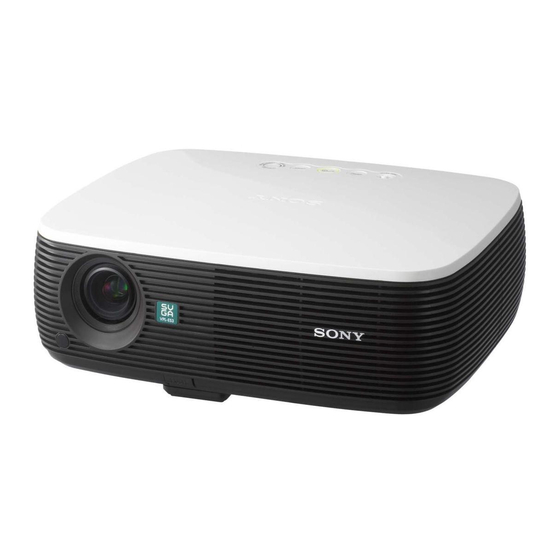

Sony VPL-ES3 Operating Instructions Manual
Sony data projector operating instructions
Hide thumbs
Also See for VPL-ES3:
- Quick reference manual (100 pages) ,
- Service manual (34 pages) ,
- Instruction & operation manual (16 pages)
Related Manuals for Sony VPL-ES3
Summary of Contents for Sony VPL-ES3
- Page 1 2-672-629-13 (1) Data Projector Operating Instructions VPL-ES3 VPL-EX3 © 2006 Sony Corporation...
- Page 2 If you have any questions about this product, you may call: Sony Customer Information Service Center 1-800-222-7669 or http://www.sony.com/ The number below is for FCC related matters only. Declaration of Conformity...
- Page 3 DO NOT USE ANY OTHER POWER CORD. Plug Cap Parallel blade with ground pin (NEMA 5-15P Configuration) Cord Type SJT, three 16 or 18 AWG wires Length Minimum 1.5m (4 ft .11in.), Less than 2.5 m (8 ft .3 in.) Rating Minimum 10A, 125V Using this unit at a voltage other than 120V...
-
Page 4: Table Of Contents
Table of Contents Precautions ... 5 Notes on Installation and Usage ... 6 Overview Features ... 8 Location and Function of Controls ... 9 Top/Right Side/Front ... 9 Rear/Bottom ... 9 Control Panel ... 10 Connector Panel ... 11 Remote Commander ... 11 Projecting the Picture Installing the Projector ... -
Page 5: Precautions
Precautions Safety • Check that the operating voltage of your unit is identical with the voltage of your local power supply. • Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by qualified personnel before operating it further. -
Page 6: Notes On Installation And Usage
Notes on Installation and Usage Unsuitable Installation Do not install the projector in the following situations. Installation is these situations or locations may cause a malfunction or damage to the unit. Poorly ventilated locations • Allow adequate air circulation to prevent internal heat build-up. -
Page 7: Unsuitable Conditions
Very dusty, extremely smoky locations Avoid installing the unit in a very dusty or extremely smoky environment. Otherwise, the air filter will become obstructed, and this may cause a malfunction of the unit or damage it. Dust preventing the air passing through the filter may cause a rise in the internal temperature of the unit. -
Page 8: Features
B Overview Features High brightness, high picture quality High brightness Adopting Sony's unique optical system that provides a high-efficiency optical system. It allows the 165 W lamp to give a light output of 2000 ANSI lumen. High picture quality VPL-ES3: Three super-high-aperture 0.63-... -
Page 9: Location And Function Of Controls
Location and Function of Controls Top/Right Side/Front Rear/Bottom a Control panel For details, see “Control Panel” on page 10. b Zoom ring Adjusts the picture size. c Ventilation holes (intake) d Focus ring Adjusts the picture focus. e Security lock Connects to an optional security cable (from Kensington). -
Page 10: Control Panel
Control Panel a ?/1 (On/Standby) key Turns on the projector when the projector is in standby mode. The ON/ STANDBY indicator around the ?/1 key flashes in green until the projector is ready to operate. b ON/STANDBY indicator (located around the /1 key) Lights up or flashes under the following conditions:... -
Page 11: Connector Panel
To listen to sound output from a computer with the VPL-ES3, connect via this jack to the audio output of the computer. b INPUT connector •... -
Page 12: Reset Key
c KEYSTONE (Trapezoidal distortion correction) key Adjusts the vertical trapezoidal distortion of the image. Pressing this key, the adjustment menu are displayed. Use the arrow keys (v/V/b/B) for adjustment. d RESET key Resets the value of an item to its factory preset value or returns the enlarged image to its original size. -
Page 13: Projecting The Picture
B Projecting the Picture Installing the Projector The distance between the lens and the screen varies depending on the size of the screen. Use the following table as a guide. Screen Distance between the screen and the center of the lens Screen size (inches) Minimum... -
Page 14: Connecting The Projector
Notes • For stereo audio connection, connect the stereo audio connecting cable to the AUDIO connector for VPL-ES3, or to the AUDIO INPUT A/B connector for VPL-EX3. • The projector accepts VGA, SVGA, XGA, SXGA, and SXGA+ signals. However, we... -
Page 15: Connecting A Vcr
computer’s display and the external monitor, the picture of the external monitor may not appear properly. Set your computer to output the signal to only the external monitor. For details, refer to the operating instructions supplied with your computer. Note To connect a Macintosh computer equipped with a video output connector of a type having two rows of pins, use a commercially available... -
Page 16: Projecting
Notes • For stereo audio connection, connect the stereo audio connecting cable to the AUDIO connector for VPL-ES3, or to the AUDIO INPUT A/B connector for VPL-EX3. • Set the aspect ratio using “Wide Mode” on the INPUT SETTING menu according to the input signal. - Page 17 Press the INPUT key to select the input source. Each time you press the key, the input signal switches as follows: Input-A t INPUT B t Video t S-Video (VPL-EX3 only) To input from Press INPUT to display Computer/Component Input-A connected to the INPUT A connector Computer connected to...
-
Page 18: Turning Off The Power
Adjust the size of the picture and the focus. Adjust the picture size using the Zoom ring and adjust the picture focus using the Focus ring. Turning Off the Power Turning Off the Power Press the ?/1 key. “POWER OFF? Please press ?/1 key again.”... -
Page 19: Convenient Functions
B Convenient Functions Selecting the Menu Language You can select one of fifteen languages for displaying the menu and other on-screen displays. The factory setting is English. To change the menu language, proceed as follows: ON/STANDBY indicator Front remote control detector Plug the AC power cord into a wall outlet. -
Page 20: Security Lock
Security Lock The projector is equipped with a security lock function. When you turn the power of the projector on, you are required to input the previously set password. If you do not input the correct password, you will not be able to project the picture. -
Page 21: Effective Tools For Your Presentation
Enter the password. Enter the password that was set. Note If you call the customer service center because you have forgotten the password, you will need to be able to verify the projector’s serial number and your identity. (This process may differ in other countries/regions.) Once your identity has been confirmed, we will provide you with the password. - Page 22 v/V/b/B Use the arrow key ( the enlarged image. To return the image to its original size Press the D ZOOM – key. Just pressing the RESET key returns the image back to its original size immediately. To freeze the image projected (Freeze function) Press the FREEZE key.
-
Page 23: Using A Menu
B Adjustments and Settings Using a Menu Using a MENU The projector is equipped with an on-screen menu for making various adjustments and settings. Display items Input signal indicator Input signal setting indicator Picture adjustment menu Input signal indicator Shows the selected input channel. displayed when no signal is input. - Page 24 To clear the menu Press the MENU key. The menu disappears automatically if a key is not pressed for one minute. To reset items that have been adjusted Select the item that you want to reset, and then press the RESET key on the Remote Commander.
-
Page 25: The Picture Setting Menu
The PICTURE SETTING Menu The PICTURE SETTING menu is used for adjusting the picture or volume. Items that can be adjusted or set depend on the kind of input signals. For details, see “Input signals and adjustable/setting items” on page 33. PICTURE SETTING Input A P i c t u r e M o d e... -
Page 26: The Input Setting Menu
The INPUT SETTING Menu The INPUT SETTING menu is used to adjust the input signal. Items that can be adjusted or set depend on the kind of input signals. For details, see “Input signals and adjustable/setting items” on page 33. When the video signal is input Setting items Functions... -
Page 27: About The Preset Memory No
Setting items Functions Shift Adjusts the position of the picture. H adjusts the horizontal position of the picture.V adjusts the vertical position of the picture. As the setting for H increases, the picture moves to the right, and as the setting decreases, the picture moves to the left. -
Page 28: The Set Setting Menu
The SET SETTING Menu The SET SETTING menu is used for changing the settings of the projector. SET SETTING S m a r t A PA : Auto Input Search: O f f Input-A Signal Sel.: C o m p o n e n t C o l o r S y s t e m : Au t o Pow e r S av i n g :... - Page 29 Setting items Functions IR Receiver Selects the remote control detectors (IR Receiver) on the front and rear of the projector. • Front & Rear: Activates both the front and rear detectors. • Front: Activates the front detector only. • Rear: Activates the rear detector only. Panel Key Lock Locks all the control panel keys on the top panel of the projector so that the projector can be operated only...
-
Page 30: The Menu Setting Menu
The MENU SETTING Menu The MENU SETTING menu is used for changing the menu displays. Setting items Functions Status (on-screen Sets up the on-screen display. display) When set to “Off,” turns off the on-screen displays except for the menus, a message when the power is turned off, and warning messages. -
Page 31: The Install Setting Menu
The INSTALL SETTING Menu The INSTALL SETTING menu is used for changing the settings of the projector. INSTALL SETTING Input-A V Key s t o n e : I m ag e F l i p : O f f B a ck g ro u n d : B l u e L a m p M o d e :... -
Page 32: The Information Menu
The INFORMATION Menu The INFORMATION menu displays the model name, serial number, the horizontal and vertical frequencies of the input signal and the cumulated hours of usage of the lamp. INFORMATION V P L - E S 3 Serial No. 3 3 3 3 3 3 3 f H : 4 8 , 4 7 k H z 60,00Hz... - Page 33 Input signals and adjustable/setting items Adjust Picture... menu Item Video or S-Video (Y/C) Picture Mode Adjust Picture... Contrast Brightness Color (NTSC 3.58/4.43 only) Sharpness Gamma Mode – Color Temp. Volume z : Adjustable/can be set – : Not adjustable/cannot be set : Preset memory No.
-
Page 34: Replacing The Lamp
B Maintenance Replacing the Lamp The lamp used as a light source is consumable product. Thus replace the lamp with a new one in the following cases. • When the lamp has burnt out or dims • “Please replace the Lamp.” appears on the screen •... - Page 35 Insert the new lamp all the way in until it is securely in place (a). Tighten the two screws (b). Fold down the handle to replace it (c). Notes • Be careful not to touch the glass surface of the lamp. •...
-
Page 36: Cleaning The Air Filter
Cleaning the Air Filter The air filter should be cleaned every 500 hours. Remove dust from the outside of the ventilation holes with a vacuum cleaner. 500 hours are approximate. This value varies depending on the environment or how the projector is used. -
Page 37: Troubleshooting
B Others Troubleshooting If the projector appears to be operating erratically, try to diagnose and correct the problem using the following instructions. If the problem persists, consult with qualified Sony personnel. Power Symptom Cause and Remedy The power is not turned on. • The power has been turned off and on with the ?/1 key at a short interval. - Page 38 Input a signal that is within the range of the frequency. • The resolution setting of the output signal of the computer is too high. c Set the output setting to SVGA (VPL-ES3) or XGA (VPL-EX3) (see page 14). “Dot Phase” on the INPUT SETTING menu has not been adjusted properly.
-
Page 39: Messages List
Attach the cover securely (see pages 35 and 36). • The electrical system may have broken down. c Consult with qualified Sony personnel. The LAMP/COVER • The lamp has reached the end of its life. indicator lights up. - Page 40 Caution Messages Use the list below to check the meaning of the messages displayed on the screen. Message Not applicable! The panel keys are locked! “Panel Key Lock” on the SET SETTING menu is set to “On.” Troubleshooting Meaning and Remedy You have pressed the wrong key.
-
Page 41: Specifications
NTSC on a NTSC system VCR.) 4.43 Resolution VPL-ES3: 500 horizontal TV lines (Video input) 800 × 600 dots (RGB input) VPL-EX3: 750 horizontal TV lines (Video input) 1024 × 768 dots (RGB input) -
Page 42: Optional Accessories
Design and specifications are subject to change without notice. Optional accessories Projector Lamp LMP-C162(for replacement) Some of the items may not be available in some areas. For details, please consult your nearest Sony dealer. Pin assignment INPUT A connector (HD D-sub 15-pin, female) R/R-Y B/B-Y ×... - Page 43 GND (R) GND (G) GND (B) RS-232C connector (D-sub 9 pin, female) RXDA TXDA HD/C.Sync DDC/SCL Specifications...
- Page 44 Preset signals Memory Preset signal Video 60 Hz Video 50 Hz 480/60i 575/50i 480/60p 575/50p 1080/60i 1080/50i 720/60p 720/50p 640 × 350 640 × 400 640 × 480 800 × 600 832 × 624 1024 × 768 1152 × 864 1152 ×...
- Page 45 Memory Preset signal 1280 × 960 SXGA VESA 60 Hz SXGA VESA 75 Hz 1280 × 1024 SXGA VESA 60 Hz SXGA VESA 75 Hz SXGA VESA 85 Hz 1400 × 1050 SXGA+ 60 Hz Notes • When a signal other than the preset signals shown above is input, the picture may not be displayed properly.
-
Page 46: Installation Diagram
Installation Diagram Floor Installation (Front Projection) Wall Center of the screen This section describes the examples of installing the projector on a desk, etc. See the chart on page 47 concerning the installation measurements. The alphabetical letters in the illustration indicate the distances below. a: distance between the screen and the center of the lens b: distance between the floor and the center of the lens c: distance between the floor and the bottom of the adjusters of the projector... - Page 47 1190 1800 2400 M 1370 2070 2760 (54) (108 x-203 x-305 x-406 (x-8) (x-12 (x-16) x-271 x-372 x-474 (x-10 (x-14 (x-18 (The above-mentioned numerical values differ from the design values because the values in the table include a tolerance.) a (N) = {(SS × 18.56/0.6299) – 24.0} × 1.03 a (M) = {(SS ×...
-
Page 48: Ceiling Installation (Front Projection)
When installing the projector on the ceiling, use a Projector Suspension Support recommended by Sony. For ceiling installation, ask for qualified Sony personnel. See the chart on page 49 concerning the installation measurements. The alphabetical letters in the illustrations indicate the distances below. - Page 49 a’ N 1220 1820 2430 M 1440 2090 2790 (109 b+260 b+362 b+463 (b+10 (b+14 (b+18 (The above-mentioned numerical values differ from the design values because the values in the table include a tolerance.) a’(N) = {(SS × 18.56/0.6299) + 3.3} × 1.03 a’(M) = {(SS ×...
-
Page 50: Dimensions
Dimensions Front Center of the lens Side Dimensions 308 (12 83 (3 Center of the projector 252 (10) 308 (12 Unit: mm (inches) -
Page 51: Index
Index Adjusting memory of the settings ...24 the picture ...25 the picture size/shift ...26, 27 Air filter ...36 Auto Input Search ...28 Background ...31 Batteries ...12 Brightness ...25 Color ...25 Color System ...28 Color Temp..25 Connecting a computer ...14 Connecting a VCR ...15 Contrast ...25 Digital Zoom function ...21... - Page 52 Scan Converter ... 27 Screen size ... 13, 41 Security Lock ... 20, 31 Sharpness ... 25 Shift ... 27 Smart APA ... 28 Specifications ... 41 Status ... 30 Supplied accessories ... 42 Troubleshooting ... 37 V Keystone ... 31 Volume ...
- Page 53 Sony Corporation...
