  • Page 1: User Guide

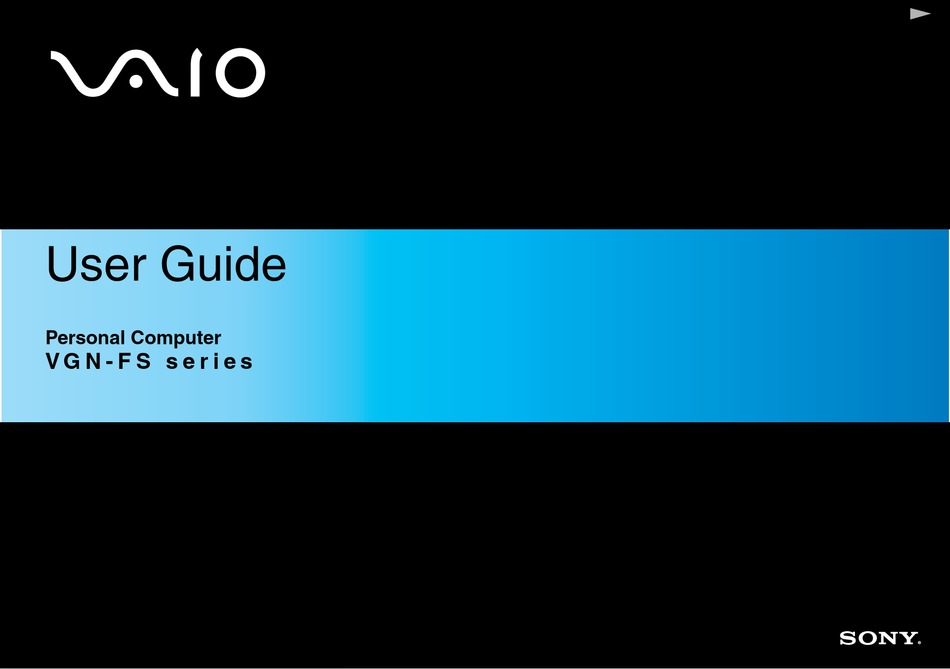

    User Guide Personal Computer V G N - F S s e r i e s...

  • Page 2: Table Of Contents

    Contents Before Use ...6 Notice ...6 ...7 NERGY Documentation ...8 Ergonomic Considerations ...12 Getting Started ...14 Locating Controls and Ports...15 About the Indicator Lights ...21 Connecting a Power Source ...22 Using the Battery Pack ...23 Shutting Down Your Computer Safely ...28 Using Your VAIO Computer ...29 Using the Keyboard ...30 Using the Touch Pad ...32...
  • Page 3 Using Peripheral Devices...60 Connecting External Speakers ...61 Connecting an External Display ...62 Selecting Display Modes...66 Using the Multiple Monitors Function ...67 Connecting an External Microphone ...69 Connecting a Universal Serial Bus (USB) Device...70 Connecting a Printer ...73 Connecting an i.LINK Device ...74 Connecting to a Network (LAN) ...76 Customizing Your VAIO Computer ...77 Setting the Password ...78...
  • Page 4 Precautions ...100 On Handling the LCD Screen ...101 On Using the Power Source ...102 On Handling Your Computer...103 On Handling Floppy Disks ...105 On Handling Discs ...106 On Using the Battery Pack...107 On Using Headphones...108 On Handling Memory Stick Media...108 On Handling the Hard Disk ...109 Troubleshooting ...110 Computer ...111...
  • Page 5 Floppy Disks ...140 PC Cards ...141 Audio/Video...142 Memory Stick Media ...143 Peripherals ...144 Support Options ...145 Sony Support Information ...145 e-Support ...146 Trademarks ...148...

  • Page 6: Before Use

    In the manual, the ™ or ® marks are not specified. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement.

  • Page 7: Energy Star

    Before Use NERGY As an E Partner, Sony has determined that this product meets the E guidelines for energy efficiency. NERGY NERGY The International E Office Equipment Program is an international program that promotes energy saving through NERGY the use of computers and their office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption.

  • Page 8: Documentation

    Recovery Guide — Contains an explanation of how to recover your computer's system if you need to. Booklets containing the following information: Sony GUARANTEE conditions, Safety / Regulations, Modem Regulations, Wireless LAN Regulations, Bluetooth Regulations, End User Software License Agreement, and Sony Support services.
  • Page 9 Specifications — The online Specifications describe the hardware and software configuration of your VAIO computer. To view the online Specifications: Connect to the Internet. Go to the Sony online support Web site at http://www.vaio-link.com/. Before Use...
  • Page 10 Feeling creative? Click this icon for an overview of your software and check out our upgrade options. Wallpapers Click this icon and check out our most popular Sony and Club VAIO wallpapers. Links Click this icon and check out our most popular Sony and Club VAIO web sites. Before Use...

  • Page 11: Help And Support Center

    Help and Support Center Help and Support Center is a comprehensive resource for practical advice, tutorials, and demonstrations to help you learn to use Microsoft Windows XP and your computer. Use the Search feature, Index, or table of contents to view all Windows Help resources, including those that are on the Internet.

  • Page 12: Ergonomic Considerations

    Ergonomic Considerations You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations to both stationary and portable environments: Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse.
  • Page 13 Before Use Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well.

  • Page 14: Getting Started

    Getting Started This section describes how to get started with using your VAIO computer. Locating Controls and Ports (page 15) About the Indicator Lights (page 21) Connecting a Power Source (page 22) Using the Battery Pack (page 23) Shutting Down Your Computer Safely (page 28) Getting Started...

  • Page 15: Locating Controls And Ports

    Locating Controls and Ports Take a moment to identify the controls and ports shown on the following pages. Front LCD screen (page 101) Speakers Keyboard (page 30) Touch pad (page 32) Power indicator (page 21) Battery indicator (page 21) Hard disk drive/Optical disc drive indicator Memory Stick media indicator (page 21) WLAN (Wireless LAN) switch...
  • Page 16 LCD screen lid lock latch Num lock indicator (page 21) Caps lock indicator (page 21) Scroll lock indicator (page 21) Power button Getting Started...
  • Page 17 Back Air vent Battery connector (page 23) Getting Started...
  • Page 18 Right PC Card release button (page 44) PC Card slot (page 42) ® i.LINK (IEEE 1394) S400 port (page 74) Memory Stick media slot (page 47) Hi-Speed USB (USB 2.0) ports (page 70) Monitor (VGA) port (page 63) DC IN port (page 22) Your computer supports Memory Stick Duo media and Memory Stick PRO high speed and high capacity capabilities.
  • Page 19 Left Network (Ethernet) port (page 76) Modem port (page 49) Optical disc drive (page 33) Manual eject hole (page 127) Drive eject button (page 33) Getting Started...
  • Page 20 Getting Started Bottom Air vents...

  • Page 21: About The Indicator Lights

    About the Indicator Lights Your computer is equipped with the following indicator lights. Indicator Functions Power 1 Illuminates when the power of the computer is on, blinks in Standby mode, and turns off when the computer is in Hibernate mode or off. Battery e Illuminates when the computer is using battery power, blinks when the battery is running out of power, and double-blinks when the battery is charging.

  • Page 22: Connecting A Power Source

    Connecting a Power Source You can use either an AC adapter or a rechargeable battery pack as a power source for your computer. Using the AC Adapter Use the computer only with the supplied AC adapter. To use the AC adapter Plug one end of the power cord (1) into the AC adapter (3).

  • Page 23: Using The Battery Pack

    Using the Battery Pack The battery pack supplied with your computer is not fully charged at the time of purchase. Installing the Battery Pack To install the battery pack Turn off the computer and close the LCD screen lid. Slide the lock switch (1) to the UNLOCK position. Slide the battery into the battery compartment until it clicks into place.
  • Page 24 When the computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet. Certain rechargeable batteries do not meet Sony quality and safety standards. For safety reasons this notebook only functions with genuine Sony...

  • Page 25: Charging The Battery Pack

    Charging the Battery Pack The battery pack supplied with your computer is not fully charged at the time of purchase. To charge the battery pack Install the battery pack. Connect the AC adapter to the computer. The computer automatically charges the battery (the battery indicator light flashes in a double blink pattern as the battery charges).
  • Page 26 Getting Started When the battery is running out of power, both the battery and power indicator lights blink. Keep the battery pack in the computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer. If the battery level falls below 10%, you should either attach the AC adapter to recharge the battery or shut down the computer and install a fully charged battery.

  • Page 27: Removing The Battery Pack

    Removing the Battery Pack You may lose data if you remove the battery pack while the computer is on and not connected to the AC adapter or if you remove the battery while the computer is in Standby mode. To remove the battery pack Turn off the computer and close the LCD screen lid.

  • Page 28: Shutting Down Your Computer Safely

    Shutting Down Your Computer Safely To avoid losing unsaved data, be sure to shut down your computer properly, as described below. To shut down your computer Turn off any peripherals connected to the computer. Click Start and then Turn Off Computer. The Turn off computer window appears.

  • Page 29: Using Your Vaio Computer

    Using Your VAIO Computer This section describes how to get the most out of using your computer. Using the Keyboard (page 30) Using the Touch Pad (page 32) Using the Optical Disc Drive (page 33) Using PC Cards (page 42) Using the Memory Stick Media Using the Internet (page 49)

  • Page 30: Using The Keyboard

    Using the Keyboard Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks. The VAIO-Link web site (www.vaio-link.com) also contains glossary information to help you use the keyboard. Combinations and Functions with the Fn Key Some functions are not available until Windows is launched.
  • Page 31 Combinations/Feature Fn + (F10): zoom Fn + (F12): Hibernate Functions Changes the screen resolution to magnify/restore your computer's screen view. The default resolutions of the standard view and the magnified view are as follows: Standard view: 1280 x 800 pixels Magnified view: 1024 x 600 pixels The magnified view is not as clear as the standard view, as it is implemented by applying a lower resolution to the computer screen with a higher resolution.

  • Page 32: Using The Touch Pad

    Using the Touch Pad The keyboard contains a cursor-pointing device, the touch pad (1). You can point to, select, drag, and scroll objects on the screen using the touch pad. Action Description Point Slide one finger on the touch pad to place the pointer (2) on an item or object. Click Press the left button (3) once.

  • Page 33: Using The Optical Disc Drive

    Using the Optical Disc Drive Your computer is equipped with an optical disc drive. To insert a disc Turn on the computer. Press the drive eject button (1) to open the drive. The tray slides out. Place a disc in the middle of the tray with the label side facing up and gently push until the disc clicks into place. Using Your VAIO Computer...
  • Page 34 Using Your VAIO Computer Close the tray by pushing it in gently. Do not remove the optical disc when the computer is in a power saving mode (Standby or Hibernate). Doing so may cause the computer to malfunction. If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled CD/DVD program.
  • Page 35 Reading and Writing CDs and DVDs Your computer plays and records CDs and DVDs, depending on the model you purchased. Check your specifications for the type of optical disc drive installed on your model. Use the table below to see which types of media your optical disc drive supports.
  • Page 36 Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO CD drives with discs that not compliant with the official "CD"...
  • Page 37 Using Your VAIO Computer Notes on writing data to a disc To make the data on a disc readable on an optical disc drive, you need to close the session when you eject it. To complete this process, follow the instructions included with your software. Only use circular discs.
  • Page 38 Notes on playing DVDs To achieve optimum performance when playing DVDs, you should follow these recommendations. You can play DVDs using the optical disc drive and the DVD playback software, such as VAIO Zone or WinDVD. See the help file on such software for details. Close all open applications before playing a DVD movie.

  • Page 39: Playing Cds

    Playing CDs To play an audio CD Insert a disc into the optical disc drive. If nothing appears on the desktop, then click Start, point to All Programs, and click to open a CD program, such as the SonicStage software. If the Audio CD window appears, click to select an option.

  • Page 40: Copying Files To Cds

    Copying Files to CDs See the online Specifications to find the type of your optical disc drive, and then Reading and Writing CDs and DVDs (page 35) to find about the supported disc media. To copy files to a disc Do not strike or shake the computer while writing data onto a disc.

  • Page 41: Playing Dvds

    Playing DVDs To play a DVD Close all open programs. Insert a DVD into the optical disc drive. If nothing appears on the desktop, then click Start, point to All Programs, and click to open a DVD program to play the DVD.

  • Page 42: Using Pc Cards

    Using PC Cards PC Cards allow you to connect portable external devices to your computer. Inserting a PC Card Some PC Cards or their functions may not be compatible with the computer. You do not need to shut down the computer before inserting or removing a PC Card. To insert a PC Card Insert the PC Card into the PC Card slot with the front label facing up.
  • Page 43 Using Your VAIO Computer Some devices may not function properly if you continually switch to Normal mode from Standby mode or Hibernate mode. For some PC Cards, if you alternate between Normal mode and Standby or Hibernate mode while the card is inserted, you may find that a device connected to your system is not recognized.

  • Page 44: Removing A Pc Card

    Removing a PC Card Follow the steps below to remove the PC Card while your computer is on. If it is not removed properly, your system may not work properly. To remove a PC Card To remove a PC Card when the computer is off, skip steps 1 to 6. Double-click the Safely Remove Hardware icon on the taskbar.

  • Page 45: Using The Memory Stick Media

    Your computer has been tested and found compatible with the Sony branded Memory Stick media with capacity of up to 4 GB available as of January 2006. Sony assumes no liability for compatibility with any other Memory Stick media.
  • Page 46 Using Your VAIO Computer Write-protecting a Memory Stick Media Some versions of Memory Stick media are designed with an erasure prevention switch to protect valuable data from accidental erasure or overwriting. Move the tab horizontally or vertically to set or release write-protection. When the erasure prevention switch is off, data can be saved on the Memory Stick media.
  • Page 47 Inserting a Memory Stick Media To insert a Memory Stick media Hold the Memory Stick media with the arrow facing up and toward the Memory Stick media slot. Lift the Memory Stick media slot cover. Carefully slide the Memory Stick media into the slot until it clicks in place. The Memory Stick media is automatically detected by your system and appears in your My Computer window as a local drive, under the appropriate letter (depending on the configuration of the computer).
  • Page 48 To view the contents of the Memory Stick media Click Start and then My Computer to open the My Computer window. Double-click the Memory Stick media icon To format a Memory Stick media Use the Memory Stick Formatter software. See the help file on the Memory Stick Formatter software for details. Removing a Memory Stick Media To remove a Memory Stick media Check that the Memory Stick media indicator is off.

  • Page 49: Using The Internet

    Using the Internet Setting Up a Dial-up Internet Connection Before you can connect to the Internet, you need to connect your computer to a telephone line via a telephone cable (may not supplied). Once you set up your telephone cable, you're ready to connect to the Internet. To connect a telephone cable Plug one end of the phone cable (1) into the modem port Plug the other end into the wall jack (2).

  • Page 50: Using Wireless Lan (Wlan)

    (radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings. The Sony WLAN supports all normal Ethernet activities, but with the added benefits of mobility and roaming. You can still access information, internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to another.
  • Page 51 Using Your VAIO Computer In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the WLAN functionality, read the Regulations Guide carefully. Channel selection is explained further in this manual (see Wireless LAN Channel Selection (page 58)).

  • Page 52: Communicating Without An Access Point (Ad-Hoc)

    Using Your VAIO Computer Communicating without an Access Point (Ad-hoc) An ad-hoc network is a network in which a local network is created only by the wireless devices themselves, with no other central controller or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc network easily at home.
  • Page 53 To communicate without an access point (ad-hoc) Turn on the WIRELESS or WIRELESS LAN switch. The WIRELESS LAN indicator lights up. On models with the Bluetooth functionality Switch window. Select the Enable 2.4 GHz Wireless LAN check box and click OK. Click Start and then Control Panel.
  • Page 54 12 Enter the Network key The network key should be 5 or 13 alphanumeric characters or 10 or 26 hexadecimal whatever you want. 13 Enter exactly the same Network key again, for confirmation. 14 Select the check box This is a computer-to-computer (ad hoc) network; wireless access points are not used at the bottom of the screen.
  • Page 55 To disconnect from a computer-to-computer (ad-hoc) network Click Start and then Control Panel. Click Network and Internet Connections. Click Network Connections. The Network Connections window appears. In the right panel under LAN or High-Speed Internet, right-click Wireless Network Connection. Click Properties. The Wireless Network Connection Properties window appears.
  • Page 56 An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access point, for example the Sony Access Point. The access point bridges the wireless and wired LAN and acts as a central controller for the Wireless LAN.
  • Page 57 To connect to a wireless network Make sure an access point is set up. See the manual that came with your access point for more information. Turn on the WIRELESS or WIRELESS LAN switch. The WIRELESS LAN indicator lights up. On models with the Bluetooth functionality Switch window.

  • Page 58: Wireless Lan Channel Selection

    Wireless LAN Channel Selection In an 802.11b/g configuration, channel 1 to 13 can be used. (a) With an access point ("infrastructure") The channel used will be the channel selected by the access point. For details on how to select the channel that will be used by the access point, see the access point manual. (b) Without an access point ("ad-hoc") If the Wireless connection is initiated by the VAIO computer, channel 11 will be selected.
  • Page 59 Using Your VAIO Computer The 2.4 GHz bandwidth used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference from other devices that uses the same bandwidth are employed on wireless LAN compatible devices, such interference may cause lower communication speed, narrower communication range, or broken wireless connections.

  • Page 60: Using Peripheral Devices

    Using Peripheral Devices You can add functionality to your computer by using the various ports on the computer. Connecting External Speakers Connecting an External Display Selecting Display Modes (page 66) Using the Multiple Monitors Function Connecting an External Microphone Connecting a Universal Serial Bus (USB) Device Connecting a Printer (page 73) Connecting an i.LINK Device...

  • Page 61: Connecting External Speakers

    Connecting External Speakers You can enhance the sound quality of your computer by connecting external speakers. To connect external speakers Plug the speaker cable (1) into the headphones jack (2) i. Plug the other end of the speaker cable to the external speaker (3). Turn down the volume of the speakers before you turn them on.

  • Page 62: Connecting An External Display

    Connecting an External Display You can connect an external display to your computer. For example, you can use the computer with a computer display or a projector. Connecting a Computer Display Connecting a Multimedia Computer Display Connecting a Projector (page 65) Connect the power cord after connecting all other cables.

  • Page 63: Connecting A Computer Display

    Connecting a Computer Display You can connect a computer display (monitor) directly to your computer. To connect a computer display If necessary, plug one end of the display's power cord (1) into the display, and the other end into an AC outlet. Plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer.

  • Page 64: Connecting A Multimedia Computer Display

    Connecting a Multimedia Computer Display You can connect a multimedia computer display that includes built-in speakers and a microphone to your computer. To connect a multimedia computer display Plug the power cord of the multimedia computer display (1) into an AC outlet. Plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer.

  • Page 65: Connecting A Projector

    Connecting a Projector You can connect a projector (for example, the Sony LCD projector) directly to your computer. To connect a projector Connect the power cord (1) of the projector into an AC outlet. Plug the RGB signal cable (2) into the monitor (VGA) port (3) a on the computer.

  • Page 66: Selecting Display Modes

    Selecting Display Modes You can select which display to be used as the primary monitor when an external display (desktop monitor, etc.) is connected to your computer. If you want to work on your computer screen and the external display at the same time, see Using the Multiple Monitors Function (page 67) for more information.

  • Page 67: Using The Multiple Monitors Function

    Using the Multiple Monitors Function The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you have an external display attached to the monitor (VGA) port, your computer screen and the external display can function as a single desktop.
  • Page 68 To select the Multiple Monitors mode Right-click on the desktop to display the context menu. Click the menu item for graphic properties. Follow the on-screen instructions to change the settings. Additionally, you can set the display colors and resolution for each display and customize the Multiple Monitors mode. Using Peripheral Devices...

  • Page 69: Connecting An External Microphone

    Using Peripheral Devices Connecting an External Microphone If you need to use a sound input device (for example, to chat on the Internet) you need to plug in an external microphone. To connect an external microphone Plug the microphone cable (1) into the microphone jack (2) m. Make sure your microphone is designed for computer use.

  • Page 70: Connecting A Universal Serial Bus (Usb) Device

    Connecting a Universal Serial Bus (USB) Device To prevent your computer and/or USB devices from damage, observe the following: When moving the computer with USB devices connected, avoid any shock or force to the USB ports. Do not put the computer into a bag or carrying case when it has USB devices connected. Connecting a USB Mouse To connect a USB mouse Choose the USB port (1)

  • Page 71: Connecting A Usb Floppy Disk Drive

    Connecting a USB Floppy Disk Drive You can purchase a USB floppy disk drive and connect it to your computer. To connect a USB floppy disk drive Choose the USB port you prefer to use. Plug the USB floppy disk drive cable into the USB port. Your USB floppy disk drive is now ready for use.

  • Page 72: Disconnecting A Usb Floppy Disk Drive

    Disconnecting a USB floppy disk drive You can disconnect a USB floppy disk drive when the computer is on or off. Disconnecting the drive when the computer is in a power saving mode (Standby or Hibernate) may cause the computer to malfunction. If the computer is off, you can unplug the USB cable directly from the computer.

  • Page 73: Connecting A Printer

    Connecting a Printer You can connect a Windows-compatible printer to your computer to print documents. Connecting a Printer Using the USB Port You can connect a USB printer compatible with your version of Windows to the computer. To connect a printer using the USB port Plug the printer power cord into an AC outlet (1).

  • Page 74: Connecting An I.link Device

    Connecting an i.LINK Device Notes on connecting i.LINK devices The computer includes an i.LINK (IEEE 1394) port, which you can use to connect to an i.LINK device such as a digital video camcorder or to connect two VAIO computers in order to copy, delete or edit files. The i.LINK port of the computer does not supply power to external devices generally powered by i.LINK ports.

  • Page 75: Connecting A Digital Video Camcorder

    On Sony digital video cameras, ports labeled DV Out, DV In/Out or i.LINK are i.LINK-compatible. The Sony digital video camcorder shown here is an example; your digital video camcorder may need to be connected differently. You cannot access the pictures stored on a Memory Stick media when using an i.LINK connection.

  • Page 76: Connecting To A Network (Lan)

    Connecting to a Network (LAN) You can connect your computer to 100BASE-TX/10BASE-T-type networks via an Ethernet network cable. Connect one end of an optional network cable to the Network (Ethernet) port on the computer and the other end to your network. For detailed settings and devices needed to connect to the network, see your network administrator.

  • Page 77: Customizing Your Vaio Computer

    Customizing Your VAIO Computer This section briefly describes how to change the main settings of your computer. Among other things, you will learn how to use and customize the look of your Sony software and utilities, etc. Setting the Password...

  • Page 78: Setting The Password

    Setting the Password Use one of the BIOS functions to set the password. Once you have set the password, you will have to enter the password after the VAIO logo appears to start your computer. The power-on password will allow you to protect your computer from unauthorized access. Adding the Power-on Password Once you have set the power-on password, you cannot start the computer without entering the password.

  • Page 79: Changing/Removing The Power-On Password

    Select Password when Power ON under Security. Press the space bar to change the setting from Disabled to Enabled. Press the < or , key to select Exit and select Exit (Save Changes); and then press the Enter key. On the Setup Confirmation screen, make sure that Yes is selected and then press the Enter key. Changing/Removing the Power-on Password To change or remove the power-on password Turn on the computer.

  • Page 80: Setting Up Your Computer With Vaio Control Center

    Setting Up Your Computer with VAIO Control Center The VAIO Control Center utility allows you to consult system information and specify preferences for system behavior. To use VAIO Control Center Click Start, point to All Programs, and click VAIO Control Center. The VAIO Control Center window appears.

  • Page 81: Using The Power Saving Modes

    Using the Power Saving Modes When you use a battery as the power source for your computer, you can take advantage of power management settings to conserve battery life. In addition to the normal operating mode, which allows you to turn off specific devices, your computer has two distinct power saving modes: Standby and Hibernate.

  • Page 82: Using Standby Mode

    Using Standby Mode Standby mode turns off the LCD screen and sets the hard disk and the CPU to a low power consumption mode. The umber power light flashes in this mode. To activate Standby mode Click Start and then Turn Off Computer. Click Stand By.
  • Page 83 To change the Standby mode settings Click Start and then Control Panel. Click Performance and Maintenance. Click Power Options. The Power Options Properties window appears. Select the Power Schemes tab. Change the System Standby settings. Customizing Your VAIO Computer...

  • Page 84: Using Hibernate Mode

    Using Hibernate Mode In Hibernate mode, the state of the system is saved on the hard disk and power is turned off. Even when the battery runs down, no data will be lost. The power indicator light is off in this mode. To activate Hibernate mode Press the Fn+F12 keys.
  • Page 85 Customizing Your VAIO Computer If you do not use the computer for a long period of time, put the computer into Hibernate mode. This power saving mode saves you the time of shutting down or resuming. When the computer is in Hibernate mode, you cannot insert a disc. Hibernate mode requires more time than Standby mode to be activated.

  • Page 86: Managing Power With Vaio Power Management

    Managing Power with VAIO Power Management Power management helps you to set up power schemes for running on AC power or batteries to suit your requirements for power consumption. VAIO Power Management is a software application developed exclusively for VAIO computers. With this software application, you can enhance the Windows power management functions to ensure better operations of your computer and for longer battery life.

  • Page 87: Activating Vaio Power Management Power Schemes

    Activating VAIO Power Management Power Schemes VAIO Power Management provides several predefined power schemes. Each power scheme consists of a group of power management settings that are designed to meet specific power management goals, ranging from maximum power management to no power management. To activate a VAIO Power Management power scheme Click Start and then Control Panel.

  • Page 88: Setting Up Your Language With Windows Xp Professional

    Setting Up Your Language with Windows XP Professional The language mode selection is available on models with Windows XP Professional, but not with Windows XP Home Edition. Please see the online Specifications to see which Windows edition is installed on your model. Windows XP Professional computers include the Multilingual User Interface (MUI) feature.
  • Page 89 To change the country and language settings Click Start and then Control Panel. In the Control Panel window, double-click the Regional and Language Options icon. If you do not see this icon, click Switch to Classic View on the left side. In the Regional Options tab of the Regional and Language Options window, select your language from the Standards and formats drop-down menu.
  • Page 90 To change the keyboard layout Click Start and then Control Panel. In the Control Panel window, double-click the Regional and Language Options icon. If you do not see this icon, click Switch to Classic View on the left side. In the Languages tab of the Regional and Language Options window, click the Details button. The Text Services and Input Languages window appears.

  • Page 91: Configuring Your Modem

    Configuring Your Modem Before you can start using your internal modem (not all modem are built-in), or each time you use your modem while traveling, make sure that the country of the active location defined in the Phone and Modem Options dialog box matches the country you are dialing from.
  • Page 92 Customizing Your VAIO Computer Click Apply/OK. Your modem is configured. Before applying new country settings, please make sure your phone cable is disconnected from your computer.

  • Page 93: Upgrading Your Vaio Computer

    Upgrading Your VAIO Computer Your computer and memory modules use high precision components and electronic connectors technology. To avoid the invalidation of your guarantee due to mishandling, we recommend that: You contact your dealer to install a new memory module. You do not install it yourself, if you are not familiar with upgrading memory on a computer.

  • Page 94: Adding And Removing Memory

    Adding and Removing Memory If you want to expand the functionality of your computer, you can increase the memory by installing optional memory modules. Before you upgrade your computer's memory, read the notes and procedures in the following pages. The number of available slots depends on the configuration of your model.
  • Page 95 Use the special bag delivered with the memory module or wrap the module in aluminum foil to protect it from electrostatic discharge. Introducing any liquids or any foreign substances or objects into the memory slots, or other internal components of the computer, will result in damage to the computer and any repair costs will not be covered by the warranty.

  • Page 96: Removing And Installing A Memory Module

    Removing and Installing a Memory Module To change or add a memory module Shut down the computer and disconnect all peripheral devices. Unplug the computer and remove the battery pack. Wait until the computer cools down. Unscrew the screw (indicated by the arrow below) on the bottom of the computer and remove the memory module compartment cover.
  • Page 97 Remove the memory module: Pull the latches in the direction of the arrows (1). The memory module is released. Make sure that the memory module tilts up and then pull it out in the direction of the arrow (2). Remove the new memory module from its packaging. Upgrading Your VAIO Computer...
  • Page 98 Slide the memory module into the memory module slot and push it in until it clicks into place. Do not touch any other components on the motherboard. Do not damage the insulation sheet equipped for module protection. Replace the memory module compartment cover. 10 Tighten the screw on the bottom of the computer.

  • Page 99: Viewing The Amount Of Memory

    Viewing the Amount of Memory To view the amount of memory Turn on the computer. Click Start, point to All Programs, and click VAIO Control Center. Double-click the System Information folder in the VAIO Control Center window. Double-click the System Information icon in the System Information folder. You can view the amount of system memory.

  • Page 100: Precautions

    Precautions This section describes safety guidelines and precautions to help you protect your computer from potential damage. On Handling the LCD Screen On Using the Power Source (page 102) On Handling Your Computer (page 103) On Handling Floppy Disks (page 105) On Handling Discs (page 106) On Using the Battery Pack...

  • Page 101: On Handling The Lcd Screen

    Precautions On Handling the LCD Screen Do not leave the LCD screen facing the sun. This could damage the LCD screen. Be careful when using the computer near a window. Do not scratch the LCD screen or exert pressure on it. This could cause a malfunction. Using the computer in low temperature conditions may produce a residual image on the screen.

  • Page 102: On Using The Power Source

    Make sure that the AC outlet is easily accessible. When the AC adapter is not used, unplug it from the AC outlet. Use the AC adapter supplied with the computer or genuine Sony products. Do not use any other AC adapter as it may cause a malfunction.

  • Page 103: On Handling Your Computer

    On Handling Your Computer Clean the cabinet with a soft cloth, which is dry or lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of the computer. If you drop a solid object or any liquid onto the computer, shut down the computer and then unplug it.
  • Page 104 Precautions Do not use cut or damaged connection cables. If the computer is brought directly from a cold location to a warm one, moisture may condense inside the computer. In this case, allow at least one hour before turning on the computer. If any problems occur, unplug the computer and contact VAIO-Link.

  • Page 105: On Handling Floppy Disks

    Precautions On Handling Floppy Disks Do not open the shutter manually or touch the surface of the floppy disk. Keep floppy disks away from magnets. Keep floppy disks away from direct sunlight and other sources of heat. Keep the floppy disk away from any liquid. Do not let the floppy disk get wet. When you are not using the floppy disk, always remove it from the floppy disk drive and use a storage case.

  • Page 106: On Handling Discs

    Precautions On Handling Discs Do not touch the surface of the disc. Do not drop or bend the disc. Fingerprints and dust on the surface of a disc may cause read errors. Always hold the disc by its edges and central hole, as shown below: Proper care of the disc is essential to its continuous reliability.

  • Page 107: On Using The Battery Pack

    Certain rechargeable batteries do not meet Sony quality and safety standards. For safety reasons this notebook only functions with genuine Sony batteries designed for this model. When inserting another kind of battery, the battery will not be charged and the notebook will not function.

  • Page 108: On Using Headphones

    On Using Headphones Road safety – Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play loud music while walking, especially at pedestrian crossings.

  • Page 109: On Handling The Hard Disk

    On Handling the Hard Disk The hard disk has a high storage density and reads or writes data in a short time. However, it can be easily damaged by mechanical vibration, shock or dust. Although the hard disk has the internal safety device to prevent losing data due to mechanical vibration, shock or dust, you should be careful when handling the computer.

  • Page 110: Troubleshooting

    Troubleshooting This section describes how to solve common problems you might encounter when using your computer. Many problems have simple solutions. Try these suggestions before contacting VAIO-Link. Computer (page 111) System Security (page 118) Battery (page 120) Internet (page 122) Networking (page 124) CDs and DVDs...

  • Page 111: Computer

    Remove any extra memory modules you may have inserted since purchase. Check that you are using the supplied Sony AC adapter. For your safety, use only genuine Sony rechargeable battery packs and AC adapters, which are supplied by Sony for your VAIO computer.
  • Page 112 What should I do if a BIOS error appears when I turn on my computer? If the message "Press <F1> to resume, <F2> to setup" appears at the bottom of your computer screen, follow these steps: Press the F2 key. The BIOS setup screen appears.
  • Page 113 Troubleshooting What should I do if my computer or software stops responding? It is best to turn off your computer using the Turn Off Computer option on the Microsoft Windows Start menu, located on the taskbar. Using other methods, including those listed below, may result in loss of unsaved data. Click Start, point to Turn Off Computer, and then click Turn Off.

  • Page 114: Why Doesn't My Computer Enter Standby Or Hibernate Mode

    Why doesn't my computer enter Standby or Hibernate mode? Your computer may become unstable if the operating mode is changed before the computer completely enters Standby or Hibernate. To restore your computer to normal operating stability Close all open programs. Click Start, Turn Off Computer, and then Restart.
  • Page 115 What should I do if a message window, notifying of incompatibility or improper installation of the battery pack, appears and my computer enters Hibernate mode? This symptom could be due to the battery pack not being installed properly. To resolve this symptom, turn off your computer and remove the battery pack.
  • Page 116 Why does the System Properties window display a slower CPU speed than the maximum? This is normal. Because your computer's CPU utilizes a type of CPU speed controlling technology for power conservation purposes, System Properties may display the CPU's current speed instead of the maximum speed. What should I do if Windows does not start, showing a message, when I start my computer? If you enter a wrong power-on password three times consecutively, the System Disabled message appears and Windows...
  • Page 117 Troubleshooting Why does it take time before my computer starts? If Norton Internet Security's Personal Firewall is active, it may take some time before the desktop screen appears due to network security checkups. Why doesn't my computer screen turn off when the time selected for the automatic turn- off action has passed? The originally selected VAIO's screen saver disables the timer setting, which you can select using the Windows power options, for your computer screen to turn off.

  • Page 118: System Security

    System Security This section provides information about keeping your computer operating smoothly and protecting against potential threats to the computer's security. How can I protect my computer against security threats, such as viruses? The Microsoft Windows operating system is preinstalled on your computer. The best way to protect your computer against security threats, such as viruses, is to download and install the latest Windows updates regularly.

  • Page 119: How Do I Keep My Antivirus Software Updated

    How do I keep my antivirus software updated? You can keep the Norton Internet Security software program current with the latest updates from Symantec Corporation. To download and install the latest security update Double-click the Norton Internet Security icon on the taskbar. If you have not previously registered the antivirus software, a series of information wizards appears.

  • Page 120: Battery

    Battery How do I find the battery charging status? See Charging the Battery Pack (page When is my computer using AC power? When your computer is directly connected to the AC adapter, it uses AC power, even if a battery is installed. When should I recharge the battery? When the battery level falls below 10 percent.

  • Page 121: Why Doesn't My Computer Enter Hibernate Mode

    Can my computer enter Hibernate mode while using battery power? Your computer can enter Hibernate mode while using battery power, but some software programs and peripheral devices prevent the system from entering Hibernate mode. If you are using a program that prevents the system from entering Hibernate mode, save your data frequently to avoid losing data.

  • Page 122: Internet

    Make sure the telephone cable is working. Plug the cable into an ordinary telephone and listen for a dial tone. Make sure the telephone number the program is dialing is correct. Make sure the software you are using is compatible with your computer's modem. (All preinstalled Sony programs are compatible.) Make sure the modem is the only device connected to your phone line.

  • Page 123: Why Is My Modem Connection Slow

    Why is my modem connection slow? Your computer is equipped with a V.92/ V.90 compatible modem. Many factors may influence modem connection speed, including telephone line noise or compatibility with telephone equipment, such as fax machines or other modems. If you think your modem is not connecting properly to other PC-based modems, fax machines, or your Internet Service Provider (ISP), do any of the following: Ask your telephone company to verify your telephone line is free of any line noise.

  • Page 124: Networking

    Networking What should I do if my computer cannot connect to a wireless LAN access point? Connection availability is affected by distance and obstructions. You may need to move your computer away from obstructions or closer to any access point you may be using. Make sure the WIRELESS or WIRELESS LAN switch is on and the WIRELESS LAN indicator is lit on your computer.

  • Page 125: Why Is The Data Transfer Speed Slow

    Why is the data transfer speed slow? The wireless LAN data transfer speed is affected by distance and obstructions between devices and access points. Other factors include device configurations, radio conditions, and software compatibility. To maximize the data transfer speed, move your computer away from obstructions or closer to any access point you may be using.
  • Page 126 Wireless LAN communication occurs on divided frequency bands known as channels. Third-party wireless LAN access point channels may be preset to different channels from Sony devices. If you are using a wireless LAN access point, see connectivity information contained in the manual that came with your access point.

  • Page 127: Cds And Dvds

    CDs and DVDs Why does my computer freeze when I try to read a disc? The disc that your computer is trying to read may be dirty or damaged. Follow these steps: Restart the computer by clicking Start, Turn Off Computer, and Restart. Eject the disc from the optical disc drive.
  • Page 128 What should I do if I cannot play a CD or DVD properly on my computer? Make sure the disc was inserted into the optical disc drive with the label facing up. Make sure the necessary program(s) is installed according to the manufacturer's instructions. If the CD or DVD is dirty or damaged, your computer will stop responding.
  • Page 129 Double-click the optical disc drive device to open the submenu. Double-click the listed drive, and select the Properties tab. Click to select the Enable digital CD audio for this CD-ROM device check box, if it is not selected. You can confirm the driver software by selecting the Driver tab, and clicking Driver Details. Click OK to close the window.
  • Page 130 What should I do if I cannot write data to CD media? Do not launch any software application or allow any to launch automatically, not even a screen saver. Do not use the keyboard. Do not use a CD-R/RW disc that has a label affixed to it. This could cause a write error or other damage. What should I do if I cannot write data to DVD media? Make sure you are using the correct DVD recordable media.
  • Page 131 What should I do if I cannot write data to DVD-RAM media using Windows functions? This Q & A entry applies to selected models only. See the online Specifications to see whether your model is equipped with the DVD±RW/RAM drive. Follow these steps to change the settings: Click Start and then My Computer.

  • Page 132: Display

    Display Why did my computer screen go blank? Your computer screen may go blank if the computer has lost power or has entered a power saving mode (Standby or Hibernate). If the computer is in LCD (Video) Standby mode, press any key to activate the computer screen. See Using the Power Saving Modes (page 81) Make sure your computer is securely plugged into a power source and turned on.
  • Page 133 What should I do if the LCD brightness of your computer screen changes? The LCD brightness setting, adjusted with the Fn+F5/F6 keys, is temporary and this adjustment is overridden by the setting on the VAIO Power Management tab when another power scheme is selected. To save this preference for the brightness To do the following procedure, you must have administrator rights on your computer.

  • Page 134: Printing

    Printing What should I do if I cannot print a document? Make sure your printer is on, and the printer cable is securely connected to the ports on the printer and computer. Make sure your printer is compatible with the Windows operating system installed on your computer. You may need to install the printer driver software before you use your printer.

  • Page 135: Microphone

    Troubleshooting Microphone What should I do if my microphone does not work? If you are using an external microphone, make sure the microphone is turned on and is properly plugged into the Microphone jack on your computer.

  • Page 136: Mouse

    Mouse What should I do if my computer does not recognize my mouse? Make sure your mouse is securely plugged into the port. Restart your computer with your mouse connected. What should I do if the pointer does not move when I use my mouse? Make sure another mouse is not installed.

  • Page 137: Speakers

    Speakers What should I do if my speakers do not work? Make sure your speakers are properly connected and the volume is turned up loud enough to hear sound. Make sure your speakers are designed for computer use. If your speakers have a muting button, set the button to off. If you have connected an audio cable to the headphones jack, disconnect the cable and use the speaker cable supplied with your speakers.

  • Page 138: Touch Pad

    Touch Pad What should I do if the touch pad does not work? Try restarting your computer. Press the Ctrl+Alt+Delete keys simultaneously. In the Windows Task Manager window, select Restart from the Shut Down menu to restart the computer. If the pointer does not move while playing a disc, press the Ctrl+Alt+Delete keys simultaneously to stop playback and restart your computer.

  • Page 139: Keyboard

    Keyboard What should I do if the keyboard configuration is wrong? The language layout of your computer's keyboard is specified on the sticker on the box. If you choose a different regional keyboard when you complete the Windows setup, the key configuration will be mismatched. To change the keyboard configuration, follow these steps: Click Start and then Control Panel Click Date, Time, Language and Regional Options, and click Regional and Language Options.

  • Page 140: Floppy Disks

    Floppy Disks Why doesn't the Safely Remove Hardware icon appear on the taskbar when the drive is connected? Your computer does not recognize the floppy disk drive. First, make sure the USB cable is properly connected to the USB port. If you need to secure the connection, wait a few moments for the computer to recognize the drive. If the icon still does not appear, follow these steps: Close all programs that were accessing the floppy disk drive.

  • Page 141: Pc Cards

    Make sure the PC Card is compatible with the Microsoft Windows operating system installed on your computer. See the manual that came with your PC Card for more information. You may need to install driver software if you are not using a Sony PC Card. Why doesn't my computer recognize attached devices? For some PC Cards, if you alternate between normal power operation and the Standby or Hibernate modes while the card is inserted into the PC Card slot, your computer may not recognize the PC Card or the connected device.

  • Page 142: Audio/Video

    Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK connection may vary, depending on the software applications, operating system, and compatible i.LINK devices. All products with an i.LINK connection may not communicate with each other.

  • Page 143: Memory Stick Media

    Using recorded music requires permission of the copyright holders. Sony is not responsible for music files that cannot be recorded from a CD or downloaded from other sources. Can I copy images from a digital camera using Memory Stick media? Yes, and you can view video clips that you have recorded with Memory Stick media-compatible digital cameras.

  • Page 144: Peripherals

    Peripherals What should I do if I cannot connect a USB device? If applicable, check the USB device is turned on and using its own power supply. For example, if you are using a digital camera, check the battery is charged. If you are using a printer, check the power cable is connected properly to the AC outlet.

  • Page 145: Support Options

    VAIO-Link help lines: Before contacting VAIO-Link by telephone, try to solve the problem by reading the online and printed documentation. Visit the other Sony web sites: www.club-vaio.com if you want to know more about VAIO and become part of the growing VAIO community.

  • Page 146: E-Support

    Support Options e-Support What is e-Support? You have searched our user guides and web site (www.vaio-link.com) but have not found an answer to your question/issue? e-Support is the ideal solution for you! Our e-Support Web Portal is an interactive web site on which you can submit any technical query you may have regarding your computer and receive answers from our dedicated support team.
  • Page 147 Support Options Can I submit my questions at any time? Yes, you can submit your questions 24/7, but please keep in mind that our e-Support Team can only treat your queries from Monday till Friday between 8am and 6pm. Is there a cost involved for using e-Support? No, this is a complete free of charge service offered to all registered VAIO customers! How do I know when the e-Support Team has handled my query/case? As soon as your case has been dealt with by our e-Support Team, you will receive an email, notifying you that your case has...

  • Page 148: Trademarks

    Microsoft Corporation in the U.S. and other countries. i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. Adobe, Adobe Acrobat Elements, Adobe Acrobat Professional, Adobe Reader, Adobe Premiere Elements and Adobe Photoshop Elements are trademarks of Adobe Systems Incorporated.
  • Page 149 Support Options All other names of systems, products and services are trademarks of their respective owners. In the manual, the ™ or ® marks are not specified. Specifications are subject to change without notice. All other trademarks are trademarks of their respective owners. Please see the online Specifications to see what software is available for your model.
  • Page 150 © 2006 Sony Corporation...

This manual is also suitable for:

Vgn-fs515bVgn-fs515brVgn-fs515eVgn-fs515hVgn-fs595vp

Table of Contents
