USING THE ICE CREAM MAKER ATTACHMENT

ATTACHING THE DRIVE ASSEMBLY FOR TILT-HEAD MIXERS

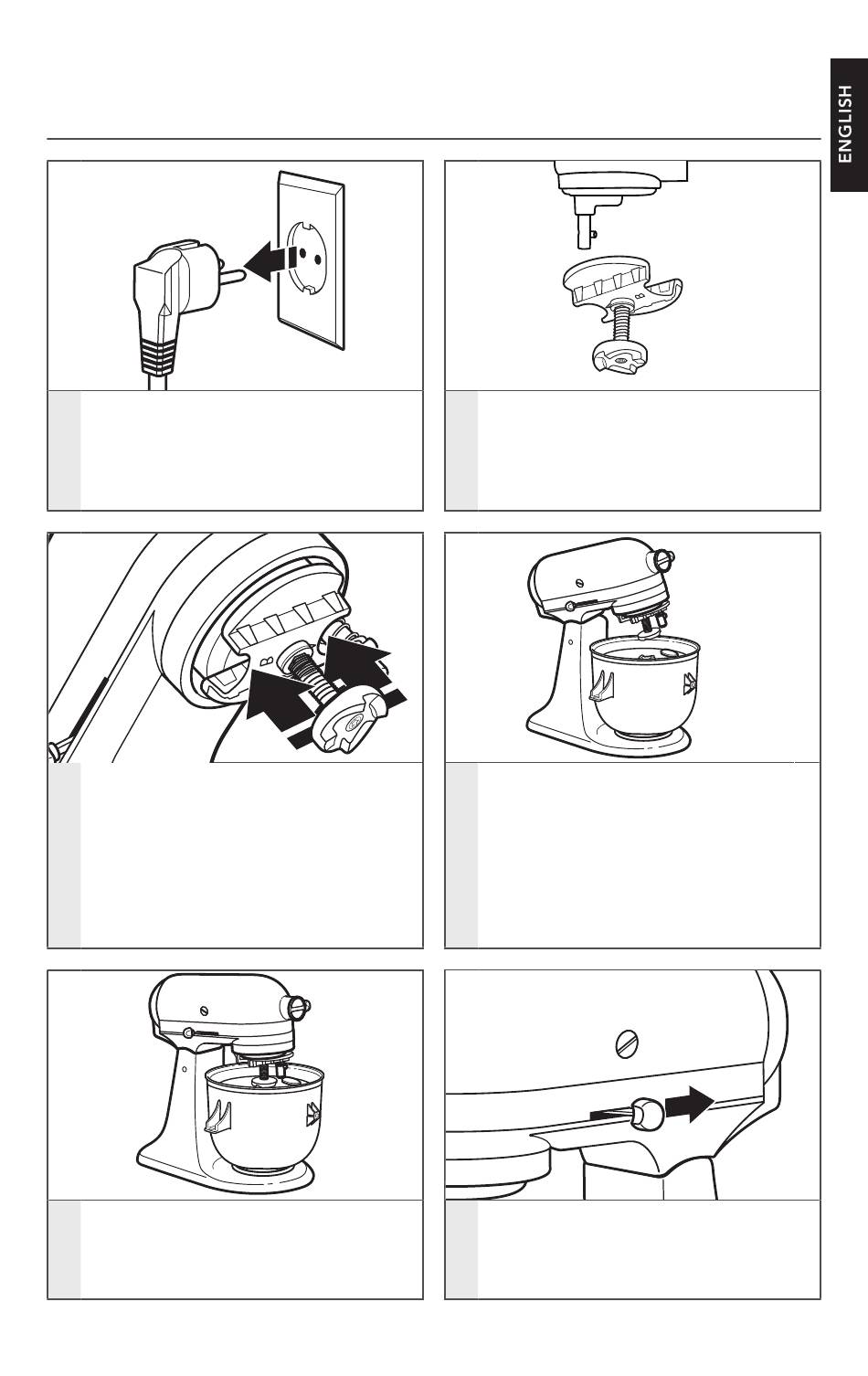

Be sure the Stand Mixer is off and
unplugged. Keep the motor head
1
tilted back and put the dasher and
freeze bowl into place.
When properly assembled, the outer
curved edges of the drive assembly
should centre on the motor head. If
they are not centred, slide the drive
3
assembly either back or forward until
it is centred on the motor head. Make
sure the drive assembly is securely in
place by pressing upward.
Make sure the motor head is
5
down completely.
Position the drive assembly onto the
mixer so that side A is closest to the
2
beater shaft. Slide drive assembly
onto the motor head until it will not
slide any further.
Lower the motor head to engage the
drive assembly with the dasher. If the
drive assembly doesn't engage the
4
dasher, slide the drive assembly either
back or forward until it does engage
the dasher properly.
Place locking lever in the LOCK
position. Before mixing, test the lock
6
by attempting to raise the motor
head.
USING THE ICE CREAM MAKER ATTACHMENT | 9
