2. Connection Information

2.1. Connection Sizes

Connection Instance
I/O Messaging
Explicit Messaging
- For the Polled I/O connection, if the actual consumed data size is bigger than the connection instance's
consumed_connection_size attribute, the consumed data will be ignored, but the connection will otherwise
produce normally. If the actual consumed data size is larger than the connection instance's
consumed_connection_size attribute, the consumed data will be ignored and the connection will not produce.
- For the Explicit Messaging connection, this is the maximum message length: shorter messages are also
acceptable.

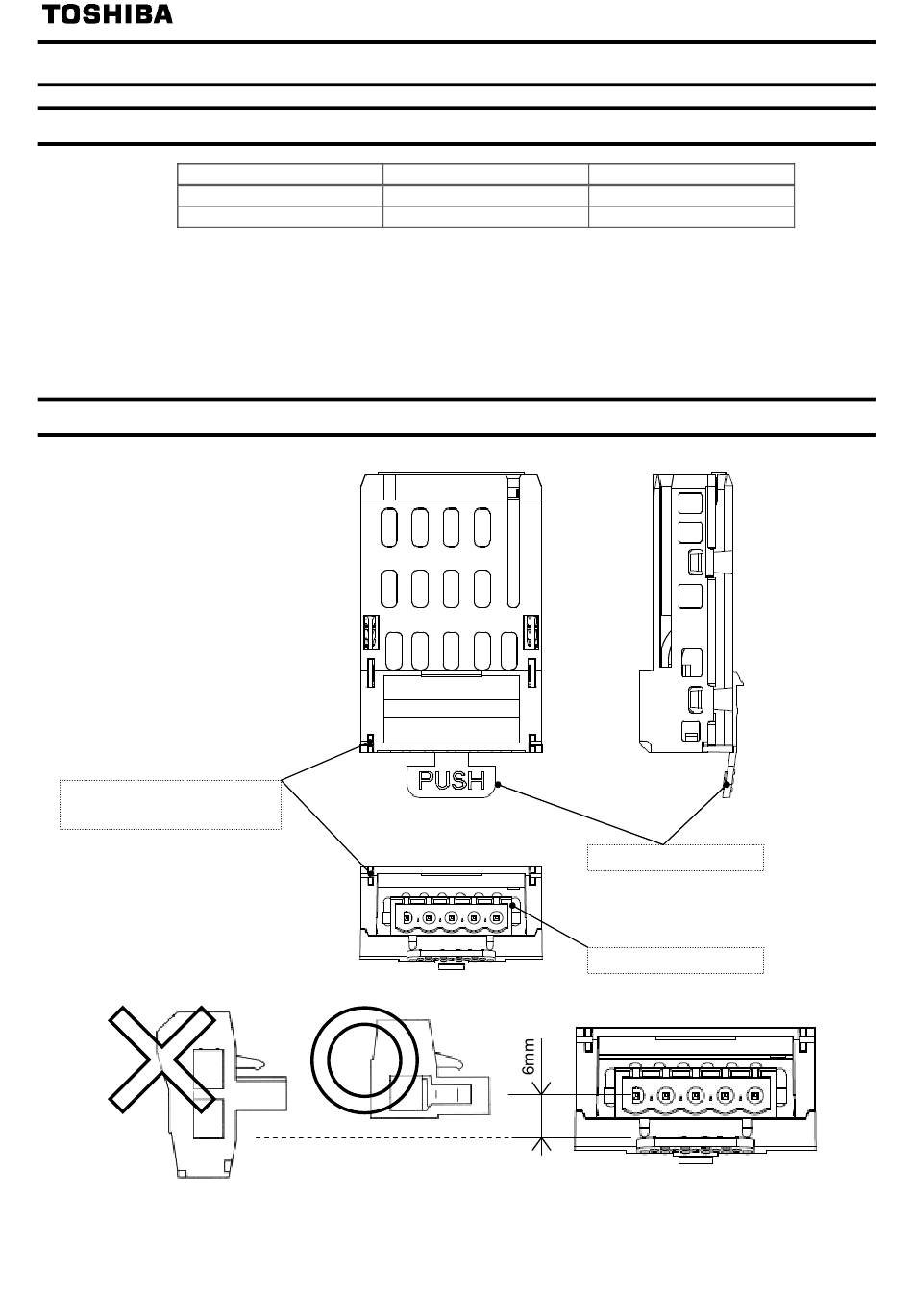

2.2. Exterior overview

DeviceNet LED indicator
(Refer to Section 2.3)
Multi-Drop type connector etc. can not be used for DEV003Z.
Produced
4, 8, 12 or 18 bytes
39 bytes
- 6 -
E6581737
Consumed
4, 8, 12 or 18 bytes
39 bytes
Release Tab
DeviceNet Connector
