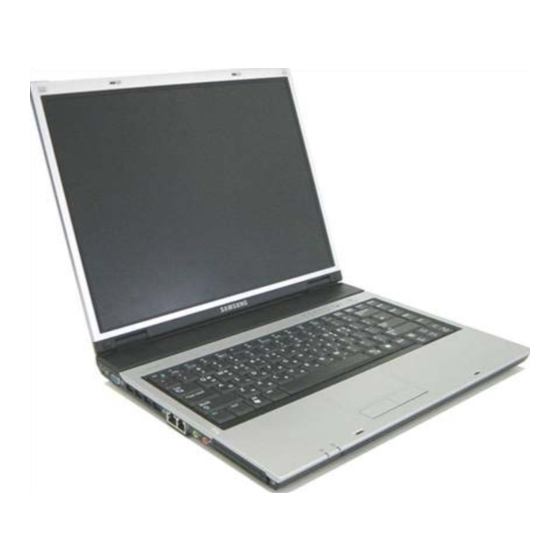

Samsung FIRENZE2-R Service Manual
  1. Manuals
  2. Brands
  3. Samsung Manuals
  4. Laptop
  5. FIRENZE2-R
  6. Service manual
Samsung FIRENZE2-R Service Manual

Samsung FIRENZE2-R Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
SERVICE
SAMSUNG R40
If there are the Contents not included in this book, please refer to K-zone Service Manual
SENS R40 plus
FIRENZE2-R
NT-R40FYxx/xxx
NP-R40FYxx/xxx
1. Simple & Essential Note PC
-. New ATI technology.
-. Wide and Gloss LCD (15.4")
2. High Performance &
Convenient Management function.
-. High-Performance Dual Core
-. Powerful connectivity.
Manual
FEATURES

Advertisement

loading

Related Manuals for Samsung FIRENZE2-R

Summary of Contents for Samsung FIRENZE2-R

  • Page 1 SENS R40 plus FIRENZE2-R NT-R40FYxx/xxx NP-R40FYxx/xxx SERVICE Manual FEATURES SAMSUNG R40 1. Simple & Essential Note PC -. New ATI technology. -. Wide and Gloss LCD (15.4") 2. High Performance & Convenient Management function. -. High-Performance Dual Core -. Powerful connectivity.
  • Page 2 - This Document can not be used without Samsung's authorization - - Contents - 1. Precautions 1) General After-Sales Service Precautions 2) Safety Precautions 3) Ground 4) Static Electricity Precautions 2. Introduction and Specification 1) Introduction 2) Specification 3) Specification comparison between R50 and R65.
  • Page 3 - This Document can not be used without Samsung's authorization - 2. Introduction and Specification 1) Introduction (1) High Performance Note PC - Intel® Core™ 2 Duo Processor - Intel® Core™ Duo Processor - Intel® Pentium Dual Core™ Processor - Intel® Celeron® M Processor - Wireless LAN (Option), Bluetooth (Option).
  • Page 4 - This Document can not be used without Samsung's authorization - 2. Introduction and Specification 2) Specification Processor and Motherboard P50 / R65 Intel® Core™ 2 Duo Processor Intel® Core™ Duo Processor ntel® Pentium Dual Core™ Processor 　 Intel® Celeron® M Processor Intel®...
  • Page 5 - This Document can not be used without Samsung's authorization - 2. Introduction and Specification Graphics Controller 　 ATI Radeon Xpress 1250M ATI RS600ME Video Memory 32MB / 256MB Max.Resolution for LFP LVDS 1,280 x 800 x 32Bits color (WXGA) Max.Resolution for External...
  • Page 6 - This Document can not be used without Samsung's authorization - 2. Introduction and Specification Combo Drive 2 Factory Option Module type Fixed 12.7mm Slim Teac, DW-224E-C Speed 8x DVD-ROM, 24x RW, 24x CD-R, 24x CD : Average Access Time DVD 110ms Typ., CD 90ms Typ.
  • Page 7 - This Document can not be used without Samsung's authorization - 2. Introduction and Specification 　 I/O Interface PC CardBus Slots 1 PCMCIA Type II slot Controller Ricoh R5C843 Support 32bit CardBus cards 　 I/O Ports USB Port 4 (USB2.0)
  • Page 8 - This Document can not be used without Samsung's authorization - Line Frequency 50 / 60Hz 50 / 60Hz Adapter Rating - Input 100V - 240V, 1.4A 100V - 240V, 1.4A Adapter Rating - Output 19.0VDC / 3.16A 19.0VDC / 4.74A ACPI 1.0b support, Standby(S3),...
  • Page 9 - This Document can not be used without Samsung's authorization - 2. Introduction and Specification 3) Specification comparison between R50 and R40 Model name Photo 533MHz Pentium M 533/667MHz Pentium M (Merom,Yonah) Chipset Intel 915 ATI RS600ME DDR2 533 / 667MHz...
  • Page 10 - This Document can not be used without Samsung's authorization - 2. Introduction and Specification 4) Wireless LAN Specification (1) Wireless LAN Standard (802.11BG card ) Atheros Wireless Network Adapter 2. Introduction and Specification 2- 8...
  • Page 11 - This Document can not be used without Samsung's authorization - 2. Introduction and Specification 5) Option list 2- 9...
  • Page 12 - This Document can not be used without Samsung's authorization - 2. Introduction and Specification 5) Option list MEMORY 1105-001610 512M(SEC) DDR2 533 512MB SO-DIMM M470T6554CZ3-CD5 1105-001610 512M(SEC) DDR2 533Mhz 512MB M470T6554BG0-CD5 1105-001615 512M(IN) DDR2 533Mhz 512MB HYS64T64020HDL-3.7-A 1105-001611 1GB(SEC)
  • Page 13 - This Document can not be used without Samsung's authorization - 2. Introduction and Specification 5) Option list BATTERY BATTERY(6CELL) SDI Battery 6Cell BA43-00149A BATTERY(6CELL) Sanyo Battery 6cell BA43-00150A BLUETOOTH BA59-01691A BLUETOOTH BCM92045NMD BA59-01916A BLUETOOTH BTO2P0B2SA WLAN BA59-01664A 802.11b/g WLL3090...
  • Page 14 - This Document can not be used without Samsung's authorization - 6. Exploded View and Part List SYSTEM K1001 K0007 K3001 I0003 K0001 K4001 K0101 K1002 K3002 K4002 K0002 K1003 K0201 I0006 T0010 T0001 T0005 M0001 M3005 M3004 I0001 I0002...
  • Page 15 - This Document can not be used without Samsung's authorization - 6. Exploded View and Part List Unit-Housing-Back K0001 K0006 K2001 K0004...
  • Page 16 - This Document can not be used without Samsung's authorization - 6. Exploded View and Part List Unit-Housing-Top T0001 T2004 T2001 T2004 T0102 T0302 T0101...
  • Page 17 - This Document can not be used without Samsung's authorization - 6. Exploded View and Part List Unit-Housing-Bottom B0001 B0501 B0303 B0302 B0501 B0010 B0402 B0403 B0009...
  • Page 18 - This Document can not be used without Samsung's authorization - 6. Exploded View and Part List Unit-ODD D0001 D2000 D1002 D3000...
  • Page 19 - This Document can not be used without Samsung's authorization - 6. Exploded View and Part List NP-R40FY02/SER Location Part Number Parts Name & Specification Q'ty SA/SNA A0010 3903-000055 CBF-POWER CORD;DT,EU,CP2/NO,E(IEC320 C7) A1001 BA46-05728A S/W CD;RCD,NP/DT,VISTAHP,1.0,RUS,DVD,1/1 A1001 BA46-06002A S/W CD;UTILITY,FIRENZE2-R,WINVISTA,-,EXP...
  • Page 20 - This Document can not be used without Samsung's authorization - 6. Exploded View and Part List NP-R40FY02/SER Location Part Number Parts Name & Specification Q'ty SA/SNA I0003 BA59-01937A LCD PANEL-15.4WXGA;B154EW02_V1,15.4WXGA, I0003 BA59-02147A LCD PANEL-154WXGA;LTN154X3-L03-A,15.4WXG I0005 BA59-01957A HDD;120G,MHV2120BH-PL,S63,H16,D16385,H9. I0005 BA59-02002A HDD;120G,HTS541612J9SA00,S63,H16,D16385,...
  • Page 21 - This Document can not be used without Samsung's authorization - 6. Exploded View and Part List NP-R40FY02/SER Location Part Number Parts Name & Specification Q'ty SA/SNA L1004 BA68-20039A LABEL-PPID_E;BLADE,-,PET,-,W50.8,L12.7mm L1005 BA68-20323A LABEL CAUTION;NOTE PC,-,PET,T0.06,W30.0, M0001 BA92-04512A ASSY MOTHER BD-TOP;FIRENZE2-R,YONAH,ATI...
  • Page 22 - This Document can not be used without Samsung's authorization - 6. Exploded View and Part List NP-R40FY02/SER Location Part Number Parts Name & Specification Q'ty SA/SNA M4001 BA39-00593A CBF HARNESS;FIRENZE2,WIRE,-,2,240mm,BLAC M9999 0402-001405 DIODE-SCHOTTKY;B340A,40V,3mA,SMA,TP M9999 0403-001047 DIODE-ZENER;BZX84C12L,5%,225mW,SOT-23,TP M9999 0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350mW,SOT-2...
  • Page 23 - This Document can not be used without Samsung's authorization - 6. Exploded View and Part List NP-R40FY02/SER Location Part Number Parts Name & Specification Q'ty SA/SNA M9999 2007-008789 R-CHIP;0.001ohm,1%,1W,TP,6432 M9999 2203-002487 C-CER,CHIP;4.7nF,10%,25V,X7R,1005 M9999 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1005 M9999 2203-006090 C-CER,CHIP;10000nF,10%,6.3V,X5R,2012 M9999 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,2012...
  • Page 24 - This Document can not be used without Samsung's authorization - 6. Exploded View and Part List NP-R40FY02/SER Location Part Number Parts Name & Specification Q'ty SA/SNA T0005 BA68-02502A LABEL-INTEL_CELERON-M;CETUS,ALL,-,-,W19. T0005 BA68-03686A LABEL-LOGO_VISTA-PREMIUM;N/P ALL,VISTA P T0005 BA68-03770A LABEL-ZAIGEN;FIRENZE2-R,CIS,PET,-,W100,L T0005 BA68-10191Y LABEL-ATI_XPRESS1250;FIRENZE2-R,-,ART-PA...
  • Page 25 - This Document can not be used without Samsung's authorization - 4. Assembly and Disassembly Item Picture Description 1. AC Adapter & Battery must be disassembled before disassembling System. 2. Move Knob like Point 1 and separate Battery like Point 2.
  • Page 26 - This Document can not be used without Samsung's authorization - 4. Assembly and Disassembly Item Picture Description 7. Push HDD to Arrow mark side gripping handle to remove HDD. *Caution Be careful when push the HDD to the rear side.
  • Page 27 - This Document can not be used without Samsung's authorization - 4. Assembly and Disassembly Item Picture Description 10. Bottom view after remove HDD, Wireless LAN, Memory, 11. Lift up Top cover from right side. Main *Caution System Lift up Top cover after fully openning the lid.
  • Page 28 - This Document can not be used without Samsung's authorization - 4. Assembly and Disassembly Item Picture Description 13. Use tweezers, wooden cutter, '-' driver to disassemble Keyboard. *Caution 1. Be careful of injury and scratch of Top surface when use instruments.
  • Page 29 - This Document can not be used without Samsung's authorization - 4. Assembly and Disassembly Item Picture Description 17. Disassemble Speaker Cable by pulling out the connector like a picture. 18. Disassemble LCD cable tapping by lifting up transparent handle.
  • Page 30 - This Document can not be used without Samsung's authorization - 4. Assembly and Disassembly Item Picture Description 21. Disassembly LCD Ass'y from System after remove 2 screws. - M2 L6 : 2pcs 22. After disassembly LCD Ass'y. Main System 23.
  • Page 31 - This Document can not be used without Samsung's authorization - 4. Assembly and Disassembly Item Picture Description 25. Lift up Top from right side. 26. Remove 2 screws to disassemble Main Board from Bottom. Disconnect RJ11 Cable and Bluetooth Cable.
  • Page 32 - This Document can not be used without Samsung's authorization - 4. Assembly and Disassembly Item Picture Description 29. Disassemble Bluetooth with Cable after removing 1 screw. - M2 L4 : 1pcs *Caution Be careful not to crash the Bluetooth Module, when disassemble from hook.
  • Page 33 - This Document can not be used without Samsung's authorization - 4. Assembly and Disassembly Item Picture Description 32. Remove 6 screws and pull out the FAN Cable to the arrow mark side. Lift up the Thermal Duct. - M2 L4 : 6pcs...
  • Page 34 - This Document can not be used without Samsung's authorization - 4. Assembly and Disassembly Item Picture Description 36. Lift up the PCMCIA Frame like a picture. *Caution Be care of not to bend PCMCIA Pin. 37. Disconnect the MDC with Cable like a picture after removing 2 screws.
  • Page 35 - This Document can not be used without Samsung's authorization - 4. Assembly and Disassembly Item Picture Description 2. Remove 2 screws to disassemble Speaker. - M2 L4 : 2pcs 3. Remove Speaker after detach 2 adhesives. *Caution - Be care of not to crash Speaker Cable.
  • Page 36 - This Document can not be used without Samsung's authorization - 4. Assembly and Disassembly Item Picture Description 6. Top Ass'y after removing Speaker and Touchpad Bracket Ass'y *Caution Do not detach Touchpad Module, because that is attached with Top by double adhesive.
  • Page 37 - This Document can not be used without Samsung's authorization - 4. Assembly and Disassembly Item Picture Description 4. Disassemble the LCD Module and Inverter from LCD Back after removing 6 screws. - M2 L6 6pcs 5. Disassemble the Bracket Upper after removing 3 screws.
  • Page 38 - This Document can not be used without Samsung's authorization - 4. Assembly and Disassembly 4-2. P50 의 Assembly and Disassembly Item Picture Description 8. Disconnect the LCD Cable from Inverter like a picture. 9. Disconnect the LCD Module from Inverter like a picture.
  • Page 39 - This Document can not be used without Samsung's authorization - 4. Assembly and Disassembly Item Picture Description 12. Disassemble the LCD L, R Bracket after removing 8 screws. - M2 L3 : 8pcs *Caution Be care of not scratch the LCD surface when remove screws.
  • Page 40 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting 1) General (1) Tools used for repairing the product System Diagnostics Disk MS-DOS Booting Disk System Diagnostics Card Screwdrivers ( ┼ , ━ ) Tweezers Multi-meter...
  • Page 41 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting 2) Debugging Flow Chart Start Power on No problem Check there is Check Adapter and Power on? any short in the Battery. No problem main board.
  • Page 42 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting No problem No problem Check speaker Change Mainboard Speaker's sound is OK? Check driver status. connection and and check it. speaker cable It is It is problem.
  • Page 43 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting No problem No problem No problem Check DMB function Change Mainboard Check driver status. Check DMB Module. Internal/Exter is OK? and check it. nal Antenna It is...
  • Page 44 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting 3) System Diagnosis (1) System Diagnosis Card The working status of the system is displayed by hexadecimal codes on the seven segment during the post. If the system is working improperly, it is used to test the system is working in the proper way after replacing the FRU caused system down or diagnosing the causes of the improper working without taking apart the system.
  • Page 45 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting Test the CPU bus-clock frequency Initialize Phoenix Dispatch Manager Warm start shutdown Shadow system BIOS ROM Auto size cache Advanced configuration of chipset registers Load alternate registers with CMOS values...
  • Page 46 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting Re-initialize onboard I/O ports. Configure Mothe board Configurable Devices Initialize BIOS Data Area Enable Non-Maskable Interrupts (NMIs) Initialize Extended BIOS Data Area Test and initialize PS/2 mouse...
  • Page 47 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting (3) Use of Debug card -. Like upper picture, debug card is connected to MiniPCI Socket on Main board. -. Debug code is shown at the viewer in red line.
  • Page 48 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting 4) Hardware Troubleshooting For the procedures to disassemble each part, refer to the descriptions of Chapter 4, “Disassembly and Reassembly”. ◆ LCD Related Troubles 1. The screen is dark or the colors of the screen are distorted.
  • Page 49 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting ◆ Main System Troubles 5. The system is not turned off. → Check if the AC adapter LED is lit and if the adapter is properly connected to the system.
  • Page 50 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting → Check the connection status of the speaker cable and check if the speaker is out of order. → Check if there is a magnetic object near the speaker.
  • Page 51 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting 12. The battery is not charged or the battery charge LED malfunctions. → Check the standard voltage of the adapter. → Check if the battery is defective.
  • Page 52 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting 17. Modem does not work normally. → Check if the Modem driver is properly installed. → Check if the MDC is connected to Main board properly.
  • Page 53 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting ◆ When booting up the computer 19. The "Invalid System Disk. Replace the Disk and then press any key" message appears. → This message may appear when the connected USB memory or CD media does not include bootable data.
  • Page 54 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting ◆ Windows / Screen Related Problems 25. The computer hangs while running a program. → If the running program causes an error: In Windows XP, press the <Ctrl>, <Alt> and <Del> key combination, select the application program and click on End Task in the Applications tab of the [Windows Task Manager] window.
  • Page 55 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting (1) HDD and ODD Related Problems For an HDD, check if the HDD operates in Ultra DMA Mode 5 by selecting the Primary IDE Channel in the Control Panel as follows. If it does not, check the BIOS SETUP, reinstall the operating system or replace the HDD, if necessary.
  • Page 56 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting The drivers and application software are listed in the following table. DRIVER ITEM/Revision ROLS Cyberlink DVD Solution(33 - Vista) DNC;V32PR/V32HB/V32BZ/V32UL;DNC;ALL Display Manager 2.0(for DNC;XPHOM/XPPRO/XPMCE/XPTBL/V32PR/V32HB/V32BZ/V32UL;DNC;ALL VISTA)(2.1.0.7) DNC;XPHOM/XPPRO/XPH64/XPP64/XPMCE/XPTBL/WIN2K/V32PR/V32HB/V32BZ/V3 Easy Network Manager(3.0.1.6)
  • Page 57 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting Touchpad DNC;V32PR/V32HB/V32BZ/V32UL;DNC;ALL Driver(WHQL)(9.1.7.0(VistaWHQL)) Vista manual_Firenze2-R DNC;V32PR/V32HB/V32BZ/V32UL/V64PR/V64HB/V64BZ/V64UL;KOR/ENG/FRN/ (R40Plus)(1.0) GER/SPN/RUS/CHS/CHT/UKR;ALL Agere Delphi Modem DNC;V32PR/V32HB/V32BZ/V32UL;DNC;ALL Driver(2.1.75_Vista_LogoedR) ALC26X Sound DNC;V32PR/V32HB/V32BZ/V32UL/V64PR/V64HB/V64BZ/V64UL;DNC;ALL Driver(6.0.1.5322logoP2) Broadcom Bluetooth Driver DNC;V32PR/V32HB/V32BZ/V32UL/V64PR/V64HB/V64BZ/V64UL;KOR/ENG/FRN/ (BCM92045NMD)(6.0.1.3400_Vista_Logoe GER/SPN/POR/RUS/ITA/CHS/CHT/THA/JPN;ALL Vista(32 & 64)-Realtek LAN Driver DNC;V32PR/V32HB/V32BZ/V32UL/V64PR/V64HB/V64BZ/V64UL;DNC;ALL...
  • Page 58 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting Dungeon&Fighter Setup KOR;XPHOM/XPPRO/XPMCE/XPTBL/V32PR/V32HB/V32BZ/V32U Icon(1.0.0.1_2) L/V64PR/V64HB/V64BZ/V64UL;KOR;ALL Firenze2-R Vista Graphics DNC;V32PR/V32HB/V32BZ/V32UL/V64PR/V64HB/V64BZ/V64UL; Driver(8.332.0.0 (RC2)) DNC;ALL DNC;XPHOM/XPPRO/XPMCE/XPTBL/V32PR/V32BZ/V32UL;CHT; McAfee VirusScan (CHT)(13.3.0.132) DNC;XPHOM/XPPRO/XPMCE/XPTBL/V32PR/V32HB/V32BZ/V32U Samsung Screen Saver(1.0.1.0) L;KOR;ALL Wallpaper Vista(2.0.0.0) DNC;V32PR/V32HB/V32BZ/V32UL;DNC;ALL 5- 19...
  • Page 59 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting 6) CPU Fan Control (1) CPU: MEROM, YONAH, Celeron/-D [T j 100] Basic Mode Low noise Mode (Etiquette Mode) Battery Mode (Etiquette Mode) 5- 20...
  • Page 60 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting (2) CPU: MEROM, YONAH, Celeron/-D [T j 85] Basic Mode Low noise Mode (Etiquette Mode) Battery Mode (Etiquette Mode) 5- 21...
  • Page 61 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting 7) Battery Use Time Check the following check lists for systems where the battery use time is too short to diagnose problems. (1) Check the battery Check if the battery is out of order referring to the Battery check program distributed to Service Centers and the 'Battery Check Manual' included in the 'Note-PC A/S Guide'.
  • Page 62 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting 5- 23...
  • Page 63 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting 5- 24...
  • Page 64 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting 3. Battery Capacity Table 4. Battery Check Program 5- 25...
  • Page 65 - This document cannot be used without the authorization of Samsung - 5. Troubleshooting (2) Check the battery use environment 1. Generally, the battery usage time in advertisements by notebook manufacturers refers to the maximum battery use time. Since the system specifications and the usage environment may differ, the user's battery usage time may differ from the advertisement even if there is no problem with the system.

  • Page 66: Block Diagram

    - 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 - - This Document can not be used without Samsung's authorization - 8. Block Diagram *. 시스템 블록도는 회로도에 나와 있으니, 가급적 회로도를 참고하시기 바랍니다...
  • Page 67 - 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 - - This Document can not be used without Samsung's authorization - 8. Block Diagram...
  • Page 68 - 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 - - This Document can not be used without Samsung's authorization - 8. Block Diagram...
  • Page 69 - 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 - - This Document can not be used without Samsung's authorization - 8. Block Diagram...

  • Page 70: System Wire Diagram

    - This Document can not be used without Samsung's authorization - 9. System Wire Diagram 1) R40 plus System Speaker cable Touchpad FFC WLAN Antenna RJ11 Cable LCD Cable Bluetooth Cable 9- 1...
  • Page 71 - This Document can not be used without Samsung's authorization - 9. System Wire Diagram 2). R40 plus LCD 9- 2...
  • Page 72 - This Document can not be used without Samsung's authorization - 3. Function 1) Construction of System 3- 1...
  • Page 73 - This Document can not be used without Samsung's authorization - 3. Function 3- 2...
  • Page 74 - This Document can not be used without Samsung's authorization - 3. Function 3- 3...
  • Page 75 - This Document can not be used without Samsung's authorization - 3. Function 2) Keyboard 3- 4...
  • Page 76 - This Document can not be used without Samsung's authorization - 3- 5...
  • Page 77 - This Document can not be used without Samsung's authorization - 3. Function 3) Multi Card Slot 3- 6...
  • Page 78 - This Document can not be used without Samsung's authorization - 3. Function 3- 7...
  • Page 79 - This Document can not be used without Samsung's authorization - 3. Function 3- 8...
  • Page 80 - This Document can not be used without Samsung's authorization - 3. Function 5) PC Card Slot 3- 9...
  • Page 81 - This Document can not be used without Samsung's authorization - 3. Function ) System Main board. (1) TOP 3- 10...
  • Page 82 - This Document can not be used without Samsung's authorization - 3. Function (2) BOTTOM 3- 11...
