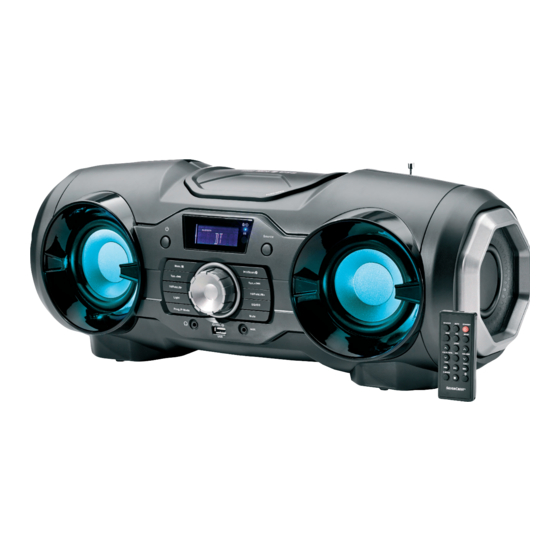

- Page 1 CD SOUND SYSTEM SPSS 125 A1 CD SOUND SYSTEM CDSOUNDSYSTEM Operating instructions Bedienungsanleitung IAN 313633...
- Page 2 Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device. Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit allen Funktionen des Gerätes vertraut. GB/IE/NI Operating Instruction Page Bedienungsanleitung...
- Page 3 Source /Scan/ Mem./ Tun.-/ Tun.+/ 10/Fold./M+ 10/Fold./M Light EQ/ID3 Prog./P-Mode Mute VOL. 14 15...
- Page 4 17 18 19 20 21 23 24 25 SOURCE LIGHT...
-
Page 5: Table Of Contents
Contents Introduction ...................7 1.1. Information about these operating instructions ..........7 1.2. Key to symbols ....................7 Proper use ..................9 Safety information ............... 10 3.1. Operating safety ..................10 3.2. Installation location ..................1 1 3.3. Repairs ......................12 3.4. Environmental conditions ................12 3.5. Power supply ....................12 3.6. - Page 6 Playing back CDs and USB storage media ........24 16.1. Notes on the media ..................24 16.2. Inserting a disc ..................... 25 16.3. Inserting USB memory sticks ............... 25 16.4. Start/pause playback ................25 16.5. Track selection, fast rewind/forward ............25 16.6.
-
Page 7: Introduction
1. Introduction 1.1. Information about these operating instructions Congratulations on purchasing your new device. You have chosen a high-quality product. The operating instructions are an integral part of this product. They contain important safe- ty information and instructions for use and disposal. Before using the product, please famil- iarise yourself with all operating and safety instructions. - Page 8 Notes regarding assembly or operation Comply with the notes in the operating instructions. Symbol for direct current Symbol for AC current Dispose of the device in compliance with environmental regulations Safety note Instruction • List Products that feature this symbol meet the requirements of the EU directives (see chapter entitled “Declaration of conformity”).
-
Page 9: Proper Use
2. Proper use This is an entertainment electronics device. Your device can be used in a range of ways: The device is intended for playing sound media (CDs, MP3 data me- dia, USB devices), as well as for radio reception. ... -
Page 10: Safety Information
3. Safety information IMPORTANT SAFETY INSTRUCTIONS – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE! 3.1. Operating safety • This device is not intended for use by people (including children) with reduced physical, sensory or mental abilities or by those with- out experience and/or knowledge, unless they are supervised by a person responsible for their safety or they have been instruct- ed in its use by that person. -
Page 11: Installation Location
3.2. Installation location The device is not designed for use in rooms with high humidity levels (e.g. bathrooms). Make sure that you do the following: • Set up and operate all components on a sturdy, level and vibra- tion-free surface to prevent the device from falling. •... -
Page 12: Repairs
3.3. Repairs • Contact customer services if: − the mains cable is burnt or damaged − liquid has penetrated the device − the device is not operating correctly − the device has fallen or the housing is damaged. • Repairs to your device should only be carried out by qualified spe- cialists. -
Page 13: Cd Player
WARNING! Risk of electric shock! Even when the device is switched off, some components are live. In order to disconnect the power to your device or to completely isolate the device from voltage sources dis- connect the mains plug from the outlet and remove the batteries from the device. -
Page 14: Batteries
3.7. Batteries The device and remote control are battery-operated. Please note the following: • Keep new and used batteries out of the reach of children. Do not swallow batteries as they can cause chemical burns. WARNING! Risk of chemical burns! The remote control supplied with the product contains a coin battery. - Page 15 • Store batteries in a cool, dry place. Strong direct heat can dam- age batteries. Do not expose the device to sources of intense heat. • Never short-circuit batteries. • Never throw batteries into a fire. • Remove leaking batteries from the device immediately. Clean the contacts before inserting a new battery.
-
Page 16: Description Of Components
4. Description of components 4.1. Front Fig. A Control field: MEM. – Store radio station – Stop playback – Start/pause playback SCAN – Store radio station automatically – Pair Bluetooth devices TUN.-/ – Radio frequency/station search backwards; fast forward/rewind; previous track TUN.+/... -
Page 17: Display
4.3. Display Fig. C CD – CD operating mode MP3 – MP3 files available USB – USB data medium inserted BLUETOOTH – Bluetooth operating mode RAN – Random playback INTRO – Intro playback mode STEREO – Stereo display in radio mode PROG –... -
Page 18: Package Contents
5. Package contents DANGER! Risk of choking and suffocation! Risk of choking and suffocation through swallowing or in- haling small parts or plastic wrap. Keep the plastic packaging out of the reach of children. Remove all packaging materials and make sure the following parts have been sup- plied when unpacking: The following items are supplied with your product: •... -
Page 19: Declaration Of Conformity
CD player Supported formats CD-R, CD-RW, audio CD, MP3 CD Bluetooth Operating frequency 2402 to 2480 MHz Maximum transmission power -5.06 dBm Bluetooth version V2.1, supports A2DP V1.2, AVRCP V1.0 Range 10 m (depending on environmental con- ditions) Connections FM antenna Permanently installed telescopic aerial Line in 3.5 mm jack... -
Page 20: Getting Started
8. Getting started 8.1. Inserting the battery in the remote control As delivered, the battery is already inserted in the remote control. To activate it, pull out the insulating strip on the underside of the remote control. 8.2. Replacing batteries The remote control requires a 3 V coin battery, type CR 2025. -
Page 21: Battery Operation - Inserting The Batteries Into The Device
8.3. Battery operation – inserting the batteries into the device The battery compartment is located at the rear of the device. Release both latches and remove the battery compartment cover. Insert eight 1.5 V R20/LR20/D batteries (not supplied) with the negative ends on the springs. -
Page 22: Connecting The Headphones
9. Connecting the headphones You will find a 3.5 mm headphone socket on the front of the device. Insert headphones with a 3.5 mm jack plug into the headphone socket. When headphones are connected the speakers are disabled. Volume adjustment is still possible to change the headphone volume. -
Page 23: Switching On The Device/Standby
12. Switching on the device/standby Press the button to switch on the device. The display lights up. Press the button again to switch the device back into standby mode and only the red standby LED lights up. 13. Audio functions 13.1. -
Page 24: Storing And Selecting Stations
15.2. Storing and selecting stations 15.2.1. Storing stations automatically Press and hold the SCAN button on the device until the station search starts automat- ically. All the stations found by the search are now stored automatically, one after the other. -
Page 25: Inserting A Disc
16.2. Inserting a disc Make sure that there is about 15 cm of space above the device so that the lid of the CD compartment can open without hindrance. Press on the front of the CD compartment to open it. ... -
Page 26: Programming The Track Playing Order
16.7. Programming the track playing order Use the programme function to create your own music playlist by selecting which specific tracks you want to play. You can specify the order in which the list is played yourself. Pro- ceed as follows: ... -
Page 27: Bluetooth Mode
Perform pairing on the external device. Refer to the instructions for your external device for more information. Select the name of the sound systems “SPSS 125 A1”. The pairing process is now complete and the external device can now be used with the audio system. -
Page 28: Cleaning
18. Cleaning Always disconnect the device from the mains before cleaning it. Only use a dry, soft cloth to clean the device. Do not use chemical solutions or cleaning products because these may damage the device’s surface and/or inscriptions. Notice! Do not touch or clean the lens in the laser unit. - Page 29 Fault Possible cause Corrective action CD is not Condensation has formed. Pull the mains plug out of the played. mains outlet and wait until the device and the CD has adapted to the environmental conditions. Incorrect CD format. The device only supports the CD formats specified in the techni- cal data.
-
Page 30: Disposal
21. Disposal PACKAGING Your device has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmentally friendly manner. DEVICE Do not dispose of old devices in normal household waste. In accordance with Directive 2012/19/EU, the devices must be properly dis- posed of at the end of its service life. -
Page 31: Information On Trademarks
22.1. Information on trademarks SilverCrest® is a registered trademark of Lidl Stiftung & Co. KG, 74167 Neckarsulm, Germany. The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used by MLAP under licence. USB is a registered trademark of USB Implementers Forum Inc. -
Page 32: Scope Of Warranty
23.3. Scope of warranty The product is manufactured in accordance with strict quality guidelines and thoroughly tested before dispatch. The warranty applies for defects in materials or manufacture. This warranty does not ex- tend to product parts that are subject to normal wear and can therefore be regarded as wearing parts or to damage to fragile parts, e.g. -
Page 33: Supplier/Producer/Importer
Service Ireland Hotline +353 1 6533859 Mon - Fri: 09:00 - 17:00 Please use the contact form at www.mlap.info/contact Service North Ireland Hotline +44 28 95922074 Mon - Fri: 09:00 - 17:00 Please use the contact form at www.mlap.info/contact Service Cyprus Hotline ... - Page 34 34 - English...
- Page 35 MLAP GmbH Meitnerstr. 9 DE - 70563 Stuttgart GERMANY Last Information Update · Informationerne opdateret den Version des informations · Stand van de informatie Stand der Informationen: Update: 1 1/2018 · Ident.-No.: 50061365-43428-051 12018-GB-IE-NI IAN 313633...
