Sony ICF-CD73 Operating Instructions

3-253-601-13 (1)
FM/AM

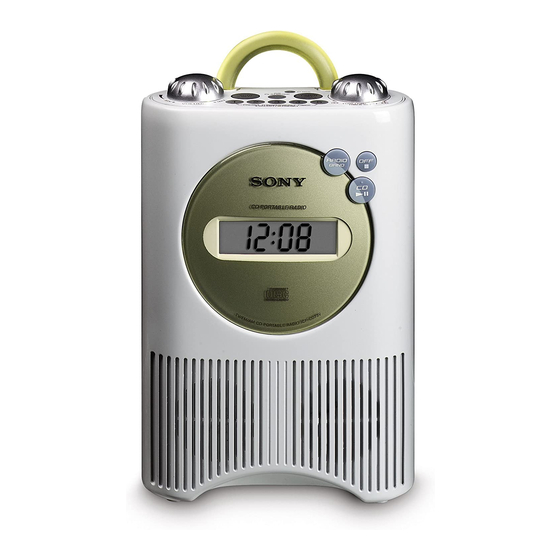

CD Portable Radio
Operating Instructions
Mode d'emploi (au verso)
ICF-CD73
 2003 Sony Corporation
Printed in China
CLOCK
MODE
AUTO TIMER
SET
OFF
ON/OFF
1 2 3 4 5
TUNE/TIME SET
VOLUME
TIMER SET
PRESET TUNING/PRESET TIMER
SELECT/ PRESET
RADIO
OFF
ON
BAND
CD
FM wire antenna
AUTO OFF SHUFFLE
RADIO CD
REP1 ALL
TIMER
PRESET
TRACK
AM
MHz
FM12PM
kHz
A B
Buckle
j
AC power adaptor*
B
To a wall outlet
DC IN 6 V jack
*Supplied with European model only
C
1 2
D E
Suction cup
g
FM wire antenna
F
g
Buckle
G
FM AM
FM wire antenna
Replacing the
Batteries
• When the batteries (not supplied) become
English
weak, the sound becomes weak and distorted
and "E" flashes. Replace the batteries with
new ones. When the batteries are completely
exhausted, the unit and the timer will turn off
WARNING
and "E" is displayed.
• When the batteries become weak while playing
To prevent fire or shock hazard, do not expose
a CD, "E" will flash in the display and CD
the unit to rain or moisture.
playback will stop. However, the radio will still
To avoid electrical shock, do not open the
function after turning on the unit again until
cabinet. Refer servicing to qualified personnel
the batteries are completely exhausted.
only.
• Before replacing the batteries, make sure that
Do not install the appliance in a confined space,
the unit is turned off.
such as a bookcase or built-in cabinet.
• After replacing the batteries, press RADIO ON
To prevent fire or shock hazard, do not place
BAND/CD u and "E" will disappear.
objects filled with liquids, such as vases, on the
• Replace the batteries within 5 minutes.
apparatus.
Otherwise, the memories for the clock and the
Connect the AC power adaptor to an easily
preset stations will be erased and "AM 12:00"
accessible AC outlet. Should you notice an
or "0:00" will flash in the display.
abnormality in the AC power adaptor,
• When operating the unit on batteries, remove
disconnect it from the AC outlet immediately.
the AC power adaptor from the DC IN jack.
The unit cannot be operated on batteries when
Features the AC power adaptor is connected to the DC
IN jack.
• When you install/replace the batteries, do not
• Built-in CD player with CD-R/RW playback
push hard on the unit as it may damage the
• FM/AM PLL (Phase Locked Loop) synthesized
tuner with 15 station memory presets display panel or cause a malfunction.
• Splash resistant; you can enjoy music in your
Notes on batteries
bathroom or kitchen.
• Do not charge dry batteries.
• Easy-to-use shuttle dial for tuning and time
• Do not carry dry batteries together with coins
setting.
or other metallic objects. It can generate heat if
• Easy-to-set countdown timer for cooking, etc.
the positive and negative terminals of the
• Product can be hung with the supplied
batteries accidentally come into contact with
hanging strap, or placed on a tabletop.
metallic objects.
Note on AM Channel Step • When you are not going to use the unit for a
long time, remove the batteries to avoid
The AM channel step differs depending on area.
See "Changing AM Channel Step." damage from battery leakage and corrosion.
• Do not use different types of batteries at the
same time.
Precautions •When you replace the batteries, replace all with
new ones.
• Operate the unit only on 6 V DC. For battery
operation, use 4 R14 (size C) batteries. For AC
Using the AC power
operation, use only the recommended AC
power adaptor.
• The unit is not disconnected from the AC adaptor
power source (mains) as long as it is connected
• When operating the unit with an external
to a wall outlet, even if the unit itself has been
turned off. power source, do not remove the batteries.
• The nameplate indicating operating voltage, These batteries serve to backup the clock and
memory settings. Since the batteries discharge
etc. is located on the bottom exterior.
in this case as well, we recommend changing
• Avoid exposure to temperature extremes,
direct sunlight, moisture, sand, dust or them about once a year.
mechanical shock. Never leave in a car parked • To prevent battery leakage, we recommend
under the sun. removing the batteries when the unit is
connected to a wall outlet.
• In vehicles or buildings, radio reception may
be difficult or subject to interference. Try • Before connecting and disconnecting the
listening near a window. external power source plug, be sure to turn off
• Since a strong magnet is used for the speaker, the radio/CD. Otherwise, "E" may be
displayed. When this occurs, turn on the
keep away personal credit cards using
magnetic coding or spring-wound watches radio/CD so that "E" disappears.
from the unit to prevent possible damage from • When the AC power adaptor is not to be used
the magnet. for a long period of time, unplug it both from
the DC IN 6 V jack and from the wall outlet.
• To clean the casing, use a soft cloth dampened
with water, wipe it again with a dry cloth. Do • When the cover of the DC IN 6 V jack is open
not use alcohol, benzine or thinner. (to use the AC power adaptor), the jack area is
• Do not use soap or detergent; do not dry with not splash-resistant. When the AC power
adaptor is not connected to the DC IN 6 V jack,
an electric hair dryer.
be sure to close the cover of the DC IN 6 V jack.
Note on condensation
• Use the recommended Sony AC power
If the player is brought directly from a cold to a
adaptor* only. The polarity of the plugs of
warm location, or is placed in a very damp room,
other manufacturers may be different. Failure
moisture may condense on the lens inside the CD
to use the recommended AC power adaptor
player section. Should this occur, the player will
may cause the unit to malfunction.
not operate properly. In this case, remove the CD
* Supplied with European model only
and wait about an hour for the moisture to
evaporate.
Notes on CDs
• Before playing, clean the CD with a cleaning
cloth. Wipe the CD from the center out.
Polarity of the plug
If you have any questions or problems
concerning your unit, please consult your
nearest Sony dealer.
Troubleshooting
Should any problem occur with the unit, do the
following checks to determine whether or not
servicing is required. If the problem persists,
• If there is a scratch, dirt or fingerprints on the
consult the nearest Sony dealer.
CD, it may cause tracking error.
The CD player does not operate.
• Did you close the CD compartment lid?
• Did you place the disc correctly?
Cautions on Splash-
The disc should be placed with the labelled
side up.
resistance
• Dusty or defective disc — Clean the disc with
an optional cleaning cloth. Wipe the disc from
This unit is designed so that it can be used with
the center out (see "Notes on CDs").
slight exposure to rain, snow and other forms of
• Take out the CD and leave the CD compart-
moisture, but there are several points on which
ment open for about an hour to get rid of
caution should be observed.
moisture condensation (see "Note on
• Do not allow it to come in contact with large
condensation").
amounts of water.
Sporadic loss of sound in CD operation.
• Do not immerse it in water.
• Dusty or defective disc — Clean or replace the
• Open or close the battery/CD compartment
disc.
with dry hands in a place without exposure to
• Volume too high — Reduce the volume.
any water.
• Strong vibration.
• Do not touch the AC power adaptor with wet
hands, as there is a risk of electric shock.
• Use batteries for the unit when you use it in a
Specifications
wet place, such as a bathroom. Do not use the
AC power adaptor, as there is a risk of electric
CD player section
shock.
• The rubber parts attached to the lid of the
System: Compact disc digital audio system
battery/CD compartment and the DC IN 6V
Laser diode properties: Material: GaAlAs
socket are necessary to keep the unit water
Wavelength: 780 nm
resistant. Do not damage them.
Emission duration: Continuous
• Before replacing batteries, wipe all water
Laser output: Less than 44.6 µW
droplets from the unit. Then, open the lid on
(This output is the value measured at a
the back of the unit.
distance of about 200 mm from the objective
• Any malfunction caused by water entering the
lens surface on the optical pick-up block with
unit, consult the nearest Sony dealer.
7 mm aperture.)
Frequency response: 20 – 20 000 Hz
Wow and flutter: Below measurable limit
Radio section Notes
• You can set the clock also during the radio
Frequency range:
reception/CD playback mode.
North America/Mexico • To set the current time quickly, rotate and hold
in either +/– direction the TUNE/TIME SET/
Band Channel
TIMER SET dial.
step
• To set the current time exactly, follow step 2
FM 87.5 – 108 MHz 0.1 MHz
and press CLOCK again with the time signal of
AM 530 – 1 710 kHz 10 kHz a radio station.
FM 87.5 – 108 MHz 0.05 MHz
AM 531 – 1 710 kHz 9 kHz
Playing a CD (See
Other countries/regions
Fig. F)
Band Channel
step
An 8 cm (3-inch) CD can be played without an
adaptor.
FM 87.5 – 108 MHz 0.05 MHz
AM 531 – 1 611 kHz 9 kHz 1
Release the buckle on the back of the
FM 87.5 – 108 MHz 0.1 MHz
unit to open the CD compartment lid
AM 530 – 1 610 kHz 10 kHz
and place a disc.
2
Close the CD compartment lid and
General
fasten with the buckle until it clicks.
Time display:
3
Press CD u.
North America, UK: 12-hour system
"
Other countries/regions: 24-hour system
display to indicate that track 1 of CD is
Speaker: 50 mm (2 inches) dia, 6 Ω
playing.
Power outputs:
400 mW + 400 mW (at 10% harmonic
RADIO
distortion)
WEATHER
TV AM
Power requirements: FM12PM
6 V DC, 4 R14 (size C) batteries 4
Adjust the volume using VOLUME.
External power source: DC IN 6 V
Dimensions:
To
Approx. 151.5 × 248 × 84 mm (w/h/d)
Pause
(Approx. 6 × 9 × 3
7 / 3 / inches) incl.
8 8
projecting parts and controls Resume play after pause
Mass: Approx. 1 350 g (2 lb 16 oz) incl. batteries
Locate the beginning of
Supplied accessories:
the current track (AMS*)
Suction cup (1), Strap (1)
Locate the next track
AC power adaptor (1)*
(AMS*)
* Supplied with European model only
Go back at high speed
Optional accessory:
AC power adaptor AC-E60HG*
Go forward at high speed
* The voltage of power supply is different
Locate the previous track
depending on the country/region. Please buy
(AMS*)
an AC power adaptor in the country/region
Locate the succeeding
where the unit to be used.
track (AMS*)
Your dealer may not handle the above listed
Stop play
accessory. Please ask the dealer for detailed
information. * AMS = Automatic Music Sensor
** These operations are possible during both
Design and specifications are subject to change
play and pause.
without notice.
Various Modes of CD Playback
You can play tracks repeatedly or in random order.
Choosing Power
Press MODE.
Each pressing MODE changes the play mode as
Sources
follows:
Display
Installing the Batteries (See Fig.
indication
A)
none
Press the buckle of the battery compartment lid
All the tracks are played once.
inward and pull upward to open the lid.
Install 4 R14 (size C) batteries (not supplied) with
the correct polarity and close the lid. "REP 1"
A single track is played repeatedly.
"AM12:00" or "0:00" flashes in the display when
you install batteries for the first time. To stop the
"REP ALL"
display from flashing, set the clock (see "Setting
the Clock"). All the tracks are played repeatedly.
Battery Life (Approx. hours) (JEITA*)
"SHUFFLE"
When using FM AM CD
All the tracks are played once in random order.
Sony alkaline 50 60 18
LR 14 (size C)
"SHUFFLE REP" (shuffle repeat)
Sony 15 17 3
All the tracks are played repeatedly in random
R 14 (size C)
order.
* Measured by JEITA (Japan Electronics and
Information Technology Industries Associa- Note
tion) standards. The actual battery life may
• Discs with non-standard shapes (e.g., heart,
vary depending on the circumstance of the square, star) cannot be played on this unit.
unit. Attempting to do so may damage the unit.
Do not use such discs.
House Current (See Fig. B)
• If you press CD u when there is no disc in
the CD compartment, "00" flashes for about
Make sure the unit is turned off before using
5 seconds on the display and the unit turns off
house current.
automatically.
Connect the Sony AC power adaptor (supplied*)
to the DC IN 6 V jack firmly, and plug it into a
About CD-Rs/CD-RWs
wall outlet.
When the AC power adaptor is not connected to This unit is compatible with CD-Rs/CD-RWs but
the DC IN 6 V jack, be sure to close the cover of playback capability may vary depending on the
the DC IN 6 V jack. quality of the disc, the recording device and
application software.
* Supplied with European model only
Music discs encoded with
Using the FM wire copyright protection technolo-
gies
antenna (See Fig.
This product is designed to play back discs that
C)
conform to the Compact Disc (CD) standard.
Recently, various music discs encoded with
copyright protection technologies are marketed
Taking out the FM wire antenna
by some record companies. Please be aware that
Hook your finger around the FM wire antenna
among those discs, there are some that do not
and pull out the end of the antenna from the
conform to the CD standard and may not be
slot 1. Open the buckle and unwrap the FM
playable by this product.
wire antenna completely, then close the buckle.
To handle compact discs
Storing the FM wire antenna Correct
When the FM wire antenna is not in use, store
the antenna as follows:
Open the buckle and wrap the FM wire antenna
completely around the buckle, then close the
buckle. Insert the end of the wire antenna into
the slot 1. Pinch the antenna wires wrapped
Incorrect
around the buckle and push them into the slit 2.
Note
When you close the buckle, make sure the
antenna is stored correctly. You may damage the
antenna if you close the buckle forcefully.
Tying the FM wire antenna (See
Fig. D)
Tie the FM wire antenna to the supplied suction
cup and attach the cup to the wall.
Changing AM
Using the Strap (See.
Channel Step
Fig E)
The AM channel step differs depending on area.
Use the strap as shown in the illustration.
The channel step of this unit is factory-set to
Notes 9 kHz or 10 kHz to change the setting as shown
below to be able to listen to the radio.
• The strap is only for hanging the unit, do not
use the strap to carry it.
Area
• Do not hang the unit from where it easily fall
down. North America/Mexico
Other countries/regions
Setting the Clock
1 Press OFF x to turn off the power.
2
While holding down OFF x, keep
The display will flash "AM12:00" or "0:00" when
the batteries are installed or the AC power
pressing PRESET TUNING/PRESET
adaptor is plugged in for the first time.
TIMER 1 for more than 5 seconds.
1 Two short beeps will sound, and the AM
Press and hold down CLOCK for more
channel step will be changed. If you proceed
than 2 seconds.
to step 2, the channel step will change again.
The beep sounds and the hour flashes in the
display.
Notes
2
Rotate in either +/– direction the TUNE/
• When the AM channel step is changed, the
preset stations for AM will be initialized.
TIME SET/TIMER SET dial until the
• When the AM channel step is changed, the
correct hour appears in the display.
preset stations will be reset to their default
factory settings.
RADIO AUTO OFF CD SHUFFLE
• When the AM channel step is changed, the FM
TIMER REP1 ALL
WEATHER PRESET
channel step also will be changed.
TRACK
TV AM
MHz
FM12PM
kHz
Each rotation of the dial changes the digit(s)
Improving the
by one.
When you hold the dial, the digit(s) change
Reception (See fig.
rapidly.
3
Press CLOCK. G)
The beep sounds and the minute starts to
flash. Repeat step 2 to set the minute. After
FM: Tie the FM wire antenna to the supplied
setting the minute, press CLOCK again. The
suction cup.
two beeps sound and the clock starts from
Extend and adjust the antenna Secure the
0 seconds.
suction cup on the wall where you get
+1
dB
–1.5
optimum reception.
AUTO OFF SHUFFLE
RADIO CD
REP1 ALL
TIMER AM: Rotate the unit horizontally for optimum
PRESET
WEATHER
TRACK
TV AM reception. A ferrite bar aerial is built in the
MHz
FM12PM
kHz
unit.
12-hour system: "AM 12:00" = midnight
24-hour system: "0:00" = midnight
Operating the Radio
—Manual Tuning
1
Press RADIO ON BAND to turn on the
radio.
The band and frequency will appear in the
display for a few seconds. Then the current
time indication will return to the display.
2
Press RADIO ON BAND repeatedly to
select the desired band.
AM FM1 FM2
When using FM1 or FM2 preset mode, you
may listen to the radio on either mode
(See "Presetting Your Favorite Station").
3
Rotate in either +/– direction the TUNE/
TIME SET/TIMER SET dial to tune in to
the desired station.
The FM channel step is set to 0.05/0.1 MHz
and the AM channel step is set to 9/10 kHz
" and "TRACK 01" appear in the
(North American model).
The FM channel step is set to 0.05/0.1 MHz*
and the AM channel step is set to 9/10 kHz
(other models).
AUTO OFF SHUFFLE
CD
TIMER REP1 ALL
PRESET
* The FM frequency display is raised or
TRACK
MHz
kHz lowered by a step of 0.1 MHz. For example,
frequency 88.00 and 88.05 MHz is
displayed as "88.0 MHz."
Operation
Two short beeps sound when the minimum
frequency of each band is received during
CD u
tuning.
CD u again
4
Adjust the volume using VOLUME.
.**
To check the station being received
Press RADIO ON BAND or rotate in either +/–
>**
direction the TUNE/TIME SET/TIMER SET dial
lightly. The display shows the band and
Hold .** frequency for a few seconds and then returns to
the current time.
Hold >**
To turn off the radio, press OFF x.
. repeatedly**
> repeatedly** Presetting Your
Favorite Station
OFF x
—Preset Tuning
You can preset 10 stations in FM (5 stations in
FM1, 5 stations in FM2) and 5 stations in AM.
Presetting a Station
Example: To set FM 90.0 MHz to PRESET
TUNING/PRESET TIMER button 2.
1
Press RADIO ON BAND to turn on the
radio.
2
Tune in to FM 90.0 MHz (See "Manual
Play mode
Tuning").
(normal play) <
3
Hold down the desired PRESET
TUNING/PRESET TIMER button (in
m
this case, 2) until you hear two short
(single repeat)
beeps.
m
SHUFFLE
RADIO AUTO OFF CD
(all repeat) TIMER REP1 ALL
PRESET
WEATHER
TRACK
TV AM
MHz
FM12PM
kHz
m
The display shows the frequency for a few
(shuffle play)
seconds and then changes back to the current
time.
m
To preset another station, repeat these steps.
To change the preset station, tune in to the
desired station and hold down the PRESET
TUNING 1 to 5 button. The new station will
replace the previous station on the PRESET
TUNING button.
Tuning in to a Preset Station
1
Press RADIO ON BAND to turn on the
radio.
2
Press RADIO ON BAND repeatedly to
select the desired band.
3
Press the PRESET TUNING/PRESET
TIMER button of your choice.
4 Adjust the volume using VOLUME.
After a few seconds, the display returns to
the current time but the PRESET TUNING
button number remains.
Note
To change the preset station, preset a new station
to the button of your choice. The previous station
will be overwritten by the new one.
Switching between
monaural and stereo
1
Press RADIO ON BAND to turn on the
radio.
2
Press RADIO ON BAND repeatedly to
select FM 1 or FM 2.
3
Press MODE.
Handle the disc
"Mono (monaural)" or "ST (Stereo)" appears
by its edge.
in the display.
Each time you press MODE, the mode
changes either "Mono" or "ST."
4
Select Mono or ST.
The mode you selected appears in the display
Do not touch the for a few seconds and returns to the current
surface. time.
Note
When listening to the FM stereo reception,
Do not stick paper or
normally set to "ST" (stereo). If the FM stereo
tape nor write
reception is poor, set to "Mono".
anything on the
Although the sound will not be heard in stereo,
surface.
noise will be reduced.
Using the
Countdown Timer
The beep alarm will go off when the count down
time has elapsed. Use the timer as a reminder.
The buzzer alarm activates whether or not the
radio reception/CD playback mode is on.
The countdown time can be set at 1 minute
Channel step intervals between 1 to 120 minutes.
1
10 kHz Press TIMER SET ON/OFF.
The indication flashes in the display.
9 kHz
SHUFFLE
RADIO CD
REP1 ALL
TIMER
PRESET
WEATHER
TRACK
TV AM
MHz
FM12PM
kHz
2
Rotate in either +/– direction the TUNE/
TIME SET/TIMER SET dial to set the
desired time.
3
Press TIMER SET ON/OFF.
Two short beeps sound and countdown
starts. When the countdown has completed,
the beep alarm will go off and the display
will flash.
Notes
• To stop the beep alarm, press TIMER SET ON/
OFF. The alarm will beep 30 minutes if it is not
turned off.
• While the timer is counting down, the display
shows the remaining time. To display the
current time, press CLOCK. To check the station
you are listening to, press RADIO ON BAND
shortly. The band and frequency will appear
for a few seconds.
• To cancel the timer during the countdown,
press TIMER SET ON/OFF.
The countdown timer will be cancelled and the
current time will appear in the display.
Using the PRESET TIMER buttons
You can use the countdown timer with the
PRESET TUNING/PRESET TIMER buttons.
1
Press TIMER SET ON/OFF.
2
Press the desired PRESET TUNING/
PRESET TIMER button.
The countdown time and the preset button
number will appear in the display.
The default countdown time for the PRESET
TIMER buttons 1 to 5 are 3 minutes,
10 minutes, 30 minutes, 60 minutes and
90 minutes respectively.
3
Press TIMER SET ON/OFF again.
A beep sound and starts to countdown.
When the countdown time has elapsed, the
beep alarm will go off and the display will
flash.
Presetting a Countdown Time
You can also store a countdown time of your
choice to each of the five preset buttons.
1
Set the timer (See steps 1 and 2 of
"Using the Countdown Timer").
2
Hold down the desired PRESET
TUNING/PRESET TIMER button until
you hear two short beeps.
The countdown time has been stored as
displayed.
Other Useful
Functions
AUTO OFF function
The AUTO OFF function will turn off the radio/
CD after a preset duration of time.
1
Press RADIO ON BAND/CD u to
turn on the radio/CD.
2
Press AUTO OFF.
Each time you press AUTO OFF, the AUTO
OFF time (minutes) changes as follows.
OFF 120 90 60 30
The radio/CD will play for the AUTO OFF
time you have set, then turn off.
The AUTO OFF time appears in the display
for a few seconds with AUTO OFF indication.
Note
To turn off the radio/CD before the AUTO OFF
time has elapsed, press OFF x.
