Summary of Contents for Philips Selecon PLPROFILE4
-
Page 2: Philips Selecon Offices
Information contained in this document may not be duplicated in full or in part by any person without prior written approval of Philips Selecon. Its sole purpose is to provide the user with conceptual information on the equipment mentioned. The use of this document for all other purposes is specifically prohibited. -
Page 3: Important Information
Philips Selecon offers a three-year limited warranty of its luminaires against defects in materials or workmanship from the date of delivery. A copy of Philips Selecon three-year limited warranty containing specific terms and conditions can be obtained from the Philips Selecon web site at www.seleconlight.com or by contacting your local Philips Selecon office. -
Page 4: Table Of Contents
TABLE OF CONTENTS Philips Selecon Offices......................Inside Front Cover IMPORTANT INFORMATION Warnings and Notices............................1 Additional Resources for DMX512......................... 1 Philips Selecon Limited Three-Year Warranty ....................1 TABLE OF CONTENTS PREFACE About this Manual ..............................4 Product Descriptions............................... 4 PLPROFILE4 LED Luminaire........................4 Accessories ................................ - Page 5 PLPROFILE4 LED Luminaires Installation & User’s Manual Presets................................... 22 Presets Types..............................22 Editing Preset Names ............................ 23 Settings ................................. 23 DMX CONTROL 16-Bit Mode................................25 8-Bit Mode................................27 DMX 3-Channel (3-Chan) Mode ......................... 29 Lighting Console Settings for Preset White ......................30 PLPROFILE4 LED Luminaire DMX Timing Channel Detail................
-
Page 6: Preface
PLPROFILE4 LED Luminaires Installation & User’s Manual PREFACE 1. About this Manual The document provides installation and operation instructions for the following products: • PLPROFILE4 LED Luminaires (refer to "Product Descriptions" for individual product models). Please read all instructions before installing or using this product. Retain this manual for future reference. Additional product information and descriptions may be downloaded at www.seleconlight.com 2. -
Page 7: Accessories
Installation & User’s Manual 3. Accessories Contact your Authorized Philips Selecon Dealer for price and availability of all accessories for PLPROFILE4 LED Luminaires. Additional information can be found on the Philips Selecon web site at www.seleconlight.com (information also found on the Philips Strand Lighting web site at www.strandlighting.com). -
Page 8: Plprofile4 Led Luminaire Wireless Dmx512 Transmitters
PLPROFILE4 LED Luminaires Installation & User’s Manual PLPROFILE4 LED Luminaire Wireless DMX512 Transmitters Part Number Description PL1WDMXTR W-DMX Wireless DMX512 (Wireless Solutions) Transmitter PL1LDMXTR Lumen Radio Wireless DMX512 Transmitter PL1SDMXTR City Theatrical Wireless DMX512 Transmitter PLPROFILE4 LED Luminaire Software Uploader Cable Part Number Description USB Luminaire Software Programming Kit (for updating or reloading luminaire software only) -... -
Page 9: Plprofile4 Led Luminaire Overview

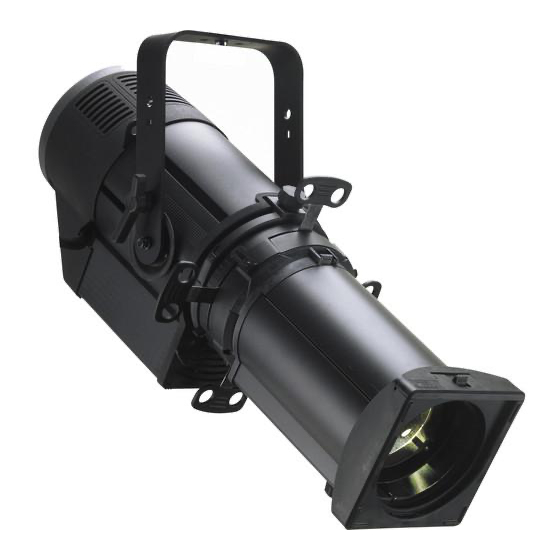

PLPROFILE4 LED Luminaires Installation & User’s Manual PLPROFILE4 LED LUMINAIRE OVERVIEW 1. PLPROFILE4 LED Luminaire Components Luminaire Components Side Views of Luminaire C-Clamp Top Box (Power and DMX connections) Yoke Assembly LCD Display / Menu Note: For top box connections, (see detail below) refer to "Connecting Power"... -
Page 10: Installation And Set Up
PLPROFILE4 LED Luminaires Installation & User’s Manual INSTALLATION AND SET UP 1. Top Box Connections All PLPROFILE4 LED Luminaires are supplied with a "Top Box" for AC Input/Output and DMX512 Input/Output Connections. Figure 1 shows the AC and DMX512 Input and Output (Thru) Connections. DMX512 Output/Thru AC (Power) Output (Grey PowerCon Connector) -
Page 11: Power Requirements
PLPROFILE4 LED Luminaires Installation & User’s Manual 2. Power Requirements WARNING! The PLPROFILE4 LED Luminaire should be connected to a constant circuit or a relay device. It should never be connected to a dimmer or circuit controlled by a dimmer. The PLPROFILE4 LED Luminaire operates on 100 to 240 volts AC (+/- 10%, auto-ranging). -
Page 12: Connecting Power
PLPROFILE4 LED Luminaires Installation & User’s Manual 3. Connecting Power Note: Refer to Figure 1 on page 8 for AC Input and Output connections. If the unit is supplied with an AC input cable, Table 2 describes how to connect power to your PLPROFILE4 LED Luminaire . -
Page 13: Mounting
PLPROFILE4 LED Luminaires Installation & User’s Manual 5. Mounting WARNING! Before attempting any installation or service, disconnect all power at power source. Dimming the luminaire does not disconnect power. Installation and service should only be performed by a trained and qualified professional. -
Page 14: Safety Cable Use
PLPROFILE4 LED Luminaires Installation & User’s Manual Safety Cable Use The supplied safety cable MUST always be used when rigging luminaires on bars, truss, etc. (as shown in Figure 4). FOR LUMINAIRE, the supplied safety cable is recommended for all hanging installation and may be required by national and local codes. -
Page 15: Focus And Beam Adjustments
PLPROFILE4 LED Luminaires Installation & User’s Manual FOCUS AND BEAM ADJUSTMENTS 1. Lens Tube Removal and Installation It is easy and quick to change to the lens tubes on a PLPROFILE4 LED Luminaire. Fixed beam and zoom lens tubes are interchangeable. To remove and install lens tubes: Step 1. -
Page 16: Zoom And Focus Adjustments (Zoomspot Models)
PLPROFILE4 LED Luminaires Installation & User’s Manual 2. Zoom and Focus Adjustments (Zoomspot Models) Note: Fixed Beam Angle models have hard/soft focus adjustment only. To adjust zoom/beam angle and focus: Step 1. Make sure all frame shutters are open (out of beam path). See "Beam Shutter Operation"... -
Page 17: Beam Shutter Operation
PLPROFILE4 LED Luminaires Installation & User’s Manual 3. Beam Shutter Operation Each PLPROFILE4 LED Luminaire is equipped with four independent shutters (as shown in Figure 8) to block or shape light as desired. After the luminaire is installed and positioned, move the shutters in or out as required. Use the shutter lock to lock-in the shutter settings. - Page 18 PLPROFILE4 LED Luminaires Installation & User’s Manual Step 5. Hand tighten gobo access panel retaining screws. See Detail Detail Gobo / Iris Access Panel Gobo Area Gobo Holder Panel Retaining Screw (2 Each) Figure 9: PLPROFILE4 LED Luminaire Gobo Holder and Gobo Installation FOCUS AND BEAM ADJUSTMENTS...
-
Page 19: Operation And Programming
PLPROFILE4 LED Luminaires Installation & User’s Manual OPERATION AND PROGRAMMING 1. LCD Menu Operation The PLPROFILE4 LED Luminaire’s LCD Display and Menu System provides local control for accessing all the fixture’s status information, menu options, and settings. Note: If there are multiple luminaires in a system, changes would need to be made at each LCD Menu as desired. Upon power up, the LCD will display the main screen showing the product type/name. - Page 20 PLPROFILE4 LED Luminaires Installation & User’s Manual Note: Depending on the security settings, certain menu items may be password protected. You must have the set PassPIN in order to access these items. Locked items will have a "Key" icon displayed next to them. To navigate and access menu settings/selections: Step 1.
-
Page 21: Menu Structure
PLPROFILE4 LED Luminaires Installation & User’s Manual Menu Structure MAIN MENU Save as Preset Sub Menu Options Comments Users can: • Save the current settings (look) to a specific recallable Preset in the Scratch Pad fixture’s memory. Select Preset to Save - (Option) •... - Page 22 PLPROFILE4 LED Luminaires Installation & User’s Manual Menu Structure (continued) Continued from previous page Color Mix Sub Menu Options Comments Users can: Green • Edit Red, Green, Blue, White, and Select Color or Intensity to Adjust - Intensity values (in percent%) by Blue (Option) using the arrow buttons.
-
Page 23: Security
PLPROFILE4 LED Luminaires are shipped with default passwords. Users may set their own password (four-digit number). When setting a password, write it down and keep it in a secure location. Note, Philips Selecon does not have records of passwords established by users or owners. -
Page 24: Security Levels
PLPROFILE4 LED Luminaires Installation & User’s Manual Security Levels Security Level Description Default PassPIN System is locked; the only key that is active is the Menu/ESC Key. When this key is pressed a Not Applicable PassPIN is requested. All keys are Active. 1111 You can select any Preset, and change Intensity, set DMX Address. -
Page 25: Editing Preset Names
PLPROFILE4 LED Luminaires Installation & User’s Manual Note: If the Color Mix of a Factory Calibrated Preset is changed, by turning protection Off, an '*' is appended to the end of the Preset's Name to indicate that the Calibrated values have been changed. Editing Preset Names On the Edit Preset screen, the option is available to edit the name of a preset, via Screen button. - Page 26 PLPROFILE4 LED Luminaires Installation & User’s Manual Presets Determines if the factory Calibrated Protected No, 5 - 25 Presets' Color Mix is protected from changes. Reload Factory Calibrated Presets, Load Factory No, Yes Intensity changes will also be reloaded. Enables or disabled DMX communication through the luminaires DMX512 ports.
-
Page 27: Dmx Control
PLPROFILE4 LED Luminaires Installation & User’s Manual DMX CONTROL This section contains information for operating the luminaire using DMX control in 16-Bit, 8-Bit, or 3-Channel (3- Chan) modes. For Menu options and detailed information, see "Settings" on page Note: These tables assume a DMX start address of 1. When a different starting address is used, this address becomes channel 1 function and other functions follow in sequence. - Page 28 PLPROFILE4 LED Luminaires Installation & User’s Manual Table 3: PLPROFILE4 LED Luminaire DMX Channel Mapping (16-Bit Mode) Allows for luminaire timing of intensity. Profile should default to DMX 255 for smoothest Intensity Time 0 - 255 0 - 100% console fade times. Refer to "PLPROFILE4 LED Luminaire DMX Timing Channel Detail"...
-
Page 29: 8-Bit Mode
PLPROFILE4 LED Luminaires Installation & User’s Manual 2. 8-Bit Mode Table 4 provides DMX channel mapping of all DMX512 control values when the PLPROFILE4 LED Luminaire is in 8-bit DMX512 mode (as set by the luminaire’s menu system). Table 4: PLPROFILE4 LED Luminaire DMX Channel Mapping (8-Bit Mode) Default - recommended Parameter... - Page 30 PLPROFILE4 LED Luminaires Installation & User’s Manual Table 4: PLPROFILE4 LED Luminaire DMX Channel Mapping (8-Bit Mode) Used to set different modes, parameters, and functions of the luminaire. Set control channel value for desired action. Hold value for at least 3 seconds.
-
Page 31: Dmx 3-Channel (3-Chan) Mode
PLPROFILE4 LED Luminaires Installation & User’s Manual 3. DMX 3-Channel (3-Chan) Mode Table 5 provides DMX channel mapping of all DMX512 control values when the PLPROFILE4 LED Luminaire is in 3-Channel (3-Chan) DMX512 mode (as set by the luminaire’s menu system). Table 5: PLPROFILE4 LED Luminaire DMX Channel Mapping (3-Chan Mode) Default - recommended... -
Page 32: Lighting Console Settings For Preset White
PLPROFILE4 LED Luminaires Installation & User’s Manual 4. Lighting Console Settings for Preset White 16-Bit Mode Below are the DMX512 console values and levels* for Warm White, Cool White, and Day Light presets in 16-bit mode. Red Channel Green Channel Blue Channel White Channel White Preset... - Page 33 PLPROFILE4 LED Luminaires Installation & User’s Manual Table 6: PLPROFILE4 LED Luminaire Timing Channel Detail % Value = Seconds 0 (Full Speed) 10.2 PLPROFILE4 LED Luminaire DMX Timing Channel Detail...
- Page 34 PLPROFILE4 LED Luminaires Installation & User’s Manual % Value = Seconds 10.4 10.6 10.8 11.2 11.4 11.6 11.8 12.2 12.4 12.6 12.8 13.2 13.4 13.6 13.8 14.2 14.4 14.6 14.8 15.2 15.4 15.6 15.8 16.2 16.4 16.6 16.8 17.2 17.4 17.6 17.8 18.2...
- Page 35 PLPROFILE4 LED Luminaires Installation & User’s Manual % Value = Seconds PLPROFILE4 LED Luminaire DMX Timing Channel Detail...
- Page 36 PLPROFILE4 LED Luminaires Installation & User’s Manual % Value = Seconds DMX CONTROL...
- Page 37 PLPROFILE4 LED Luminaires Installation & User’s Manual % Value = Seconds 250* 60mS 251* 80mS 252* 100mS 253* 120mS 254* 140mS 255* 160mS (default) Note: * DMX values 250 to 255 provide smoothing when using console fade timing. DMX value 255 (recommended default) will provide the smoothest timing.
-
Page 38: Cleaning And Care
PLPROFILE4 LED Luminaire. These types of cleaners or solvents can permanently damage the optics or housings of the fixture. If you have any questions regarding the use or care of your PLPROFILE4 LED Luminaire, please contact Philips Selecon technical support or your local Authorized Dealer. - Page 39 PLPROFILE4 LED Luminaires Installation & User’s Manual Step 3. Remove lens tube assembly from luminaire. Refer to "Lens Tube Removal and Installation" on page 13 instructions. Step 4. As shown in Figure 11, using 3 mm Allen hex key, completely remove two Allen head screws securing cover.
-
Page 40: Service And Maintenance
Installation & User’s Manual 3. Service and Maintenance For all other service and maintenance issues, please contact your local Philips Selecon office or an Authorized Service Center. WARNING! Disassembly (other than as described herein), alterations, unauthorized service, etc. will void the product warranty. -
Page 41: Troubleshooting Troubleshooting Guide
1. Troubleshooting Guide The chart below provides possible causes and remedies for various error messages and/or symptoms. WARNING! Any service and maintenance (including troubleshooting), other than described herein should be performed by an Authorized Philips Selecon Dealer or Service Center. Description Symptom Possible Cause/Remedy Unit is set to Preset Off... -
Page 42: Technical Specifications
ETL / cETL Listed (North America models) and CE Marked (International models) Note: Common model specifications shown. For specific model specifications, features, and accessories, refer to the product specification sheet or visit the Philips Selecon web site at www.seleconlight.com for more details. TECHNICAL SPECIFICATIONS... -
Page 43: Plprofile4 Led Luminaire Dimensions
PLPROFILE4 LED Luminaires Installation & User’s Manual 2. PLPROFILE4 LED Luminaire Dimensions Side View Front View 16.9 in / 12.9 in / 430 mm 327.7 mm 9.8 in / 250 mm 16.3 in / 414.3 mm R 9.1 in / 231.1 mm LUMINAIRE - TOTAL LENGTH (SEE CHART) Luminaire Dimensional Chart...
