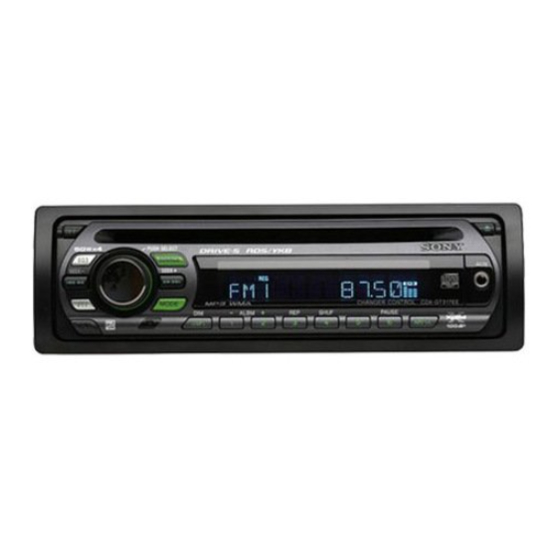

Sony CDX-GT317EE Operating Instructions Manual

Fm/mw/lw compact disc player
Hide thumbs Also See for CDX-GT317EE:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual See also: Service Manual
FM/MW/LW
Compact Disc Player

Operating Instructions

Инструкция по эксплуатации
To cancel the demonstration (DEMO) display, see page 11.
Для отмены демонстрации на дисплее (режим DEMO) см. стр. 13
CDX-GT317EE
© 2006 Sony Corporation
2-886-504-22 (1)
GB
RU

Advertisement

Table of Contents
loading

Related Manuals for Sony CDX-GT317EE

Summary of Contents for Sony CDX-GT317EE

  • Page 1: Operating Instructions

    FM/MW/LW Compact Disc Player Operating Instructions Инструкция по эксплуатации To cancel the demonstration (DEMO) display, see page 11. Для отмены демонстрации на дисплее (режим DEMO) см. стр. 13 CDX-GT317EE © 2006 Sony Corporation 2-886-504-22 (1)
  • Page 2 For installation and connections, see the supplied installation/connections manual. Warning if your car’s ignition has no ACC position Be sure to set the Auto Off function (page 11). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain.

  • Page 3: Table Of Contents

    Table of Contents Welcome ! ......4 Getting Started Resetting the unit ......4 Preparing the card remote commander .

  • Page 4: Welcome

    Welcome ! Thank you for purchasing this Sony Compact Disc Player. You can enjoy your drive with the following functions. • CD playback You can play CD-DA (also containing CD TEXT*) and CD-R/CD-RW (MP3/WMA files also containing Multi Session (page 14)).

  • Page 5: Setting The Clock

    Setting the clock The clock uses a 24-hour digital indication. Press and hold the select button. The setup display appears. Press the select button repeatedly until “CLOCK-ADJ” appears. Press (SEEK) +. The hour indication flashes. Rotate the volume control dial to set the hour and minute.

  • Page 6: Location Of Controls And Basic Operations

    F Display window G AUX input jack 12 To connect a portable audio device. H Z (eject) button To eject the disc. I PTY (Program Type) button 10 To select PTY in RDS. PAUSE AF/TA CDX-GT317EE /AUX). (front panel release) button 5...

  • Page 7: Number Buttons

    K SEEK –/+ buttons To skip tracks (press); skip tracks continuously (press, then press again within about 1 second and hold); reverse/fast- forward a track (press and hold). Radio: To tune in stations automatically (press); find a station manually (press and hold). L Receptor for the card remote commander M MODE button 8, 12...

  • Page 8: Display Items

    For details on selecting a CD/MD changer, see page 12. Display items A WMA/MP3 indication B Source C Track number/Elapsed playing time, Disc/ artist name, Album number* Track name, Text information* *1 Album number is displayed only when the album is changed.

  • Page 9: Rds

    If you know the frequency of the station you want to listen to, press and hold (SEEK) –/+ to locate the approximate frequency, then press (SEEK) –/+ repeatedly to fine adjust to the desired frequency (manual tuning). Overview FM stations with Radio Data System (RDS) service send inaudible digital information along with the regular radio program signal.

  • Page 10: Selecting Pty

    Note This function does not work in the UK and in some other areas. Local Link function (UK only) This function enables you to select other local stations in the area, even if they are not stored on your number buttons. 1 During FM reception, press a number button ((1) to (6)) on which a local station is stored.

  • Page 11: Other Functions

    Other functions Changing the sound settings Adjusting the sound characteristics — BAL/FAD/SUB You can adjust the balance, fader, and subwoofer volume. Press the select button repeatedly until “BAL,” “FAD” or “SUB” appears. The item changes as follows: LOW* t MID* t HI* BAL (left-right) t FAD (front-rear) t SUB (subwoofer volume)*...

  • Page 12: Using Optional Equipment

    A.SCRL (Auto Scroll) To scroll long displayed item automatically when the disc/album/track is changed. – “A.SCRL-ON” ( ): to scroll. – “A.SCRL-OFF”: to not scroll. LOCAL (Local Seek Mode) – “LOCAL-ON” : to only tune into stations with stronger signals. –...

  • Page 13: Additional Information

    Skipping albums and discs 1 During playback, press (1)/(2) (ALBM –/+). Press (1)/(2) (ALBM –/+) To skip album and release (hold for a moment). album within 2 seconds of first continuously releasing. discs repeatedly. discs then, press again within 2 continuously seconds and hold.

  • Page 14: About Mp3/Wma Files

    • Files made with lossless compression are not playable. • Files protected by copyright are not playable. If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer. Folder (album) MP3/WMA file (track)

  • Page 15: Maintenance

    If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer. Cleaning the connectors The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 5) and clean the connectors with a cotton swab.

  • Page 16: Specifications

    2 Pull the release keys to unseat the unit. 3 Slide the unit out of the mounting. Specifications CD Player section Signal-to-noise ratio: 120 dB Frequency response: 10 – 20,000 Hz Wow and flutter: Below measurable limit...

  • Page 17: Troubleshooting

    • The position of the fader control “FAD” is not set for a 2-speaker system. • The CD changer is incompatible with the disc format (MP3/WMA). t Play back with a Sony MP3 compatible CD changer, or this unit. No beep sound. • The beep sound is canceled (page 11).

  • Page 18: Error Displays/Messages

    *2 The disc number of the disc causing the error appears in the display. If these solutions do not help improve the situation, consult your nearest Sony dealer. If you take the unit to be repaired because of CD playback trouble, bring the disc that was used at the time the problem began.
  • Page 20 Проигрыватель компакт- дисков с диапазоном FM/MW/LW Сделано в Таиланде Внимание. Если в замке зажигания нет положения ACC Убедитесь, что настроена функция автоматического выключения (стр. 13). После выключения устройства его питание будет автоматически отключено в установленное время, что предотвращает разрядку аккумулятора. Если...
  • Page 21 Содержание...
  • Page 22 Поздравляем с покупкой! • • • • • • Начало работы Сброс параметров устройства Примечание Подготовка пульта дистанционного управления...
  • Page 23 Установка часов (SEEK) (SEEK) (DSPL) (DSPL) При использовании пульта дистанционного управления Совет Снятие передней панели (OFF) Примечания • • Примечание...
  • Page 24 Расположение органов управления и основные операции PUSH SELECT SEEK SOURCE – DSPL – SOURCE SEEK MODE ALBM SHUF DSPL qfqg MODE SCRL PAUSE AF/TA CDX-GT317EE...
  • Page 25 9, 14 8, 9 (1)/(2): Примечание Совет < . , > (SEEK) (1) (2) (SOURCE)
  • Page 26 Компакт-диск (DSPL) (SCRL) Совет...
  • Page 27 Радиоприемник Сохранение и прием радиостанций — (SOURCE) (MODE) (SEEK) (1) (6) Примечание Совет (1) (6) (SEEK) Совет (SEEK) (DSPL) (SEEK)
  • Page 28 (AF/TA) Примечания • • — (AF/TA) Примечание...
  • Page 29 (PTY) (PTY) (SEEK) (1) (6) Примечание Примечания • •...
  • Page 30 Другие функции Изменение настроек звука При использовании пульта дистанционного управления < M , — (EQ3) Совет При использовании пульта дистанционного управления Настройка параметров установки — SET Примечание При использовании пульта дистанционного управления < M , <...
  • Page 31 Использование дополнительного оборудования...
  • Page 32 (SOURCE) (SOURCE) (1) (2) Совет (MODE) (1)/(2)
  • Page 33 Дополнительная информация Меры предосторожности...
  • Page 34 Примечания • • • Примечания относительно файлов MP3 • • Примечания относительно файлов WMA • •...
  • Page 35 Уход за устройством Примечания относительно литиевой батарейки • • • • Примечания • •...
  • Page 36 Извлечение устройства Технические характеристики Соотношение “сигнал-шум”: Диапазон воспроизводимых частот: Низкочастотная и высокочастотная детонация: Диапазон настройки: Антенное гнездо: Промежуточная частота: Используемая чувствительность: Избирательность: Соотношение “сигнал-шум”: Коэффициент гармонических искажений при 1 кГц: Разделение: Диапазон воспроизводимых частот: Диапазон настройки: Антенное гнездо: Промежуточная частота: Чувствительность: Выходы: Полное...
  • Page 37 × × Размеры: Монтажные размеры: Масса: Входящие в комплект принадлежности: Дополнительные принадлежности/ оборудование: Поиск и устранение × × неисправностей...
  • Page 38 (OFF) (OFF) (SCRL)
  • Page 39 (SEEK)
  • Page 40 Sony Corporation Printed in Thailand...
