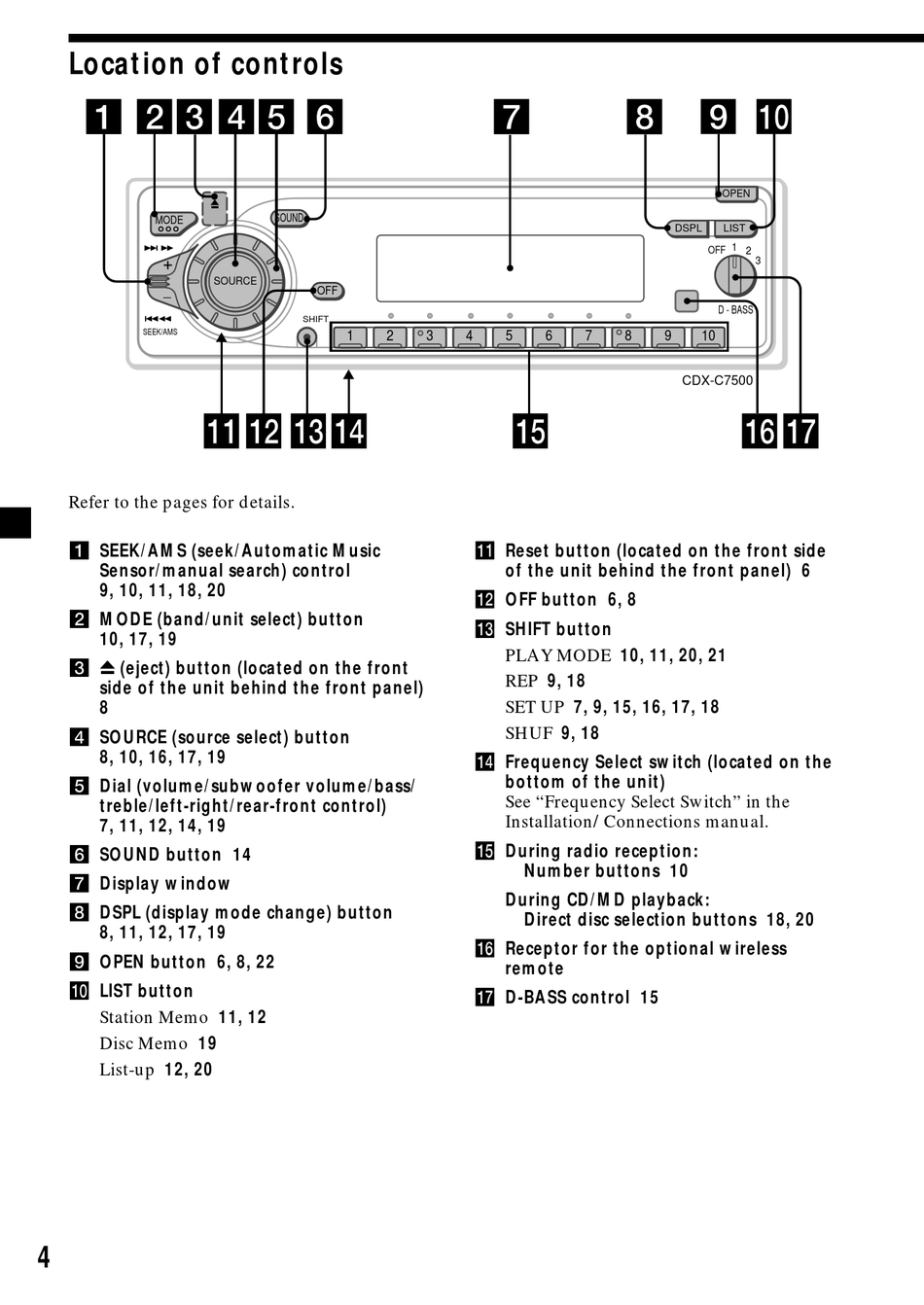

Location of controls

MODE
SEEK/AMS
Refer to the pages for details.
1 SEEK/AMS (seek/Automatic Music
Sensor/manual search) control
9, 10, 11, 18, 20
2 MODE (band/unit select) button
10, 17, 19
3 6 (eject) button (located on the front
side of the unit behind the front panel)
8
4 SOURCE (source select) button
8, 10, 16, 17, 19
5 Dial (volume/subwoofer volume/bass/
treble/left-right/rear-front control)
7, 11, 12, 14, 19
6 SOUND button 14
7 Display window
8 DSPL (display mode change) button
8, 11, 12, 17, 19
9 OPEN button 6, 8, 22
!º LIST button
Station Memo 11, 12
Disc Memo 19
List-up 12, 20
4
SOUND
SOURCE
OFF
SHIFT
1 2 3 4 5 6 7
!¡ Reset button (located on the front side
of the unit behind the front panel) 6
!™ OFF button 6, 8
!£ SHIFT button
PLAY MODE 10, 11, 20, 21
REP 9, 18
SET UP 7, 9, 15, 16, 17, 18
SHUF 9, 18
!¢ Frequency Select switch (located on the
bottom of the unit)
See "Frequency Select Switch" in the
Installation/Connections manual.
!∞ During radio reception:
Number buttons 10
During CD/MD playback:
Direct disc selection buttons 18, 20
!§ Receptor for the optional wireless
remote
!¶ D-BASS control 15
OPEN
DSPL LIST
OFF 1 2
3
D - BASS
8 9 10
CDX-C7500
