Sony CDX- M9900 Installation/Connections

FM/AM
Compact Disc
Player
Installation/Connections
Installation/Connexions
CDX-M9900
©2004 Sony Corporation
1
1 2
4 5
7
Equipment used in illustrations (not supplied)
Appareils utilisés dans les illustrations (non fournis)
Front speaker
Haut-parleur avant
Rear speaker
Haut-parleur arrière
Active subwoofer
Caisson de graves actif
Power amplifier
Amplificateur de puissance
3-265-746-11 (1)
Printed in Korea
3
4
6
2
CD/MD changer
Changeur de CD/MD
DVD player DVX-11A
Lecteur DVD DVX-11A
Rotary commander RM-X4S
Satellite de commande RM-X4S
2
A
SUB OUT
VIDEO IN
B
BUS AUDIO IN/AUX IN
BUS CONTROL IN
BUS AUDIO IN/AUX IN
Source selector*
Sélecteur de source*
XA-C30
BUS CONTROL IN
Cautions
• This unit is designed for negative ground 12 V
DC operation only.
• Do not get the leads under a screw, or caught
in moving parts (e.g. seat railing).
• Before making connections, turn the car
ignition off to avoid short circuits.
• Connect the yellow and red power input
leads only after all other leads have been
connected.
• Run all ground leads to a common ground
point.
• Be sure to insulate any loose unconnected
leads with electrical tape for safety.
• The use of optical instruments with this
product will increase eye hazard.
Notes on the power supply lead (yellow)
• When connecting this unit in combination
with other stereo components, the connected
car circuit's rating must be higher than the
sum of each component's fuse.
• When no car circuits are rated high enough,
connect the unit directly to the battery.
Parts Iist (1)
• The numbers in the list are keyed to those in
the instructions.
• The bracket 1 and the protection collar 3 are
attached to the unit before shipping. Before
mounting the unit, use the release keys 6 to
remove the bracket 1 and the protection
collar 3 from the unit. For details, see
"Removing the protection collar and the
bracket (5)" on the reverse side of the sheet.
• Keep the release keys 6 for future use as
they are also necessary if you remove the
unit from your car.
Caution
Handle the bracket 1 carefully to avoid injuring
your fingers.
1
Catch
Note
Before installing, make sure that the catches on
both sides of the bracket 1 are bent inwards 2 mm
( 3 / in). If the catches are straight or bent outwards,
32
the unit will not be installed securely and may spring
out.
AUDIO OUT
FRONT
AUDIO OUT
REAR
VIDEO IN
* not supplied
non fourni
VIDEO IN

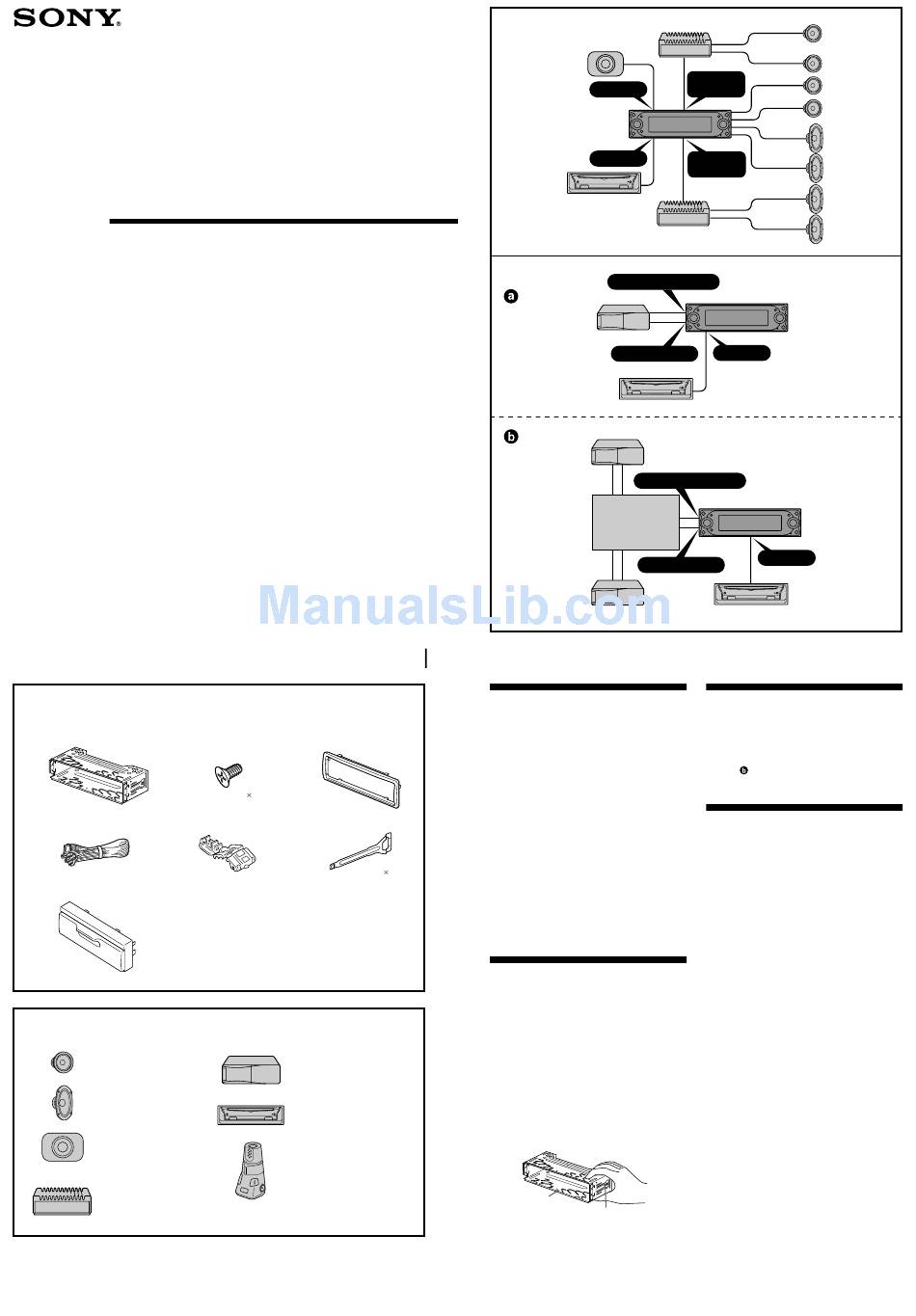

Connection example (2)
Notes (2-A)
• Be sure to connect the ground lead before
connecting the amplifier.
• If you connect an optional power amplifier and do
not use the built-in amplifier, the beep sound will
be deactivated.
Tip (2-B- )
For connecting two or more CD/MD changers, the
source selector XA-C30 (optional) is necessary.
Connection diagram (3)
1 To a metal surface of the car
First connect the black ground lead, then connect
the orange/white striped, yellow, and red power
input leads.
2 To the power antenna control lead or power
supply lead of antenna booster amplifier
Notes
• It is not necessary to connect this lead if there is
no power antenna or antenna booster, or with
a manually-operated telescopic antenna.
• When your car has a built-in FM/AM antenna in
the rear/side glass, see "Notes on the control
and power supply leads."
3 To AMP REMOTE IN of an optional power
amplifier
This connection is only for amplifiers. Connecting
any other system may damage the unit.
4 To the interface cable of a car telephone
5 To a car's illumination signal
Be sure to connect the black ground lead to a
metal surface of the car first.
6 To the +12 V power terminal which is energized
in the accessory position of the ignition key
switch
Notes
• If there is no accessory position, connect to the
+12 V power (battery) terminal which is
energized at all times.
Be sure to connect the black ground lead to a
metal surface of the car first.
• When your car has a built-in FM/AM antenna in
the rear/side glass, see "Notes on the control
and power supply leads."
7 To the +12 V power terminal which is energized
at all times
Be sure to connect the black ground lead to a
metal surface of the car first.
8 To the parking brake switch cord
