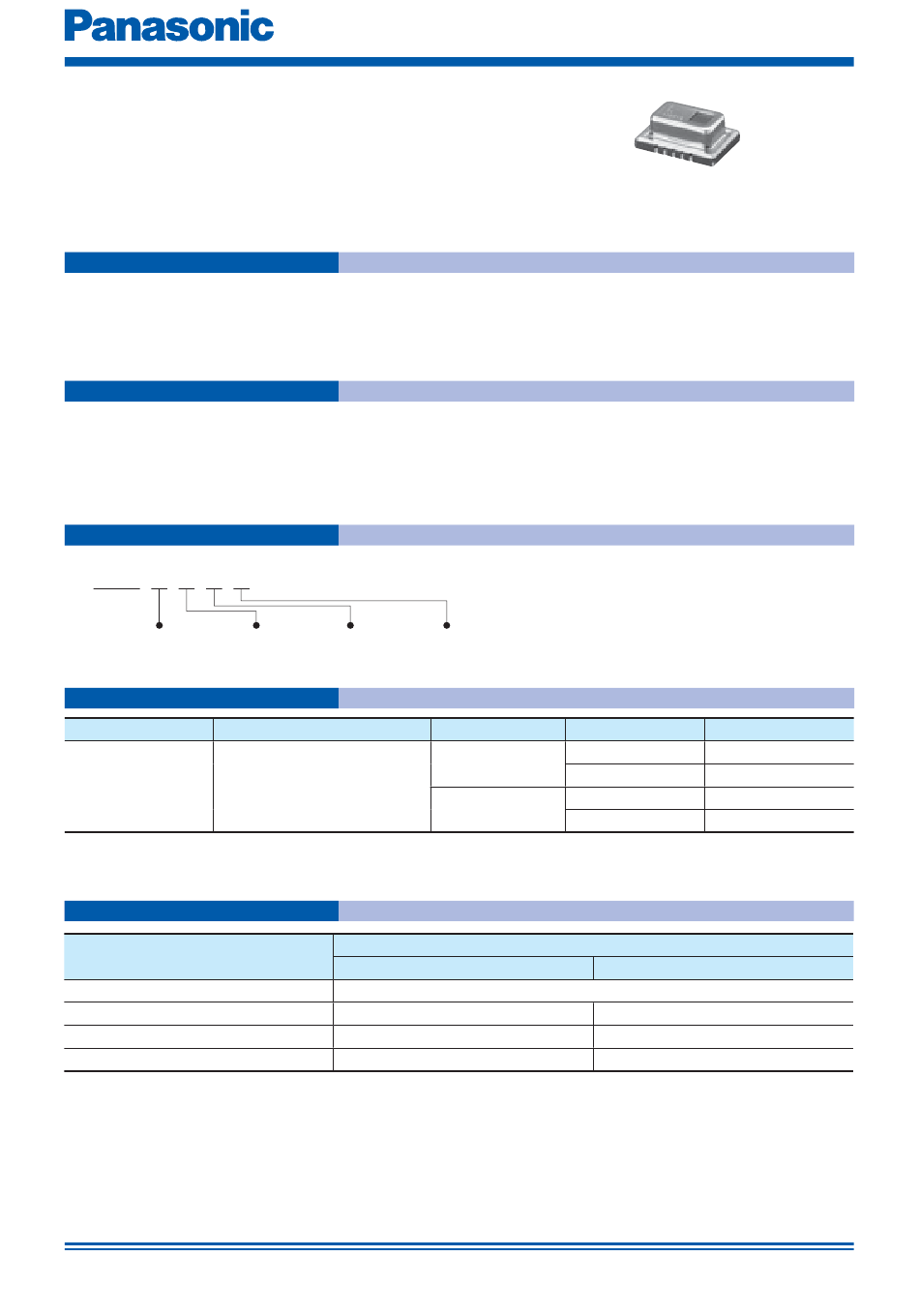

Infrared Array Sensor Grid-EYE (AMG88) Infrared Array Sensor Grid-EYE High Precision Infrared Array Sensor based on Advanced MEMS Technology Features Temperature detection of two-dimensional area: 8 × 8 (64 pixels) ● ● Digital output (capability of temperature value output) ● Compact SMD package (adaptively to refl...
Infrared Array Sensor Grid-EYE (AMG88) Absolute Maximum Ratings Item Absolute maximum ratings Terminal Applied voltage −0.3 V.DC to 6.5 V.DC Input voltage −0.3 V.DC to VDD +0.3 V.DC SCL, SDA, AD_SELECT Output sink current −10 mA to 10 mA INT, SDA Static electricity (Human body model) 1 kV All terminals...
Infrared Array Sensor Grid-EYE (AMG88) External Circuit (1) In case of setting I C slave address of the sensor 1101000 (2) In case of setting I C slave address of the sensor 1101001 ✽ Connect terminal 5 (AD_SELECT) to GND. ✽...
Page 5
Infrared Array Sensor Grid-EYE (AMG88) ■ Other precautions ■ Mounting These specifications are for individual components. Use the land of the printed-circuit boardon which Before use, carefully check the performance and quality the sensor is securely fixed. The recommended under actual use conditions to enhance stability. printed-circuit board is FR4 (thickness 1.6 mm 0.063 1) Once the individual sensor is dropped, do not...
Infrared Array Sensor Grid-EYE (AMG88) ■ Wire connection 3) A warranty period is one year after the delivery to your company. Quality assurance is limited 1) Correctly wire as in the connection diagram. to the items and the scopes described in the Reverse connection may damage the product specifications.
