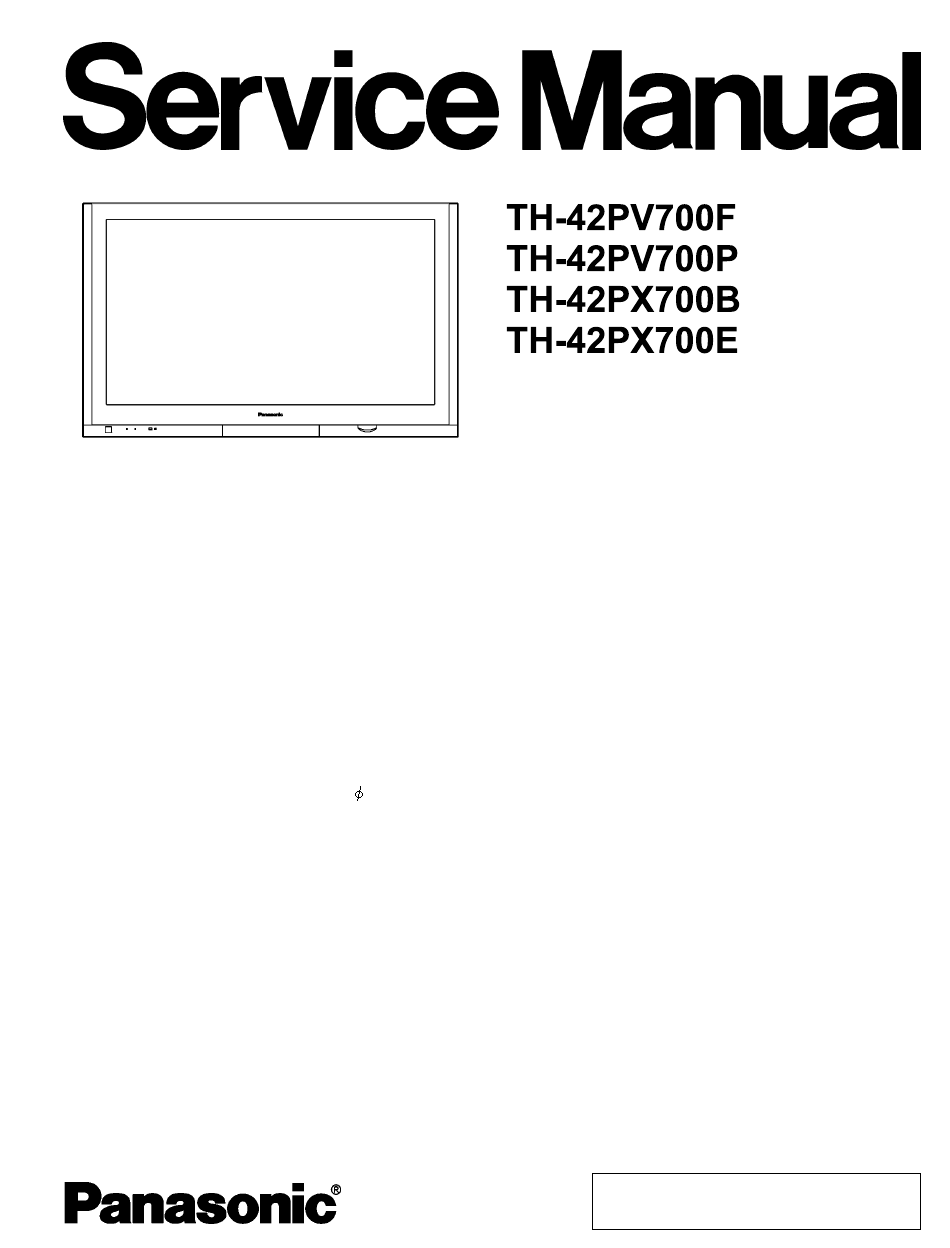

ORDER NO. PCZ0704027CE Plasma Television GPH10DE Chassis Specifications Power Source AC 220-240 V, 50 / 60 Hz Power Consumption Average use 270 W (PX700B/E) 261 W (PV700F/P) Standby condition 0.7 W (Without DVB recording) 20 W (With DVB recording) Display panel Aspect Ratio 16 : 9 Visible screen size...
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR) DVB (PX700E only) Digital terrestrial services via VHF / UHF aerial input. M.NTSC Playback from M. NTSC Video recorders (VCR) NTSC (AV input only) Playback from NTSC Video recorders (VCR) ·...
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 2 Safety Precautions 2.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 3 Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip"...
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 4 About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 5 Service Hint Remove the Rear Cover Board Name Function Board Name Function Power Supply Format Converter, Plasma AI, Sub-Field Processor Digital Signal Processor, Micon, HDMI Interface Data Driver (Lower Right) Peaks Lite 2...
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Plasma panel replacement method 6.1. Remove the rear cover 6.4. Remove the Speaker box assy (right) 1. See Service Hint (Section 5) 1. Unlock the cable clampers to free the cable. 6.2. Remove the rear terminal 2.
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 6.6. Remove the PA-Board 6.8. Remove the DG-Board 1. Unlock the cable clampers to free the cable. 1. Remove the tuner unit. (See section 6.7.) 2. Disconnect the connectors (PA3, PA4, and PA5).
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 6.11. Remove the SU-Board 1. Remove the screws (×2 2. Remove the flexible cables (SU1, SU2, SU3 and SU4 connected to the SU-Board and remove the bridge connector (SC45-SU45). 3. Slide the SU-Board to the left to disconnect from a connector (SC41-SU41) on the SC-Board and remove the SU-Board.
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 6.13. Remove the SC-Board 6.15. Remove the stand brackets 1. Remove the SU-Board and SD-Board. (See section 6.11. 1. Remove the plasma panel section from the servicing stand and 6.12.) and lay on a fiat surface such as a table (covered) with the plasma panel surface facing downward.
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 6.17. Remove the C2-Board 1. Remove the tuner unit. (See section 6.7.) 2. Unlock the cable clampers to free the cable. 3. Remove the flexible cables holder fastening screws (×8 4. Disconnect the flexible cables (CB5, CB6, CB7 and CB8).
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 2. Disconnect the connector (S1). 6.23. Remove the Plasma panel 3. Remove the screws (×2 ) and remove the S-Board. section from the Cabinet assy (glass) 1. Remove the plasma panel section from the servicing stand and lay on a fiat surface such as a table (covered) with the plasma panel surface facing downward.
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 6.24. Replace the plasma panel (finished) 1. Place the new plasma panel (finished) on the flat surface of the table (covered by a soft cloth), with the plasma panel surface facing downward. 2. Attach the C1-Board and the C2-Board, connect the flexible cables (×16) from the Plasma panel to the C1-Board and...
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 7 Caution statement 7.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull.
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 9 Self-check Function Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 9.1. Check of the IIC bus lines 9.1.1. How to access...
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 9.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the...
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 9.3. No Power First check point There are following 2 states of No Power indication by power LED. 1. No lit 2. Red is lit then turns red blinking a few seconds later. (See 9.2.)
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 9.5. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1...
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 10 Service Mode 10.1. How to enter into Service Mode While pressing [VOLUME ( - )] button of the main unit, press [0] button of the remote control three times within 3 seconds.
Page 27
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 10.1.2. Contents of adjustment mode · · · · Value is shown as a hexadecimal number. · · · · Preset value differs depending on models. · · · · After entering the adjustment mode, take note of the value in each item before starting adjustment.
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 10.2. Service tool mode 10.2.1. How to access 1. Select “SRV-TOOL” in Service Mode. 2. Press [OK] button on the remote control. 10.2.2. Display of SOS History SOS History (Number of LED blinking) indication.
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 11 Adjustment Procedure 11.1.2. Adjustments 11.1. Driver Set-up Adjust driver section voltages referring the panel data on the 11.1.1. Item / Preparation panel data label. 1. Input a white signal to plasma video input.
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 11.2. Initialization Pulse Adjust 1. Input the White signal to plasma video input. 2. Set the picture controls as follows. Picture menu : Dynamic PNR : OFF Aspect : 16:9 3. Connect Oscilloscope to TPSC1 (SC).
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 12 Adjustment 12.1. Sub-Contrast adjustment Name of measuring instrument Connection Remarks RF generator Base Band generator Preparation (AV) Remarks 1. Receive AV1 (PAL 100% Full White or Split Colour bar shown as below) .
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 13 Hotel mode 1. Purpose item Function Hotel Mode Select hotel mode ON/OFF Restrict a function for hotels. Initial INPUT Select input signal modes. 2. Access command to the Hotel mode setup menu...
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 15.12. H-Board (1 of 2) Block Diagram *JK3002 AV TERMINAL, AV SWITCH,MSP VIDEO IN AV1_V TV VIDEO OUT AV1_VO AV1_FEED_B FB IN AV1_FB RED IN AV1_RED GREEN IN AV1_GREEN AV1 SLOW AV1_SLOW BLUE IN...
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 15.22. DG-Board (1 of 11) Schematic Diagram IC8001 MN2WS0039A Peaks-Lite2 B PORT (Sub Video Input or Address) LOSD OUT (for HQ1) FOR HQ1L VIDEO FOR ADV7493 to (10/11) to (5/11) CPU BUS I/F...
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 15.40. C1 and C2-Board Block Diagram TO D31 TO D32 42 - 16 41 - 15 DATA DATA 24bit 24bit DA8-DC15 DATA DRIVE DA0-DC7 DATA DRIVE TO SS23 LOWER LEFT LOWER RIGHT(FRONT VIEW)
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 16.8. Mechanical Replacement Parts List (PDD TV) Note: Ref. No. Part No. Part Name & Remarks Description All parts except parts mentioned [PAVCCZ] in the Remarks TPC0E82501 CARTON BOX PAVCCZ column are supplied by PAVC-CSG.
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 16.9. Mechanical Replacement Parts List (stand) Note: All parts except parts mentioned [PAVCCZ] in the Remarks column are supplied by PAVC-CSG. Parts mentioned [PAVCCZ] are supplied by PAVCCZ. Ref. No. Part No. Part Name &...
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E 16.10. Electrical Replacement Parts List Note: Ref. No. Part No. Part Name & Remarks Description All parts except parts mentioned [PAVCCZ] in the Remarks C2124 ECJ1XB1H104K C 10PF, J, 50V column are supplied by PAVC-CSG.
Page 130
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description C2270,71 F1H1H471A792 E 470UF, 50V C3103 EEEHB1C100R C 10PF, J, 16V C2272 ECJ2FF1C475Z C 0.047UF, Z,...
Page 131
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description C4527 ECJ1VB1A105K C 0.01UF, Z, 50V C5503 F2A1C471A537 E 470UF, 16V C4528 F1G1C104A081 C 0.10UF, K, 16V...
Page 132
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description C6261,62 F2A2A221A073 E 220UF, 100V C6901 ECJ2XB1H102K C 1000PF, K, 50V C6272,73 F2A1E221A487 E 220UF, 25V...
Page 133
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description C7738 EEEHB0G101R C 100PF, J, 4V C9044 ECJ2YB0J475K C 3.3UF, Z, 4.7V C7742 F1J0J106A020 C 0.010UF, K,...
Page 134
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description D2028,29 MA2J11100L DIODE D6191 B0ECHP000003 DIODE D2031-34 MA2J11100L DIODE D6193 B0ECHP000003 DIODE D2119 B0BC01100001 ZENER DIODE...
Page 135
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description D6830 MA8056H ZENER DIODE K1KA05AA0190 5P CONNECTOR D6836 MAZ81500ML ZENER DIODE K1KA04AA0190 4P CONNECTOR D6837...
Page 136
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description IC6841 C0DBEMC00043 JS2096 J0JCC0000100 CHIP INDUCTOR IC6861 NJM2903M INTEGRATED JS2101 J0JCC0000100 CHIP INDUCTOR CIRCUIT JS2300,01 J0JCC0000100...
Page 137
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description L5605 J0JCC0000241 CHIP INDUCTOR TXN/K1HKTE CIRCUIT BOARD K PAVCCZ 42PV700F/P L5606 G1C100MA0077 INDUCTION COIL TXN/S1HNTB...
Page 138
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description Q6111 B1DFKM000001 TRANSISTOR R1110 ERJ2GEJ273 M 27KOHM ,J,0.063W Q6114 B1DFKM000001 TRANSISTOR R1122 ERJ2GEJ473 M 47KOHM,...
Page 139
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R1231-34 ERJ2GEJ473 M 47KOHM, R2093 ERJ3GEYJ332 J,0.063W 3.3KOHM,J,1/16W R1235 ERJ2GEJ104 M 100KOHM, R2094 ERJ3GEYJ222 J,0.063W 2.2KOHM,J,1/16W...
Page 140
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R2195,96 ERJ3GEYJ104 R2856 J0JCC0000100 CHIP INDUCTOR 100KOHM,J,1/16W R2857 ERJ3GEYJ472 R2197 ERJ3EKF6802 M 68KOHM, 1/16W 4.7KOHM,J,1/16W...
Page 141
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R3153,54 ERJ3RBD361 M 360 R3804,05 ERJ2GEJ472 M 4.7KOHM, OHM,J,1/16W J,0.063W R3155 ERJ6ENF63R4 M63.4 OHM, 1/10W...
Page 142
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R4528 ERJ2GEJ103 M 10KOHM, R4650,51 ERJ2GEJ680 M 68 OHM, J,0.063W J,0.063W R4529 ERJ2GEJ472 M 4.7KOHM,...
Page 143
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R5546,47 ERJ6GEYG103 M 10KOHM,J,1/10W R6005 D0GF7R5JA047 M 7.5 OHM,J, 0.33W R5548,49 ERJ6GEYF472 4.7KOHM,J,1/10W R6020 ERF5TJ330...
Page 144
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R6242 EXB38V472JV RESISTOR ARRAY R6587 ERJ6GEYG222 2.2KOHM,J,1/10W R6246 ERJ6GEYJ273 M 27KOHM,J,1/10W R6588 ERJ6GEYG103 M 10KOHM,J,1/10W...
Page 145
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R6769 D0GD750JA059 M 75 OHM,J,0.25W R6869 ERJ6GEYF472 4.7KOHM,J,1/10W R6775,76 ERJ6GEYJ101V M 100 OHM,J,1/10W R6871-73 ERJ6ENF3902...
Page 146
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R7229 ERJ6GEY0R00V M 0 OHM, 1/10W R8095 ERJ2GEJ103 M 10KOHM, J,0.063W R7232-35 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W...
Page 147
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R8440 ERJ2GEJ104 M 100KOHM, TH-42PX700B/E R8735-39 ERJ2GEJ680 M 68 OHM, J,0.063W J,0.063W R8441 EXB2HV680J RESISTOR ARRAY...
Page 148
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R8932 ERJ2GEJ473 M 47KOHM, R9223 ERJ3GEYJ272 J,0.063W 2.7KOHM,J,1/16W R8933-35 ERJ2GEJ103 M 10KOHM, R9225 ERJ3GEYJ272 J,0.063W 2.7KOHM,J,1/16W...
Page 149
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R9868 ERJ3GEYJ104 100KOHM,J,1/16W VR6000 EVMEASA00B14 CONTROL 10KOHMB R9869-71 D0GB103JA057 M 10KOHM,J,1/16W 0.3W R9872 J0JCC0000100 CHIP INDUCTOR...
Page 150
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description C478 F1BAF221A107 C 220UF, 250V C650,51 ECJ1VB1E104K C 0.10UF, K, 25V C492 ECA1HM100 E 10UF, 50V...
Page 151
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description D602 B0BC8R100013 ZENER DIODE Q517 B1HBCFA00033 TRANSISTOR D603 B0BA01900005 ZENER DIODE Q520 B1HBCFA00033 TRANSISTOR D701,02...
Page 152
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R456 ERJ6GEYF333 M 33KOHM,J,1/10W R553 ERJ6GEYJ101V M 100 OHM,J,1/10W R458 ERJ6GEYF472 4.7KOHM,F,1/10W R555 ERJ6GEYG102 M 1KOHM,J,1/10W...
Page 153
TH-42PV700F / TH-42PV700P / TH-42PX700B / TH-42PX700E Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R630 ERJ6GEYF472 R713 ERJ6GEYG152 4.7KOHM,F,1/10W 1.5KOHM,J,1/10W R631 ERJ8GEYJ333 M 33KOHM, J,1/8W R714 ERJ6GEYG102 M 1KOHM,J,1/10W...
