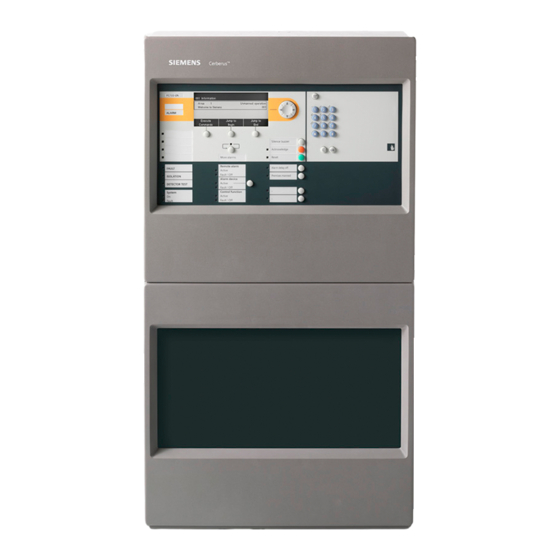

Siemens FS720 Series Manual
Fire control panel
Hide thumbs
Also See for FS720 Series:
- Configuration (412 pages) ,
- Mounting & installation (248 pages) ,
- Commissioning, maintenance, troubleshooting (178 pages)
Advertisement
Quick Links
A6V10207176_h_en_--
2016-05-23

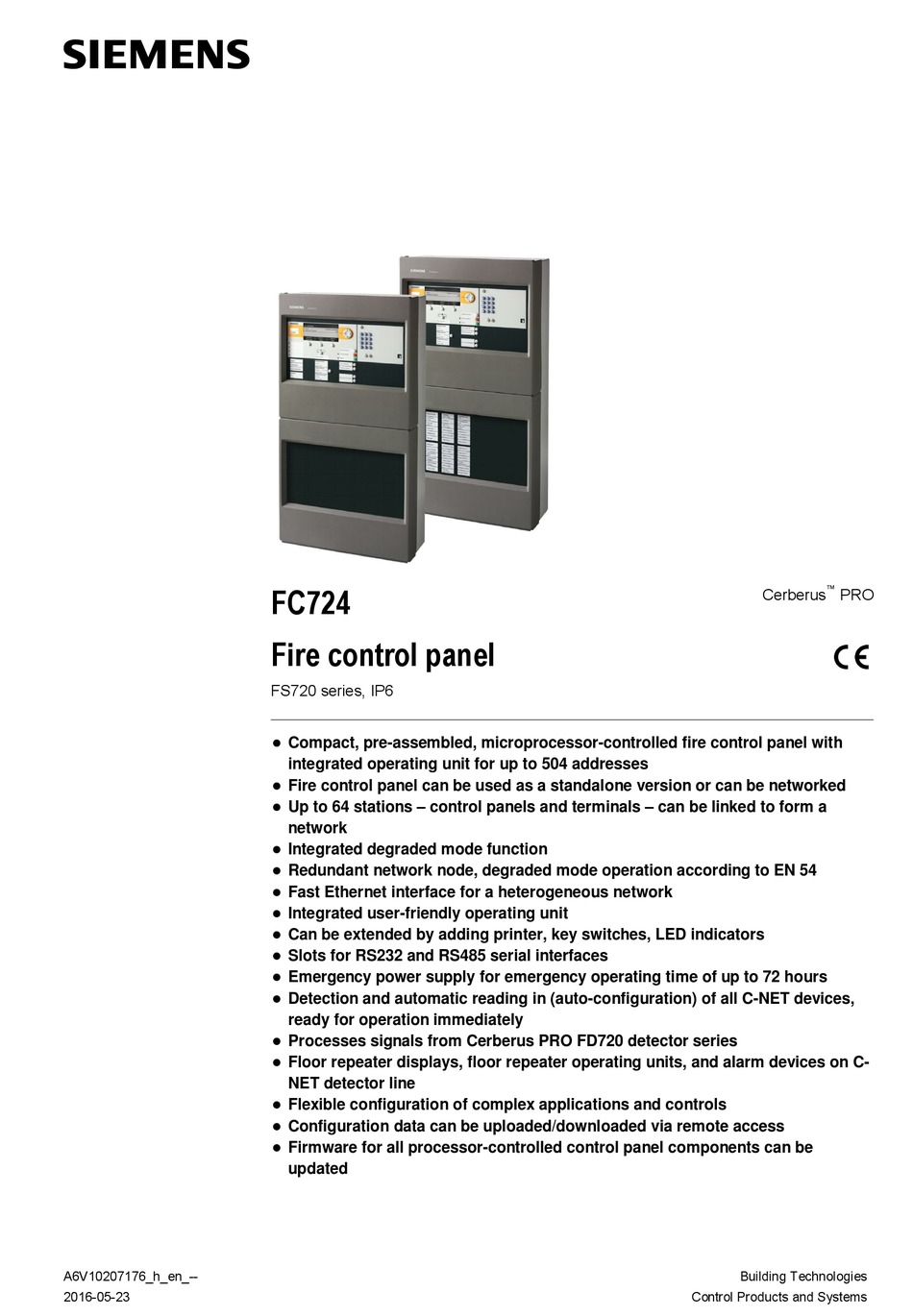

FC724
Fire control panel
FS720 series, IP6
κ
Compact, pre-assembled, microprocessor-controlled fire control panel with
integrated operating unit for up to 504 addresses
κ
Fire control panel can be used as a standalone version or can be networked
κ
Up to 64 stations – control panels and terminals – can be linked to form a
network
κ
Integrated degraded mode function
κ
Redundant network node, degraded mode operation according to EN 54
κ
Fast Ethernet interface for a heterogeneous network
κ
Integrated user-friendly operating unit
κ
Can be extended by adding printer, key switches, LED indicators
κ
Slots for RS232 and RS485 serial interfaces
κ
Emergency power supply for emergency operating time of up to 72 hours
κ
Detection and automatic reading in (auto-configuration) of all C-NET devices,
ready for operation immediately
κ
Processes signals from Cerberus PRO FD720 detector series
κ
Floor repeater displays, floor repeater operating units, and alarm devices on C-
NET detector line
κ
Flexible configuration of complex applications and controls
κ
Configuration data can be uploaded/downloaded via remote access
κ
Firmware for all processor-controlled control panel components can be
updated
™
Cerberus
PRO
Building Technologies
Control Products and Systems
Advertisement
Related Manuals for Siemens FS720 Series
Summary of Contents for Siemens FS720 Series
- Page 1 FC724 ™ Cerberus Fire control panel FS720 series, IP6 κ Compact, pre-assembled, microprocessor-controlled fire control panel with integrated operating unit for up to 504 addresses κ Fire control panel can be used as a standalone version or can be networked κ...
-
Page 2: System Overview
Remote access Engineering Tool, Cluster (C-WEB/SAFEDLINK) Operating Tool FC724 Fire control panel Transmission of an alarm signal Transmission of a Detection line collective Siemens, fault signal FDM233-Ex Synova SynoLINE300 or Explosion- SynoLINE600 hazard area OOH740-A9-Ex 24VDC ext. Fire controls FDS221/... - Page 3 Up to 32 control panels and terminals can be linked to form a cluster (C- WEB/SAFEDLINK network). If the cluster is connected to a danger management system via BACnet, up to 16 control panels and terminals can be networked. Siemens Danger Management System Ethernet...
- Page 4 An optical Ethernet network (C-WEB/LAN) allows up to 14 clusters with up to 16 stations to be operated on one network. A maximum of 64 stations is supported in total. You will find details of system networking in product data sheet A6V10227649. Building Technologies A6V10207176_h_en_-- Fire Safety...
- Page 5 Up to 2000 events can be retrieved from the event memory based on various criteria. κ Automatic summer/winter time changeover κ Siemens danger management system can be connected Function elements Operating unit The following elements are available on the operating unit: – CPU module and electronics –...
- Page 6 Application ranges The FC724 is ideal for medium-sized applications, e.g. for use in industrial plants, regional banks, or office complexes. Thanks to the flexible networking options, the FC724 can also be used for large-scale sites. Operation Each control unit has an integrated operating unit. The control panel can also be operated via a separate FT724 fire terminal.
- Page 7 Overview of FC724 fire control panels Housing (Comfort) FC724-ZA FC724-ZE Featuring 48 indicator groups with one red/green + one yellow LED each 4 loops 4 loops with power supply (150 W) with power supply (150 W) Max. battery capacity 26 Max.
- Page 8 Layout of FC724 inside housing (Comfort) 16 14 Basic equipment Designation Comment 1 Housing (Comfort) FH7203-Z3 Items 1-6: Basic equipment 2 Periphery board (2-loop) FCI2002-A1 3 Power supply (SV 24V-150 W) V24230-Z6-A5 4 Mains terminals on TS35 DIN rail – Space for socket, relay modules 5 Operating unit FCM72xx-xx...
- Page 9 Extensions Designation Comment 8 Relay module Z3B171 Relay for fire controls 9 Event printer FTO2001-A1 For logging events 10 Key switch (Kaba) FTO2005-C1 For operating access authorization Key switch (Nordic) FTO2006-B1 11 Mounting plate FHA2007-A1 E.g., for fire brigade periphery module 12 Loop extension (C-NET) FCI2003-A1 For extending the number of loops from two to four,...
- Page 10 Technical data Mains voltage AC 115/230 V +10/-15 % Power supply 150 W Operating voltage DC 21…28.4 V Operating current Max. 5 A Battery capacity 2x 12 V, 26 Ah Battery monitoring Network monitoring Connectable detector series Cerberus PRO FD720 (C-NET) Number of lines Loops (with loop extension) or 4 (8)
- Page 11 Details for ordering Type Art. no. Designation Weight Control panels FC724-ZA S54400-C30-A2 Fire control panel (4L) 18.280 kg FC724-ZE S54400-C30-A3 Fire control panel (4L, 2LED) 19.200 kg Extensions Z3B171 BPZ:4843830001 Relay module AC 250 V / 10 A (1 relay) 0.042 kg FTO2001-A1 A5Q00010126...
- Page 12 Siemens Switzerland Ltd Building Technologies Division International Headquarters Gubelstrasse 22 CH-6301 Zug © Siemens Switzerland Ltd, 2008 Tel. +41 41 724 24 24 www.siemens.com/buildingtechnologies Technical specifications and availability subject to change without notice. Document no. FS720 manual A6V10207176_h_en_-- Edition 2016-05-23...
