Summary of Contents for ABB IR/KB

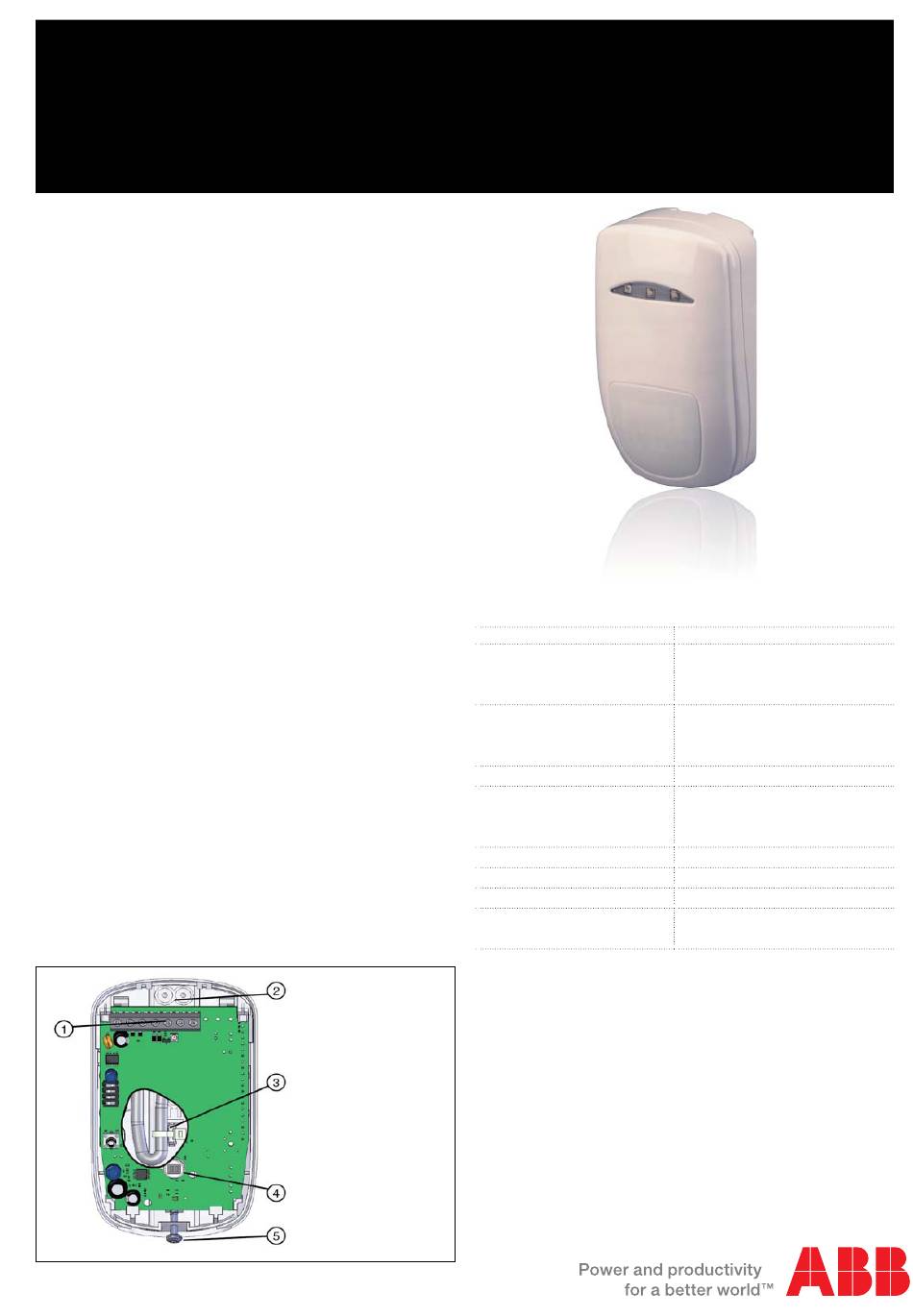

Page 1

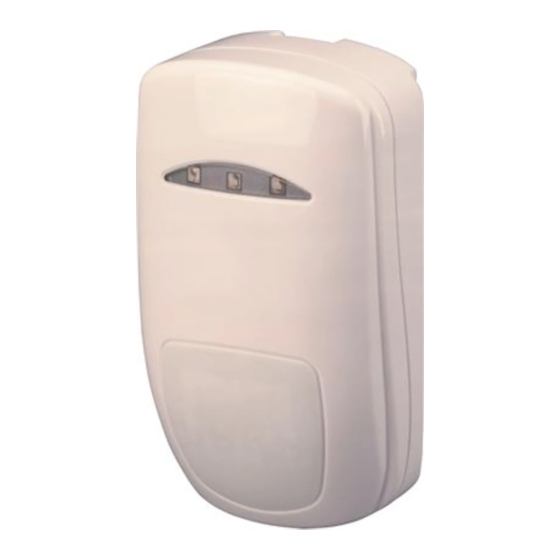

Security Products Infra-Red Motion Detector IR/KB Technical Data Description Technical data The Passive Infra-Red Detector IR/K is an intrusion detector Voltage 12 V (9 V … 16 V DC) (VdS class B) that detects and signals motion within its Current IR/KB Quiescent: 8 mA detection range.
Page 2
Infra-Red Motion Detector IR/KB Opening the detector Passive infra-red detector A = knockout for corner mounting Infra-red section sensing range B = knockout for wall mounting C = knockout for mounting with bracket Mounting location detection range Installation location Connect the detector as follows: The recommended mounting height is 2.3 m.
Page 3
15 m zones (see plan view). ON for approx. 3s Movement detected VdS compliant The detector IR/KB in switch position SW1, SW3 and SW4 Approvals set to “OFF” or SW2 to “ON” comply with the demands of The Motion Detector IR/KB is compliant VdS class B.
Page 4
With regard to purchase orders, the agreed Phone: +49 6221 701 607 particulars shall prevail. Fax: +49 6221 701 724 ABB AG does not accept any responsibility e-mail: knx.marketing@de.abb.com whatsoever for potential errors or possible lack of information in this document. Further information and local contacts: We reserve all rights in this document and in the www.abb.com/knx...
