D-Link DAP-3220 Install Manual

Wireless 108g exterior access point with poe
Hide thumbs Also See for DAP-3220:

Advertisement

Quick Links

Download this manual See also: Reference Manual, User Manual
DAP-3220 Install Guide
Hardware Overview
D-Link Systems, Inc.


Advertisement

loading

Related Manuals for D-Link DAP-3220

Summary of Contents for D-Link DAP-3220

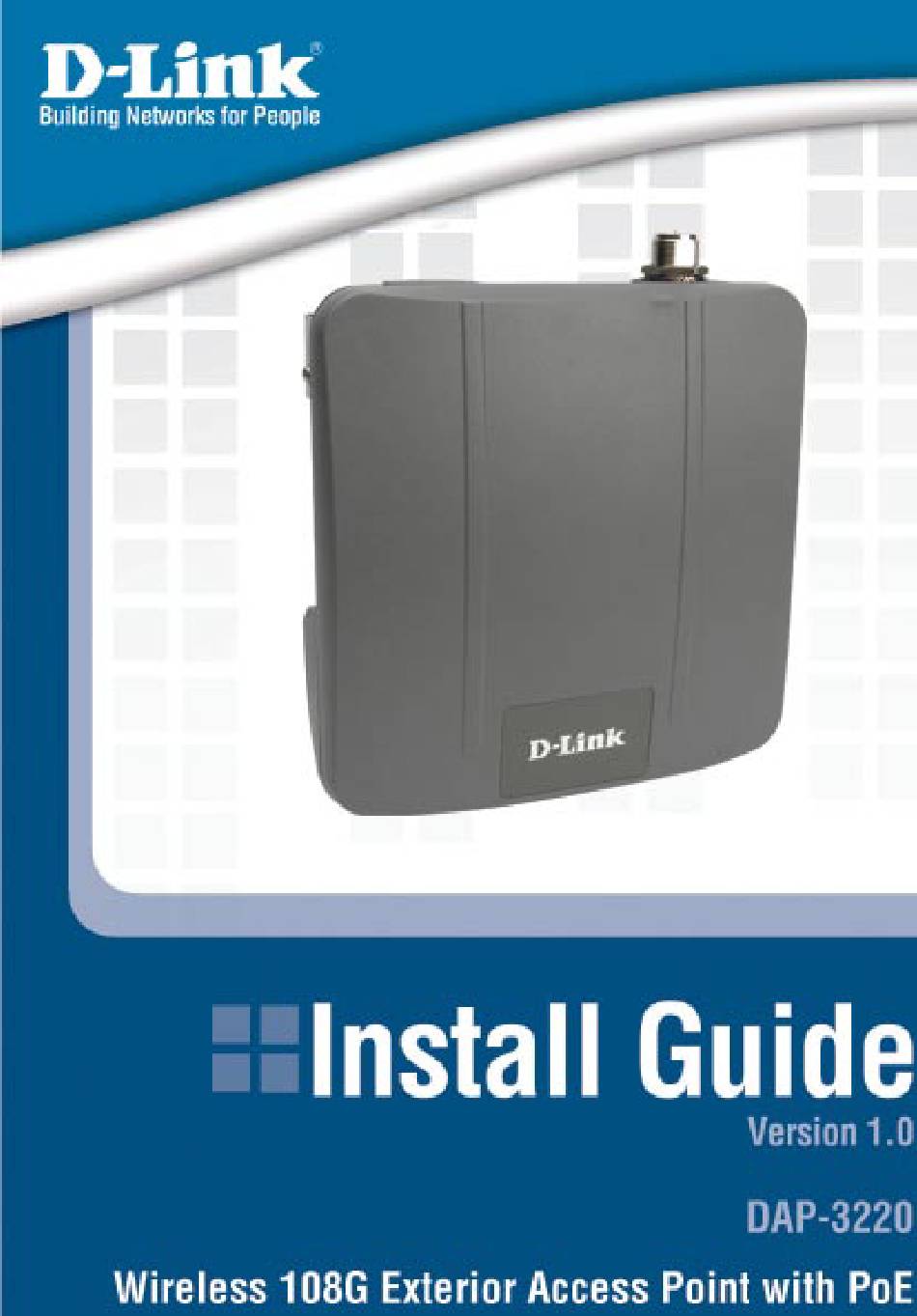

  • Page 1 DAP-3220 Install Guide Hardware Overview D-Link Systems, Inc.

  • Page 2: Ethernet Cable

    System Requirements DAP-3220 Install Guide D-Link AirPremier DAP-3220 Wireless 108G Exterior Access Point with PoE Power over Ethernet base unit Power Cord CD-ROM with Manual Ethernet Cable Power Adapter-DC 48V, 0.4A Using a power adapter with a different voltage rating will damage and void the warranty of this product.

  • Page 3: Installing The Hardware

    Installing the Hardware Connect one end of an Ethernet Step 1 cable (included with your package) to the LAN port on the DAP-3220 and the other end of the Ethernet cable to the port labeled P+DATA OUT on the PoE base unit.
  • Page 4 The Setup Wizard DAP-3220 Install Guide Open your Web browser and type http://192.168.0.50 into the URL address box. Then press the Enter or Return key. The logon pop-up screen will appear. Type admin for the username and leave the password field blank.
  • Page 5 F o r n e t w o r k s please do the following: Step 2 - Set Wireless LAN Connection. By default the DAP-3220 SSID is set to default with a Channel setting of 6. Click Next D-Link Systems, Inc.
  • Page 6 The Setup Wizard DAP-3220 Install Guide 802.11g networks please continue as follows: Step 3 - Encryption The DAP-3220 is capable of three levels of wireless encryption: 64-,128-, 152-bit, using either Hexadecimal or ASCII key type. By default encryption is disabled. You...
  • Page 7 DAP-3220 Install Guide The Setup Wizard When you have completed the steps in this Quick Installation Guide, your connected network should look similar to this: D-Link Systems, Inc.

  • Page 8: Warranty And Registration

    D-Link’s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund at D-Link’s sole discretion. Such repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not be new or have an identical make, model or part.
  • Page 9 FCC Warning statement For FCC 15b devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 10 FCC statement in User's Manual (for class B) "Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
