Kenwood KSC-37S Service Manual

Rapid charger

Download this manual

SERVICE MANUAL

Outline and Feature

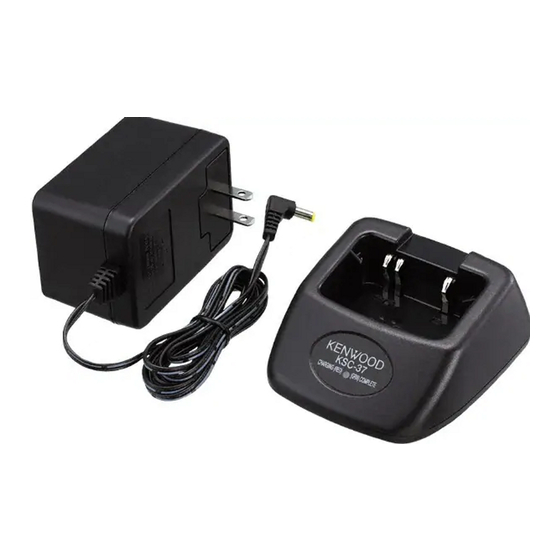

・This product is a Stand-Type rapid charger for Li-ion battery pack.

・2 color LED indicates charging condition.

・This charger has one slot. It is used for charging the Battery alone or the Battery attached to transceiver.

・It consists of the charger body and AC adapter.

Applicable Battery

Model

Type

KNB-46L

Li-ion

Specifications

AC Adapter

INPUT ....................... AC 100-240V, 50/60Hz

OUTPUT .................... DC 9V ±5%, 800mA

Charger

INPUT ........................ DC 9V±5%

OUTPUT ..................... CV (DC 4.5V ±1%), CC (1050mA ±5%)

Operation condition ......... 0～40 ℃ / 32～104 °

RAPID CHARGER

KSC-37S

Capacity

Less than 180 minutes

2000mAh

Charging time

Page 1 SERVICE MANUAL RAPID CHARGER KSC-37S Outline and Feature ・This product is a Stand-Type rapid charger for Li-ion battery pack. ・2 color LED indicates charging condition. ・This charger has one slot. It is used for charging the Battery alone or the Battery attached to transceiver.
Page 2 Drawing External Appearance Charger 86.3 43.2 External dimensions and Weight Item Unit Body Width mm(inch) 86.3 (3.4) Depth mm(inch) 100 (3.9) Height mm(inch) 43.2 (1.7) Weight g(oz) 100 (3.5) AC Adapter (K type) 36.0 26.0 External dimensions and Weight Item Unit Body Width...
