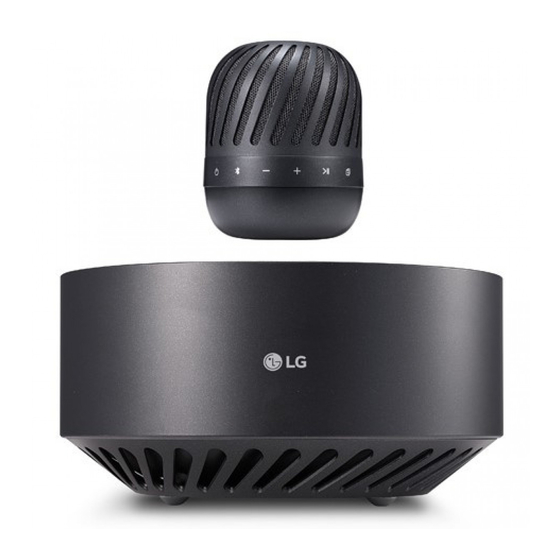

LG PJ9 Owner's Manual
Portable bluetooth speaker
Hide thumbs
Also See for PJ9:
- Simple manual (149 pages) ,
- Simple manual (17 pages) ,
- Simple manual (68 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for LG PJ9
Summary of Contents for LG PJ9
- Page 1 OWNER’S MANUAL Portable Bluetooth Speaker Please read this manual carefully before operating your set and retain it for future reference. MODELS PJ9 (PJ9, PJS9W) PJ9B (PJ9B, PJS9WB) www.lg.com *MFL69922202* Copyright © 2017 LG Electronics Inc. All Rights Reserved...
- Page 2 Getting Started Safety Information WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled RISK OF ELECTRIC SHOCK with liquids, such as vases, should be placed on the DO NOT OPEN apparatus.
- Page 3 Getting Started CAUTION concerning the Power Cord NOTICE: For safety marking information including product identification and supply ratings, please refer The Power Plug is the disconnecting device. In case to the main label on the bottom or the other surface of an emergency, the Power Plug must remain readily of the product.
- Page 4 Getting Started Symbols This device is equipped with a portable battery or accumulator. Refers to alternating current (AC). How to Safely remove the battery or the battery pack from the equipment: To remove the old battery Refers to direct current (DC). or battery pack, follow the assembly steps in reverse order.
-
Page 5: Table Of Contents
Table of Contents Table of Contents Getting Started Operating Safety Information Charging the speaker Unique features – Auto wireless charging Introduction – Charging with the AC adapter Speaker – Checking the charging status Woofer station – Checking Battery status Levitating Charging mobile device Connecting Basic Operations... -
Page 6: Getting Started
Getting Started Unique features Introduction Symbol used in this manual Auto power down This unit supports to turn off by itself for saving Note energy consumption. (Page 25) Indicates special notes and operating features. Portable In > Caution Listen to music from your portable device. (Smart phone, Notebook, etc..) Indicates cautions for preventing possible damages from abuse. -
Page 7: Speaker
Getting Started Speaker a Microphone b Power LED Connects two speakers for dual play. (Page 23) c Bluetooth LED k Battery LED d Dual Play LED l Reset hole m USB port for charging Turns On / Off : Press it. n Portable In connector Listens to music from your portable device. -
Page 8: Woofer Station
Getting Started Woofer station button Levitates or descends speaker manually. - Turn up maximum volume of speaker. b Mood LED light (Press - Initialize woofer station. (Press and hold d DC OUT 5 V 0 500 mA (USB port only for charging mobile devices) e DC IN (AC adapter input) >... -
Page 9: Connecting
Connecting Connecting the Speaker and AC Adapter Woofer station connection Connect the woofer station to the power supply with the supplied AC adapter. 1. Connect the supplied AC power cord to the AC Woofer station's Mood LED light adapter. status 2. - Page 10 Connecting Setting up the woofer station Manually connecting woofer station 1. Keep the speaker more than 50 cm away from When your connection is not completed, you can the woofer station. check Dual Play LED's state on the speaker. And the woofer station does not make sound.
- Page 11 Connecting Note y The first time it takes 25 seconds (and may take longer) for the speaker and the woofer station to communicate with each other and make sounds. (Reconnecting : 15 seconds) y Once connecting is performed, it does not need to be done again even if you turn off this unit.
-
Page 12: Operating
It is recommended that you use the 5 V on the top of woofer. AC adapter approved by LG Electronics Inc. y When press button on the top of woofer (more than 1.8 A) with this unit because of during charging, the speaker stops charging danger of explosion. -
Page 13: Checking The Charging Status
Operating Checking the charging status Checking Battery status When speaker's battery is charging, you can check If the power turned on, you can check the charging the charging status by Battery LED . status by pressing any button on the speaker or changing function. -
Page 14: Levitating
Operating > Caution Levitating Avoid the cases below. It will bring down the speaker with loud noise and may cause damage. Creates visual effect using electromagnets housed y Do not put any things (especially metal such inside the woofer station. Also you can enjoy 360– as keys or watches) between the speaker and degree sound and deep bass of the subwoofer the woofer station. -
Page 15: Charging Mobile Device
Operating Note Charging mobile device y Levitating is limited to only PJ9 model. Do not use other PJ series speaker. You can charge mobile device by woofer station. y Without connecting speaker and woofer station, press the button to levitate the speaker. -
Page 16: Basic Operations
Bluetooth device turns on with the is connected. sound. Note LG PJs(XX) Once pairing is performed, it does not need to be done again even if you turn off this unit. > Caution Don't use button on speaker for connecting a Bluetooth device in levitating mode. -
Page 17: Simple Operation Guide
Press the 1 button. Power LED turns off with the sound. Power Off When Bluetooth LED blinks, select Bluetooth LED turns on with the LG PJs (XX) from device list on your Bluetooth pairing sound. Bluetooth device. Play / Pause Press T . -
Page 18: Handsfree Function
Operating Note Handsfree Function y Only smartphone is available to use this function. You can receive incoming call on your Bluetooth y To adjust the call volume, press p , o buttons device to this unit. Connect the unit to a Bluetooth on the unit. -
Page 19: Listening To Music From Your External Device
Operating Listening to Music from Your External Device The unit can be used to listen to the music from many types of external device. (Not supplied) 1. Connect the external device to the Portable In connector of the unit. 2. Turn the power on by pressing 1 button. 3. -
Page 20: Using Bluetooth® Technology
Bluetooth device display y Available Devices : Smart phone, Notebook, etc. depending on the type of Bluetooth device. Your unit appears as “LG PJs (xx)” . y Version : 4.2 3. Select “LG PJs (xx)” . - Page 21 Operating Note Controls connected Bluetooth device y When using Bluetooth technology, you have to make a connection between the unit and You can control connected Bluetooth device from the Bluetooth device as close as possible and the unit; play, pause, skip. keep the distance.
-
Page 22: Multi Pairing
Even if this unit connected up to 2 Bluetooth unit is changed to multi pairing mode. devices, you can play and control music by 3. Select "LG PJs (XX)" from device list on another using only one of the connected devices. Bluetooth device. Then the speaker is connection y After multi-pairing connection, it takes a little with two Bluetooth devices. -
Page 23: Dual Play Connection (Optional)
Operating Dual Play Connection 2. If two speakers are connected, blinking Dual Play LEDs will stay white with beep sound. (Optional) speaker : Primary speaker is to set L (left) channel and turns on Dual Play LED and Bluetooth LED. You can enjoy the sound in stereo by using two speaker : Secondary speaker is set to R speakers. - Page 24 Operating Note y It takes up to 1minute to connect to dual play. y Secondary speaker ( ) will be disabled Bluetooth or Portable modes on Dual play y When you enjoy Dual Play, the multi pairing or mode. woofer station connection is not supported. y To change the Bluetooth device in Dual Play - Primary speaker ( ) connects only one...
-
Page 25: Other Operation
Operating Other Operation Resetting In case that freezes due to malfunction y Speaker : Press the reset hole using an object like Initializing a thin pin. Then speaker turns off. Press 1 button to try turning on speaker again. When the unit does not operate normally (Bluetooth pairing, Woofer station connection...), it need to be initialized. -
Page 26: Troubleshooting
Troubleshooting Troubleshooting Problem Cause & Correction y The battery is discharged. Recharge the battery. No Power. or power off y Connect the unit to the power supply with the AC adapter. after 10 seconds. y The unit or your smart device’ s volume is set to minimum. Check and adjust the volume of the unit or Bluetooth device’... -
Page 27: Handling The Unit
The Bluetooth® word mark and logos are Keeping the exterior surfaces clean registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by LG y Do not use volatile liquids such as insecticide spray Electronics is under license. -
Page 28: Specifications
Appendix Specifications Speaker 5 V 0 1.8 A (AC adapter) Power requirements Built-in rechargeable battery Power consumption Dimensions (W x H x D) Approx. 83.5 mm X 102.3 mm X 83.5 mm Operating temperature 5 °C to 35 °C Operating humidity 5 % to 60 % Water-proof IPX7...
