Installation
Instructions
Questions? Call GE Answer Center at 800.626.2000 or Visit our Website at: GEAppliances.com
❒ BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT
Save these instructions
for local inspector's use.
IMPORTANT
Observe all governing codes and
ordinances.
Note to Installer – Be sure to leave these instructions with
the Consumer.
Note to Consumer – Keep these instructions for future
reference.
Skill level – Installation of this appliance requires basic
mechanical and electrical skills.
Completion time – 1 to 3 hours
recommend that two people install this microwave oven.
of this kit.
WARNING
FOR YOUR SAFETY:
WARNING
switch power off at service panel and lock the service
disconnecting means to prevent power from being switched
Microwave Oven
Built-In Trim Kits
JX827 and JX830

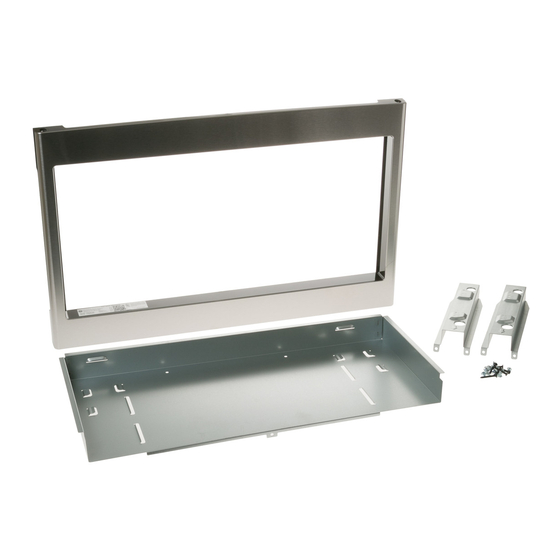

PARTS INCLUDED
PART
NOTE:
from spending extra time locating a replacement in case
1
QUANTITY
❒
❒
❒
❒
Screw A
3 extra
❒ 4 mm x 16 mm
4 required
