  • Page 1 Instruction Manual August 2003 milltronics MD-36 SPEED SENSOR...
  • Page 2 Contact SMPI Technical Publications at the following address: Technical Publications Siemens Milltronics Process Instruments Inc. 1954 Technology Drive, P.O. Box 4225 Peterborough, Ontario, Canada, K9J 7B1 Email: techpubs@siemens-milltronics.com For the library of SMPI instruction manuals, visit our Web site: www.siemens-milltronics.com © Siemens Milltronics Process Instruments Inc. 2003...

  • Page 3: Table Of Contents

    Table of Contents Introduction .......................... 3 Safety Notes .............................3 Product Warnings .........................3 Milltronics MD-36 Speed Sensor ......................4 The Manual ...............................4 Specifications ........................5 Operation ..........................7 MD-36/MD-36A/MD-36SS Operation ....................7 MD-36 IS Operation ..........................7 Dimensions .......................... 8 MD-36, MD-36A, MD-36 IS ......................8 MD-36SS ............................10...

  • Page 5: Introduction

    ♦ The MD–36 Speed Sensors are to be used only in the manner outlined in this manual or protection provided to the equipment may be impaired. 7ML19985DB01 Milltronics MD-36 Speed Sensor – INSTRUCTION MANUAL Page 3...

  • Page 6: Milltronics Md-36 Speed Sensor

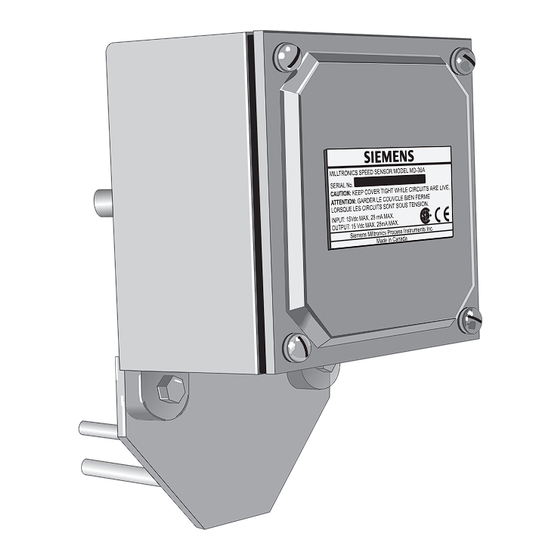

    Milltronics MD-36 Speed Sensor The Milltronics MD-36 is a general purpose and hazardous rated speed sensor. The sensor, coupled to the motor or pulley shaft, converts the rotation of its input shaft into an encoded speed signal. The speed signal is transmitted to the integrating electronics for use in calculating the rate of material flow.

  • Page 7: Specifications

    0 to 2000 rpm = 0 to 1200 Hz Input: Output • 1:1 (speed ratio) Enclosure • MD-36 and MD-36 IS: aluminum rating – Type 4/NEMA 4/IP 65 • MD-36A: aluminum • MD-36SS: 304 stainless steel 7ML19985DB01 Milltronics MD-36 Speed Sensor – INSTRUCTION MANUAL Page 5...
  • Page 8 • Belden 8770, 3 wire shielded, 0.75 mm (18 AWG) or equivalent • max. run 305 m (1000 ft.) Based on the ATEX rating of the NAMUR slotted sensor and CSA/FM system approvals. Page 6 Milltronics MD-36 Speed Sensor – INSTRUCTION MANUAL 7ML19985DB01...

  • Page 9: Operation

    As the target moves closer to the sensor, the energy required from the oscillator increases. The IS switch isolator monitors the change in the oscillator load, triggering the output when a predetermined level is reached. 7ML19985DB01 Milltronics MD-36 Speed Sensor – INSTRUCTION MANUAL Page 7...

  • Page 10: Dimensions

    MD-36, MD-36A, MD-36 IS Front View 142 mm 71 mm (5.6”) (2.8”) 71 mm 1/2” NPT plug (2.8”) (two places) 142 mm (5.2”) 218 mm (8.6”) 56 mm (2.2”) 112 mm (4.4”) Page 8 Milltronics MD-36 Speed Sensor – INSTRUCTION MANUAL 7ML19985DB01...
  • Page 11 16 mm (0.63”) shaft Ø 84 mm (3.3”) 124 mm (4.9”) ref. 61 mm (2.4”) 21mm (0.8”) 6 mm (0.25”) 114 mm shaft Ø (4.5”) 213 mm (two places) (8.4”) 7ML19985DB01 Milltronics MD-36 Speed Sensor – INSTRUCTION MANUAL Page 9...

  • Page 12: Md-36Ss

    (0.75”) 76mm (3.0”) 152 mm (6.0”) 239 mm (9.4”) cable connector for 3 to 9 mm (0.125” to 0.25”) o.d. cable 38 mm (1.5”) 51 mm (2.0”) 102 mm (4.0”) Page 10 Milltronics MD-36 Speed Sensor – INSTRUCTION MANUAL 7ML19985DB01...
  • Page 13 16mm (0.63”) shaft Ø 86 mm (3.4”) 127 mm (5.0”) (ref.) 76 mm (3.0”) 21 mm (0.8”) 6 mm (0.25”) Ø shaft 114 mm (two places) (4.5”) 216 mm (8.5”) 7ML19985DB01 Milltronics MD-36 Speed Sensor – INSTRUCTION MANUAL Page 11...

  • Page 14: Mounting

    When mounting the speed sensor, ensure that the shaft alignment is true to avoid stresses on the shaft bearing. • For preferred mounting locations, refer to the associated belt scale or weigh feeder application drawings. Page 12 Milltronics MD-36 Speed Sensor – INSTRUCTION MANUAL 7ML19985DB01...
  • Page 15 Notes: • When tail or bend pulley is not supplied by Siemens Milltronics, machining on tail/ Pulley Shaft bend pulley shaft (see above) to accommodate Milltronics speed sensor is done by customer. • Arresting bracket is an anti-rotation device only and must not secure or support the speed sensor.

  • Page 16: Fixed Shaft Mount

    Series motor offset 13 mm (0.5”) optimum dimension customer supplied mounting bracket (remove supplied arresting bracket) guard (to suit) Front View shaft rotation 8 mm (0.313”) two places Page 14 Milltronics MD-36 Speed Sensor – INSTRUCTION MANUAL 7ML19985DB01...

  • Page 17: Interconnection

    Terminal positions in brackets denote that only one signal may be connected at one time. N/C = No Connection MD-36 IS Speed Sensor/Isolator/Integrator Connection IS Switch Isolator MD-36 IS BW 100 BW 500 (P&F #KFA5-S0T2-Ex2) Terminal Terminal 7ML19985DB01 Milltronics MD-36 Speed Sensor – INSTRUCTION MANUAL Page 15...

  • Page 18: Wiring Diagram (Md-36 Is Only)

    2 conductor, 18AWG shielded cable BW 100 (customer supplied) Refer to integrator installation diagram. Note: The 115V version is shown. If 230V is required, use isolation barrier Pepperl + Fuchs #KFA6-SOT2-Ex2. Page 16 Milltronics MD-36 Speed Sensor – INSTRUCTION MANUAL 7ML19985DB01...

  • Page 19: Parts Lists

    Bolt, Hex 5/16 - 18 x 1 1/4 Set Screw Socket, 8-32 x 3/16 Nut, Hex 5/16 - 18 External Lockwasher #4 Washer, Flat 5/16 Bushing Lockwasher Split 5/16 Side View 7ML19985DB01 Milltronics MD-36 Speed Sensor – INSTRUCTION MANUAL Page 17...
  • Page 20 Remove screws (#17), bushing (#15), and card (#16). Remove speed sensor shroud screws (#2). Loosen hex screw in shaft and remove extension shaft, disc hub, and disc to free bearing assembly. Page 18 Milltronics MD-36 Speed Sensor – INSTRUCTION MANUAL 7ML19985DB01...

  • Page 21: Md-36Ss Parts List

    Lockwasher Split 5/16 SS Bushing Nut, Hex 5/16 - 18 NC SS Speed Pickup Card Ver.3 SS Screw, Socket, 10 - 32 Binding Screw, Slot, 6 - 32 x 5/8 Side View 7ML19985DB01 Milltronics MD-36 Speed Sensor – INSTRUCTION MANUAL Page 19...
  • Page 22 Remove MD-36 shroud screws (#2) and MD-36 shroud c/w terminal block (#19) and card (#13). Loosen hex screw in shaft and remove extension shaft, disc hub, and disc to free bearing assembly. Page 20 Milltronics MD-36 Speed Sensor – INSTRUCTION MANUAL 7ML19985DB01...

  • Page 23: Maintenance

    The speed sensor bearing should be periodically checked for corrosion, wear and seizing. The bearing‘s life is dependent upon the mounting, the severity of the application, and surrounding environment. 7ML19985DB01 Milltronics MD-36 Speed Sensor – INSTRUCTION MANUAL Page 21...
  • Page 25 Notes...
  • Page 26 Notes...
  • Page 28 Siemens Milltronics Process Instruments Inc. Siemens Milltronics Process Instruments Inc. 2003 1954Technology Drive, P .O. Box 4225 Subject to change without prior notice Peterborough, ON, Canada K9J 7B1 Rev. 1.1 Tel: (705) 745-2431 Fax: (705) 741-0466 *7ml19985DB01* Email: techpubs@siemens-milltronics.com...
