Mounting Accessories for Ceiling Loudspeakers LM2-xxx Installation Note...
Page 3
1-Remove the adapter ring only for installation of the LHM0606/00-US with the LBC3080/01 or the installation of the ceiling loudspeakers out of the LC1 Modular Ceiling Loudspeaker range. 2-Ceiling tile. 3-Provision for seismic anchoring (15 mm / 0.59 in). 4-Conduit knock-out holes (21.5 mm / 0.85 in). Bosch Security Systems B.V. March-10_LM2-xxx | V1.1 | 2010.03...
Page 4
LC1 Modular Ceiling Loudspeaker range. 2-Fixing holes for 24" support structure. 3-Fixing holes for 16" support structure. 4-Conduit knock-out holes (21.5 mm / 0.85 in). 5-Gypsum (sheetrock) ceiling. March-10_LM2-xxx | V1.1 | 2010.03 Bosch Security Systems B.V.
Page 5

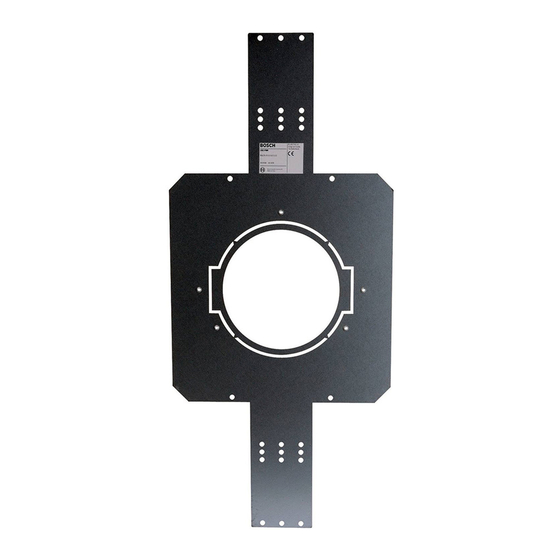

LM2-xxx LM2-TB Tile Bridge LM2-PMR Plaster Mounting Ring Bosch Security Systems B.V. March-10_LM2-xxx | V1.1 | 2010.03...
Page 6
Weight 1.204 kg (2.65 lb) Material Sheet metal zinc plated Environmental Operating temperature / +55 C (-13 / +131 Storage temperature -40 / +70 C (-40 / +158 Relative humidity <95% March-10_LM2-xxx | V1.1 | 2010.03 Bosch Security Systems B.V.
