Sony PHA-2A Operating Instructions

4-585-103-61(1)
Portable Headphone Amplifier
Operating Instructions
使用說明書
사용 설명서
PHA-2A
©2016 Sony Corporation
Printed in Malaysia
Manuals supplied/隨附的手冊 / 부속된 설명서 隨附的手冊
The 3 following manuals are included./ 隨附以下3本手冊。 隨附以下3本手冊。/ 다음과 같은 설명서 3가지가 포함되어 있습니다.
Operating Instructions (this document)
Provides you with instructions on how to connect the unit with
devices and basic operations.
使用說明書（本文件）
提供有關如何連接本機與各裝置的指示和基本操作。
사용 설명서(본 문서)
기기를 장치와 연결하는 방법과 기본적인 작동법이 나와 있습니다.
Reference Guide (exhibit document)
Provides you with precautions and product specifications.
參考指南（附件文件）
提供注意事項和產品規格。
참고 설명서(별첨 문서)
주의사항과 제품 주요 제원이 나와 있습니다.
English

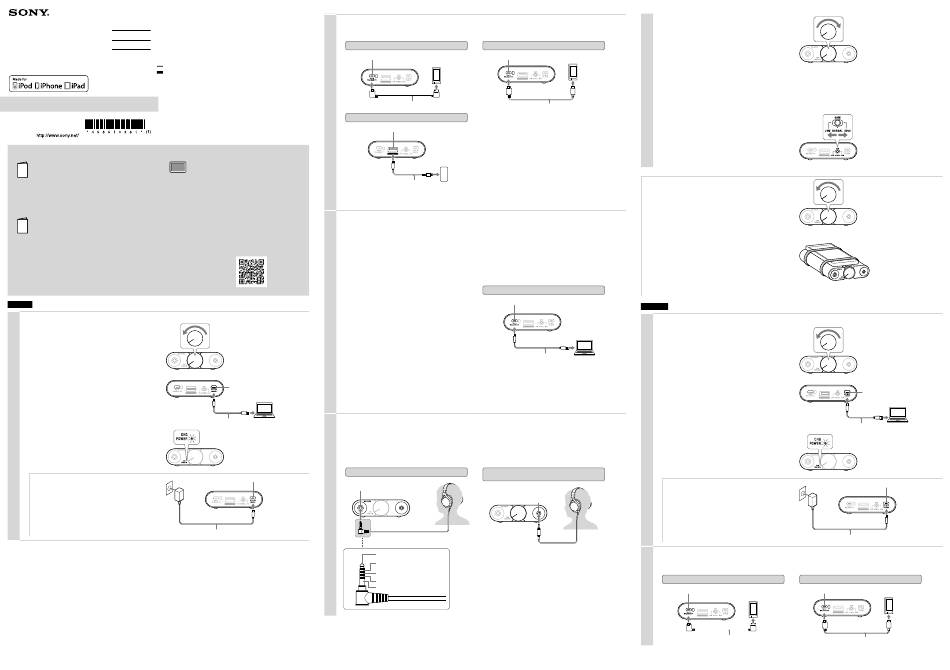

1 Charging the unit
 Rotate the power/volume knob counterclockwise until it clicks
to turn off the unit.
Front of the unit
 Connect your booted computer to the DC IN 5V / CHARGE port
(for charging only) of the unit using the micro-USB cable
(supplied).
The CHG POWER indicator lights up in red.
Rear of the unit
Charging is completed in about 8 hours. The indicator turns off when
the battery is completely charged.
If the battery is not charging properly, the CHG POWER indicator
flashes in red.
Note
The unit cannot be charged if the computer is connected to the Xperia/
WALKMAN/PC port of the unit.
Front of the unit
To charge the battery from an AC outlet USB AC adaptor
(commercially-available)
Charging is completed in about 5 hours when connected to an AC
outlet using a USB AC adaptor (5V/1.5A or more, commercially-
available).
Charging via other types of adaptors is not covered by the warranty.
Hint
You can use a USB AC adaptor (5V/1.5A or more, commercially-
available) to charge the WALKMAN® via the unit. Connect the
WALKMAN® to the unit using the digital cable for WALKMAN®
(supplied).
For details concerning connection, refer to step 2.
2 Connecting the audio device to the unit
Connecting the digital output supported WALKMAN®/Xperia™ or iPhone/iPad/iPod
For details concerning computer connection, refer to "Connecting a computer"
Digital output supported WALKMAN®
Xperia/WALKMAN/PC port
Rear of the unit
Help Guide (web manual)
Read the Help Guide on your computer or smartphone, when you
want to know how to use the unit in greater detail. The Help Guide
also contains a troubleshooting guide which provides you with
remedies for the problems you might encounter.
說明指南（網路手冊）
請在電腦或智慧型手機上閱讀說明指南以獲得有關如何更好地使用本機
Note
的詳細資訊。說明指南也包含故障排除指南，提供可能遇到的問題的解
When multiple devices are connected to the unit simultaneously, the Xperia/WALKMAN/PC port has priority.
決方法。
도움말 안내(웹 설명서) Connecting a computer
기기 사용 방법에 대한 자세한 내용이 필요한 경우 컴퓨터 또는 스마트폰에서 도움말
안내를 읽어 보십시오. 도움말 안내에는 당면한 문제에 대한 해결책을 제시하는 문제  For Windows, download and install the driver software for
해결 가이드도 들어 있습니다. Windows computers, "Sony USB Device Driver," to the
computer.
(For Mac, there is no need to install a driver.)
URL:
 Download and install the High-Resolution Audio player
http://rd1.sony.net/help/mdr/pha-2a/h_zz/
software "Hi-Res Audio Player."
Two-dimensional code:
二維碼：
To download "Sony USB Device Driver" and "Hi-Res Audio Player," visit
2차원 코드:
the following website:
http://www.sony-asia.com/support
For details on installing, refer to the website.
 Connect the computer to the unit.
The unit needs to be connected to your Windows computer at a certain
point while installing the driver software.
In this case, connect the Windows computer to the Xperia/WALKMAN/
PC port of the unit using the micro-USB cable (supplied).
The DC IN 5V / CHARGE port cannot be used to connect a computer to
play music.

Set the sound device settings of your computer.
For Windows 10/Windows 8/8.1
Press and hold the [Windows] and [X] keys to display the menu, select [Control Panel], [Hardware and Sound], [Sound], [Playback] tab, select [Sony PHA-2A] for the
playback device, then click [Set default].
DC IN 5V / CHARGE port (for charging only)
For Windows 7
Click the [Start] menu, select [Control Panel], [Hardware and Sound], [Sound], [Playback] tab, select [Sony PHA-2A] for the playback device, then click [Set default].
Computer
For Mac
Click the [Apple] menu, select [System Preferences], [Sound], [Output] tab, then select [PHA-2A] for [Select a device for sound output].
3 Listening to music with the headphones
Micro-USB cable (supplied)
 Connect the headphones to the unit.
Notes
• When using headphones with a standard 3-pole stereo mini plug, do not connect anything to the headphone jack (Balanced standard). Otherwise, no sound is
produced from the headphone jack (stereo mini).
• If headphones with a standard 3-pole stereo mini plug are connected to the headphone jack (Balanced standard), no proper sound is produced; connect them to
the headphone jack (stereo mini).
To connect balanced connection compatible headphones
DC IN 5V / CHARGE port (for charging only)
Headphone jack (Balanced standard)
Rear of the unit
Micro-USB cable (supplied)
Xperia
Xperia/WALKMAN/PC port
WALKMAN®
Rear of the unit
Rear of the unit
Digital cable for WALKMAN® (supplied)
Digital cable for Xperia (supplied)
iPhone/iPad/iPod
iPhone/iPad/iPod port
iPhone
iPad
iPod
USB cable supplied with
iPhone/iPad/iPod
Computer
Xperia/WALKMAN/PC port
Rear of the unit
Micro-USB cable (supplied)
To connect the headphones with a standard 3-pole
stereo mini plug
Headphone jack (stereo mini)
Front of the unit
Front of the unit
5-pole balanced standard plug
L +
L -
R +
R -
Unused
 Rotate the power/volume knob clockwise to turn on the unit.
Rotate it more to adjust the volume.
The CHG POWER indicator flashes several times, then stays lit.
Note
A relay is incorporated in the internal circuit of the unit, therefore it
makes a relay switching sound when the unit is turned on/off and the
internal circuit is switched to another state.
Xperia
 Play back the connected audio device.
When playing High-Resolution Audio format data on your computer with the unit, use "Hi-Res Audio Player."
For details on installing "Hi-Res Audio Player," visit the following site at
http://www.sony-asia.com/support
 Adjust the volume.
Adjust the volume by the power/volume knob.
• When the volume is low: turn off the unit, set the GAIN select switch
to HIGH, then turn on the unit. The GAIN select switch changes the
maximum volume of the power/volume knob to one of three levels
(LOW, NORMAL, and HIGH). In normal use, the setting should be
NORMAL.
After using the unit
Rotate the power/volume knob counterclockwise until it clicks to turn off the
unit.
How to use the silicone belts
You can fasten a connected device to the unit using the silicone belts (supplied).
Place the protection sheet (supplied) between the unit and the connected device
to avoid scratching.
 Mount the connected device on the unit.

Bind the unit and the connected device using the silicone belt
with its wider part placed under the bottom of the unit.
For details on how to use the silicon belt and the protection sheet, refer to the
Help Guide.
繁體中文
1 為本機充電

逆時針旋轉電源/音量旋鈕直到發出喀嗒聲以關閉本機電源。
Computer

使用Micro-USB電纜（附件）將開啟的電腦連接至本機的
DC IN 5V / CHARGE連接埠（僅供充電）。
CHG POWER指示燈亮起紅燈。
充電在約8小時後完成。當電池完成充電時，指示燈熄滅。
如果電池未適當充電，CHG POWER指示燈會閃爍紅燈。
註
如果電腦連接至本機的Xperia/WALKMAN/PC連接埠，本機無法充電。
從AC電源插座對電池充電
使用USB交流電源供應器（5V/1.5A或以上，市售）連接至AC電源插座時，
充電在約5小時後完成。
透過其他類型的電源供應器充電不在保固範圍內。
提示
您可以使用USB交流電源供應器（5V/1.5A或以上，市售）透過本機對
WALKMAN®充電。使用WALKMAN®專用數位電纜（附件）將WALKMAN®連接至
本機。
如需有關連接的詳細資訊，請參閱步驟2。
2 將音訊裝置連接至本機
連接支援數位輸出的WALKMAN®/Xperia™或iPhone/iPad/iPod
有關電腦連接的詳細資訊，請參閱"連接電腦"
支援數位輸出的WALKMAN®
Xperia/WALKMAN/PC連接埠
本機背面
WALKMAN®專用數位電纜（附件）
iPhone/iPad/iPod
iPhone/iPad/iPod連接埠
Front of the unit
Rear of the unit
Front of the unit
本機正面
DC IN 5V / CHARGE連接埠（僅限充電）
電腦
本機背面
Micro-USB電纜（附件）
本機正面
USB交流電源供應器
DC IN 5V / CHARGE連接埠（僅限充電）
（市售）
本機背面
Micro-USB電纜（附件）
Xperia
Xperia/WALKMAN/PC連接埠
Xperia
WALKMAN®
本機背面
Xperia專用數位電纜（附件）
