Sanyo PLV-Z3000 Specification Sheet

WIDESCREEN LCD PROJECTOR • 65,000:1 CONTRAST RATIO • 14-BIT GAMMA CORRECTION

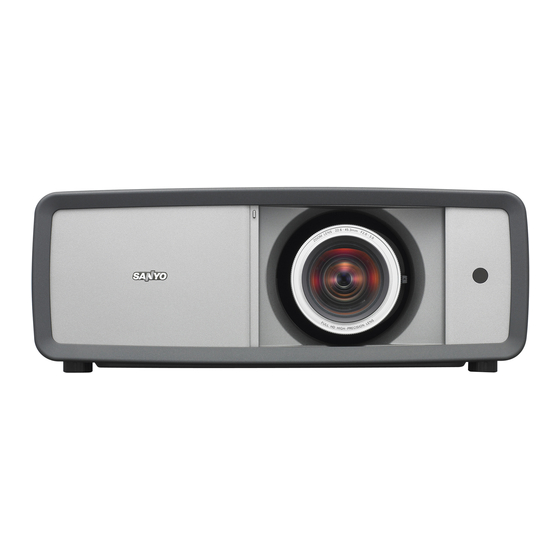

PLV-Z3000
1080P 16:9 Full HD,High Contrast
Home Entertainment Projector
FULL HIGH-DEFINITION RESOLUTION – 1080p
The PLV-Z3000 unleashes the full 1920 x 1080 high-definition potential
from today's advanced full HD sources. This means rich, deep and
accurate colors from SANYO's exclusive TopazReal HD. TopazReal HD
brings together a team of technologies including a variable iris and lamp
reactivity, a 14-bit digital signal processing, real-focus HD lens system, and,
most importantly, a 3D color management system that addresses changes
in color phase and color level to obtain perfect color reproduction. PLV-
Z3000 uses 120Hz super-fast Full HD panel, which can increase
smoothness in videos due to doubled frame rate from 60 frames/second to
120 frames/second using interpolation frame generation technology. The
optimization of deep color from the color management system is supported
via the projector's two HDMI 1.3 inputs.
LENS MAXIMIZATION OF IMAGE DETAIL
Rated at 1200 lumens, the PLV-Z3000 is capable of an incredible
65,000 : 1 contrast ratio for superlative black levels, even in ambient light.
Plus it has a newly-developed, high-efficiency lens that maximizes image
details for exceptional optical performance.
ADVANCED LENS SHIFT FOR VARIOUS ROOM ENVIRONMENTS
The PLV-Z3000 is outfitted with the industry's most advanced lens shifting
function. When coupled with the projector's short throw capability and 2x
zoom, the PLV-3000 can create a large screen image in any size room
and from virtually any location. The lens shifting function allows wide-
range shifting up or down to three screen sizes and left to right to two
screen sizes. The throw design of the PLV-Z3000, which is capable of
projecting a 100-inch diagonal image from 10 to 20 feet away, makes it
extremely suitable for small to mid-size home theaters.
VIRTUALLY SILENT FAN DESIGN
A 1200 lumen projector generates a tremendous amount of heat and
requires a high quality fan to ensure proper operation. At this level of
brightness, the fan is 'on' most of the time and the noise can be extremely
loud and disruptive, especially in smaller home theaters where the
projector and the audience are in the same vicinity. To promote greater
enjoyment of the film and to reduce noise levels during quiet passages of
a film, the PLV-Z3000 is equipped with the industry's quietest fan, a large
aperture, low noise Sirocco cooling fan that never rises above 19dB in the
economy mode.
Issued 08/08
PRESENTATION TECHNOLOGIES
21605 Plummer Street
Chatsworth, CA 91311
Ph: 888-337-1215 (toll-free)
Fax 818.717.2719
www.sanyoprojectors.com
S p e c i f i c a t i o n s
Resolution
Brightness (typical)
Uniformity
LCD Panel System
Number of Pixels
Contrast Ratio
Projection Image (diag.)
Aspect Ratio
Throw Distance
Zoom/Focus
Lens Shift
Up/Down/Left/Right Ratio
Digital Keystone Correction
Projection System
Projection Lens
Lens Throw Ratio
Projection Lamp
Scanning Frequency
Dot Clock
HDTV signal
Color System
Computer Compatibility
Voltage
BTU Rating
dB Rating
Power Consumption
Dimensions (WxHxD)
Net Weight
User Maintenance
Input Terminals
Component Video 1
Component Video 2
S-Video
Composite Video
Computer
HDMI 19-Pin DVI
Communication
Included Accessories
Optional Accessories 610 336 5404 – Replacement Lamp
645 092 8710 – Replacement Remote
POA-MCSRL – Serial Control Cable
FCC Rating
Warranty 3-years parts & labor; 90-days lamp (original);30-days
Because its products are subject to continuous improvement, SANYO reserves the right to
modify product design and specifications without notice and without incurring any obligations.
Illuminated
Remote Control
1920 x 1080
1,200 ANSI Lumens
85% (corner to center)
0.74" TFT Poly-Silicon x 3 (16:9)
6,220,800(2,073,600 x 3)
65,000:1
40" ~ 300"
16:9
3.9' ~ 60.4'
1x to 2.0x, Manual driven
Manual (Up/ Down/Left/Right)
Up/Down: 3: -1 ~ -1:3 (-1V/Center/+1V)
Left/Right: 10:0 ~ 0:10 (-0.5H/Center/+0.5H)
No
Dichroic mirror & 4P prism system w/ PBS
F2.0 ~ 3.0 / f0.9" ~ 1.8"
1.35 ~ 2.7:1
165W UHP
H: 15~80kHz, V: 50~100Hz (auto sense/select)
100MHz (Analog RGB / Component)
480i/480p/575i/575p/720p/1080i/
1080p (HDMI/Component)
PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N
WXGA/SXGA/XGA/SVGA/VGA/MAC
100V-240V AC; 50/60Hz (auto voltage)
877
19dBA (Eco mode)
257W
15.7" x 5.7" x 13.6" (not including protrusion)
16lbs
Clean air filters, replace lamp assembly
Y, Pb/Cb, Pr/Cr (RCA x 3)
Y, Pb/Cb, Pr/Cr (RCA x 3)
S-Video (Mini DIN 4-pin x 1)
Video (RCA x 1)
Analog RGB (D-Sub 15 )
HDMI (19-pin Ver.1.3b) x 2
RS-232C/ Service Port (Mini DIN 8-pin)
Owner's Manual(Quick manual & CD ROM)
Illuminated Infrared Remote Control
AC Power Cord (6.6') 2 AA batteries
Class B, UL Listed
lamp (replacement) Quick Repair Program under
warranty
Rear Panel Terminals
Motorized Front Door
©2008 SANYO
Air blower
