GE PACSystems RX3i Important Product Information page 2

2
GFK-2724A
Installation
The Energy Pack is mounted on the left side of an RX3i module. To avoid taking up a backplane slot, it should be mounted
on the module (usually a power supply) in slot 0 of the rack. It is connected to the CPU by cable IC695CBL001.
Note that, when mounted on a module in slot 0, the Energy Pack will extend approximately 13mm (0.5") beyond the left
side of the backplane.
To install the Energy Pack:
1. Engage the top mounting hooks on the frame of the Energy Pack module as shown in Figure 3.
2. Rotate the bottom of the Energy Pack into place, engaging the bottom hooks. The latch will snap into place.
3. Connect the IC695CBL001 cable from the connector on the bottom of the Energy Pack (Figure 2) to the
corresponding connector on the bottom of the CPU.

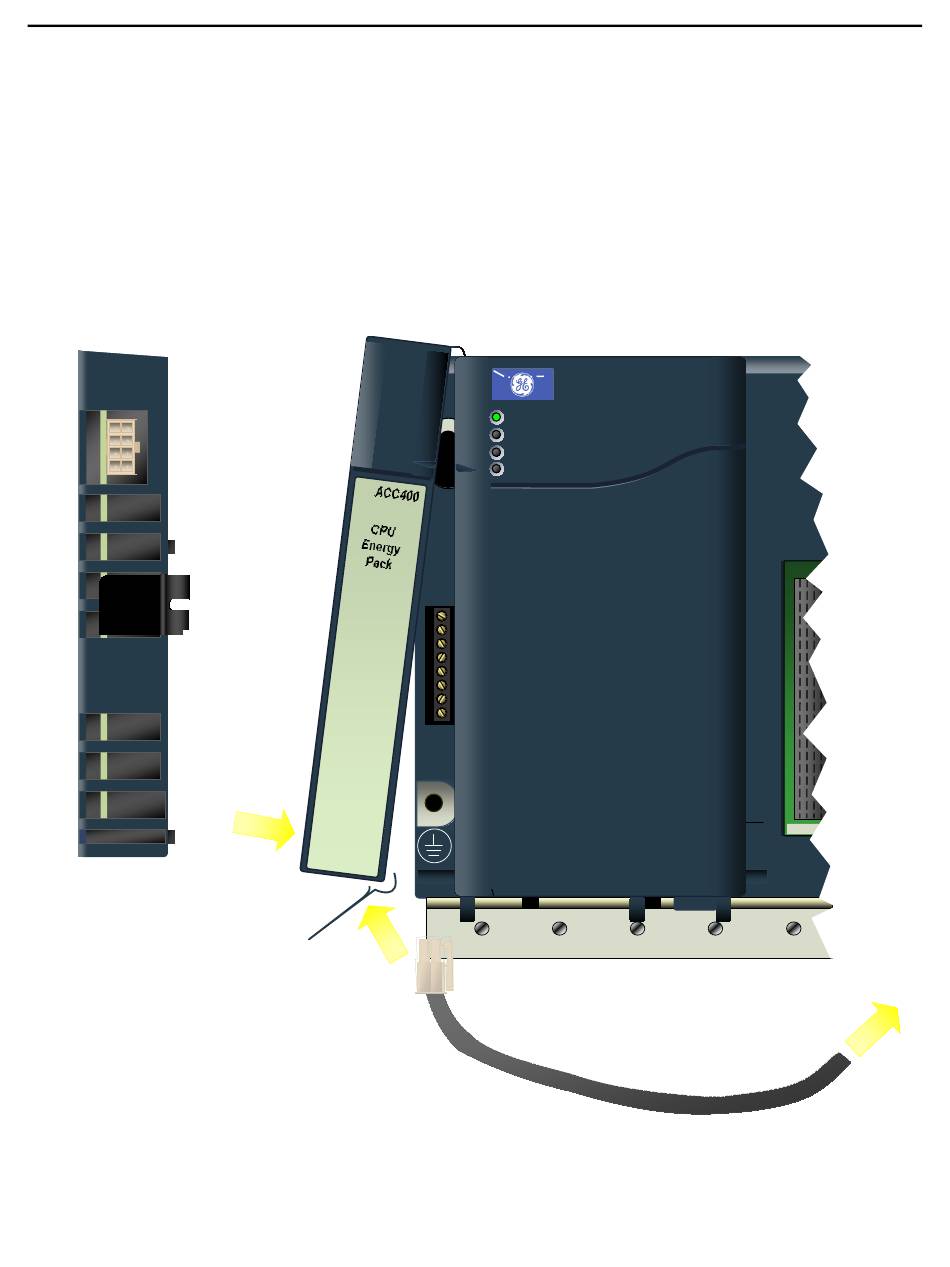

Figure 2: ACC400
Bottom View
Figure 3: Installation of ACC400 Energy Pack: Connect to CPU via Cable IC695CBL001
POWER
P/S FAULT
OVERTEMP
OVERLOAD
Power Supply
40W AC
PACSystems
RX3i
IC695ACC400
