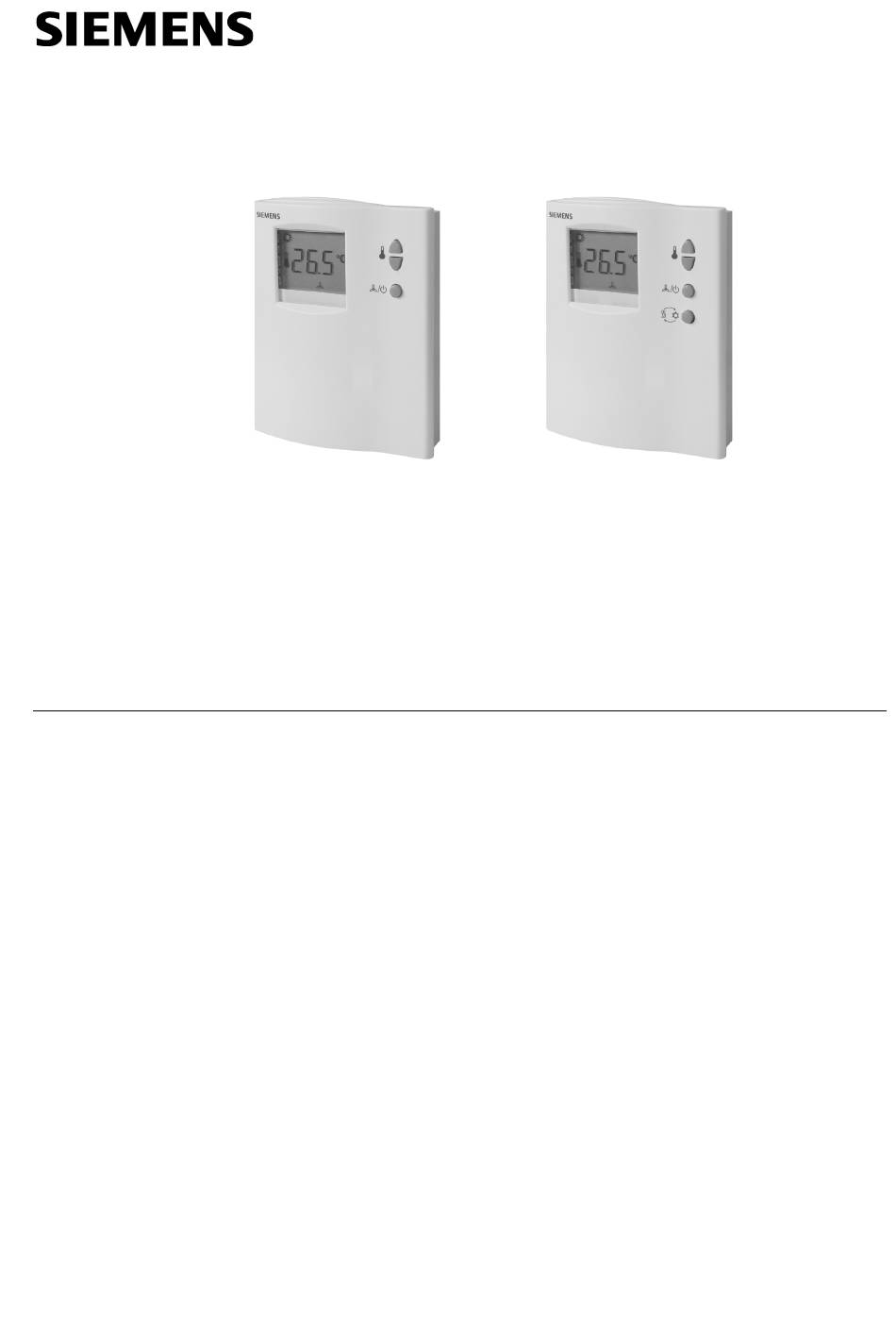

N3057en
2014-10-28
RDF110
RDF110/IR
Room Temperature
Controllers with LCD
for 2-pipe fan coil units
for compressors in DX type equipment
Output for on / off valve actuator or 1-stage compressor
3-speed fan control: Automatic or manual
Adjustable commissioning and control parameters
Optional display of room temperature or setpoint
Minimum and maximum setpoint limitation
Operating voltage AC 230 V
Additional features of RDF110
Automatic heating / cooling changeover
Operating modes: Normal operation, Economy (Energy saving) and Protection
(Standby)
Input for heating / cooling changeover or return air temperature sensor
Potential-free input for operating mode changeover (key card contact, etc.)
Function for avoiding damage resulting from moisture
Additional features of RDF110.2
Manual heating / cooling changeover
Operating modes: Normal operation, Protection (Standby)
Optional
Infrared remote control (RDF110/IR, RDF110.2/IR)
RDF110.2
RDF110.2/IR
Building Technologies
3
057
RDF110...
Advertisement
Table of Contents
Related Manuals for Siemens RDF110
Summary of Contents for Siemens RDF110
- Page 1 Potential-free input for operating mode changeover (key card contact, etc.) Function for avoiding damage resulting from moisture Additional features of RDF110.2 Manual heating / cooling changeover Operating modes: Normal operation, Protection (Standby) Optional Infrared remote control (RDF110/IR, RDF110.2/IR) Building Technologies N3057en 2014-10-28...
-
Page 2: Normal Operation
• Maintenance of room temperature either with integrated temperature sensor or external room / return air temperature sensor (only with RDF110 and RDF110/IR) • Selection of operating mode with an external changeover switch (only with... -
Page 3: Economy (Energy Saving) Mode
Y11 and which can be used for normally open valves. Heating / cooling With the RDF110, the changeover between cooling and heating takes place either mode automatically via a heating / cooling changeover sensor or a remote changeover switch. - Page 4 With the RDF110.2, when pressing the heating / cooling changeover button , the controller will change from heating to cooling, or vice versa. Minimum output The minimum output on time and off time of Y11 can be adjusted from 1…10 minutes on time / off time Y11 via parameters P15 and P16.
- Page 5 External sensor input B1-M With the RDF110, a return air / external room temperature sensor or heating / cooling changeover sensor can be connected to terminal B1-M. The function of this sensor input is determined by parameter P22. Sensor input B1-M is not galvanically separated from the AC 230 V mains supply.
-
Page 6: Error Handling
Should both the external and internal sensor fail, the display will flash “Err” to call the user‘s attention. Infrared remote control The RDF110/IR and RDF110.2/IR have an infrared receiver built in. Together with the IRA210 infrared remote control, the following operations can be performed from a remote location: •... -
Page 7: Control Parameters
Control parameters With the RDF110 and RDF110.2, a number of control parameters can be readjusted to optimize the control performance. These parameters can also be set during operation without opening the unit. In the event of a power failure, all control parameter settings will be maintained. - Page 8 Control parameters of the RDF110 and RDF110.2 Para- Meaning Setting range Factory meter setting Setpoint of heating in Economy (Energy saving) mode 16 °C OFF, 5 °C…Wcool (Wheat Economy (Energy saving) Setpoint of cooling in mode 28 °C OFF, Wheat …40 °C...
- Page 9 STP21... 4878 Zone valve actuators SUA… 4830 (only available in AP, UAE, SA and IN) *) The documents can be downloaded from http://siemens.com/bt/download. Accessories Description Type Adapter plate 120 x 120 mm for 4“ x 4“ conduit boxes ARG70 Adapter plate 96 x 120 mm for 2“ x 4“ conduit boxes ARG70.1...
-
Page 10: Mounting And Installation
Button for changing fan operation and Protection (Standby) ( Manual heating / cooling changeover ( ) (only with RDF110.2) Infrared receiver (only with RDF110…/IR) Mounting and installation The room controller can be mounted on a wall or inside the fan coil unit. The mounting location on a wall should not be in niches or bookshelves, not behind curtains, above or near heat sources and not exposed to direct solar radiation. - Page 11 (also refer to “Setting the control parameters”). • Only with RDF110: Depending on the application, the heating / cooling mode needs Heating / cooling mode to be set via parameter P22.
- Page 12 2 x 0.4-1.5 mm or 1 x 2.5 Weight 0.28 kg Color of housing front white, NCS S 0502-G (RAL 9003) *) The documents can be downloaded from http://siemens.com/bt/download. 12/14 Siemens Room Temperature Controllers N3057en Building Technologies 2014-10-28...
-
Page 13: Connection Terminals
QAA32) Control output “Valve” AC 230 V (N.C., Measuring neutral for sensor for normally open valves) * Only with RDF110 or RDF110/IR Connection diagrams Return air temperature sensor (QAH11.1) Application: or external room temperature sensor (QAA32) Changeover sensor (temperature sensor 2-pipe fan coil units QAH11.1 + changeover mounting kit... - Page 14 Dimensions Controller Mounting base 28.7 94.85 3057M03 2006 (– 2014) Siemens Switzerland Ltd. Subject to change 14/14 Siemens Room Temperature Controllers N3057en Building Technologies 2014-10-28...
