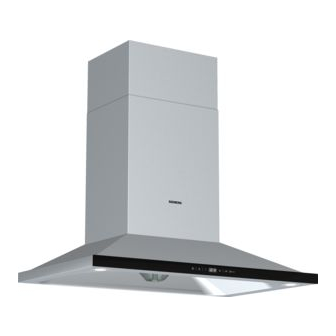

Siemens LC55SK950W Operation And Installation Instructions Manual

Chimney cooker hood

Advertisement

Quick Links

Page size : 16k ( 18.4 × 26cm )
CHIMNEY COOKER HOOD
en
OPERATION AND INSTALLATION INSTRUCTION
SIEMENS
LC55SK950W

Advertisement

Table of Contents
loading

Summary of Contents for Siemens LC55SK950W

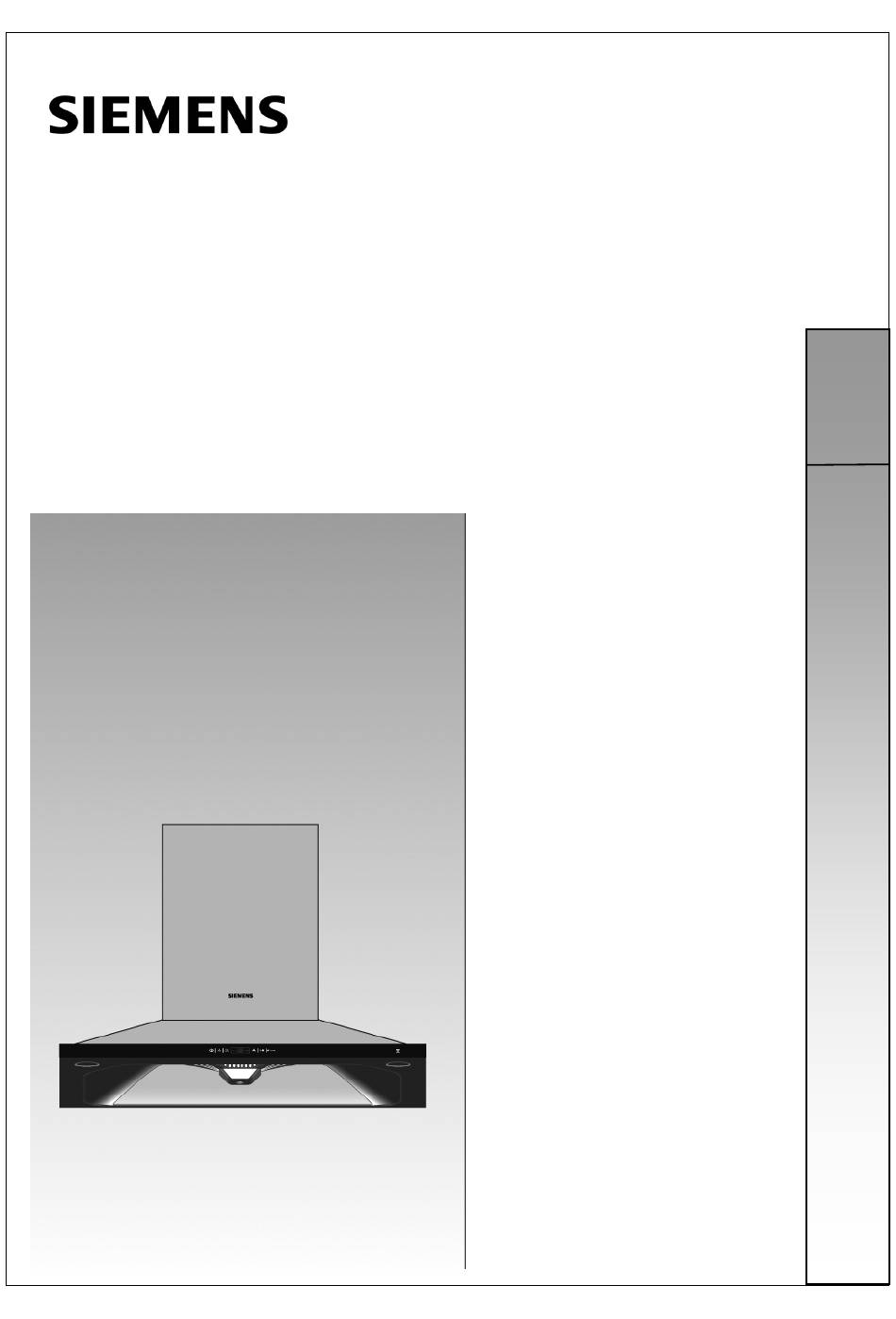

  • Page 1 Page size : 16k ( 18.4 × 26cm ) CHIMNEY COOKER HOOD OPERATION AND INSTALLATION INSTRUCTION SIEMENS LC55SK950W...
  • Page 2 Page size : 16k ( 18.4 × 26cm )...
  • Page 3 If you need an English user manual, please download it from Siemens website. Or you can send the E-mail to service department, or you can call up service hot line for free supply.
  • Page 4: Table Of Contents

    Page size : 16k ( 18.4 × 26cm ) catalogue Important Information Package of New Cooker Hood…………….. ……………… 2 Disposal of Used Cooker Hood………….. …………………2 Before You Begin ……………………………………………2 Product Introduction Technical Parameters…………………………………………3 Product Standard …………………………………………… 3 Safety Precautions …………………………………………… 3 Operation Instruction Familiar with Your New Cooker Hood………………………...
  • Page 5: Package Of New Cooker Hood

    If there is any obvious damage to the cooker hood, DO NOT connect the cooker hood to the power supply. Please contact the local Siemens home appliance customer service center or distributor immediately. DO NOT disassemble this cooker hood. Repair work must be...
  • Page 6: Technical Parameters

    Page size : 16k ( 18.4 × 26cm ) Product Introduction Technical Parameters Product Model LC55SK950W GB Model CXW-180-C55SK950 Product Appearance Rated Voltage 220~50Hz 180W Power motor 2X20W light self cleaning Air Volume m /min 18±1 ≥300(Max) Static Pressure Pa ≤69...
  • Page 7 DO NOT let children or weak people use the cooker hood without attendance. If the light bulb of the cooker hood is damaged, please contact the Siemens customer service centre to replace the damaged light bulb to avoid short circuit. NEVER insert or remove an electric plug with wet hands.
  • Page 8: Familiar With Your New Cooker Hood

    Page size : 16k ( 18.4 × 26cm ) Operation Instruction Familiar with Your New Cooker Hood LC55SK950W 1. Decorative hood 2. Upper cover 3. Seamless cavity 4. Grease filter 5. Grease collector 6. Light 7. Switches Control Panel This model applies the advanced electronic touch switches and features the easy-to-clean surface and long operation life.
  • Page 9: Operation Explain

    Page size : 16k ( 18.4 × 26cm ) Operation Instruction Operation Explain 1. Turn on the Fan: Press the “Fan Power ” for the first time. Then the fan runs at the speed 3. The display screen displays . After the fan is turned on, press the “ ”button.
  • Page 10 Page size : 16k ( 18.4 × 26cm ) Operation Instruction The auto clean runs for 30 minutes during which the screen displays the count-down time. After the clean is complete, the screen shows that the clean ends. If you hold down the button for 3 seconds after the auto clean has already run for 15 minutes, you stop the clean in advance.
  • Page 11 Page size : 16k ( 18.4 × 26cm ) Operation Instruction Set the Key Lock Function: When the fan does not work, press and hold the button for 3 seconds to enter the key lock state. The icon is displayed (if the key lock button is pressed when the fan is working, there is no response).
  • Page 12: Safety Precautions

    Page size : 16k ( 18.4 × 26cm ) Installation Safety Precautions DO NOT installation this cooker hood. Install work must be done by well-trained qualified person(s). If your kitchen is under decoration, please DO NOT expose the cooker hood to outside as building materials, dusts, paints and the volatilized gas corrode and stain the surface of the cooker hood.
  • Page 13: Installation Position & Height

    Each cooker hood is equipped with an adjustable hood. When leaving factory, the inner duct is mounted inside the out duct. Draw the inner duct upwards when needed. Before using the inner duct, read the dimensions below. model LC55SK950W dimension A(mm) Fixing bracket Inner duct Outer duct...
  • Page 14: Install Fasteners

    Insert the accessory plastic expansion pipes into the drilling holes and fix the fixing members (mounting arm and mounting bracket) onto the wall with the accessory fixing screws. model LC55SK950W dimension A(mm) Fixing bracket Mounting rail Min. 750mm from gas hob...
  • Page 15: Fix Cooker Hood

    Page size : 16k ( 18.4 × 26cm ) Installation Fix Cooker Hood Hang the cooker hood on the mounting rail on the wall to make sure the cooker hood does not shake or hook off. Keep the cooker hood horizontal. Install the accessory fixing screws in the notch as shown in the figure to prevent the cooker hood hooking off from the mounting arm.
  • Page 16: Install Inner Duct

    Page size : 16k ( 18.4 × 26cm ) Installation If you need to connect the exhaust duct to the common chimney duct, DO NOT deeply insert the exhaust duct into the common chimney duct in case that the resistance increases when exhausting.
  • Page 17: Test Run

    Page size : 16k ( 18.4 × 26cm ) Cleaning、 、 、 、 Maintenance & Repair After installation, clean the surface of the cooker hood. Test Run Then, insert the electric plug of the cooker hood into the receptacle. Test run operation is performed according to Pages 5,6 in the “Operation Instruction”.
  • Page 18: Abnormal Phenomena & Troubleshooting

    Page size : 16k ( 18.4 × 26cm ) Cleaning、 、 、 、 Maintenance & Repair When the oil takes up two thirds of the oil collector, the cup should be cleaned in time in case that the oil spills over. Detach the cup according to the figure.
  • Page 19: Customer Service Reminders

    When calling service, please have E-Number, SER No. and Production Date of your cooker hood ready to avoid troubles and extra pays. The information is located on the label of the cooker hood. Label position LC55SK950W...
  • Page 20: Warranty

    Page size : 16k ( 18.4 × 26cm ) Customer Service In accordance with the “Regulations Regarding Responsibility for the Warranty Repair, Replacement or Return of Commodities”, the cooker hood is a home appliance, the main parts have a warranty period of three (3) years and the entire product has the warranty period of one (1) year.
  • Page 21 Page size : 16k ( 18.4 × 26cm ) Material Number: 9000646223 Edition: PDC02 Revise Date: 2011.04 Siemens Home Appliance Chinese Website: http://www.siemens-home.com 800 Consult Free Tel: 8008289828 Customer Service E-mail: Careline.China@BSHG.com...
