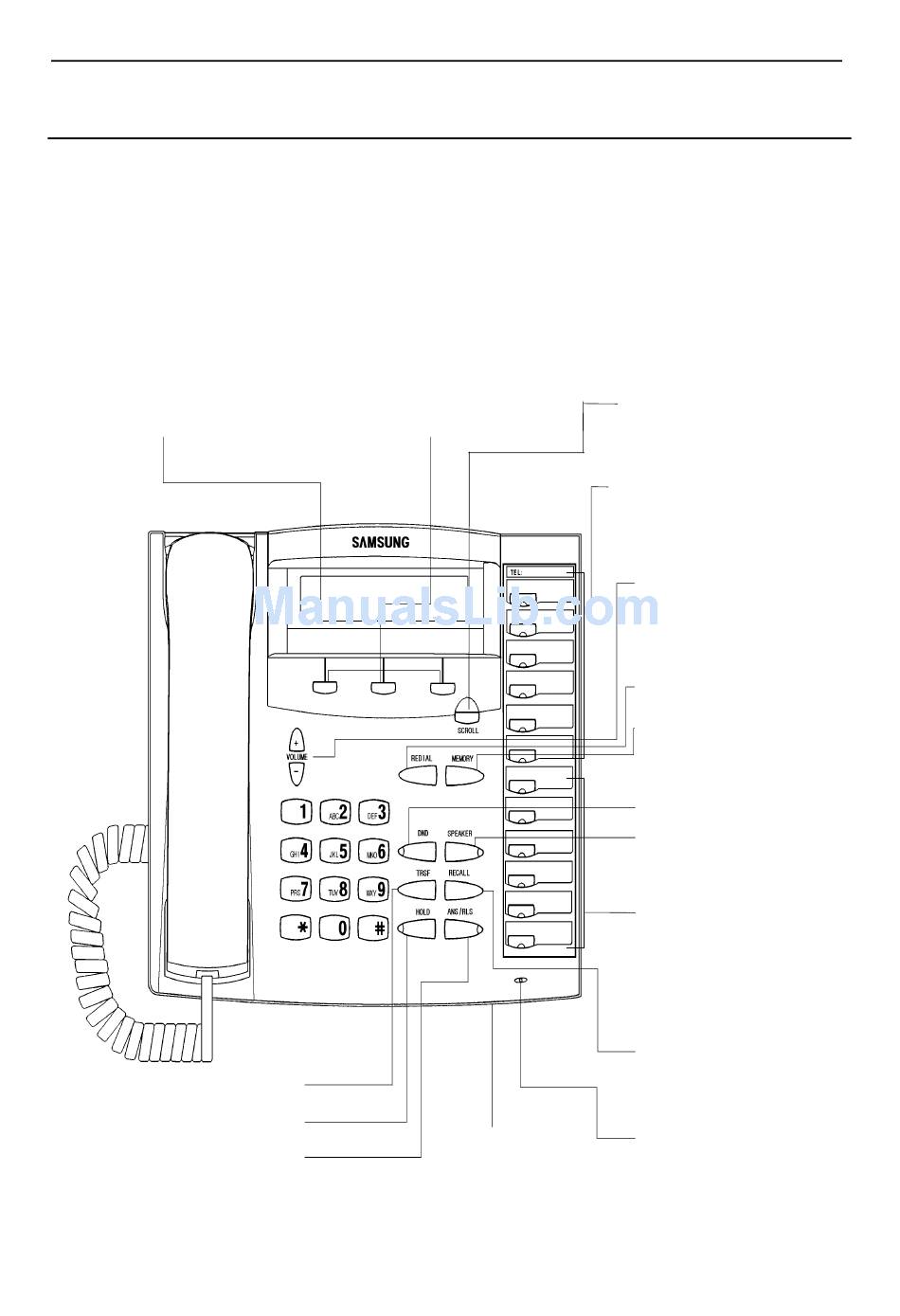

LCD 12B Keyset Layout

Labelling Programmable Keys
Insert the end of a paper clip into the notch of the clear cover. Push
the cover sideways. Lift the cover and remove the designation strip.
Label the designation strip. Replace the strip and cover.
32-CHARACTER DISPLAY
Two lines with 16 characters each.
TRANSFER KEY
HOLD KEY
ANSWER/RELEASE KEY
SOFT KEYS
Used to activate features via
the display.
PULLOUT
DIRECTORY TRAY
– 8 –
Keyset User Guide
SCROLL KEY
Used to scroll through displays.
6 PROGRAMMABLE KEYS WITH
TRI-COLOURED LEDs
Used for CALL keys, internal calls and
many other system features
VOLUME CONTROL KEYS
Used to set independent levels for hand-
set, speaker, background music, ring
and page volumes.
LAST NUMBER REDIAL KEY
MEMORY (SPEED DIAL) KEY
DO NOT DISTURB KEY
SPEAKER KEY
Used to switch call to speakerphone.
6 PROGRAMMABLE KEYS WITH
RED LEDs
Used to call stations directly, for One-
Touch dialling and many other system
features.
TRUNK FLASH KEY
MICROPHONE
For hands-free operation.
