Summary of Contents for Panasonic NB-W250

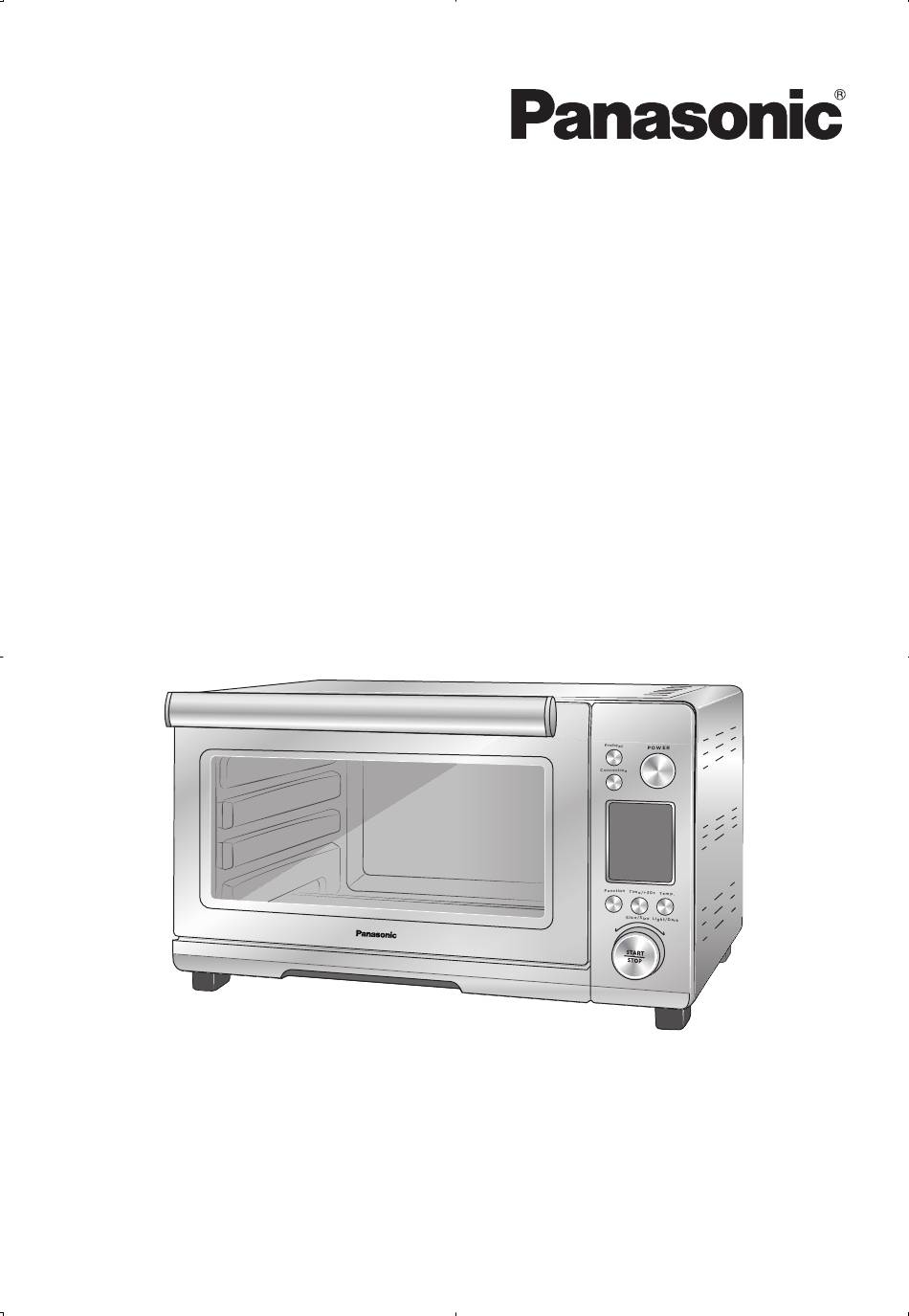

- Page 1 Operating Instructions Toaster Oven (Household Use Only) NB-W250 Model No.
-
Page 2: Table Of Contents
• Please read these instructions thoroughly to use product correctly and safely. • Please retain this Operating Instructions for future use. • Panasonic will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions. -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS The following basic safety precautions apply when using electrical appliances: 1. Read all instructions. 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against electrical shock do not immerse cord, plugs, or appliance water or other liquid. 4. - Page 4 20. Do not place any of the following materials in the oven: paper, cardboard, plastic and the like. 21. Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven. 22.
-
Page 5: Safety Precautions
Safety Precautions Please make sure to follow these instructions. In order to prevent accidents or injuries to the user, other people, and damage to property, please follow the instructions below. ■ The following chart indicates the degree of damage caused by improper operation. - Page 6 WARNING To avoid risk of electric shock, fire due to short circuit, burns or serious injury. This appliance is not intended for use by persons (including children) ● with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 7 CAUTION To avoid risk of electric shock, smoke, fire, burns, injury or property damage. Do not use the appliance on following places. ● ●Onunevensurfaces,oncarpet,non - heat - resistant surface or tablecloths etc. ●Placeswhereitmaybesplashedwithwaterornearaheatsource. ●Nearanyopenwatersources More than such as sinks, or the like. 15 cm (6") ➜...
-
Page 8: Part Names And Instructions
Part Names and Instructions Main unit & Accessories Upper heater Control panel Near-infrared ray heater Far-infrared ray heater Rack / Tray position Upper Middle Power cord Lower Dial Start / Stop Lower heater Power plug Crumb tray (removable) Handle ● Besuretoslideinfirmlybeforeuse. - Page 9 Control Panel Display window Power button / Indicator ●Set to be in a standby Crust color level status. (See P.10) ●Stop the program. Preheat POWER Upper heater Convection Preheat Preheat button Convection Lower heater ●Setthisiftherecipe Auto required “Preheat”. Time / Slice / mode (See P.10) Size /...
-
Page 10: Handling Instructions
Handling Instructions Before use For the first time use, remove packing material and clean the main unit / ■ accessories. (See P.16) C lean the main unit / accessories when you have not used for a long time. ■ Preparation Install the baking tray or cooking rack into the correct position. - Page 11 6 Press “START” button to start cooking ●Theremainingtimewillbedisplayedonthedisplaywindow. ●Ifthecontrolpanelisleftmorethan1minutebeforepressing START “START”button,thepowerwillbeturnedoffautomatically STOP evenduringsetting.(Displaywindowwillbeturnedoff.) ➜ Press “Power” button to return to a standby status and start from step 2. 7 Take out the food when you hear beep sounds ● Take out the cooking rack or baking tray with the holding rack. Slide - out rack or tray about 3 inches (10 cm) using the holding rack.
-
Page 12: Cooking Guide (Auto Mode)
Handling Instructions Cooking guide (Auto mode) Menu Recipes Quantity Accessory TOAST Toast 1–6slices 2, 4 or 6 slices BAGEL Bagel (halves) PIZZA Frozen Pizza Size : 6, 9 or 12 (inch) Key points for cooking (Auto mode) ■ Select desired “slice” and “crust color level”. TOAST Baking time and baking temperature cannot be changed. - Page 13 Baking time Temperature Tray Tips Position (approximately) setting (°F) 2 slices : 2 min 25 s Toast size : Approx. 6 slices : 3 min 10 s Only middle 4 i n c h e s , h a l f i n c h thickness Crust color level : 4 4 halves : 3 min 40 s...
-
Page 14: Cooking Guide (Manual Mode)
Handling Instructions Cooking guide (Manual mode) Rack / Tray Menu Recipes Weight / Quantity Accessory Position 3 lb. (1.5 k g ) Roast beef ROAST Middle Frozen chicken 1 lb. (450 g ) nugget Yellow cake 9 inch round cake pan Apple pie 9 inch pie plate Muffin... - Page 15 Temperature Preset time Preheat Convection Note setting (°F) Set 450°F for 15 min, Up to 3 lb (1.5 k g ) then320°Ffor30–50min – √ (It depends on the thickness of meat.) Up to 1 lb (450 g ) 18–20min 450°F –...
-
Page 16: Accessories Instructions
Accessories Instructions How to use "Holding rack" Upper hook Cooking rack Make sure the bottom hooks on both sides, and are stuck on the rack, then pull it out. Bottom hook Bottom hook Baking tray Make sure the upper hook stickstothetrayfirmly,then pull it out. -
Page 17: Troubleshooting
Troubleshooting Problems Cause and solution The plug is not inserted properly. ● Insert the power plug firmly into the outlet. The power indicator ➜ If the main unit is left for more than 1 minute, the or display window ● power will be turned off automatically. -
Page 18: Contact Information
Contact Information For product information and operation assistance : In USA contact : Customer Care Center : 1-800-211-PANA (7262) Directly Online : http://shop.panasonic.com/support Specifications Power supply 120 V 60 Hz Power consumption 1 750 W Capacity 0.9 CU FT / 25 L Temperature setting 100 –... -
Page 19: Limited Warranty
If your product does not work properly because of a defect in materials or OF THE LIMITED WARRANTY. workmanship, Panasonic Consumer Electronics Company (referred to as Some states do not allow the exclusion or limitation of incidental or “the warrantor”) will, for the length of the period indicated on the chart below, consequential damages, or limitations on how long an implied warranty lasts, which starts with the date of original purchase (“warranty period”), at its... - Page 20 Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 www.panasonic.com © Panasonic Taiwan Co., Ltd. 2018 BZ51A203 Printed in China MD0818K0...
