Samsung HT-DB390 Instruction Manual

Digital home theater system
Hide thumbs Also See for HT-DB390:
Table of Contents

Advertisement

Quick Links

DIGITAL HOME
THEATER SYSTEM
HT-DB390
Instruction Manual
ASC
LSM
V-H/P
COMPACT
DIGITAL AUDIO
V I D E O

Advertisement

Table of Contents
loading

Related Manuals for Samsung HT-DB390

Summary of Contents for Samsung HT-DB390

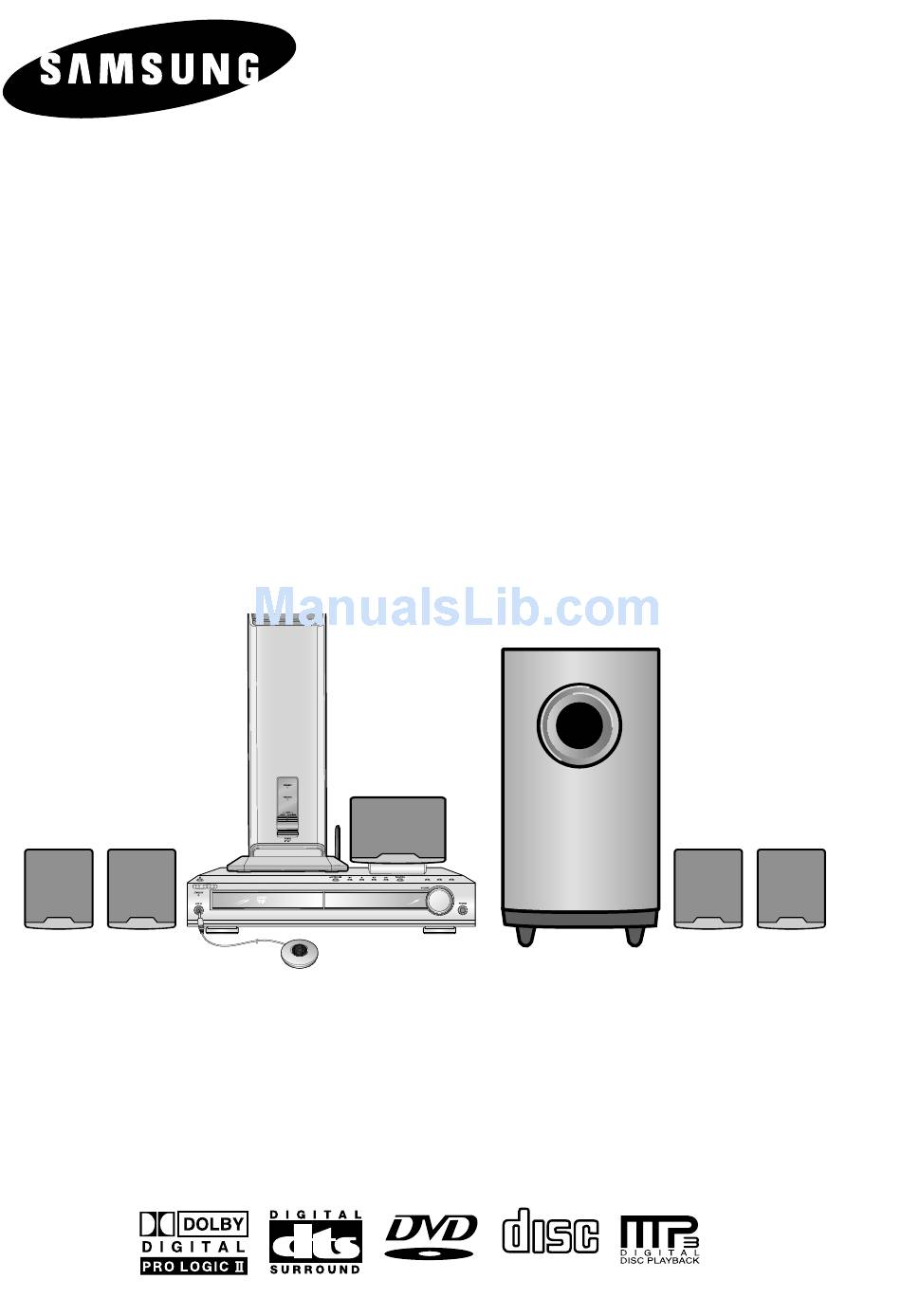

  • Page 1 DIGITAL HOME THEATER SYSTEM HT-DB390 Instruction Manual V-H/P COMPACT DIGITAL AUDIO V I D E O...

  • Page 2: Safety Warnings

    This symbol alerts you to important operating and maintenance instructions accompanying the unit. WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

  • Page 3: Precautions

    (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become hot.

  • Page 4: Safety Instructions

    The openings should never be blocked by placing the video product on a bed, sofa, rug, or other similar surface. This video product should never be placed near or over a radiator or heat register.
  • Page 5 This video product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other.) This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug.

  • Page 6: Features

    The HT-DB390 has a rear surround wireless amp that removes the need for long speaker cables between the main unit and rear speakers. Sound Logo When power is turned on, a sound logo is output from the speakers to notify the user that the unit is optimized for disc playback. TV Screen Saver Function The HT-DB390 automatically brightens and darkens the brightness of the TV screen after 3 minutes in the stop mode.

  • Page 7: Table Of Contents

    Dolby Pro Logic II Effect ...62 RADIO OPERATION Listening to Radio ...63 Presetting Stations...64 MISCELLANEOUS Convenient Functions ...65 Operating a TV with the Remote Control ...67 Before Calling for Service ...69 Cautions on Handling and Storing Discs ...71 Specifications...72 Notes on Terminology...73 Warranty ...74...

  • Page 8: Notes On Discs

    • Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.
  • Page 9 Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played. • MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +). •...

  • Page 10: Description

    ) button Function button Auto Sound Calibration button Live Surround Mode button Virtual Headphone button V-H/P Volume control Headphone Jack Tuning Up & Skip ( ) buttons Tuning Down & Skip ( ) buttons STEREO indicator TUNER indicator RADIO FREQUENCY indicator...

  • Page 11: Rear Panel

    Video Output Connector Connect the TV's video input jacks External Video Component Input Connectors External Audio Component Input Connector * The wireless receiving antenna is built into the wireless rear amplifier. Audio Cable (AH39-40001U) FM Antenna (AH42-00004A) Wireless rear receiver...

  • Page 12: Remote Control

    Description —Remote Control— TV, DVD POWER button TV/VIDEO, DIMMER button OPEN/CLOSE button Auto Sound Calibration button SUPER 5.1 button Live Surround Mode button/ Virtual Headphone button PL II MODE button TUNING/CH button MENU button RETURN button Number(0~9) buttons SLEEP button...
  • Page 13 Follow these precautions to avoid leaking or cracking batteries: Caution • Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–). • Use the correct type of batteries.Batteries that look similar may differ in voltage.

  • Page 14: Connecting The Speakers

    Connecting the Speakers Before moving or installing the product, be sure to turn off the power and disconnect the power cord. Position of the DVD Player • Place it on a stand or cabinet shelf, or under the TV stand.
  • Page 15 (–) terminal and the gray wire into the gray (+) terminal. Make sure the polarities (+ and –) are correct. Gray Front Speaker (R) Wireless Rear Speaker (R) Make sure the colors of the speaker terminals match the colors of the connecting plugs.
  • Page 16 Do not touch the wireless transmission antenna during operation. Noise or interference to communications may result. Note • Place the wireless rear amplifier at the rear of the listening position. If the wireless rear amplifier is too close to the main unit, some sound interruption may be heard due to interference. •...
  • Page 17 3 above. Turning On the Mood Light You can turn the mood light on the wireless rear amplifier on or off, as well as change the light to one of 7 different colors according to your preference. Press the POWER on the wireless amplifier.

  • Page 18: Connecting The Video Out To Tv

    Component Video (Best Quality) If your television is equipped with Component Video inputs, connect a component video cable (not supplied) from the Pr, Pb and Y jacks on the back panel of the system to the corresponding jacks on your television.

  • Page 19: P.scan(Progressive Scan) Function

    The selection switches back and forth between "P.SCAN" and "I.SCAN" each time the button is held down for a minimum of 1 second. • The previous mode is indicated in the display first, followed by the selected mode in about a second. What is Progressive (or Non-Interlaced) Scanning? Interlaced Scan (1 FRAME = 2 FIELDS)

  • Page 20: Connecting External Components

    Connecting an External Digital Component Example: Digital signal components such as a Settop Box or CD Recorder. Connect Video Out on the DVD player to Video In on the TV. Connect the Digital Input (OPTICAL) to the Digital Output on the external digital component.

  • Page 21: Connecting An External Analog Component

    • Each time the button is pressed, the selection changes as follows: DIGITAL IN AUX 1 AUX 2. • You can also use the FUNCTION button on the main unit. The mode switches as follows: DVD/CD AUX1 AUX2 Video Cable Note •...

  • Page 22: Connecting The Antennas

    Connecting the Antennas FM antenna connection Connect the FM antenna supplied to the FM 75 COAXIAL terminal as a temporary measure. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.

  • Page 23: Am Antenna Connection

    • Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and fire may result.) AM Loop Antenna (supplied) terminals.

  • Page 24: Before Using Your Dvd Player

    Before Using Your DVD Player Your DVD player is capable of playing DVD, CD, MP3 and JPEG discs.Depending on the disc you are using, these instructions may vary slightly. Read the instructions carefully before using. Plug the power cord into the AC power supply.
  • Page 25 Each time the button is pressed, the TV indicator (red) and the DVD Receiver indicator (green) will flash alternately. • You can operate the TV while the TV indicator is flashing and the DVD player while the DVD indicator is flashing. • Buttons Enabled for TV Operation: POWER, CHANNEL, VOLUME, TV/VIDEO, and Numeric (0-9) buttons.

  • Page 26: Disc Playback

    If the TV is on, a list of MP3s on the CD will appear on the TV screen. Note • Depending on the content of the disc, the initial screen may appear different. To stop playback, press STOP during playback. •...

  • Page 27: Mp3-Cd Playback

    Steps 2 and 3 above. • Depending on the recording mode, some MP3-CDs may not play. Note • Table of contents of a MP3-CD varies depending on the MP3 track format recorded on the disc. In Stop mode, use to select the album, and then press the ENTER button.

  • Page 28: Jpeg Disc Playback

    JPEG Disc Playback Images captured with a digital camera or camcorder, or JPG files on a PC can be stored on a CD and then played back with this unit. Press the OPEN/CLOSE button to open the disc tray, and then load the JPEG disc.

  • Page 29: Displaying Disc Information

    REPEAT PLAYBACK display Display disappears • appears on the TV screen! If this symbol appears on the TV screen while buttons are being operated, that operation is not possible with the disc currently being played. • What is a Title? A movie contained in a DVD disc.

  • Page 30: Fast/Slow Playback

    Fast/Slow Playback Fast Playback Press and hold • Each time the button is held down during playback, the playback speed changes as follows: Slow Playback Press SLOW button. • Each time the button is pressed during playback, the playback speed changes as follows:...

  • Page 31: Skipping Scenes/Songs

    Skipping Scenes/Songs Briefly press • Each time the button is pressed briefly during playback, the previous or next chapter, track, or directory (file) will be played. • You cannot skip chapters consecutively. TITLE 01/05 CHAPTER 002/040 TITLE 01/05 CHAPTER 004/040 Note •...

  • Page 32: Repeat Playback

    Repeat Playback Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file). JPEG Press REPEAT button. • Each time the button is pressed during playback, the repeat playback mode changes as follows: To Select a Repeat Playback Mode in the Disc Information Screen Press INFO button twice.

  • Page 33: A-B Repeat Playback

    To return to normal playback, press Cursor buttons to select Note • The A-B Repeat function will not work on an MP3 or JPEG disc. Press Cursor button to move to REPEAT PLAYBACK ) display. Press ENTER button at the end of the segment.

  • Page 34: Angle Function

    Angle Function This function allows you to view the same scene in different angles. Press INFO button. Press Cursor select the desired angle. • Each time the button is pressed, the angle changes as follows: • Note The Angle function works only with discs on which multiple angles have been recorded.

  • Page 35: Zoom Function

    Each time the button is pressed, the zoom function will switch between On and Off. • When a movie is played in Widescreen format, black bars at the top and bottom of the TV screen can be removed by pressing the EZ VIEW button.

  • Page 36: Selecting Audio/Subtitle Language

    Press Cursor buttons or numeric buttons to select the desired audio language. • Depending on the number of languages on a DVD disc, a different audio language (ENGLISH, SPANISH, FRENCH, etc.) is selected each time the button is pressed. SP 2/3...

  • Page 37: Moving Directly To A Scene/Song

    ENTER button. 01/05 028/040 1:30:00 Note You can press on the remote control to move directly to the desired title, chapter, or track. Depending on the disc, you may not be able to move to the selected title or time.

  • Page 38: Using Disc Menu

    Using Disc Menu You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc. In Stop mode, press MENU button. Press Cursor , , , buttons to select the desired item.

  • Page 39: Using The Title Menu

    Using the Title Menu For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, this function may either not work at all or may work differently. In Stop mode, press MENU button. Press Cursor , button to move to ‘Title Menu’.

  • Page 40: Setting The Language

    OSD language is set to English by default. In Stop mode, press MENU button. Press RETURN button to return to the previous level. Press MENU button to exit the setup screen. Press Cursor button to move to ‘Setup’ and then...
  • Page 41 ENTER button. • Once the setup is complete, if the language was set to English, OSD will be displayed in English. Selecting the Disc Menu Language (recorded on the disc) If the language you selected is...

  • Page 42: Setting Tv Screen Type

    Setting TV Screen type Depending on your TV type (Wide Screen TV or conventional 4:3 TV), you can select the TV's aspect ratio. In Stop mode, press MENU button. Press Cursor button to move to ‘TV DISPLAY’ and then press ENTER button.

  • Page 43: Adjusting The Tv Aspect Ratio (Screen Size)

    Adjusting the TV Aspect Ratio (Screen Size) The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of wide screen and high definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust the aspect ratio to fit your TV or monitor.

  • Page 44: Setting Parental Controls (Rating Level)

    Setting Parental Controls (Rating Level) Use this to restrict playback of adult or violent DVDs you do not want children to view. In Stop mode, press MENU button. Press Cursor button to move to ‘Setup’ and then press ENTER button.

  • Page 45: Enter Button

    • The higher the level, the closer the content is to violent or adult material. • Note This function works only if a DVD disc contains the rating level information. Enter the password and then press ENTER button. • The password is set to "7890" by default.

  • Page 46: Setting The Password

    Setting the Password You can set the password for the Parental (rating level) setting. Press MENU button. • Note The password is set to "7890" by default. Press Cursor button to move to ‘Setup’ and then press ENTER button.
  • Page 47 Press Cursor button to move to ‘PASSWORD’ and then press ENTER button. Press RETURN button to return to the previous level. Press MENU button to exit the setup screen. Press ENTER button. Enter the password and then press ENTER button.

  • Page 48: Setting The Wallpaper

    Setting the Wallpaper While watching a DVD or JPEG CD, you can set the image you like as background wallpaper. During playback, press PLAY/PAUSE button when the image you like comes up. PAUSE Press Cursor button to move to ‘USER’ and then press ENTER button.
  • Page 49 PAUSE Press Cursor button to move to ‘Setup’ and then press ENTER button. Press RETURN button to return to the previous level. Press MENU button to exit the setup screen. JPEG Press LOGO button. • "LOGO COPYING" will be displayed on the TV screen followed by "LOGO COPIED".

  • Page 50: Setting The Speaker Mode

    Setting the Speaker Mode Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker configuration and whether certain speakers are used or not. In Stop mode, press MENU button. In the Speaker Setup, press the ENTER button again.

  • Page 51: Setting The Test Tone

    Setting the Test Tone Use the Test Tone feature to check the speaker connections and to adjust the speaker levels. In Stop mode, press MENU button. Press RETURN button to return to the previous level. Press MENU button to exit the setup screen.

  • Page 52: Setting The Delay Time

    Setting the Delay Time If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers. In Stop mode, press MENU button. Setting up the Speaker Delay Time When 5.1CH Surround Sound is played, you can enjoy the best sound if...
  • Page 53 Press MENU button to exit the setup screen. Setting CENTER SPEAKER • If the distance of Dc is equal to or longer than the distance of Df in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.

  • Page 54: Setting The Audio Quality

    Setting the Audio Quality You can adjust the balance and level for each speaker. When adjusting the audio quality using the setup screen Method 1 In Stop mode, press MENU button. Press Cursor button to move to ‘SOUND EDIT’ and then press ENTER button.
  • Page 55 • The volume level can be adjusted in steps from +6dB to –6dB. • The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB. Adjusting Rear Speaker Balance Press SOUND EDIT button and...

  • Page 56: Setting The Drc (Dynamic Range Compression)

    Setting the DRC You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night. (Dynamic Range Compression) In Stop mode, press MENU button. Press Cursor button to move to ‘Audio’ and then press ENTER...
  • Page 57 Press Cursor button to move to ‘DRC’ and then press ENTER button. Press RETURN button to return to the previous level. Press MENU button to exit the setup screen. Repeatedly press Cursor to adjust the ‘DRC’. • Pressing the Cursor...

  • Page 58: Auto Sound Calibration Setup

    "PLEASE SET ASC FUNCTION FIRST" in the display. • Because the volume level of the tone is fixed during the auto sound calibration setup, you cannot adjust the volume using the volume control buttons. •...
  • Page 59 If you select "ASC ON", you will hear sound in the auto sound calibration mode. If you select "ASC OFF", you will hear sound in the mode set in the audio setting of the setup screen Plug the auto sound calibration microphone into the auto sound calibration input jack.

  • Page 60: Live Surround Mode

    Select "SUPER 5.1" to play 2-channel sound in 5.1 channels. • When you insert a DVD recorded in 2-channel or multi-channel format and press the Note SUPER 5.1 button, the message "THIS FUNCTION APPLIES ONLY 2CH SOURCE" appears in the display and it will not work.
  • Page 61 Magic Headphone Function Use headphones (not supplied) for private listening pleasure. You can enjoy a dynamic sound effects similar to that of 5.1 channel surround sound using conventional stereo headphones. Plug the headphones into the headphone jack. • You can purchase headphones from most Electronics stores.

  • Page 62: Dolby Pro Logic Ii Mode

    • CINEMA: Adds realism to the movie soundtrack. • PRO LOGIC: You will experience a realistic multi-channel effect, as if using five speakers, while using just the front left and right speakers. • MATRIX: You will hear 5.1 channel surround sound.

  • Page 63: Dolby Pro Logic Ii Effect

    PANORAMA: This mode extends the front stereo image to include the surround speakers for an exciting "wraparound" effect with side wall imaging. • CENTER WIDTH: Sound is output to the center speaker only. The front left and right speakers produce phantom sound. •...

  • Page 64: Listening To Radio

    Listening to Radio You can listen to the chosen band (FM, AM broadcast stations) by using either the automatic or manual tuning operation. Remote Control Unit Press TUNER/ BAND button. • The selection toggles back and forth between "FM AM"...

  • Page 65: Presetting Stations

    • You can select between 1 and TITLE RDS RT TUNED To tune in to a preset station, press remote control to select a channel. • FM Frequency Modulation • AM Medium Wave Press select "89.10".

  • Page 66: Convenient Functions

    Convenient Functions Sleep Timer Function You can set the time that the DVD player will shut itself off. Press SLEEP button. • "SLEEP" will be displayed. Each time the button is pressed the preset time changes as follows: 10 OFF.

  • Page 67: Adjusting Display Brightness

    This is useful when answering the door or a telephone call. Press MUTE button. • ‘ MUTE’ flash in the display. • To switch the sound back on (at the same volume as before), press MUTE again or the VOLUME buttons. TITLE CHAP PRGM RDS RT TUNED...

  • Page 68: Operating A Tv With The Remote Control

    TV. • If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default. When operating a TV with the remote control Press the MODE button to make the TV indicator on the remote control flash.
  • Page 69 SANYO MITSUBISHI MATSUSHITA TELEFUNKEN PANASONIC 07, 09, 26, 48, 49, 50 SABA 40, 41, 47, 48, 49 PHILIPS 05, 45, 47, 64, 65, 66, 67, 68, 69 GRUNDIG 39, 42, 46, 70, 71, 72 ZENITH MIVAL NOBLEX EMERSON MAGNAVOX LOEWE...

  • Page 70: Before Calling For Service

    Before Calling for Service Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center.
  • Page 71 • You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function.

  • Page 72: Cautions On Handling And Storing Discs

    Cautions on Handling and Storing Discs Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them. Handling discs Disc Storage Do not keep in direct sunlight •...

  • Page 73: Specifications

    Specifications Power Consumption Weight GENERAL Dimensions (W x H x D) Operating Temperature Range Operating Humidity Range Power Consumption WIRELESS Power output REAR Weight RECEIVER Dimensions (W x H x D) Usable Sensitivity S/N Ratio TUNER Distortion Usable Sensitivity S/N Ratio...

  • Page 74: Notes On Terminology

    Notes on Terminology Recorded onto some DVD discs are scenes which have been simultaneously shot from a number of different angles (the same scene is shot from the front, from the left , from the right , etc.). ANGLE With such discs, the Angle button can be used to change the angle of view for specific scenes.

  • Page 75: Warranty

    (*90 Days Parts and Labor for Commercial Use) This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center.
  • Page 76 SAMSUNG ELECTRONICS AMERICA, INC. SERVICE DIVISION 400 Valley Road, Suite 201 Mount Arlington, NJ 07856 1-800-SAMSUNG (1-800-726-7864) www.samsungusa.com AH68-01445R...
