Bosch ISC-CDL1-WA15H Installation Manual

Test yearly
2,3 m - 2,75 m
(7.5 ft - 9 ft)
1 | Unlock and open
1
2
Changes or modifi cations not expressly approved
by Bosch Security Systems, Inc. can void the
user's authority to operate the equipment.
UL/C-UL
Use only a Listed Class 2 limited-power source.
Standby power: The Listed control unit or a Listed
burglary power supply must provide 4 hours of
standby power.
Install the unit in accordance with National
Electrical Code NFPA 70 and Part 1 of the
Canadian Electrical code CSA C22.1.
Models ISC-CDL1-WA15H & ISC-CDL1-WA15K
are not UL or C-UL Listed.
FCC
This device complies with part 15 of the FCC
Rules and Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following
two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils radio
exempts de licence. L 'exploitation est autorisée
aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le
fonctionnement.
Under Industry Canada regulations, this radio
transmitter may only operate using an antenna of
a type and maximum (or lesser) gain approved for
the transmitter by Industry Canada.
2 | Surface mount
To reduce potential radio interference to other
users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated
power (e.i.r.p.) is not more than that necessary
for successful communication.
Conformément à la réglementation d'Industrie
Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et
d'un gain maximal (ou inférieur) approuvé pour
l'émetteur par Industrie Canada.
Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres
utilisateurs, il faut choisir le type d'antenne et
son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas
l'intensité nécessaire à l'établissement d'une
communication satisfaisante.
This product is intended for use in the
following countries within the European Union
and in other countries outside the European
Union:
ISC-CDL1-WA15G (10.525 GHz): Austria,
Belgium, Denmark, Finland, Greece, Italy,
Luxembourg, Netherlands, Norway, Portugal,
Spain, Sweden.
ISC-CDL1-WA15H (10.588 GHz): France, United
Kingdom
ISC-CDL1-WA15K (9.35 GHz): Germany
Optional Brackets: B328, B338, B335
A mounting bracket can reduce the detector's
range and create dead zones. Not investigated
by UL. Not EN50131 compliant. La certifi cazione
IMQ decade nel caso di installazione del
rilevatore con gli snodi opzionali.

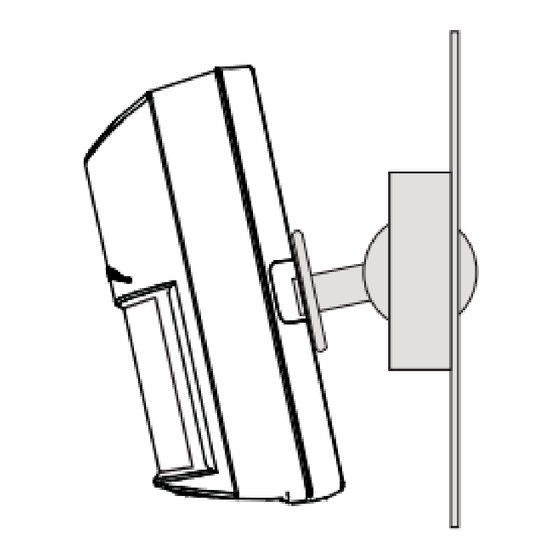

3 | Bracket mount
(optional)
=
B338
B328
B335
