LG LND5100 series Owner's Manual

OWNER'S MANUAL
High Definition Network Dome
Camera
Please read this manual carefully before operating
your set and retain it for future reference.
MODEL
LND5100 series
Specification
Item LND5100 series
Image Device 6 mm (1/3 type) Progressive Scan CMOS
(1.3 Mega Pixels)
Lens Type 2.8 mm to 10 mm F1.2
Day/Night ICR
Minimum Color 0.3 lx (F1.2, Gain : High)
Illumination
B/W 0.005 lx (F1.2, Gain : High)
WDR Support
Image Enhancement Backlight Compensation, 3D-DNR, Exposure
Control, Sens Up Control, AGC, White Balance,
Privacy Masking, EIS, Sharpness, Digital Zoom
Resolution (Maximum) Up to 1 280 x 1 024
Output RJ-45 (Network), RCA (Installation)
Frame Rate (Maximum) 30 fps @ 1280 x 1024, 30 fps @ 720p
Compression H.264_HIGH, H.264, MJPEG
Multi-Streaming Dynamic Profile (Up to 7)
Audio In/Out 1/1
Audio Compression G.711, G.726
2-way Audio Support
SD Slot Micro SD
EVENT Alarm In/Out 1/1
Motion detection Support
Event Notification Relay Out, Email, FTP
Pre Event Buffering Support
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.
WARNING: This product contains chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm. Wash hands after handling.
FCC WARNING: This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the modifications are
expressly approved in the instruction manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made.
REGULATORY INFORMATION: FCC Part 15
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
• A suitable conduit entries, knock-outs or glands shall be provided in the cable entries of this
product in the end user.
• Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with the same or
equivalent type recommended by the manufacturer. Dispose of used batteries according to
the manufacturer's instructions.
• Holes in metal, through which insulated wires pass, shall have smooth well rounded surfaces
or shall be provided with brushings.
This Class A digital apparatus complies with Canadian ICES-003.
AB28
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
VA Intelligent Motion Support
Detection
Streaming Support
Metadata
Trip Zone Support
Object Counting Support
Integrated Client LVi510
Remote S/W LVi510, Mobile application (iPhone, Android, iPad)
Connections Up to 10
Security Password Protection, HTTPS(SSL, TLS)
Ethernet 10/100 Ethernet
IPv4 and IPv6 TCP/IP, UDP, HTTP, HTTPS, RTP, RTSP, DHCP, ICMP
Protocol
IPv4 FTP, SMTP, NTP, ARP, SNMP v1/v2c/v3, DDNS(LG)
Open Protocol ONVIF 2.2 Profile S,PSIA 1.1
Operation Temperature/Humidity -10 ºC to 50 ºC / 0 % RH to 80 % RH
Power Source PoE (IEEE 802.3af ), DC 12 V (±20 %)
Power Consumption 5.9 W
Input current DC 12 V Maximum 440 mA
PoE Maximum 140 mA
Dimension (Ø x H) 140 mm x 120 mm
Weight 610 g
Warning: Do not install this equipment in a Disposal of your old appliance
confined space such as a bookcase or similar
unit. 1. When this crossed-out
wheeled bin symbol is
Warning: Wiring methods shall be in
attached to a product
accordance with the National Electric Code,
it means the product is
ANSI/NFPA 70.
covered by the European
Warning: This is a class A product. In a
Directive 2002/96/EC.
domestic environment this product may cause
2. All electrical and electronic
radio interference in which case the user may
products should be
be required to take adequate measures.
disposed of separately from
the municipal waste stream
Warning: To reduce a risk of fire or electric
via designated collection
shock, do not expose this product to rain or
moisture. facilities appointed by the
government or the local
Caution: This installation shall be made by a
authorities.
qualified service person and shall conform to
3. The correct disposal of
all local codes.
your old appliance will help
Caution: To avoid electrical shock, do not
prevent potential negative
open the cabinet. Refer servicing to qualified
consequences for the
personnel only.
environment and human
health.
Caution: The apparatus shall not be exposed
4. For more detailed
to water (dripping or splashing) and no objects
filled with liquids, such as vases, shall be information about disposal
of your old appliance,
placed on the apparatus.
please contact your city
To disconnect power from mains, pull office, waste disposal
service or the shop
out the mains cord plug. When installing
where you purchased the
the product, ensure that the plug is easily
accessible. product.
EEE Compliance with Directive.
LG Electronics hereby declares
(for Turkey only)
that this/these product(s) is/are
in compliance with the essential
Important Safety
requirements and other relevant
provisions of Directive 2004/108/
Instructions
EC and 2011/65/EU.
Contact office for compliance 1. Read these instructions.
of this product:
2. Keep these instructions.
3. Heed all warnings.
LG Electronics Inc.
4. Follow all instructions.
Krijgsman 1, 1186 DM
5. Do not use this apparatus near water.
Amstelveen The Netherlands
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.

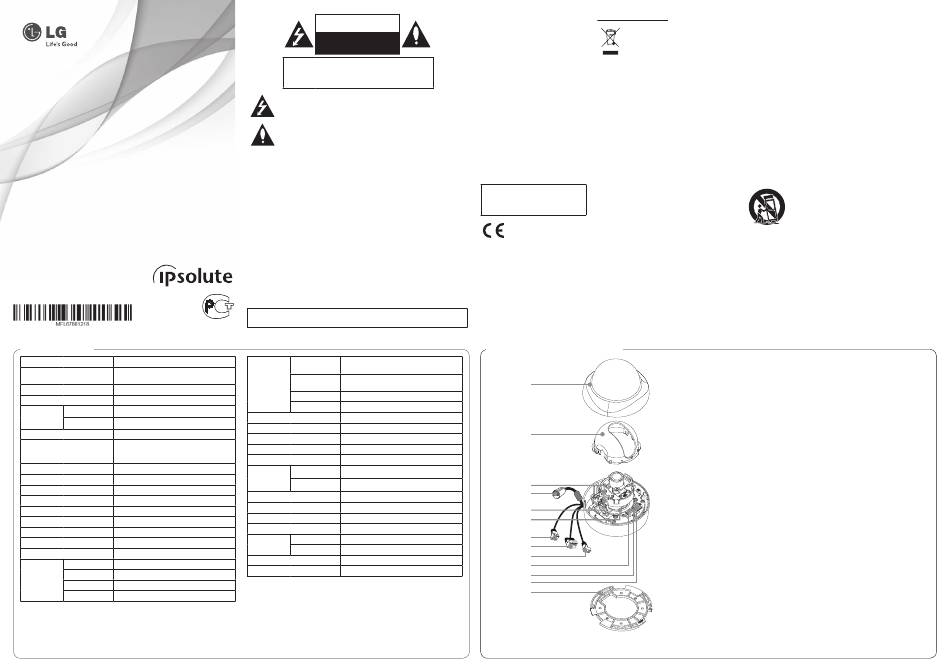

Part Names and Functions
a
b
c
d
e
f
g
h
i
j
k
l
m
Handling of the unit
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
Be careful not to spill water or other liquids on
apparatus (including amplifiers) that
the unit. Be cautious not to get combustible or
produce heat.
metallic material inside the body. If used with
9. Do not defeat the safety purpose of
foreign matter inside, the camera is liable to
the polarized or grounding-type plug.
fail or to get cause of fire or electric shock.
A polarized plug has two blades with
one wider than the other. A grounding
• Remove dust or dirt on the surface of the
type plug has two blades and a third
lens with a blower.
grounding prong. The wide blade or the
• Use a dry soft cloth to clean the body. If it
third prong are provided for your safety.
is very dirty, use a cloth dampened with a
If the provided plug does not fit into
small quantity of neutral detergent then
your outlet, consult an electrician for
wipe dry.
replacement of the obsolete outlet.
• Avoid the use of volatile solvents such
10. Protect the power cord from being
as thinners, alcohol, benzene and
walked on or pinched particularly at
insecticides.
plugs, convenience receptacles, and the
They may damage the surface finish and/
point where they exit from the apparatus.
or impair the operation of the camera.
11. Only use attachments/accessories
specified by the manufacturer.
12. Use only with the cart, stand, tripod,
Operating and storage
bracket, or table specified by the
manufacturer, or sold with the apparatus.
location
When a cart is used, use caution when
moving the cart/apparatus combination Avoid viewing a very bright object (such as
to avoid injury from tip-over. light fittings) during an extended period. Avoid
operating or storing the unit in the following
locations.
• Extremely hot or cold places (operating
temperature -10 °C to 50 °C, however, we
recommend that the unit be used within
a temperature range of 0 °C to 45 °C)
13. Unplug this apparatus during lightning
• Damp or dust place
storms or when unused for long periods
• Places exposed to rain
of time.
14. Refer all servicing to qualified service
• Places subject to strong vibration
personnel. Servicing is required when
• Close to generators of powerful
the apparatus has been damaged in any
electromagnetic radiation such as radio
way, such as power-supply cord or plug
or TV transmitters.
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
a Dome Cover
b Lens Cover
c Azimuth adjuster
d ETHERNET/PoE Port
Connects to a PC or a network via a hub with a 10 BASE-T/100 BASE-TX cable attached
RJ-45 connector.
NOTE:
Power over Ethernet (PoE) is a technology that integrates power into a standard LAN
infrastructure. It enables power to be provided to the network device, such as a network
camera, using the same cable as that used for network connection. It eliminates the need
for power outlets at the device locations and enables easier application of uninterruptible
power supplies (UPS).
e Tilting lock screw
f Pan adjuster
Adjusts the pan position.
g AUDIO IN / OUT (Line Level Input / Output)
h ALARM IN / ALARM IN RETURN
Provides physical interface for sensor.
ALARM OUT / ALARM OUT RETURN
Provides physical interface for Alarm/Relay.
i Power input terminal
j Video Out connector
Use this jack for checking the picture with portable monitor when install the camera.
k RESET button
Push the button more than 3 seconds, this would restore the factory default network
related settings.
l micro SD card slot
Insert the micro SD card.
m Camera mounting bracket
