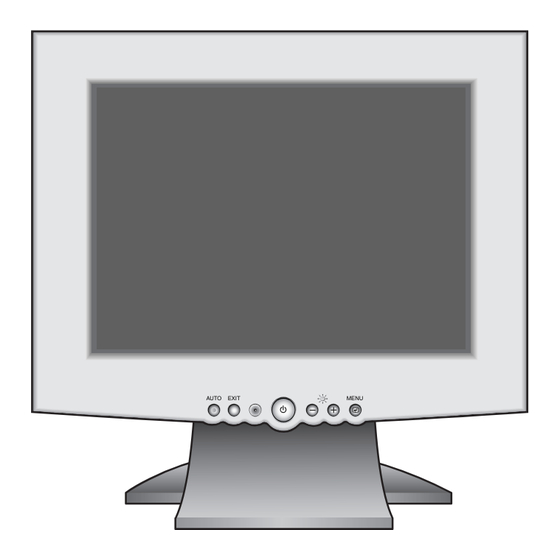

Samsung SyncMaster 570V TFT Owner's Instructions Manual
Tft-lcd monitor
Hide thumbs
Also See for SyncMaster 570V TFT:
- User manual (33 pages) ,
- Instrucciones para el usuario (30 pages) ,
- Istruzioni per l’utente manual (30 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Samsung SyncMaster 570V TFT
Summary of Contents for Samsung SyncMaster 570V TFT
- Page 1 SyncMaster 570V TFT SyncMaster 560V TFT TFT-LCD Monitor Owner’s Instructions...
- Page 2 Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
-
Page 3: Table Of Contents
Table of Contents Safety Instructions ..............2 Unpacking Your Monitor . -
Page 4: Safety Instructions
Safety Instructions Before connecting the AC power cord to the DC adapter outlet, make sure the voltage designation of the DC adapter corresponds to the local electrical supply. Never insert anything metallic into the openings in the cabinet of the LCD monitor; doing so may create the danger of electric shock. -
Page 5: Unpacking Your Monitor
Unpacking Your Monitor Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Diskette Pivot software (optional) Warranty Card (Not available in all locations) Manual DC Adapter (Optional) Your monitor may come equipped with one of five different stands, or none at all, according †... -
Page 6: Setting Up Your Monitor
Setting up Your Monitor Setting up an Ergonomic Workstation Consider the advice given below before you install your monitor. Monitor location Choose a position that exposes you monitor to the least reflection from lights or windows, usually at a right angle to any window. Workstation height Place your LCD monitor so that the top of the screen is slightly below your eye level when you are comfortably seated. -
Page 7: Connecting Your Lcd Monitor
Setting up Your Monitor Connecting Your LCD Monitor Figure 3. Cable connections Turn off your computer and unplug its power cord. Connect the signal cable to the 15-pin D-sub connector on the back of your monitor. Connect the signal cable to the video port on your computer, video board, video card, or graphics card. -
Page 8: Connecting Your Multimedia Lcd Monitor
Setting up Your Monitor Connecting Your Multimedia LCD Monitor AUDIO Figure 4. Multimedia connections Follow steps 1 through 3 on the previous page. If you have a Multimedia or Multimedia Pivot stand, connect the attached power adapter jack (A) to the DC power port on the back of your monitor. Connect the power cord to the power port on the back of the stand. -
Page 9: Plug And Play
Setting up Your Monitor Table 1. Connector locations for multimedia bases (Continued ) Item Name AUDIO IN jack External microphone jack Headphone jack Plug and Play Our adoption of the new VESA consuming setup. It allows you to install your monitor in a Plug and Play compatible system without the usual hassles and confusion. -
Page 10: Windows 95
Setting up Your Monitor Click on START, SETTINGS, CONTROL PANEL, DISPLAY SETTINGS tab, ADVANCED, MONITOR tab, CHANGE. This will start the “Add New Hardware Wizard”. Follow the same directions as given in the steps in the section above. ® Windows To determine the version of Windows Computer”... -
Page 11: Getting Help
Setting up Your Monitor If the monitor is functioning properly, you will see a white box with a red border and black text inside as shown in the following illustration: Figure 5. Monitor self test screen The three boxes inside the border are red, green and blue. Failure of any of the boxes to appear indicates a problem with your monitor. -
Page 12: Adjusting Your Lcd Monitor
Adjusting Your LCD Monitor User Controls Your LCD allows you to easily adjust the characteristics of the image being displayed. All of these adjustments are made using the control buttons on the front of the monitor. While you use these buttons to adjust the controls, an OSD shows you their numeric values as they change. -
Page 13: Automatic Save
Adjusting Your LCD Monitor Automatic Save Whenever you open the OSD and allow an adjustment window to remain active for about 3 seconds without pressing another button, the monitor automatically saves any adjustments you have made. These changes are saved into a user area in the monitor. User areas are reserved according to the signal frequency from your computer. -
Page 14: Brightness
Adjusting Your LCD Monitor Brightness Brightness Exit : Exit Key OSD Lock/Unlock Use this function to secure the current settings so that they cannot inadvertently be changed, while still allowing you to adjust Brightness and Contrast. You can unlock the OSD controls at any time by using the same procedure as described below. -
Page 15: Accessing The Menu System
Adjusting Your LCD Monitor Accessing the menu system With the OSD off, push the MENU button to open it and display the main function menu. Use the “ ” and “ ” buttons to move between the function icons. As you move from –... - Page 16 Adjusting Your LCD Monitor Table 2. Screen controls (Continued ) Menus and Icon Sub-menus Image Lock: Fine Coarse H-Position * V-Position * *NOTE: Depending on the video adapter you are using, the lower limit of the control can not go down to Min. Number on OSD or go up to Max. Number on OSD. This is due to the video signal character istics due to the video graphics adapter, and it narrows the range of user adjustable parameter.
- Page 17 Adjusting Your LCD Monitor Table 2. Screen controls (Continued ) Menus and Icon Sub-menus Reset Geometry Reset Color Reset Color Temperature Mode 1 Mode 2 Mode 3 Color Control R(ed) G(reen) B(lue) Function Descriptions – Restores the viewing area and color settings to their original manufacturing levels.
- Page 18 Adjusting Your LCD Monitor Table 2. Screen controls (Continued ) Menus and Icon Sub-menus Language: English Deutsch Español Français Italiano Svenska Menu Position H-Position V-Position Menu Display Time: 5 Seconds 10 Seconds 20 Seconds 200 Seconds Function Descriptions – Language sets the OSD to display in one of six languages.
- Page 19 Adjusting Your LCD Monitor Table 2. Screen controls (Continued ) Menus and Icon Sub-menus Display Mode Function Descriptions – This screen shows the horizontal and vertical frequencies, sync polarity and the display resolution of the images received from the computer or video card. English...
-
Page 20: Audio Controls
Adjusting Your LCD Monitor Audio Controls Figure 8. Multimedia stand audio controls To access the On/Off, Volume, Bass and Treble functions, rotate the appropriate control button to the right or left to adjust the function. Table 3. Audio Control Function Function Internal Picks up sound and sends it to the sound card in your PC. -
Page 21: Appendix
PowerSaver This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. The available modes are “On”, “Standby”, “Sleep”, and “Deep Sleep”. -
Page 22: Troubleshooting
Troubleshooting If you have a problem setting up or using your LCD monitor, you may be able to solve it yourself. Before contacting customer service, try the suggested actions that are appropriate to your problem. Table 5. Troubleshooting problems – Image What you see... - Page 23 Horizontal frequency: Vertical frequency: Maximum refresh rate: Adjust the horizontal and vertical position. Download the driver from the internet at: http://www.samsung-monitor.com http://www.samsungmonitor.com (USA only) English Reference PowerSaver, page 19. Display Mode, page 17.
- Page 24 Table 6. Troubleshooting problems – Audio Problem No sound Ensure that the audio cable is firmly connected to both the audio-in port on your monitor and to the audio–out port on your sound card or computer. Rotate the Audio On/Off and Volume control to the right to turn it on and raise the volume.
- Page 25 Table 6. Troubleshooting problems – Audio Problem Microphone is Check the microphone cable not working connection. Your sound card must be compatible with an internal, embedded microphone. If it is not, use the microphone that came with your computer or sound card. Appendix Suggested Action English...
-
Page 26: Specifications
Specifications Table 7. Technical and environmental specifications Panel Size Display Size Type Pixel pitch Viewing Angle * Frequency Horizontal Vertical Display color Display Optimum Mode Resolution Maximum Mode Input Signal Sync Video signal Power Supply AC 90 ~ 264 Volts, 60 Hz / 50Hz to 12V/3A Power Normal Consumption... -
Page 27: Pin Assignments
Pin Assignments Table 8. 15 pin D-sub connector Separate H/V Green Blue GND (DDC Return) GND-Red GND-Green GND-Blue No Connection GND-Sync/Self Test DDC Data Horizontal Sync Vertical Sync DDC Clock Appendix Composite H/V Green Blue GND (DDC Return) GND-Red GND-Green GND-Blue No Connection GND-Sync/Self Test... -
Page 28: Display Modes
Display Modes If the signal from the system equals to the standard signal mode, the screen is adjusted automatically. If the signal from the system doesn't equal to the standard signal mode, adjust the mode with referring to the Videocard user guide because the screen might not display or only the power LED might be on. -
Page 29: Changing The Base
Changing the Base Removing the base Turn off your monitor and unplug its power cord. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen. Remove the four screws and then remove the Stand from the LCD monitor. Appendix English... -
Page 30: Attaching A Base
Attaching a base NOTE: This monitor accepts a 75mm x 75mm VESA-compliant mounting interface pad. Align the Mounting Interface Pad with the holes in the Rear Cover Mounting Pad and secure it with the four screws that came with the arm-type base, wall mount hanger or other base. -
Page 31: Index
Audio controls 18 Auto adjustment 11 AUTO button 10 Automatic save 11 Bass 18 Brightness 12 Brightness button 10 Cable connections 5 Coarse 14 Color control 15 Color temperature 15 Contrast 13 DC adapter 3 Deep sleep mode 19 Display mode 17 EXIT button 10 Fine 14 Getting help 9... -
Page 32: Regulatory Information
The party responsible for product compliance: SAMSUNG ELECTRONICS CO., LTD America QA Lab of Samsung 85 West Tasman Drive San Jose, CA 95134 USA Tel) 408-544-5124 Fax) 408-544-5191 Provided with this monitor is a detachable power supply cord with IEC320 style terminations. - Page 33 Saturno 44 Col. Nva. Industrial Vallejo Del. Gustavo A. Madero C.P. 07700 Mexico D.F. Tel. 5747-5100 RFC: SEM950215S98 IMPORTADO POR:SAMSUNG ELECTRONICS MEXICO S.A. DE C.V. SATURNO 44 COL. NVA. INDUSTRIAL VALLEJO DEL. GUSTAVO A. MADERO C.P. 07700 MEXICO D.F. RFC: SEM950215S98 EXPORTADO POR: SAMSUNG ELECTRONICS CO.,LTD.
