100 Craftway Dr.
Littlestown, Pennsylvania 17340-0128
Phone: 717-359-7131

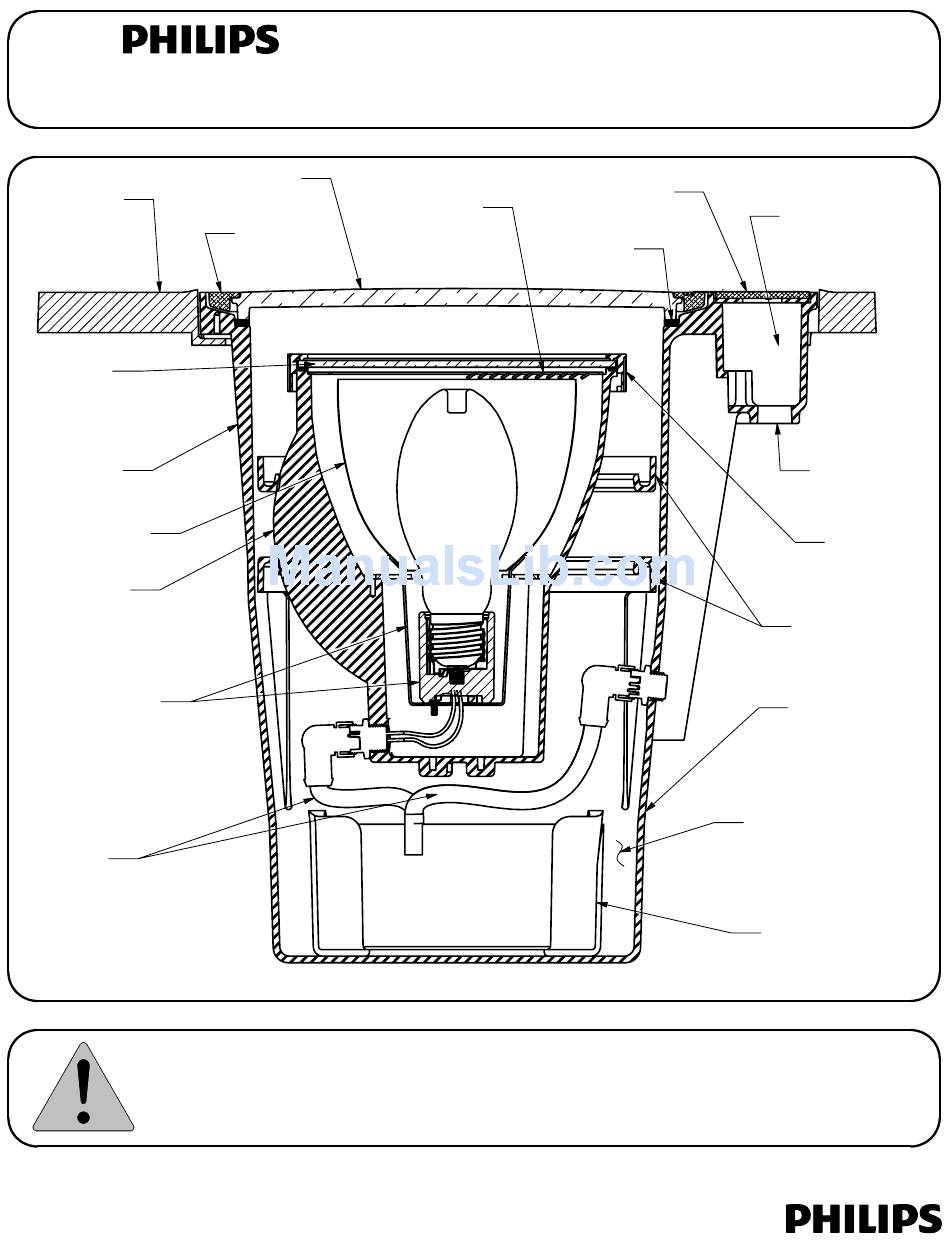

PAVER
ADAPTER
(OPTIONAL)
LAMPING
MODULE
LENS
HOUSING
RIBS
REFLECTOR
LAMPING
MODULE
SOCKET &
BRACKET
LIQUID-
TIGHT
CABLES
NOTE : FIXTURE STYLE, ACCESSORIES, OPTICS AND BALLAST TYPE WILL VARY WITH FIXTURE OPTIONS.
This fixture is intended for installation in accordance with the National Electrical Code and local code
specifications. Failure to adhere to these codes and instructions may result in serious injury and/or damage
to the ballast and void the warranty. These instructions do not purport to cover all details or variations in
equipment, nor to provide for every possible contingency related to installation, operation, maintenance,
or mounting situation. Should specific problems occur that are not addressed by these instructions, contact
your Sales Representative or distributor for assistance. Retain these instructions for future reference.
32001316, revision J
INSTALLATION INSTRUCTIONS:

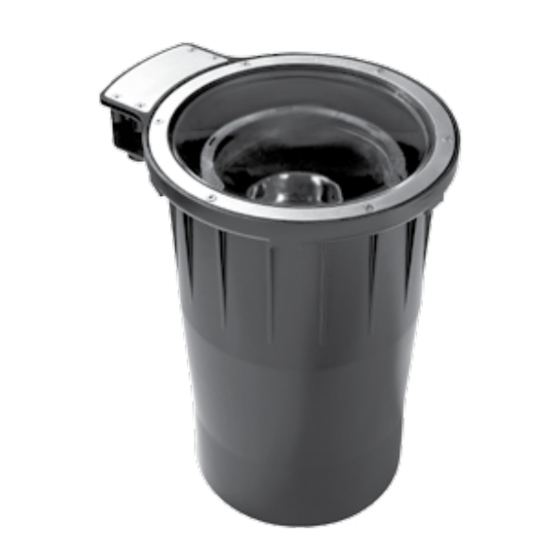

DB5000 - LARGE INGROUND UPLIGHT
MAIN
LENS
INTERNAL
ACCESSORY
(OPTIONAL)
LENS
FRAME
WIRING
COMPARTMENT
COVER
LENS
GASKET
WIRING
COMPARTMENT
(MUST BE SEALED
WITH SUPPLIED
RE-ENTERABLE
ENCAPSULANT)
3/4" CONDUIT
ENTRY (3X)
TWIST-LOCK
LENS FRAME
LAMPING
MODULE
GIMBAL
MAIN
HOUSING
BALLAST
COMPARTMENT
BALLAST MODULE
(HID ONLY)
page 1 of 4
Advertisement
Related Manuals for Philips DB5000
Summary of Contents for Philips DB5000
- Page 1 INSTALLATION INSTRUCTIONS: 100 Craftway Dr. DB5000 - LARGE INGROUND UPLIGHT Littlestown, Pennsylvania 17340-0128 Phone: 717-359-7131 MAIN WIRING WIRING PAVER LENS INTERNAL COMPARTMENT COMPARTMENT ADAPTER ACCESSORY COVER (MUST BE SEALED (OPTIONAL) (OPTIONAL) WITH SUPPLIED LENS LENS RE-ENTERABLE FRAME ENCAPSULANT) GASKET LAMPING...
- Page 2 SAFETY WARNING: ALWAYS TURN FIXTURE OFF/DISCONNECT POWER AND ALLOW TO COOL BEFORE PERFORMING ANY MAINTENANCE, INCLUDING RELAMPING AND CLEANING! This fixture can become very HOT! The fixture housing and lens, especially if it is glass, can become hot enough to blister hands. Attention should be paid to where the fixture is mounted, particularly if it can be touched by children or pets.
- Page 3 Step 2: Connect conduit using Step 3: Set aside junction box dirt Supply wires thread sealant. cover (retain for future use). Pull pulled through wires through conduit into junction conduit Unused conduit entry box. The contractor must pull a ways should be properly ground wire or make a ground Junction Box plugged and sealed.
- Page 4 Replace lamp with a new one of identical electrical characteristics. [NOTE: For metal halide T6 (G12 base) lamps, Bronzelite recommends using only Philips MasterColor™ lamps or GE ConstantColor CMH™ lamps. If using a lamp from another manufacturer, ensure it is electrically compatible with supplied ballast.] For T6 optics, if it is necessary to remove the optics assembly, position the bottom band of...
