AMC2 enclosure - 1 DIN
rail
4.2
24 V Mode Operation

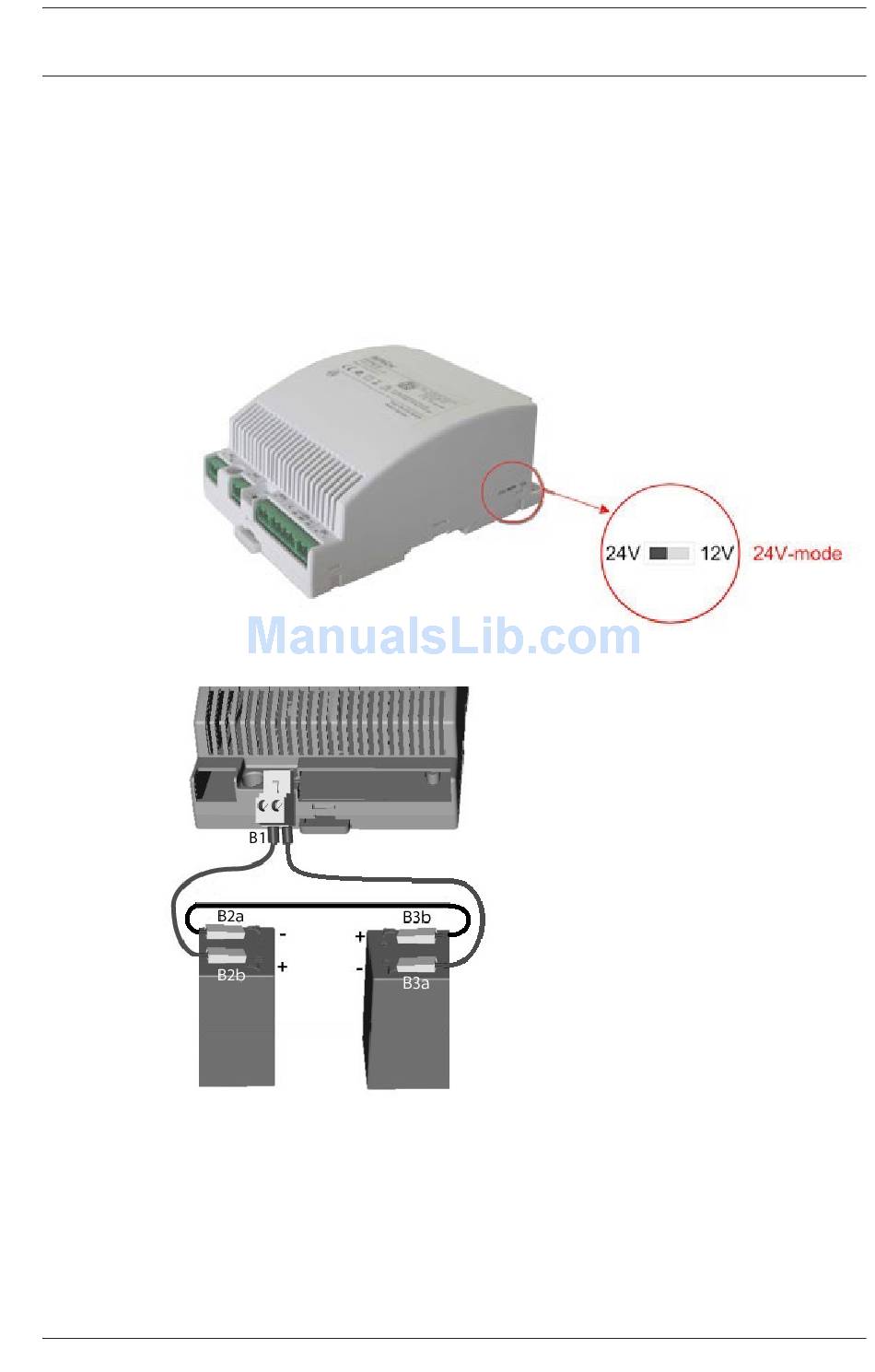

To set the power supply to 24V mode set the switch as
displayed in the image below.
Figure 4.3: Power Supply Switch in 24V Mode
Figure 4.4: 24V Mode
