D-Link DIR-860L Quick Install Manual

Quick Install Guide
Extreme Range Wireless
Dual Band Gigabit Router
Important: For the quick setup wizard to work properly, you must have a working Internet connection.
Installation
1
Modem
INTERNET
Turn off or unplug your cable or DSL
broadband modem.
5
INTERNET
Plug in and turn on your modem.
8
http://192.168.0.1
Open a web browser (e.g., Internet Explorer,
Chrome, Firefox, or Safari) and enter http://
dlinkrouter.local. /. You can also enter the IP
address of the router (http://192.168.0.1).
Package Contents

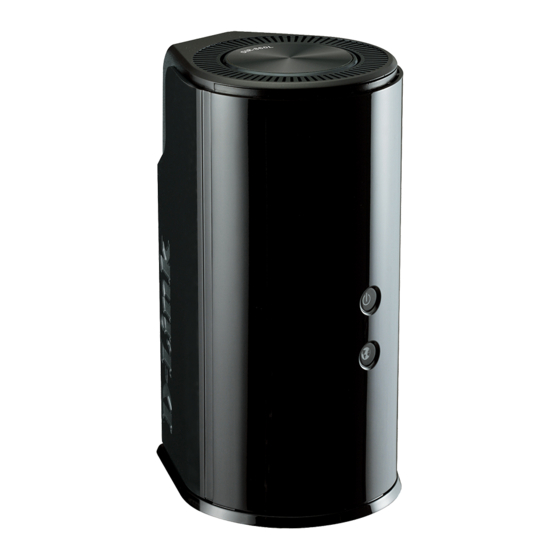

DIR-860L Extreme Range Wireless
Dual Band Gigabit Router
Power Adapter
Ethernet Cable
Wi-Fi Configuration Card
DIR-860L
2
Existing Router
12 LAN3 4I NTERNET RESET 5V -- - 3A
Modem
If you have an existing router, turn it off and remove all
connected cables.
6
Computer
Router
Modem
USB
WPS
1
2
LAN
INTERNET
3
4
INTERNET
POWER
12V 2A
Connect the power adapter to your router and plug it into an
outlet. Wait for the Power light to turn green (may take up to
45 seconds). Ensure the Power button is in the ON position.
9
When the Welcome screen appears,
click Next to start the setup wizard.
3
INTERNET
Modem Computer
Computer
INTERNET
Disconnect all Ethernet cables from your
computer and modem.
7
Computer
Modem
INTERNET
For a wired connection: Using an Ethernet cable,
connect your computer to the port labeled 1 on
the back of your router.
10
The router will try to automatically detect your internet connection.
If it is unable to do so, you will have to select your internet connection
type from this list. If you use DSL for internet (through the phone
line), select Username/Password Connection (PPPoE). If you use
cable for internet, select DHCP Connection (Dynamic IP Address).
For other internet connections, contact your ISP for details. Click
Next to continue.
LEDs (from top to bottom)
Power LED - A solid green light indicates a
proper connection to the power supply. The
light will blink green during the WPS process.
The light will blink orange during boot up.
Internet LED - A solid light indicates
connection on the Internet port. If the LED
is orange, the connection is good but the
router cannot connect to the Internet. If
the light is green, the router is properly
connected to the Internet.
Note:
Please go to support.dlink.ca/DIR-860L to
download the latest firmware and user manual.
4
Computer
USB
WPS
1
USB
WPS
2
LAN
Modem
1
3
4
2
LAN
INTERNET 3
POWER
4
12V 2A
INTERNET
INTERNET
POWER
12V 2A
Router
Using an Ethernet cable, connect your modem to the
yellow port labeled Internet on the back of your router.
D-Link Router
Information Card
SSID:
Password:
Router
USB
WPS
Modem
1
2
LAN
3
4
INTERNET
INTERNET
POWER
12V 2A
For a wireless connection: On your computer, tablet, or
smartphone, find the wireless network that is shown on
your router information card (ex: dlink-a8fa). Then, enter
the Wi-Fi password on your card (ex: akbdj19368).
If you chose PPPoE, enter the User Name and Password
provided to you by your ISP to connect to the internet.
Click Next to continue.
Router
USB
WPS
1
2
LAN
3
4
INTERNET
POWER
12V 2A
Laptop
Computer
USB
WPS
1
2
LAN
3
4
INTERNET
POWER
Router
12V 2A
