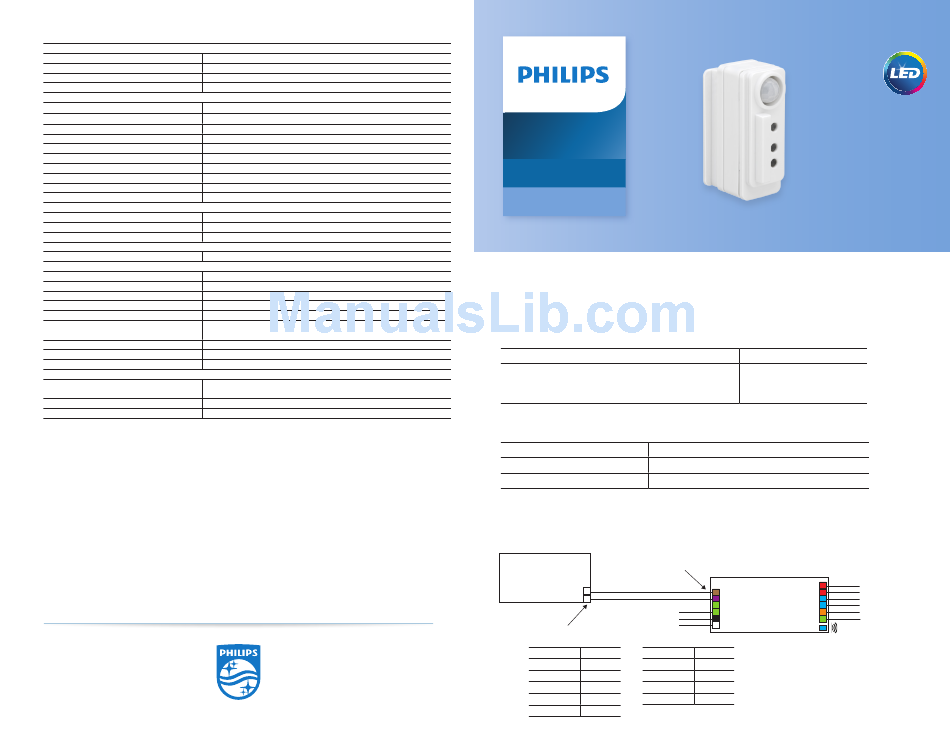

Philips EasySense Quick Installation Manual

Electrical Information
Input Voltage Powered by SR driver low-voltage interface
Current Consumption
13mA
Nominal Power Consumption 200mW
Standby Power < 1 W on luminaire level, including driver standby power
Occupancy Sensing
Type Passive infrared (PIR)
Enable/Disable
Default enabled
Detection Off/Auto-on; Red LED indicates "on"
Eco On Level 0-100%
Hold Time 0.5-60 minutes
Viewing Angle X=72°, Y = 86° ( See detection pattern)
Background Light Level 0-100%
Prolong Time
0 minutes - infinity
Grace Fading 0-25 sec
Response Time/Fading to Switch On/Off 0.7Sec
Daylight Sensing
Enable/Disable Default enabled
Auto-calibration
Upon power-up
Viewing Angle 40° (half value sensitivity); 2% cut-off point at 75°
Task Tuning
Full Light Setting 0-100%
Environment & Approbation
Operating Ambient Temperature Range 0°C to 55°C
Operating Humidity
0–95% non condensing
Storage Temperature -25°C to 85°C
Storage Humidity 0-95% non condensing
Max Case Temperature (Tcase) 55°C
Agency Approbations UL, CSA; Tested and approved for use in plenums; FCC ID:
2AF2N-SNS100; IC: 20659-SNS100
Certification California Title 20
Limited Warranty 5 years
Digital Interface Xitanium SR
Other
Status Indicators
Red, Yellow. Yellow LED on: Vacancy & Sensor is functional;
Red LED on: Motion is detected
No. Drivers per Sensor Four (max)
Field Configuration via NFC or IR. Parameters set via Philips field apps
Operation and Configuration via Mobile App
EasySense operates immediately upon installation and energization without further commissioning. If changes from
default settings are desired, EasySense can be configured via Philips field apps through NFC or IR. For a complete
description of the features and default settings—as well as details on the app—refer to www.philips.com/easysense.
FCC and IC Statement
This device complies with part 15 of the FCC rules for the United States and Industry Canada (IC) license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation. Any
changes or modifications not expressly approved by Philips could void the user's authority to operate this equipment.
This product is intended for commercial use only.
Déclaration De Conformité À La Fcc/Ic
Ce dispositif est conforme à la partie 15 des règles de la Federal Communications Commission (FCC) des États-Unis et
d'Industrie Canada (IC) exempts de licence RSS norme(s). Son fonctionnement est assujetti aux deux conditions suivantes
: (1) Ce dispositif ne doit pas provoquer de brouillage préjudiciable, et (2) il doit accepter tout brouillage reçu, y compris
le brouillage pouvant entraîner un mauvais fonctionnement. Tous les changements ou modifications non expressément
approuvés par Philips, sont susceptibles d'annuler le droit de l'utilisateur à se servir de cet équipement. Ce produit est
exclusivement destiné à un usage commercial.
© 2016 Philips Lighting Holding B.V. All rights reserved.
Philips reserves the right to make changes in specifications
and/or to discontinue any product at any time without notice
or obligation and will not be liable for any consequences
resulting from the use of this publication.
philips.com/easysense
PLt-15142QG_EasySense QIG_060612 06/16 page 1 of 2
Document #: 4435 631 00371 REV. B
Philips Lighting North America Corporation
10275 W. Higgins Road, Rosemont IL 60018
Tel: 800-322-2086 Fax: 888-423-1882
Customer/Technical Service: 800-372-3331
OEM Support: 866-915-5886
Philips Lighting Canada Ltd.
281 Hillmount Rd, Markham, ON, Canada L6C 2S3
Tel. 800-668-9008
Sensors
EasySense
Fixture-Mount
Philips EasySense Quick Installation Guide
Sensor Part Number
Commercial Product Name
EasySense Fixture-Mount Sensor
Compatible LED Drivers
Driver Model Number Description
XI040C110V054VPT1 Xitanium 40W 0.1-1.1A 27-54V 120-277V SR
XI075C200V054VPT1
Xitanium 75W 0.1-2.0A 27-54V 120-277V SR
Specifications available at www.philips.com/XitaniumSR.

Wiring Diagram

Connectors
EASYSENSE
SR SR-
SR SR+
Use 18AWG solid copper wire,
GROUND
rated >=600V/90C.
LINE
Strip wire to 3/8".
NEUTRAL
Connectors
(non-polarized)
Connection Color Connection
White Neutral Red
Black Line Blue
Green Ground Orange
Green
Purple SR+
Brown SR-
Order Code
SNS100
SNS102
SNS200
LED+
LED+
LED-
XITANIUM SR
LED-
NC
LED DRIVER
RSET2
SGND
NFC ANTENNA
Color
LED+
LED-
RSET2
SGND
