Honeywell PINpad RE252 Manual

Wireless
Security
Solutions

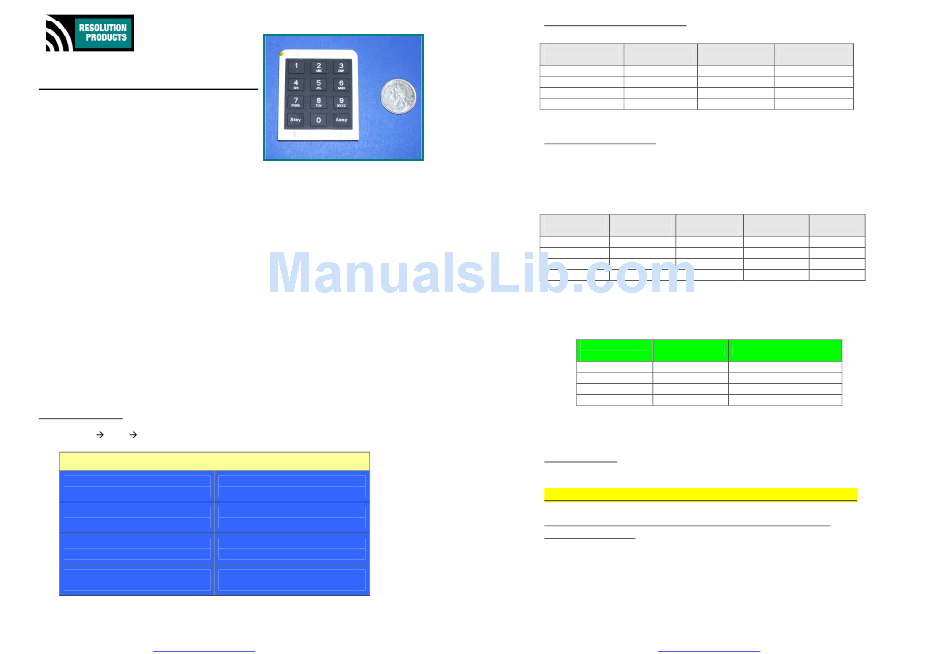

RE252 Honeywell Compatible PINpad™
Features
• Secure, 4-digit Code to disarm
• 1-button arming
• Red/Green LED arming feedback
• Small, yet comfortable keypad
• Mounts on wall via VHB® tape, or screws
• Secure for carrying in purse or mounting on car visor
• More securely replaces Honeywell 5878 6-button Wall Touchpad
• 4-6 year battery life on CR2032 battery.
Key Instructions
• Do NOT use this product for 2GIG panels. Use the RE252
• PIN Code programming
Default access code is "1234".
To change access code:
1. Enter current 4-digit access code.
2. Within 4 seconds, press and hold the "1" and "3" keys
simultaneously. After 3 seconds, Red LED will be lit.
3. Enter new 4-digit access code. After successfully changing
the code, the Green LED will be lit
4. Note new access code . BAD GUY CANNOT RESET CODE.
So it must be noted and remembered!
• Enrolling:
1. Refer to the Honeywell control unit installation manual.
2. Enroll exactly as you would a key fob.
• Specific Control Panel Programming follows here...
Lynx Touch 5100:
Programming Keys Add New
System Programming...
Key Type
4 Button
Serial Number
[press Stay key to enroll]
Button Key 1 – Zn 49
Arm Away
Button Key 3 – Zn 51
Arm Stay
To RF Learn: Press the PINpad STAY button twice, more than 5 seconds apart.
Be at least 5 feet from panel.
RE252_Honeywell-Compat_PIN-Pad.doc Page 1 of 4
www.ResolutionProducts.com
T.
User
Master
Zone
49 (example)
Button Key 2 – Zn 50
Disarm
Button Key 4 – Zn 52
24 Hour Auxiliary
28-Sep-12
Lynx Touch 5100, continued...
PINpad Lynx Touch Lynx Touch
Button Button Key
Away Button Key 1 Loop 3
PIN Code Button Key 2 Loop 2
Stay Button Key 3 Loop 4
Stay + Away Button Key 4 Loop 1
Lynx Plus 3000 & Vista:
To RF Learn: Press each PINpad button (or PIN Code) twice, more than 5
seconds apart.
Be at least 5 feet from panel.
Be sure to associate the Key with a User!
PINpad Lynx Plus Lynx Plus
Button Zone Number Zone Type
Away 26 (example) 21 Arm-Away
PIN Code 27 22 Disarm
Stay 28 20 Arm-Stay
Stay + Away 29 07 24 Hr Aud
You may also use WIRELESS KEY TEMPLATE 3.
Operation
PINpad
Panel Action
Button
Stay ARM STAY
Away ARM AWAY
PIN Code DISARM
Stay + Away PANIC ALARM
2GIG Go! Panel
Use Resolution RE252 T 2GIG-Compatible PINpad for 2GIG panels.
Panic function will not work on 2GIG panel using this RE252
Honeywell version.
RE252_Honeywell-Compat_PIN-Pad.doc Page 2 of 4
www.ResolutionProducts.com
Should be
Loop programmed to
ARM AWAY
DISARM
ARM STAY
24 Hour AUX
Lynx Plus Lynx Plus
Input Type Loop
BR Loop 3
BR Loop 2
BR Loop 4
BR Loop 1
LED
flashes double red
flashes double red twice
flashes double green
flashes red 8 times
28-Sep-12
