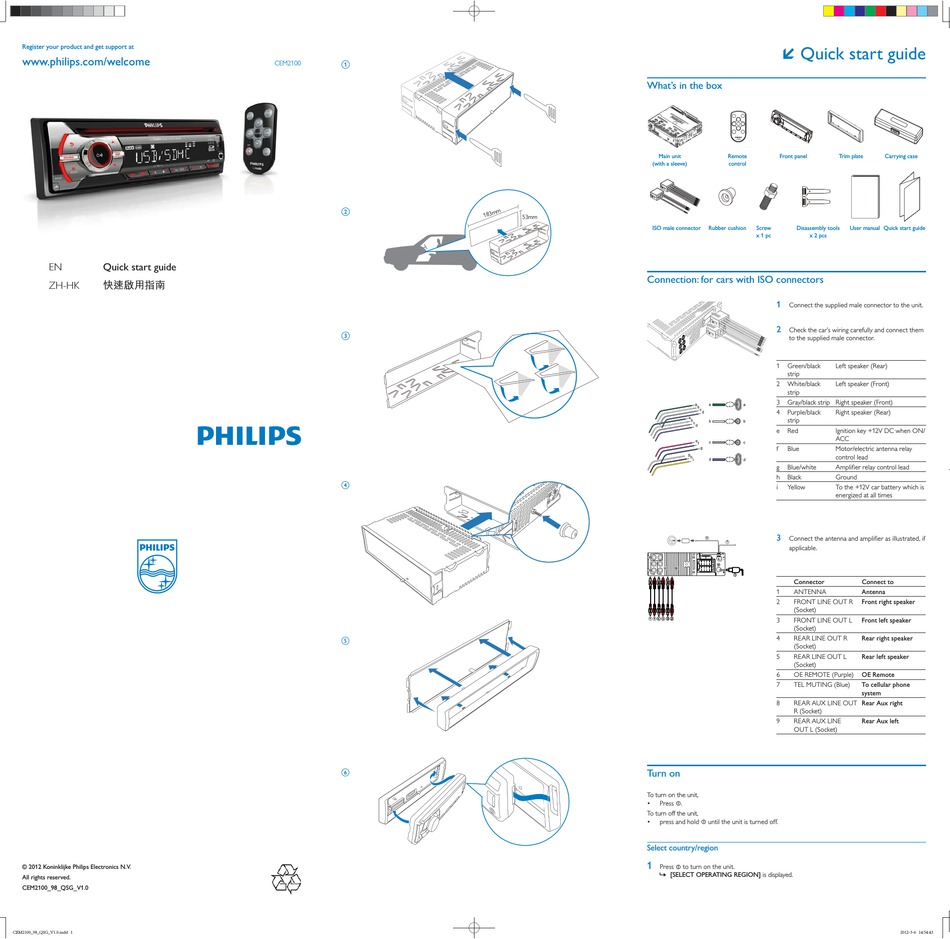

Philips CEM2100 Quick Start Manual

Register your product and get support at
EN

Quick start guide

ZH-HK
© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
CEM2100_98_QSG_V1.0
CEM2100 a
b
c
d
e
f
What's in the box
Main unit
(with a sleeve)
53mm
ISO male connector
Connection: for cars with ISO connectors
9 8
Turn on
7R WXUQ RQ WKH XQLW
‡ Press .
7R WXUQ RII WKH XQLW
‡ press and hold
Select country/region
1
Press to turn on the unit.
» [SELECT OPERATING REGION] is displayed.
Á
Quick start guide
Remote Front panel Trim plate Carrying case
control
Rubber cushion Screw Disassembly tools User manual Quick start guide
x 1 pc x 2 pcs
1
Connect the supplied male connector to the unit.
2
Check the car's wiring carefully and connect them
to the supplied male connector.
1 Green/black Left speaker (Rear)
strip
2 White/black Left speaker (Front)
strip
3 Gray/black strip Right speaker (Front)
4 Purple/black Right speaker (Rear)
strip
e Red Ignition key +12V DC when ON/
ACC
f Blue Motor/electric antenna relay
control lead
g Blue/white $PSOLÀHU UHOD\ FRQWURO OHDG
h Black Ground
i Yellow To the +12V car battery which is
energized at all times
3
&RQQHFW WKH DQWHQQD DQG DPSOLÀHU DV LOOXVWUDWHG LI
7
applicable.
Connector Connect to
1 ANTENNA Antenna
2 FRONT LINE OUT R Front right speaker
(Socket)
3 FRONT LINE OUT L Front left speaker
(Socket)
4 REAR LINE OUT R Rear right speaker
(Socket)
5 REAR LINE OUT L Rear left speaker
(Socket)
6 OE REMOTE (Purple) OE Remote
7 TEL MUTING (Blue) To cellular phone
system
8 REAR AUX LINE OUT Rear Aux right
R (Socket)
9 REAR AUX LINE Rear Aux left
OUT L (Socket)
until the unit is turned off.
