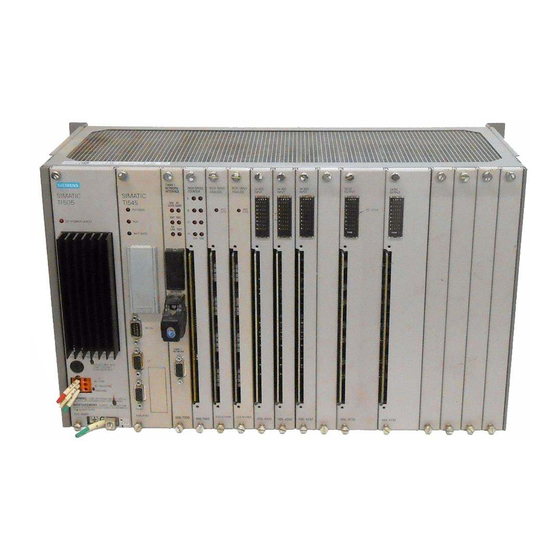

SIMATIC TI505/TI500
MODNIM
User Manual
Order Number: PPX:505-8122-1
Manual Assembly Number: 2586546-0083
Original Edition

Advertisement

Table of Contents
loading

Related Manuals for Siemens SIMATIC TI505

Summary of Contents for Siemens SIMATIC TI505

  • Page 1 SIMATIC TI505/TI500 MODNIM User Manual Order Number: PPX:505-8122-1 Manual Assembly Number: 2586546-0083 Original Edition...
  • Page 2 Technical data is subject to change. contents is not permitted without express consent of Siemens Industrial Automation, Inc. All rights, including rights We check the contents of every manual for accuracy at the created by patent grant or registration of a utility model or time it is approved for printing;...
  • Page 3 MANUAL PUBLICATION HISTORY SIMATIC TI505/TI500 MODNIM User Manual Order Manual Number: PPX:505-8122-1 Refer to this history in all correspondence and/or discussion about this manual. Event Date Description Original Issue 03/93 Original Issue (2801280–0001), Software Release 3.0...
  • Page 4 LIST OF EFFECTIVE PAGES Pages Description Pages Description Cover/Copyright Original History/Effective Pages Original iii — ix Original 1-1 — 1-20 Original 2-1 — 2-39 Original A-1 — A-4 Original B-1 — B-2 Original C-1 — C-3 Original D-1 — D-6 Original Index-1 —...

  • Page 5: Table Of Contents

    Contents Preface Chapter 1 Installation and Set-up Modbus Communications Overview ..........Modbus Network Characteristics .
  • Page 6 Establishing Communications ........... 1-19 Verifying that the MODNIM is Logged into the PLC .
  • Page 7 Appendix A Network Cable Communications Network Cables ..............Recommended Communication Cables .
  • Page 8 List of Figures Figure 1-1 Multidrop and Point-to-point Configurations ........Figure 1-2 Quick Reference Installation Procedures .
  • Page 9 Figure 2-28 Coil Bit Pattern ............2-34 Figure 2-29 Write Multiple Coils Example —...
  • Page 10 List of Tables Table 1-1 Transmission Mode Characteristics ..........Table 1-2 Status of Indicator Lights .

  • Page 11: Preface

    If you need information that is not included in this manual, or if you have Assistance problems using the module, contact your Siemens Industrial Automation, Inc. distributor or sales office. If you need assistance in contacting your distributor or sales office in the United States, call 1–800–964-4114.
  • Page 12 ..............1-20 SIMATIC TI505/TI500 MODNIM User Manual Installation and Set-up...

  • Page 13: Chapter 1 Installation And Set-Up

    The two modes are the following. ASCII (American Standard Code for Information Interchange) RTU (Remote Terminal Unit) The MODNIM can be set to operate in either mode. Installation and Set-up SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 14: Figure 1-1 Multidrop And Point-To-Point Configurations

    Series 505 PLC is equivalent to the use of the Modicon J475 modem interface with a Modicon PLC. Modbus host Modbus host Modem Modbus Network Modem Modem Programmable Controllers MODNIM MODNIM Multidrop Configuration Point-to-point Figure 1-1 Multidrop and Point-to-point Configurations SIMATIC TI505/TI500 MODNIM User Manual Installation and Set-up...

  • Page 15: Quick Reference Installation Steps

    Insert module into selected I/O slot (Series 505) or two adjacent slots (Series 500). Power up the I/O base. Check MODNIM indicator lights. Verify MODNIM is logged into PLC. Connect network cables. Figure 1-2 Quick Reference Installation Procedures Installation and Set-up SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 16: Handling The Module

    Installation the MODNIM, and initializing the system for operation. Before installing the MODNIM, make sure that the PLC is installed and the programming device is connected to the system. SIMATIC TI505/TI500 MODNIM User Manual Installation and Set-up...

  • Page 17: Setting The Dipswitches

    (0001 1001) (1100 1011) Weight Represents direction to slide a sliding-type switch, or side of switch to press down on a rocker-type switch on Series 505 MODNIM. Figure 1-3 Address Setting Examples Installation and Set-up SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 18: Selecting Network Configuration Parameters

    Switch 10 is used to determine whether the MODNIM collects data from the PLC’s Discrete Output (Y) memory or the Control Relay (C) memory. Set switch to the left for C coils, to the right for Y outputs. SIMATIC TI505/TI500 MODNIM User Manual Installation and Set-up...

  • Page 19: Figure 1-5 Series 505 Modnim Switches And Leds

    1 1 0 0 – 4800 Address 1 1 0 1 – 7200 505-5184 1 1 1 0 – 9600 1 1 1 1 – 19200 Figure 1-5 Series 505 MODNIM Switches and LEDs Installation and Set-up SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 20: Figure 1-6 Series 500 Modnim Switches And Leds

    1 1 0 0 – 4800 Address Switches 1 1 0 1 – 7200 1 1 1 0 – 9600 1 1 1 1 – 19200 Figure 1-6 Series 500 MODNIM Switches and LEDs SIMATIC TI505/TI500 MODNIM User Manual Installation and Set-up...

  • Page 21: Installing The Modnim

    (These screws also ground the module to the base.) Minimum torque: 2.61 in-lb (0.3 N-m) Maximum torque: 5.22 in-lb (0.6 N-m) Figure 1-7 Installing the Series 505 MODNIM in the I/O Base 1-10 Installation and Set-up SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 22: Figure 1-8 Series 505 Modnim Example Dipswitch Settings

    Stop bits 2 or 1 Parity OFF/ON Parity ODD/EVEN Mode RTU/ASCII RTS/CTS: OFF/ON C coils/Y outputs Note: = side of switch to press down. Figure 1-8 Series 505 MODNIM Example Dipswitch Settings SIMATIC TI505/TI500 MODNIM User Manual Installation and Set-up 1-11...

  • Page 23: Installing The Series 500 Modnim In The I/O Base

    MODNIM or the I/O slot keys. Figure 1-9 Keying the I/O Base Slot for the Series 500 MODNIM 1-12 Installation and Set-up SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 24: Figure 1-10 Installing The Series 500 Modnim In The I/O Base

    Figure 1-10 Installing the Series 500 MODNIM in the I/O Base To remove the module, pull the tabs away from the module and slide it out of the base, being careful not to damage the edge card. SIMATIC TI505/TI500 MODNIM User Manual Installation and Set-up 1-13...

  • Page 25: Switches And Indicator Lights

    When set to Local mode, only the Read functions 1, 2, 3, 4, 7, 11, 12, and 17 plus diagnostics function 8 can be performed. All other functions (write operations) will be rejected with Exception Code 01. 1-14 Installation and Set-up SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 26: Status Indicator Lights

    Connected to the network: Local mode RECEIVE (REC) Receiving data over the network TRANSMIT (XMT) Transmitting data over the network MODNIM in Test mode TEST MODE (TEST) Failure detected after power-up diagnostics Flashing Tests completed SIMATIC TI505/TI500 MODNIM User Manual Installation and Set-up 1-15...

  • Page 27: Diagnostic Tests

    GOOD GOOD Reset or Power-up LINE TEST LINE TEST LINE TEST LINE TEST Successful Communicating 1 second 5 seconds internal tests with PLC Figure 1-12 LED Status during Power-Up Self Test 1-16 Installation and Set-up SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 28: Run-Time Self Tests

    The Watchdog Timer circuit provides an extra measure of protection against network lockup due to a failed MODNIM. This circuit will force a RESET if the operating software fails to execute normally. SIMATIC TI505/TI500 MODNIM User Manual Installation and Set-up 1-17...

  • Page 29: User-Initiated Self Test

    If the User-Initiated Self Test is completed successfully, then you can reconnect the network cable to the MODNIM and press the Reset button. The MODNIM will re-initialize and be ready for normal operation. 1-18 Installation and Set-up SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 30: Establishing Communications

    Slot Number SF Module Install the module into any The MODNIM is logged in as available I/O slot in the I/O base. a Special Function Module. Figure 1-14 Sample I/O Definition Chart SIMATIC TI505/TI500 MODNIM User Manual Installation and Set-up 1-19...

  • Page 31: Connecting The Network Cables

    If the data on the line is incorrect, first check to see if the module is firmly seated in the I/O base and enter the command again. If you still cannot verify the module login, contact your local Siemens Industrial Automation, Inc. distributor.
  • Page 32 ..............2-38 SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands...

  • Page 33: Modbus Protocol Overview - Ascii Transmission Mode

    The Function field is a 2-character (16-bit) code that determines the action that a slave takes when receiving the message. The function codes supported by the MODNIM are summarized in Table 2-1 and described in more detail with examples in section 2.4. Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 34: The Data Field

    This character can be changed using Function Code 08, with Diagnostic code 03. Unless there is a compelling reason to change this character, it should be left as the default value (LF). SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands...

  • Page 35: Modbus Protocol Overview - Rtu Transmission Mode

    3.5 Character Time Delay (ms)* 19200 9600 7200 4800 3600 11.7 2400 17.5 1800 23.3 1200 35.0 70.0 140.0 210.0 280.0 381.8 560.0 840.0 *Assuming longest delay with 2 stop bits & parity enabled Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 36: Checksum

    Protocol Reference Manual. Invalid Characters The MODNIM ignores messages that contain invalid characters. Messages and Messages containing the following errors are also ignored. Incorrect checksum Parity error Framing errors Frame too long Incomplete transmission SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands...

  • Page 37: Comparing Modbus Functions With Tiway I Network Commands

    Discrete output (Y) or Control Relay (C) Input Register Word Image Register (WX/WY) Holding Register Variable Memory (V-memory) Slave Secondary Node P/C (Programmable Controller) Function code Primitive Modbus TIWAY I Disabled (coil) Forced Enabled (coil) Unforced Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 38: Addressing

    PLC memory. When a request goes beyond the memory of a particular PLC, the command will be rejected by the PLC and the MODNIM will notify the host computer with Exception Code 02. SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands...

  • Page 39: Modbus Function Descriptions

    [This is equivalent to sending a TIWAY Primitive 20 request using TT-type 7 (Packed Discrete Outputs or Ys) or TT-type 8 (Packed Cs), depending on the position of Switch 10 of the network dipswitch bank in the MODNIM.] Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 40: Figure 2-5 Read Coil Status Example - Response

    0 0 0 1 1 0 1 0 Coil 0A (OFF) Coil 0B (ON) Coil 0C (OFF) Coil 0D (ON) Coil 0E (ON) Packed with zeros (000) Figure 2-6 Read Coil Status Example — Data Field SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands...

  • Page 41: Code 02 - Read Input Status

    TT-type 6 (Packed Discrete Inputs, or Packed Xs)]. Response: 07 02 01 1A XXXX Checksum (XXXX) Data (1A) Number of bytes (01) Function code (02) Slave address (07) Figure 2-8 Read Input Status Example — Response 2-10 Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 42: Figure 2-9 Read Input Status Example - Data Field

    0 0 0 1 1 0 1 0 Input 0A (OFF) Input 0B (ON) Input 0C (OFF) Input 0D (ON) Input 0E (ON) Packed with zeros (000) Figure 2-9 Read Input Status Example — Data Field SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands 2-11...

  • Page 43: Code 03 - Read Output Registers

    Figure 2-11 Read Output Register Example — Response The response has returned the number of bytes of data (06) and the values for the requested registers; these are 032C, 0001, and 0030 respectively (812, 1, and 48 decimal). 2-12 Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 44: Code 04 - Read Input Registers

    Slave address (07) Figure 2-13 Read Input Register Example — Response The response has returned the number of bytes of data (02) and the value 0020 (32 decimal) from the requested input register (0008). SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands 2-13...

  • Page 45: Code 05 - Write A Single Coil

    Function code (05) Slave address (07) Figure 2-14 Write a Single Coil Example — Request This request to secondary 7 is asking for coil 0064 (100 decimal) to be changed to the ON state. 2-14 Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 46: Figure 2-15 Read Input Register Example - Response

    Figure 2-15 Read Input Register Example — Response The response to Function Code 05 is to return the request as received. In the case of a broadcast request, there is no response. SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands 2-15...

  • Page 47: Code 06 - Write A Single Register

    Figure 2-17 Write a Single Register Example — Response The response to Function Code 06 is to return the request as received. In the case of a broadcast request, there is no response. 2-16 Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 48: Code 07 - Read Exception Status

    This request to secondary 17 (decimal) is asking for exception status data. Response: 11 07 3B XXXX Checksum (XXXX) Data value (3B) Function code (07) Slave address (11) Figure 2-19 Read Exception Status Example — Response SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands 2-17...

  • Page 49: Figure 2-20 Exception Status Bits

    Coils 3B (hex) Coil 1 (ON) Coil 2 (ON) Coil 3 (OFF) Coil 4 (ON Coil 5 (ON) Coil 6 (ON) Coil 7 (OFF) Coil 8 (OFF) Figure 2-20 Exception Status Bits 2-18 Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 50: Code 08 - Execute Diagnostics

    Response: 02 08 0000 B405 XXXX Checksum (XXXX) Information Field (B405) Diagnostic code (0000) Function code (08) Slave address (02) Figure 2-22 Execute Diagnostics Example — Response SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands 2-19...

  • Page 51: Table 2-4 Diagnostic Codes Supported

    Return checksum error count Return exception count Return slave message count Return slave no-response count Return slave NAK count Return slave busy count Return character overrun count Return overrun error count Clear character overrun count 2-20 Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...
  • Page 52 Event Log will be cleared. If any other value is passed in the information field, the Communications Event Log will not be cleared, and no response will be returned. This code has significant effect on the functioning of the MODNIM. SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands 2-21...

  • Page 53: Table 2-5 Diagnostic Bits

    EEPROM card RAM download error Not used Not used If the bit contains a 1, then the error associated with that bit is current. This code has no effect on the functioning of the MODNIM. 2-22 Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...
  • Page 54 RESET button is pressed or the power is cycled. When the MODNIM enters Listen Only Mode, the ONLINE indicator goes off. This code has a significant effect on the operation of the MODNIM. SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands 2-23...
  • Page 55 MODNIM since the last RESET or power-up. The counter will increment to a value of FFFF (65535) and will then return to zero (0). This code has no effect on the operation of the MODNIM. 2-24 Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...
  • Page 56 MODNIM since the last RESET or power-up. The counter will increment to a value of FFFF (65535) and will then return to zero (0). This code has no effect on the operation of the MODNIM. SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands 2-25...
  • Page 57 This code has no effect on the operation of the MODNIM. This Modbus diagnostic code has no equivalent in Series 500 or Series 505 PLCs. In this application, 0000 is always returned. 2-26 Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...
  • Page 58 This code has no effect on the operation of the MODNIM. This Modbus diagnostic code has no equivalent in Series 500 or Series 505 PLCs. In this application, 0000 is always returned. SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands 2-27...
  • Page 59 This code has no effect on the operation of the MODNIM. This Modbus diagnostic code has no equivalent in Series 500 or Series 505 PLCs. In this application, 0000 is always returned. 2-28 Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...
  • Page 60 When Function Code 08 uses diagnostic code 0014 and any value in the information field (00 00 shown), the MODNIM will clear the character overrun counter. This command affects the operation of the MODNIM. SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands 2-29...

  • Page 61: Code 11 - Get Comms Event Counter

    Function code 11 (0B hex) Slave address 21 (15 hex) Figure 2-24 Get Comms Event Counter Example — Response The response shows that the status word is 0000 and that 323 (decimal) events have occurred. 2-30 Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 62: Code 12 - Get Comms Event Log

    + 2 message counts + 64 event bytes). Only two of the event bytes are shown; these indicate the secondary node was reset (00) and then received a broadcast message (C0). The most recent events are returned first. SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands 2-31...

  • Page 63: Table 2-6 Event Byte Types

    Initiate Communications Bit 0 – 0 RESET. Complete log is set Bit 1 – 0 to zeros. Bit 2 – 0 Bit 3 – 0 Bit 4 – 0 Bit 5 – 0 2-32 Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 64: Code 15 - Write Multiple Coils

    Checksum (XXXX) Coil status (DC08) Number of bytes (02) Number of coils (000C) Start coil address (0012) Function code 15 (0F hex) Slave address (07) Figure 2-27 Write Multiple Coils Example — Request SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands 2-33...

  • Page 65: Figure 2-28 Coil Bit Pattern

    Response: 07 0F 0012 000C XXXX Checksum (XXXX) Number of coils (000C) Start coil address (0012) Function code 15 (0F hex) Slave address (07) Figure 2-29 Write Multiple Coils Example — Response 2-34 Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 66: Code 16 - Write Multiple Registers

    Slave address (02) Figure 2-31 Write Multiple Registers Example — Response The response to this command is to return the address, code, starting address, and the numbers of registers to be changed. SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands 2-35...

  • Page 67: Code 17 - Report Slave Id

    Slave ID is a TI530C PLC, the RUN light is On, the operational mode is 01, auxiliary power is good, and the operational port is A. The last byte contains the software version number (see Table 2-7). 2-36 Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 68: Table 2-7 Function Code 17 Response Options

    Auxiliary power source good. Power Supply Auxiliary power source not good. Status (EE) MODNIM Port A is in use. Operational Port Port B is in use. Release 1.0 Software Version Release 2.0 Release 3.0 SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands 2-37...

  • Page 69: Error Responses

    Code 81 (01 with the high bit set), with the exception code 02 indicating that the data address was illegal. NOTE: The TIWAY I network uses Exception Primitives. Exceptions sent by SIMATIC TI PLCs are mapped to Modbus Exception Codes. 2-38 Modbus Commands SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 70: Table 2-8 Exception Responses

    [equivalent to SIMATIC TI codes 0A, 0B, 0D, 17, 1A]. Memory parity error If during a read of memory, a parity error occurs, this exception response is returned. SIMATIC TI505/TI500 MODNIM User Manual Modbus Commands 2-39...
  • Page 71 ........SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 72: Network Cables

    Network Cables Recommended The following cables are available through your Siemens distributor. Communication Cables Cable P/N Description Adapter at Module 2601094–8001 Standard 9-pin null modem 9-pin (F) to 25-pin (M) port adapter VPU200–3605 Standard 25-pin null modem None required Building Cables If you prefer to build your own 25-pin cable, ensure that the following requirements are met to minimize the possibility of noise interference.

  • Page 73: Figure A-2 Modnim To Host (With Handshaking)

    Series 505 or 500 MODNIM (DTE) (DTE) Shield Figure A-2 MODNIM to Host (with Handshaking) Commercial Modem Series 505 or 500 MODNIM (DCE) (DTE) Shield Figure A-3 MODNIM to Commercial Modem (with Handshaking) SIMATIC TI505/TI500 MODNIM User Manual Network Cable Communications...

  • Page 74: Table A-1 Rs-232-C Connector Pin Assignments

    Parameters Table A-2 Communications Parameters Parameters ASCII Baud Rate 19,200 bps 19,200 bps Parity None Even Stop bits Data bits 8 (auto selected) 7 (auto selected) Network Cable Communications SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 75: B.1 Exception Codes Supported By The Modnim

    ........SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 76: Table B-1 Exception Codes

    The resulting data element location formed by the starting address plus the number of data elements to access, is out of range. Communications has not been established with the attached device. The number of locations to access is zero. Exception Codes SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 77: Specifications

    ........SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 78: Table C-1 Environmental Specifications

    All parts are of corrosion resistant material or are plated or painted as corrosion protection. Agency Approvals ULr Listed (UL508 industrial control equipment) CSAr Certified (CSA142 process control equipment) FM Approved (Class I, Div. 2, Hazardous locations) Specifications SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 79: Table C-2 Modnim Specifications

    Get Comms. Event Cntr. Get Comms. Event Log Write Multiple Coils TT=4,7 Write mult. discr. outputs packed (Y) TT=5,8 Write mult. discrete coils packed (C) Write Multiple Registers TT=1 Write multiple V memory (V) Report Slave I.D. SIMATIC TI505/TI500 MODNIM User Manual Specifications...
  • Page 80 ............SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 81: Getting Started

    At the DOS prompt on your machine, type: Enter modasst Enter You will now see the start-up screen. Press to continue. The program Enter starts your configuration setup with the screen as shown in Figure D-1. Using the MODASST Program SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 82: Running The Program From The Hard Disk

    ( ) Addr 0x3F8 ( ) Addr 0x2F8 ( ) Addr 0x3E8 ( ) Addr 0x2E8 Cancel Help Alt-X Exit F10 Top Menu Press F1 for Help Figure D-1 First Configuration Screen after Start-Up SIMATIC TI505/TI500 MODNIM User Manual Using the MODASST Program...

  • Page 83: Starting Program Operation

    Press and one of the highlighted letters on the top row of the screen to select the function option you want. To exit the MODASST program, press and X together. Using the MODASST Program SIMATIC TI505/TI500 MODNIM User Manual...

  • Page 84: Using Program Options

    08. You can select and run a diagnostic function by using the up/down arrows and pressing . This option uses the communications Enter parameters selected on the Setup menu item to run diagnostics. SIMATIC TI505/TI500 MODNIM User Manual Using the MODASST Program...

  • Page 85: Find Module Settings

    MODNIM or TIWAY Gateway module to the host computer or the host computer itself may need to be evaluated to determine the source of the problem. Using the MODASST Program SIMATIC TI505/TI500 MODNIM User Manual...
  • Page 86 Index Diagnostic bits, 2-22 Diagnostic codes, 2-20–2-29 Address, setting network address, 1-6 Diagnostic tests power-up, 1-16 Address 0, 2-8 run-time, 1-17 Address 1, 2-8 user-initiated, 1-18, D-2–D-6 Address field, 2-2 Dipswitches ASCII/RTU mode selection, 1-7 Addressing, limits, 2-7 data transmission rate, 1-7 ASCII transmission mode, 1-2–1-3, 2-2–2-3 example setting, 1-11 handshaking selection, 1-7...
  • Page 87 Handshaking Modbus commands MODNIM to host, A-3 function code descriptions, 2-8–2-37 protocol, 2-2–2-7 MODNIM to modem, A-3 Modbus functions supported, 2-3 Help contacting distributor, 1-5 Modbus manuals, ix distributor, sales office, ix Modbus network characteristics, 1-2 Modbus protocol, 1-2 ASCII transmission mode, 1-2–1-3, 2-2–2-3 RTU transmission mode, 1-2–1-3, 2-4–2-5 I/O definition chart, 1-19–1-21 Modbus vs.
  • Page 88 Switches function, 1-14 location, 1-8, 1-9 Quick reference installation, 1-4 Switches and indicator lights, 1-14–1-15 Read coil status, 2-8 Technical assistance, ix Read exception status, 2-17 Test button, 1-14 Read input registers, 2-13 Test mode LED, 1-15, 1-16, 1-18 Read input status, 2-10 TISOFT, ix, 1-19 Read output registers, 2-12 TIWAY...
  • Page 89 SIMATIC is a registered trademark of Siemens AG. MODNIM, Series 500, Series 505, 5TI, PM550, PM550C, TISOFT, and TIWAY are trademarks of Siemens Industrial Automation, Inc. Modbus is a trademark of Modicon, Inc. Texas Instruments and TI are registered trademarks of Texas Instruments Incorporated.
  • Page 90 Would you be interested in giving us more detailed comments about our manuals? Yes! Please send me a questionnaire. No. Thanks anyway. Your Name: Title: Telephone Number: Company Name: Company Address: Manual Name: SIMATIC TI505/TI500 MODNIM User Manual Edition: Original Manual Assembly Number: 2586546-0083 Date: 03/93 Order Number: PPX:505-8122-1...
  • Page 91 IN THE UNITED STATES BUSINESS REPLY MAIL PERMIT NO.3 FIRST CLASS JOHNSON CITY, TN POSTAGE WILL BE PAID BY ADDRESSEE SIEMENS INDUSTRIAL AUTOMATION, INC. 3000 BILL GARLAND RD. P.O. BOX 1255 JOHNSON CITY TN 37605–1255 ATTN: Technical Communications M/S 3519 FOLD...
