- Page 1 ICP-CP4TS 4.3” Security Systems Installation Guide Security System...

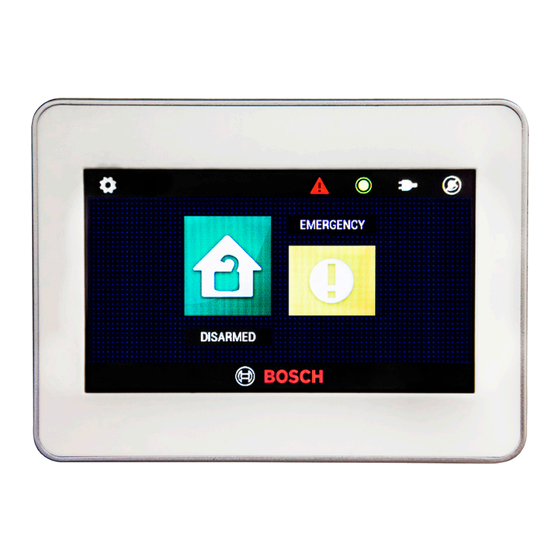

- Page 2 “Touch Classic” Installation Guide The Touch Classic touch screen codepad has been developed to provide an updated user interface for Solution Classic control panels. It is very simple to install and program with an intuitive interface and rich feature set. Please read the following guide to familiarise yourself with the functions and limitations of the product.
-
Page 3: Selecting Control Panel
With the CLOCK line disconnected “Alarm System Communication Failure” will be displayed. No codes are required in this mode to access settings for the touch panel. Selecting Control Panel 1. Touch 2. Select “ Installation “ 3. Select “Touchpad” 4. Select “Panel Type” from the Configurations Options. 5. -
Page 4: Control Panel Programming
The RF Fobs option when set as YES allows the user to add remote controls via the Radio Keyfobs option in the Settings menu. This is used for WE800EV2. When RF Devices is set to YES the installer is able to add Bosch Ultima wireless equipment by selecting RF Devices from the Settings - Installation menu. -
Page 5: Warranty
To access panel programming + Installation - Panel (Basic) or Panel (Enhanced) enter the installer code. You will be presented with the below. Basic screen Enhanced screen In Basic programming mode data entry is as per the LED/ICON codepads. Enter the address and #. - Page 6 Bosch Security Systems 21 Solent Circuit, Baulkham Hills, NSW 2153 Australia T: +61 13000 BOSCH (26724) F: +61 (2) 8850 2230 Product Specifications Operating Voltage 12 to 15VDC Standby Current 85mA Housing ABS Plastic Dimensions 122 x 90 x 14mm ( L x W x H )
