LG MZ9480YRC Owner's Manual

LG MZ9480YRC Owner's Manual

Built-in lightwave oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

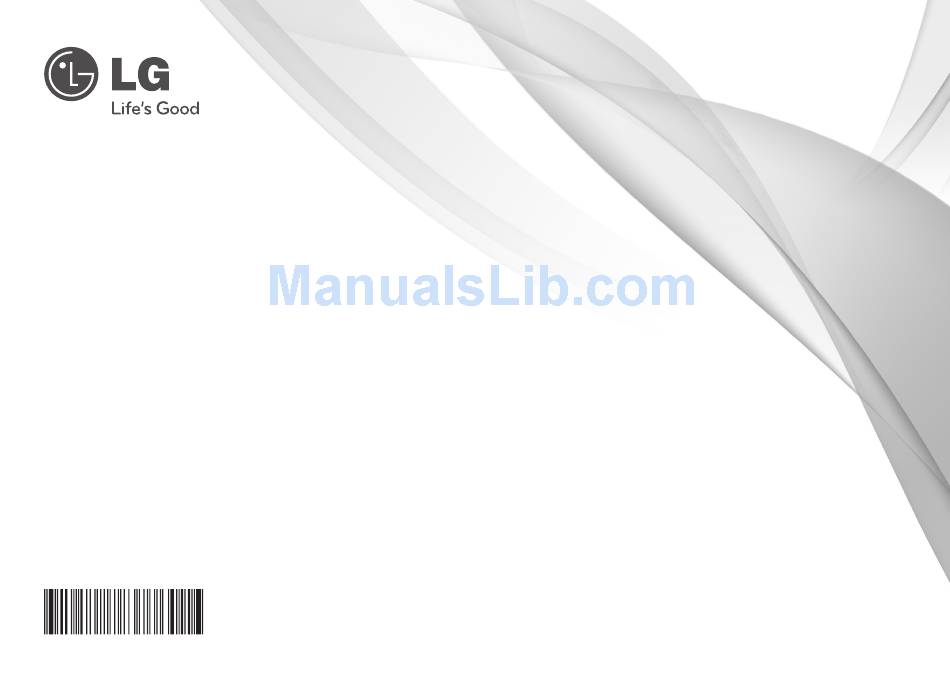

OWNER'S MANUAL
BUILT-IN LIGHTWAVE OVEN
Please read this owner's manual thoroughly before operating.
The manufacturer is not liable for any problems caused by the user's failure to observe
these instructions.
MZ9480YRC
www.lg.com
MFL65219803

Advertisement

Table of Contents
loading

Related Manuals for LG MZ9480YRC

Summary of Contents for LG MZ9480YRC

  • Page 1 OWNER’S MANUAL BUILT-IN LIGHTWAVE OVEN Please read this owner's manual thoroughly before operating. The manufacturer is not liable for any problems caused by the user's failure to observe these instructions. MZ9480YRC www.lg.com MFL65219803...

  • Page 2: Table Of Contents

    Contents Contents ________________________________________________2 How the Microwave Function Works Important safety instructions _______________________________3 ~ 16 Precautions _____________________________________________17 Microwaves are a form of energy similar to radio and television waves and ordinary daylight. Normally, microwaves spread outwards as they travel Unpacking & Installing ____________________________________18 ~ 19 through the atmosphere and disappear without effect.
  • Page 3 Important Safety Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. Instructions This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.

  • Page 4: Important Safety Instructions

    Important Safety Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. This guide does not cover all possible conditions that may occur. Always contact your service agent or Instructions manufacturer about problems that you do not understand.
  • Page 5 Please keep for future reference. Read and follow all instructions before using your oven to prevent Important Safety the risk of fire, electric shock, personal injury, or damage when using the oven. This guide does not cover all possible conditions that may occur. Always contact your service agent or Instructions manufacturer about problems that you do not understand.
  • Page 6 Important Safety Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. This guide does not cover all possible conditions that may occur. Always contact your service agent or Instructions manufacturer about problems that you do not understand.
  • Page 7 Important Safety Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. Instructions This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.
  • Page 8 Important Safety Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. Instructions This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.
  • Page 9 Important Safety Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. Instructions This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.
  • Page 10 Important Safety Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. Instructions This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.
  • Page 11 Important Safety Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. Instructions This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.
  • Page 12 Important Safety Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. Instructions This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.
  • Page 13 Important Safety Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. Instructions This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.
  • Page 14 Important Safety Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. Instructions This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.
  • Page 15 Important Safety Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. Instructions This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.
  • Page 16 Important Safety Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. This guide does not cover all possible conditions that may occur. Always contact your service agent or Instructions manufacturer about problems that you do not understand.

  • Page 17: Precautions

    Precautions Precautions to avoid possible exposure to excessive microwave energy. You cannot operate your oven with the door open due to the safety interlocks When heating liquids, e.g. soups, sauces and beverages in your oven with microwave function, delayed eruptive boiling can occur without evidence of built into the door mechanism.

  • Page 18: Unpacking & Installing

    Unpacking & By following the basic steps on these two pages you will be able to quickly check that your oven is operating correctly. Please pay particular attention to the guidance on where to install your oven. When unpacking your Installing oven make sure you remove all accessories and packing.
  • Page 19 Plug your oven into a standard household socket. Make Press the STOP/CLEAR button, and press sure your oven is the only appliance connected to the the START/Q-START button one time to set socket. If your oven does not operate properly, unplug it 30 seconds of cooking time.

  • Page 20: Control Panel

    Control Panel 1. DISPLAY WINDOW: You can see the mode function, time of day, cooking 6. ENTER/CLOCK: time, power level and cooking categories. • ENTER: You can confirm the selected cooking category, microwave power level or temperature. 2. STEAMCHEF COOK : Steamchef cook allows you to cook your favorite food by selecting the steam chef categories.

  • Page 21: Setting The Clock

    Setting the You can set either12 hour clock or 24 hour clock. Clock In the following example I will show you how to set the time for 14:35 when using the 24 clock. Make sure that you have removed all packaging from your oven. Make sure that you have correctly installed your oven as described earlier in this book.

  • Page 22: Child Lock

    Child Lock Press STOP/CLEAR. Press and hold STOP/CLEAR until “L” and appears on the display Your oven has a safety feature that and BEEP sounds. prevents accidental running of the oven. The CHILD LOCK is now set. Once the child lock is set, you will be unable to use any functions and no cooking can take place.

  • Page 23: Quick Start

    Quick In the following example I will show you how to set 2 minutes of cooking on high power(900W). Start Press STOP/CLEAR. The Quick Start feature allows you to set Press START/Q-START four times to select 2 minutes on HIGH 30 second intervals of HIGH power(900W).

  • Page 24: Microwave (Micro) Power Cooking

    Microwave (Micro) In the following example I will show you how to cook food on 600W power for 5 minutes and 30 seconds. Note: Steam or condensation forming inside the door or display can indicate that the cooking time or power Power Cooking levels are excessive.

  • Page 25: Micro Power Level

    Micro Power This oven is equipped with 5 power levels to give you maximum flexibility and control over cooking. The table Level below shows the examples of food and their recommended cooking power levels for use with this oven. OUTPUT ACCESSORY POWER LEVEL 900W...

  • Page 26: Grill Cooking

    Grill In the following example I will show you how to use the Grill-1 to cook food for 12 minutes and 30 Cooking seconds. Press STOP/CLEAR. Turn dial to select grill ( This feature will allow you to brown and crisp food quickly.

  • Page 27: Convection Cooking

    Convection In the following example I will show you how to use the convection mode to cook food for 50 minutes at 220°C Cooking temperature. The convection oven has a temperature Option 1. To Preheat Option 2. To Cook range.(40°C, 100~250°C) Press STOP/CLEAR.

  • Page 28: Speed Combi Cooking

    Speed combi In the following example I will show you how to programme your oven at micro power 360W and grill for a cooking time of 25 minutes. Cooking NOTE: We do not recommend the use of aluminium foil during any Microwave or Speed Combi mode, as it can cause arcing when used incorrectly with trays which will damage the oven and cause fire.
  • Page 29 Speed combi In the following example I will show you how to programme your oven for micro power 360W and at a Cooking temperature 200˚C for a cooking time of 25 minutes. Press STOP/CLEAR. Speed Combi (Co-4) Turn dial speed combi( ) to select speed combination mode (Co-4).

  • Page 30: Speed Combi Cooking

    Speed combi In the following example I will show you how to programme your oven for:- micro power 360W and at a Cooking convection temperature 200°C for a cooking time of 25 minutes. Speed Combi Press STOP/CLEAR. (Co-5) Turn dial speed combi( ) to select convection combination mode(Co-5).

  • Page 31: Defrost

    Defrost The temperature and density of food varies, I would recommend that the food is checked before cooking commences. Pay particular attention to large joints of meat and chicken, some foods should not be completely thawed before cooking. For example fish cooks so quickly that it is sometimes better to begin cooking while still slightly frozen.
  • Page 32 DEFROSTING GUIDE * Food to be defrosted should be in a suitable microwave proof container and should be placed uncovered on the metal tray. * If necessary, shield small areas of meat or poultry with flat pieces of aluminum foil. This will prevent thin areas becoming warm during defrosting. Ensure the foil does not touch the oven walls.

  • Page 33: Speed Auto Cook

    Speed In the following example I will show you how to cook 1.0kg of whole chicken(Sc 3). Auto Cook Press STOP/CLEAR. Press SPEED AUTO COOK once ( SPEED AUTO COOK menus allow you to cook most of your favorite food quickly by selecting the food type and the weight of the food.
  • Page 34 SPEED AUTO COOK GUIDE Weight Instructions Category Function Utensil Food Temp. Limit Speed Auto Sc 1 Frozen 0.30 – 0.50kg Metal tray Frozen This function is for cooking frozen pizza. Remove all food packaging and Pizza place on the metal tray. After cooking, stand for 1~2 minutes. Cook Sc 2 French...
  • Page 35 SPEED AUTO COOK GUIDE Weight Instructions Category Function Utensil Food Temp. Limit Speed Auto Sc 7 Roast Beef 0.80 – 1.80kg Low rack Refrigerated Brush the beef with melted margarine or butter. + Metal tray Place on the low rack on the metal tray. Cook When it BEEPS, turn food over.
  • Page 36 SPEED AUTO COOK GUIDE Weight Instructions Category Function Utensil Food Temp. Limit Speed Auto Sc 12 Rice / 0.10 – 0.30kg Low rack + Room Place rice & boiling water with to 1 teaspoon salt in a deep and large 1 / 4 Pasta Metal tray +...

  • Page 37: Steamchef Cook

    Steamchef In the following example I will show you how to cook 0.5kg of Shrimp(St 1). Cook NOTE: The STEAMER is required for this function. This feature allows you to Steam Cook. Press STOP/CLEAR. CAUTION: 1. Always use oven gloves when removing the STEAMER from the oven.
  • Page 38 Temp. prior Instructions Ingredient Size of ingredient Function Weight Cooking device to cooking Steam St 1 Shrimp 0.20 – 0.80kg Steam cover Refrigerator Small shrimps (shrimps, Wash the shrimps. Steam plate large shrimps, small crab Pour 400ml of water or white wine in the steamer. chef Steam water bowl etc.)
  • Page 39 Temp. prior Instructions Ingredient Size of ingredient Function Weight Cooking device to cooking Steam St 5 Carrot 0.20 – 0.80kg Steam cover Room Sliced round or diced Pour 400ml of water in the steamer. Steam plate temperature Put the steam plate with the vegetables onto the chef Steam water bowl steamer.
  • Page 40 Temp. prior Instructions Ingredient Size of ingredient Function Weight Cooking device to cooking Steam St 11 Potato 0.20 – 0.80kg Steam cover Room Whole Pour 400ml of water in the steamer. Put the Steam plate temperature steam plate with the vegetables on top of the chef Steam water bowl steamer.

  • Page 41: More Or Less Cooking

    More or Less In the following example I will show you how to change the preset SPEED AUTO COOK programmes Cooking for a longer or shorter cooking time. Press STOP/CLEAR. Set the required SPEED AUTO COOK programme. If you find that your food is over or *See SPEED AUTO COOK guide.

  • Page 42: Ez Clean

    In the following example I will show you how to reduce or remove stubborn smells in the oven. Clean Please note that this function will not remove odours which are a result of burnt foods or Microwave utensils. Press STOP/CLEAR. The oven has a special function to Turn dial to select ez clean(...

  • Page 43: Microwave - Safe Utensils

    Microwave-safe Utensils Never use metal or metal trimmed utensils during microwave function Paper Microwaves cannot penetrate metal. They will bounce off any metal object in Paper plates and containers are convenient and safe to use in using the oven and cause arcing, an alarming phenomenon that resembles microwave function, provided that the cooking time is short and foods to be lightning.

  • Page 44: Food Characteristics & Microwave Cooking

    Food characteristics & Microwave cooking Keeping an eye on things Moisture content of food The recipes in the book have been formulated with great care, but your success in Since the heat generated from microwaves tends to evaporate moisture, relatively dry food preparing them depends on how much attention you pay to the food as it cooks.

  • Page 45: Food Characteristics & Microwave Cooking

    Food characteristics & Microwave cooking Stirring Piercing Stirring is one of the most important of all microwaving techniques. In Foods enclosed in a shell, skin or membrane are likely to burst in the oven conventional cooking, food is stirred for the purpose of blending. Microwaved unless they are pierced prior to cooking.

  • Page 46: Cleaning

    Cleaning To Clean Your Oven 4 If steam accumulates inside or around the outside of the oven door, wipe the panels with a soft cloth. This may occur when the oven is operated under high humidity conditions and in no way indicates a malfunction of 1 Keep the inside of the oven clean the unit.

  • Page 47: Questions & Answers

    Questions & Answers Q What’s wrong when the oven light will not glow? Q Is it possible to cook popcorn in this oven? A There may be several reasons why the oven light will not glow. A Yes, if using one of the two methods described Light bulb has blown below Relay is failed...

  • Page 48: Technical Specifications

    Technical Specifications Technical Specification MZ9480YRC Power Input 240 V~ 50 Hz Output 900 W (IEC60705 rating standard) Microwave Frequency 2450 MHz Outside Dimensions in mm. 595(w) x 455(h) x 472(d) 520(d)inch. handle Microwave 1650 watt Power Grill max. 2200 watt...
  • Page 49 Memo...
  • Page 50 Memo...
  • Page 51 Memo...
  • Page 52 FOR CUSTOMER SERVICE PLEASE CONTACT LG Service on 1300 LG CARE (1300 54 2273) AUSTRALIA or 0800 LG CARE (0800 54 2273) NEW ZEALAND www.lg.com LG Electronics Australia 2 Wonderland Drive Eastern Creek NSW 2766 (ABN : 98 064 531 264) Printed in Korea...
