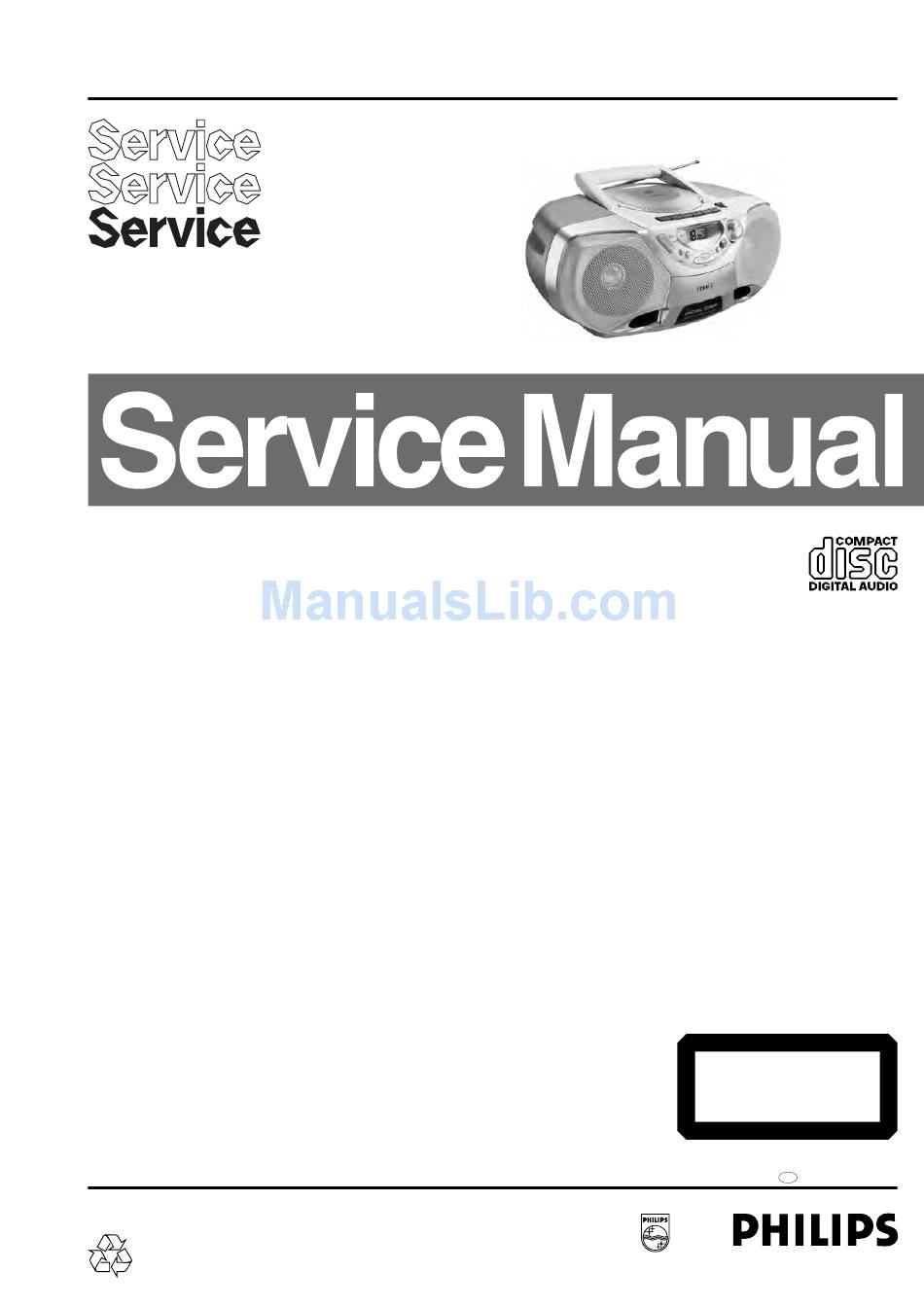

Philips AZ1018 Service Manual

Cd stereo radio recorder
Hide thumbs Also See for AZ1018:
Table of Contents

Advertisement

Quick Links

See also: User Manual
CD Stereo Radio Recorder

TABLE OF CONTENTS

Handling chip components and safety
Technical Specification & Service Tools
..................................................
Service Measurement
................................................
Connections & Controls
.................................................
...................................................
........................................
.............................................................
............................................................
.......................................................
.......................................................
...................................................
circuit diagram
...................................................
layout diagram
Safety regulations require that the set be restored to its original
condition and that parts which are identical with those specified
be used.
C
Copyright 1995 Philips Consumer Electroncis B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system or transmitted, in any form or by any means, electronic, mechanical, photocopying,
or otherwise without the prior permission of Philips.
Published by SS 0050 Service Audio
PCS 107 136
chapter
.............................
1 - 1
..........................
2 - 1
2 - 2
3 - 1
4 - 1
5 - 1
6 - 1
7 - 1
7 - 2
8 - 1, 8 - 3
8 - 2, 8 - 4
Printed in The Netherlands
.......................................................
circuit diagram
.......................................................
REOCRDER BOARD
.......................................................
circuit diagram
.......................................................
CD MODULE
.......................................................
circuit diagram
.......................................................
layout diagram
.................................................................
............................................................
.....................................................
...............................................
Copyright reserved
Subject to modification
AZ1018
all versions
chapter
9 - 1
9 - 2
10 - 1
10 - 2
11 - 2
11 - 1
12 - 1
12 - 2
12 - 2
CLASS 1
LASER PRODUCT
3140 785 22540
GB

Advertisement

Table of Contents
loading

Related Manuals for Philips AZ1018

Summary of Contents for Philips AZ1018

  • Page 1: Table Of Contents

    LASER PRODUCT Copyright 1995 Philips Consumer Electroncis B.V. Eindhoven, The Netherlands All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.
  • Page 2 HANDLING CHIP COMPONENTS © ñ WARNING WAARSCHUWING All ICs and many other semiconductors are susceptible to Alle IC´s en vele andere halfgeleiders zijn gevoelig voor electrostatic discharges (ESD). Careless handling during electrostatische ontladingen (ESD). repair can reduce life drastically. Onzorgvuldig behandelen tijdens reparatie kan de levensduur When repairing, make sure that you are connected with the drastisch doen vermindern.

  • Page 3: Technical Specifications

    TECHNICAL SPECIFICATIONS TUNER - AM SECTION GENERAL Tuning range : 531 - 1602 kHz Mains voltage -/00/05/14 : 230 V -/17 : 530 - 1700 kHz -/01/11/16 : 120 / 230 V IF frequency : 468 kHz ± 3 kHz -/17 : 120 V Sensitivity : 3200 µV/m at 26dB S/N...

  • Page 6: Instructions For Use

    INSTRUCTIONS FOR USE ∑ PCS 107 139...
  • Page 7 INSTRUCTIONS FOR USE ∑ PCS 107 140...
  • Page 8 INSTRUCTIONS FOR USE ∑ PCS 107 141...
  • Page 9 INSTRUCTIONS FOR USE PCS 107 142...
  • Page 10 DISASSEMBLY DIAGRAM A. To remove Front Cabinet Grill Assy B. To remove Rear Cabinet Assy C. To remove CD Tray D. To remove Bracket Front E. To remove Tape Deck F. To separate Frame CD and Frame Cassette PCS 107 143...

  • Page 11: Cd Service Test Program

    CD SERVICE TEST PROGRAM To enter Service CD TEST TUNER TEST To enter Service Testprogramm hold Testprogramm hold PLAY & MODE buttons PLAY & STOP buttons STOP button pressed in any step returns depressed while switching depressed while switching to begin of Service Testprogram. CD mode on.
  • Page 12 Abbreviations and Pin-description of CD Ics Abbreviations and Pin-description of CD Ics SERVO PROCESSOR SAA7325H SERVO PROCESSOR SAA7325H SYMBOL DESCRIPTION SYMBOL DESCRIPTION HFREF comparator common mode input microcontroller interface R/W and load control line input (4-wire bus mode) HFIN comparator signal input SILD microcontroller interface R/W and load control line input (4-wire bus mode) ISLICE...

  • Page 13: Block Diagram

    BLOCK DIAGRAM +TUNER V.M. +A(ON) Vcc2 ECO6-TUNER +A(ON) MUTE CD-99 4-OHM CD MODULE TA8227 +TAPE +1 +A POWER AMP SEARCH_MUTE HEADPHONE MUTE CD_MUTE 32-OHM TAPE_MUTE TAPE MODULE +5V6 +A(ON) FOR /01/11/16 ONLY 230V +TUNER 120V VOLTAGE 6X1.5V REGULATOR +TAPE PCS 107 145...

  • Page 14: Wiring Diagram

    WIRING DIAGRAM CD DOOR SWITCH 9V BATTERY MECHANISM 8812 80mm 8010 100mm SLIDE- SLIDE+ INNERSW DISC+ TRANSFORMER DISC- VOLTAGE SELECTOR /01,/11,/19 1010 110-127V 220-240V BLUE 8015 COMBI BOARD 8800 8811 ORANGE 130mm 80mm 65mm BLACK 8002 340mm 1409 8801 1005 50mm MAINS SOCKET CD99...

  • Page 15: Circuit Diagram

    FRONT BOARD - CIRCUIT DIAGRAM 0132 H2 1461 A2 1493 D8 1496 E9 1510 F6 2364 G7 2425 G10 2533 F6 3440 D10 3443 E10 3451 B11 3472 H12 3475 G9 3541 F6 3544 G5 3550 F3 7405 H11 T401 E2 T404 D2 T407 C2 T410 C2...

  • Page 16: Layout Diagram

    FRONT BOARD - LAYOUT DIAGRAM PCS 107 148...

  • Page 17: Combi Board

    3481 RESET T464 2423 2424 2452 2460 8022 7403 T427 3430 4.7V BC847B 5.6V 5400 5401 T426 3407 4.5V 4499 AZ1018 +Vcc 100u 100R ONLY 2403 2413 2439 3462 T456 3408 3418 100p 100u 100n SEARCH_MUTE 3461 220R T457 1.5V 390R 5.4V...
  • Page 18 COMBI BOARD (Component Side) - LAYOUT DIAGRAM PCS 107 150...
  • Page 19 COMBI BOARD (AF Part) - CIRCUIT DIAGRAM 1003 B12 1310 G12 1506 A1 1592-E H8 2305 H6 2321 A7 2343 B7 2348 C9 2353 C7 2359 D6 2372 D11 3303 B7 3310 F9 3326 G5 3332 E7 3364 D2 3369 C3 3374 D4 3381 A6 6301 G10...
  • Page 20 COMBI BOARD (Solder Side) - LAYOUT DIAGRAM PCS 107 152...

  • Page 21: Tuner Board

    TUNER BOARD ECO6 - CIRCUIT DIAGRAM 1105 A2 4104 L7 1121 H20 4105 B12 1122 G20 4109 D5 2101 B5 4110 D5 TUNER BOARD ECO6 /PORTABLE AUDIO 2103 D9 5102 G4 2104 A4 5103 H3 AM-IF1 VERSION PROGRAMMING COMPONETS 5111 450kHz 2106 C5 5109 B13...
  • Page 22 TUNER BOARD ECO6 - LAYOUT DIAGRM TUNER ADJUSTMENT TABLE ( ECO6 FM/MW- and FM/MW/LW - versions with ferrite antenna) Waverange Input frequency Input Tuned to Adjust Output Scope/Voltmeter 1105 B5 2133 D2 2191 A1 5109 A3 5119 C2 5131 D4 9103 B1 9108 C4 9113 C5...
  • Page 23 10-1 10-1 RECORDER BOARD - CIRCUIT DIAGRAM 1707 C 3 1709 A14 2706 B 4 2711 F 6 2719 C 8 2727 F 7 2733 H13 2750 D 6 3703 D 3 3712 E 7 3720 F 7 3730 F12 3743 C 9 3761 G 6 7705 G 4...

  • Page 24: Layout Diagram

    10-2 10-2 RECORDER BOARD - LAYOUT DIAGRAM 71 A 1 2729 C 5 3733 B 2 9756 C 3 72 D 5 2730 D 1 3734 D 5 9757 D 3 73 A 5 2731 C 1 3735 D 3 9759 D 4 74 A 1 2732 B 1...

  • Page 25: Layout Diagram

    11-1 11-1 CD99 DA11 - LAYOUT DIAGRAM PCS 107 155...
  • Page 26 11-2 11-2 11-2 CD99 DA11 - CIRCUIT DIAGRAM 1800 D1 2806 E4 2813 E9 2820 B10 2827 C14 2834 F5 2841 C1 2865 D5 2875 D5 3801 A1 3808 A2 3815 E5 3822 E7 3829 A11 3838 D14 3845 G12 3852 F5 3859 H5 3890 B4...
  • Page 27 2,5V 2,5V 0,2V 2,5V 2,5V 0,2V 3,9V 3,3V 1,8V 2,5V 2,5V 2,5V 0,9V 0,9V 1,5V 0V 0,9V 0,9V 3,3V 4,8V 6,2V 3,9V 6,1V EYE-PATTERN ..... Vdc measured during PLAY with normal CD or CD-R Vdc measured during PLAY with CD-RW 6,2V 800mVpp 6,0V...

  • Page 28: Exploded View Diagram Cabinet

    12-1 12-1 12-1 EXPLODED VIEW DIAGRAM - CABINET SCREW LIST 1. T2 x 8 2. T2.5 x 8 3. T2.5 x 10 4. T3 x 10 5. T3 x 12 4 (2x) 6. T3 x 20 4 (2x) 7. P/W T3 x 10 4 (2x) 5 (4x) 4 (2x)

  • Page 29: Tape Deck

    12-2 12-2 MECHANICAL PARTSLIST - CABINET EXPLODED VIEW DIAGRAM - TAPE DECK 401 3140 117 60330 Cassette Door Assy 433 2422 070 98148 Mains Cord (For -/10) 402 3140 114 35570 Knob Volume 433 2422 070 98152 Mains Cord (For -/17) 403 3140 117 60300 Front Cabinet Assy (Not for -/17) 4822 256 90463 Holder Ferrite Bar 403 3140 117 60490 Front Cabinet Assy (For -/17)
  • Page 30 13-1 13-1 ELECTRICAL PARTSLIST ELECTRICAL PARTSLIST - CAPACITORS - - CAPACITORS - - CAPACITORS - - CAPACITORS - 2101 4822 122 33777 47pF 5% NP0 63V 2193 5322 126 11578 1nF 10% X7R 50V 2406 4822 122 31765 100pF 2% NP0 63V 2821 4822 126 14305 100nF 10% X7R 16V 2103...
  • Page 31 13-2 13-2 ELECTRICAL PARTSLIST ELECTRICAL PARTSLIST - RESISTORS - - RESISTORS - - CAPACITORS - - RESISTORS - 2874 4822 126 13883 220pF 5% 50V 3310 4822 116 83883 470R 5% 0,5W 3415 4822 117 12891 220K 1% 3474 4822 117 12971 15R 5% 0,62W 2875 4822 126 13883 220pF 5% 50V 3321...
  • Page 32 13-3 13-3 ELECTRICAL PARTSLIST ELECTRICAL PARTSLIST - RESISTORS - - RESISTORS - - RESISTORS - - COILS & FILTERS - 3814 4822 051 30332 3K3 5% 0,062W 3863 4822 052 10338 3R3 5% 0,33W 4402 4822 051 30008 Jumper 1810 4822 242 73557 Filter CST8,46MTW-TF01 3815 4822 051 30472 4K7 5% 0,062W...

  • Page 33: Electrical Partslist

    13-4 ELECTRICAL PARTSLIST - IC & TRANSISTORS - - MISCELLANEOUS - 7101 4822 209 90924 IC TEA5757H/V1 1460 4822 267 10958 Connector 5P 7102 4822 130 42131 Trans BF550 1462 4822 267 10871 Connector 17P 7111 5322 130 42755 Trans BC847C 1491 2422 128 02922 Tact Switch 7180...
  • Page 34 13-5 ELECTRICAL PARTSLIST - RECORDER BOARD - CAPACITORS - - RESISTORS - 2703 482212481151 22µF 3727 482211652256 0,5W 2704 482212481151 22µF 3730 482211683868 150R 0,5W 2706 482212440433 47µF 20% 25V 3731 482211652291 0,5W 2707 482212440196 220µF 20% 16V 3732 482211652176 0,5W 2708 482212440433...
