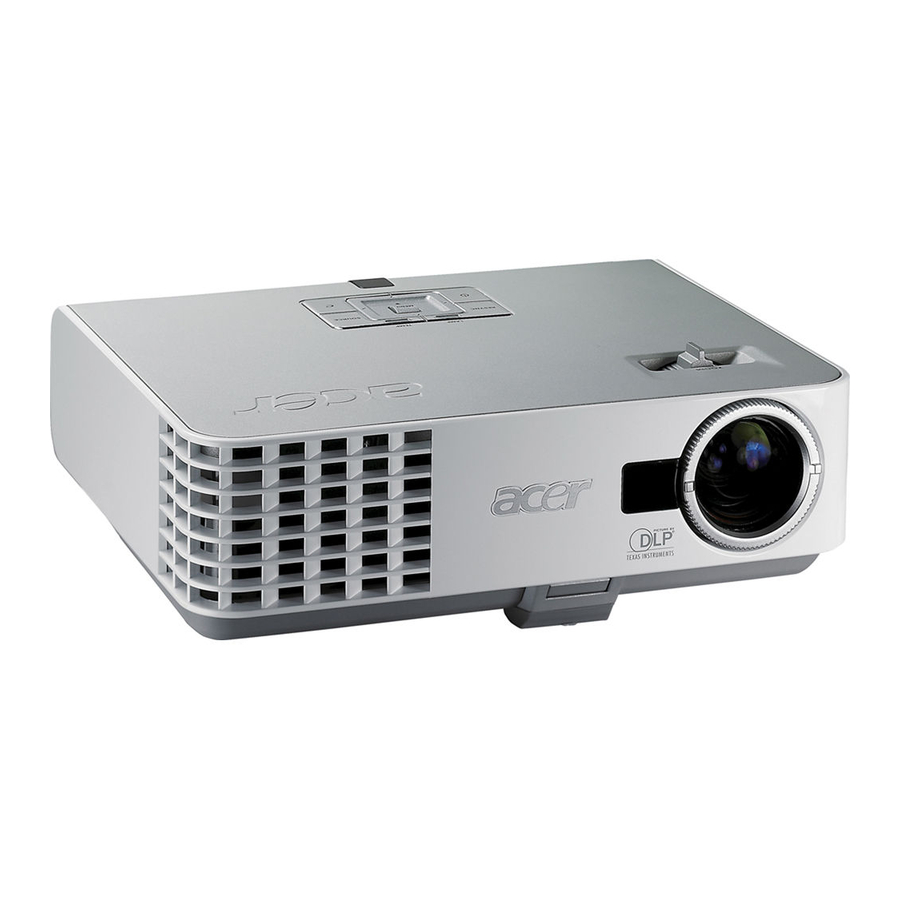

- Page 1 Acer Projector P3150/P3250 Series User's Guide...
- Page 2 Serial number: ___________________________________ Date of purchase: ________________________________ Place of purchase: ________________________________ Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.
- Page 3 Information for your safety and comfort Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product. Turning the product off before cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
- Page 4 • To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface. • Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage rotor devices, lamp.
- Page 5 Product servicing Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel. Unplug this product from the wall outlet and refer servicing to qualified service personnel when: •...
- Page 6 might cause fire or electric shock. In this case, unplug immediately and contact your dealer. • Do not keep using this product to break or drop it. In this case contact your dealer for inspection. • Do not face the projector lens to the sun. It can lead to fire. •...
- Page 7 Operating environment for using wireless function (Optional) Warning! For safety reasons, turn off all wireless or radio transmitting devices when using your machine under the following conditions. These devices may include, but are not limited to: wireless LAN (WLAN), Bluetooth and/or 3G.
- Page 8 viii Hearing aids. Some digital wireless devices may interfere with some hearing aids. If interference occurs, consult your service provider. Vehicles RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles such as electronic fuel injection systems, electronic antiskid (antilock) braking systems, electronic speed control systems, and air bag systems.
- Page 9 Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit http://global.acer.com/about/ sustainability.htm Mercury advisory...
-
Page 10: Precautions
First thing first Usage notes • Turn off the product before cleaning. • Use a soft cloth moistened with mild detergent to clean the display housing. • Disconnect the power plug from AC outlet if the product is not being used for a long period of time. -
Page 11: Table Of Contents
Adjusting the Height of Projected Image How to optimize image size and distance How to get a preferred image size by adjusting distance and zoom User Controls Acer Empowering Technology Onscreen Display (OSD) Menus Color setting Image setting Management setting... - Page 12 Replacing the Lamp Specifications Compatibility modes Regulations and safety notices...
-
Page 13: Introduction
• P3150: Native 800 x 600 SVGA resolution P3250: Native 1024 x 768 XGA resolution 4:3 / 16:9 aspect ratio supported • Acer ColorBoost technology delivers nature’s true colors for vivid, life-like images • High brightness and contrast ratio •... -
Page 14: Package Overview
Contact your dealer immediately if any thing is missing. Projector with lens cap Power cord VGA cable Composite video cable Batteries Security card Acer Projector Quick Start Guide User’s guide Remote control Quick start guide Carrying case... -
Page 15: Projector Overview
Projector Overview Projector Outlook Front / upper side Description Zoom Lever Focus ring Zoom lens Elevator foot Rear side Description USB connector PC analog signal/HDTV/component video input connector HDMI connector Composite video input connector S-Video input connector Description Lens cap Elevator button Remote control receivers Control panel... -
Page 16: Control Panel
Description Lamp Indicator LED Temp Indicator LED Press "SOURCE" to choose RGB, S-Video, Composite and HDMI™ sources. Unique Acer functions: eOpening, eView, eTimer. Automatically synchronizes the projector to the input source. Power/Standby/Power Indicator LED. See the contents in "Turning the Projector On/Off"... -
Page 17: Remote Control Layout
Aim the remote at the viewing screen, press and hold this button to activate the laser pointer. This function is not supported in Japanese market. Empowering Unique Acer functions: eOpening, eView, eTimer Management. KEYSTONE Adjusts the image to compensate for distortion caused by tilting the projector (±... - Page 18 To turn on/off the volume. WIRELESS Press "WIRELESS" to display the image which is wirelessly transmitted from the PC to the projector via the "Acer eProjection Management" utility. (for wireless model) KeyPad 0~9 Press "0~9" to input a password in the "Security settings".
-
Page 19: Getting Started
Getting Started Connecting the Projector DVD player, Set-top Box, HDTV receiver Description Power cord USB cable VGA cable Composite video cable Audio cable Jack/Jack Note: To ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with the projector. -
Page 20: Turning The Projector On/Off
Turning the Projector On/Off Turning on the Projector Remove the lens cap.(Illustration #1) Ensure that the power cord and signal cable are securely connected. The Power indicator LED will flash red. Turn on the projector by pressing "Power" button on the control panel, and the Power indicator LED will turn blue. -
Page 21: Turning Off The Projector
Turning off the Projector To turn off the projector, press the "Power" button twice. The message below will display onscreen for 5 seconds. "Please press power button again to complete the shutdown process." Immediately after powering off, the Power indicator LED will flash RED rapidly and the fan(s) will continue to operate for about 120 seconds. -
Page 22: Adjusting The Projected Image
Adjusting the Projected Image Adjusting the Height of Projected Image To raise the image: Press the elevator foot release. (Illustration #1) Raise the image to the desired height angle (Illustration #2), then release the button to lock the elevator foot into position. Use Tilt adjusting wheel (Illustration #3) to fine-tune the display angle. -
Page 23: How To Optimize Image Size And Distance
How to optimize image size and distance Consult the table below to find the optimal image sizes achievable when the projector is positioned at a desired distance from the screen. • If the projector is 3 m from the screen, good image quality is possible for image sizes between 69"... - Page 24 Screen size Desired (Min zoom) Distance Diagonal W (cm) x <A> (inch) H (cm) <B> 70 x 52 93 x 70 116 x 87 140 x 105 163 x 122 186 x 140 209 x 157 233 x 174 279 x 209 326 x 244 372 x 279 419 x 314...
-
Page 25: How To Get A Preferred Image Size By Adjusting Distance And Zoom
How to get a preferred image size by adjusting distance and zoom 2.2 m The table below shows how to achieve a desired image size by adjusting either the position or the zoom ring. • For example: to obtain an image size of 50" set the projector at a distance 2.0 m and 2.2 m from the screen and adjust the zoom level accordingly. - Page 26 Desired Image Size Diagonal (inch) W (cm) x H (cm) <A> 61 x 46 81 x 61 102 x 76 122 x 91 142 x 107 163 x 122 183 x 137 203 x 152 244 x 183 305 x 229 366 x 274 406 x 305 508 x 381...
-
Page 27: User Controls
Acer eView Management Acer eTimer Management Acer eOpening Management Acer Empowering Key provides three Acer unique functions, they are "Acer eView Management", "Acer eTimer Management" and "Acer eOpening Management" respectively. Press " key for more than one second to launch the Onscreen display main menu to modify its function. -
Page 28: Onscreen Display (Osd) Menus
Onscreen Display (OSD) Menus The projector has multilingual OSD that allow you to make image adjustments and change a variety of settings. Using the OSD menus • To open the OSD menu, press "MENU" on the remote control or control panel. -
Page 29: Color Setting
Color setting Display Mode There are many factory presets optimized for various types of images. • Bright: For brightness optimization. • Standard: For common environment. • Video: For playing video in a bright environment. • Blackboard: Blackboard mode can improve displayed color •... -
Page 30: Image Setting
Tint Adjusts the color balance of red and green. • Press • Press Note: "Saturation" and "Tint" functions are not supported under computer mode or DVI mode. Image setting Keystone Adjust image distortion caused by tilting projection. (±40 degrees) Use this function to choose your desired aspect ratio. Aspect Ratio •... - Page 31 Rear-Ceiling • When you select this function, the projector reverses and inverts the image at same time. You can project from behind a translucent screen with ceiling mounted projection. H. Position • Press (Horizontal position) • Press V. Position • Press (Vertical position) •...
-
Page 32: Management Setting
Use this function to select your desired startup screen. If you change the setting, the changes will take effect when you exit the OSD menu. • Acer: The default startup screen of your Acer projector. • User: Use memorize picture from "Screen Capture" function. Screen Capture Use this function to customize the startup screen. - Page 33 Note: This screen capture function is limited by 4:3 aspect ratio only. Note: For XGA models, to get best quality for you desired image, suggest end-user set PC resolution to 1024 x 768 before you use this function. Note: For SVGA models, to get best quality for you desired image, suggest end-user set PC resolution to 800 x 600 before you use this function.
- Page 34 Administrator Password is. • If losing this security card and number, please contact with an Acer service center. Lock User Startup Screen • Default Lock User Startup Screen is "OFF". If lock user startup screen is "ON", users cannot change startup screen anymore...
-
Page 35: Audio Setting
Audio setting Volume • Press • Press • Mute Choose "On" to mute the volume. • Choose "Off" to restore the volume. • Power On/Off Volume Select this function to adjust the notification volume when turning the projector on/off. • Alarm Volume Select this function to adjust the volume of any warning notifications. -
Page 36: Language Setting
Language setting Language Choose the multilingual OSD menu. Use the to select your preferred menu language. • Press to confirm the selection. -
Page 37: Appendices
Appendices Troubleshooting If you experience a problem with your Acer projector, refer to the following troubleshooting guide. If the problem persists, please contact your local reseller or service center. Image Problems and Solutions Problem No image appears • onscreen •... - Page 38 Partial, scrolling • or incorrectly displayed image • (For notebooks) • The screen of the • notebook computer is not displaying your presentation • Image is unstable • or flickering • Image has vertical • flickering bar • Image is out of •...
-
Page 39: Osd Messages
Image is too small • or too large • • Image has slanted • sides • Image is reversed • OSD Messages Condition Message Fan Fail - the system fan is not working. Projector Overheated - the projector has exceeded its recommended operating temperature and must be allowed to cool down before it may be used. -
Page 40: Problems With The Projector
Problems with the Projector Condition The projector stops responding to all controls Lamp burns out or makes a popping sound Solution If possible, turn off the projector, then unplug the power cord and wait at least 30 seconds before reconnecting power. When the lamp reaches the end of its useful life, it will burn out and may make a loud popping sound. -
Page 41: Led & Alarm Definition Listing
LED & Alarm Definition Listing LED Messages Lamp LED Message Standby (power cord plugged in) Power button ON Lamp retry Turning off (cooling state) Turning off (cooling completed) Error (thermal failure) Error (fan lock failure) Error (lamp breakdown) Error (color Wheel fail) flashing Temp LED Quick... -
Page 42: Replacing The Lamp
Replacing the Lamp Use a screwdriver to remove the screw(s) from the cover, and then pull out the lamp. The projector will detect the lamp life. You will be shown a warning message "Lamp is approaching the end of its useful life in full power operation. Replacement Suggested!"... -
Page 43: Specifications
Specifications The specifications listed below are subject to change without notice. For final specs, please refer to Acer's published marketing specifications. Projection system Resolution Computer compatibility Video compatibility Aspect ratio Displayable colors Projection lens Projection screen size (diagonal) Projection distance... - Page 44 Standard package contents * Design and specifications are subject to change without notice. • AC power cord x1 • VGA cable x1 • Composite video cable x1 • Remote control x1 • Battery x 2 (for remote control) • User's guide (CD-ROM) x 1 •...
-
Page 45: Compatibility Modes
Compatibility modes A. VGA Analog VGA Analog - PC Signal Modes Resolution 640x480 640x480 640x480 640x480 720x400 720x400 SVGA 800x600 800x600 800x600 800x600 800x600 832x624 1024x768 1024x768 1024x768 1024x768 SXGA 1152x864 1152x864 1152x864 1280X1024 1280X1024 1280X1024 1280X1024 QuadVGA 1280x960 1280x960 SXGA+ 1400x1050 UXGA... - Page 46 1280x960 1280x1024 i Mac DV (G3) 1024x768 VGA Analog - Extended Wide timing Modes Resolution WXGA 1280x768 1280x768 1280x768 1280x720 1280x800 1360x768 1440x900 1680x1050 75.00 63.98 60.00 V.Frequency [Hz] H.Frequency [KHz] 48.36 57.60 68.63 45.00 49.70 47.72 55.94 65.29...
- Page 47 B. HDMI Digital HDMI - PC Signal Modes Resolution 640x480 640x480 640x480 640x480 720x400 720x400 SVGA 800x600 800x600 800x600 800x600 800x600 832x624 1024x768 1024x768 1024x768 1024x768 SXGA 1152x864 1152x864 1152x864 1280x1024 1280x1024 1280x1024 1280x1024 QuadVGA 1280x960 1280x960 SXGA+ 1400x1050 UXGA 1600x1200 Power Mac G4 640x480...
- Page 48 HDMI - Extended Wide timing Modes Resolution WXGA 1280x768 1280x768 1280x768 1280x720 1280x800 1360x768 1440x900 1680x1050 HDMI - Video Signal Modes Resolution 480i (NTSC) 720x480(1440x480) 480p (NTSC) 720x480 576i (PAL) 720x576(1440x576) 576p (PAL) 720x576 720p (NTSC) 1280x720 720p (PAL) 1280x720 1080i (NTSC) 1920x1080 1080i (PAL)
-
Page 49: Regulations And Safety Notices
Regulations and safety notices FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 50: Declaration Of Conformity For Eu Countries
Declaration of Conformity for EU countries Acer hereby, declares that this projector series is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. (Please visit http://global.acer.com/support/certificate.htm for complete documents.) - Page 51 European Union (EU) R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard: • Article 3.1(a) Health and Safety EN60950-1:2001 • EN50371:2002 (SAR, general FR device) • Article 3.1(b) EMC • EN301 489-1 V1.4.1 (common technical requirement) • EN301 489-3 V1.4.1 (for short range device) •...
- Page 52 Machine Type: Name of Responsible Party: Address of Responsible Party: 333 West San Carlos St. Contact Person: Phone No.: Fax No.: Acer America Corporation 333 West San Carlos St., San Jose CA 95110, U. S. A. 254-298-4000 Tel : 254-298-4147 Fax : www.acer.com...
-
Page 53: Declaration Of Conformity
Declaration of Conformity Acer Computer (Shanghai) Limited 3F, No. 168 Xizang medium road, Huangpu District, Shanghai, China Contact Person: Mr. Easy Lai Tel: 886-2-8691-3089 Fax: 886-2-8691-3000 E-mail: easy_lai@acer.com.tw Hereby declare that: Product: DLP Projector Trade Name: Acer Model Number: DSV0716/DNX0717...
