Canon imagePRESS C7010VP Program Manual

Durability enhancement
Hide thumbs Also See for imagePRESS C7010VP:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
Durability Enhancement
Program Guide

Advertisement

Table of Contents
loading

Related Manuals for Canon imagePRESS C7010VP

Summary of Contents for Canon imagePRESS C7010VP

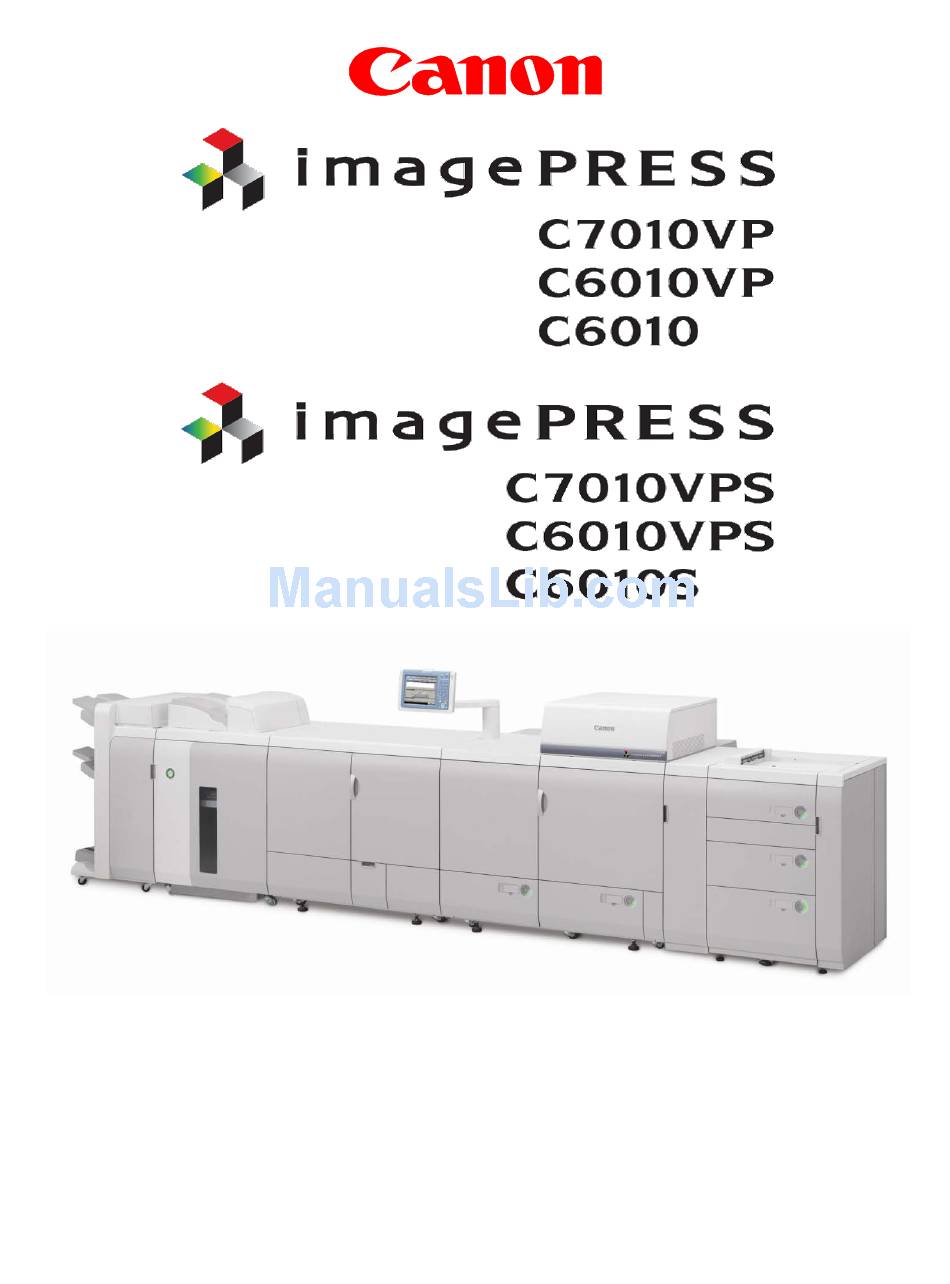

  • Page 1 Durability Enhancement Program Guide...
  • Page 2 C7010VP/C7010VPS Series Durability Enhancement Program Guide Durability Enhancement Program Guide IMPORTANT USE OF THIS PROGRAM GUIDE SHOULD BE STRICTLY SUPERVISED TO AVOID DISCLOSURE OF CONFIDENTIAL INFORMATION. ALL ITEMS LISTED ARE SUBJECT TO CHANGE WITHOUT NOTICE. PART NUMBERS LISTED MAY BE CHANGED WITHOUT NOTICE TO REFLECT ENGINEERING REVISIONS.
  • Page 3 Pursuant to the authorized Service Agreement with Canon U.S.A., Inc., Service Provider agrees to indemnify Canon U.S.A., Inc. and to hold it harmless from and against any and all claims arising out of Service Provider’s possession, use, or misuse of this Program Guide.

  • Page 4: Table Of Contents

    C7010VP/C7010VPS Series Durability Enhancement Program Guide Contents Durability Enhancement Program Introduction -------------------------------------------------- 1 A. Purpose ------------------------------------------------------------------------------------------------------------------- 1 B. Overview ------------------------------------------------------------------------------------------------------------------ 1 DEP Part Replacement ----------------------------------------------------------------------------------- 2 III. DEP Planning ------------------------------------------------------------------------------------------------ 4 A. Suggested Guidelines ------------------------------------------------------------------------------------------------ 4 B. DEP Print Volume ------------------------------------------------------------------------------------------------------ 5 DEP Parts Installation Requirements ---------------------------------------------------------------- 6 A.

  • Page 5: Durability Enhancement Program Introduction

    Performance Standard (EPS) of 18 million prints (based on Letter sized paper) or five (5) years, whichever comes first. The EPS is based on a Canon Inc. estimation using quality evaluation standards and can be achieved when the imagePRESS is maintained or serviced by a Canon authorized field service technician using only genuine Canon parts.

  • Page 6: Dep Part Replacement

    • Drop shipments to customer locations will be accepted, if you provide the address at time of order placement. • Canon USA requires a period of up to six (6) months to prepare each DEP kit for delivery. Therefore, check your customer’s meter readings to forecast when they will reach the replacement interval.

  • Page 7: Service Mode/Soft Counter Mode (Table 2)

    C7010VP/C7010VPS Series Durability Enhancement Program Guide • The DEP parts usage in each paper deck is based on the customer usage of each paper deck. The dealer must monitor the customer usage of each paper deck separately and replace DEP parts only for the paper deck that reaches nine (9) million prints / copies (Letter).

  • Page 8: Dep Planning

    • Monitor the 102 total 2 counter of each imagePRESS in your install base to estimate when each machine will require the DEP. • Allow sufficient lead-time to order the DEP parts from Canon USA (The recommended sufficient lead-time is six (6) months).

  • Page 9: Dep Print Volume

    The cells in yellow indicate situations where the total print volume over a five (5) year maintenance agreement may meet or exceed nine (9) million letter size sheets. Canon USA suggests applying DEP Service in these cases. Estimated Five-Year Total Print Volume (Table 3)

  • Page 10: Dep Parts Installation Requirements

    Lower Feed Unit Kit 4.5 hours B. Installation Guide The DEP Installation Guide for the imagePRESS C7010VP/C7010VPS Series details the steps required to install the DEP Parts provided by Canon USA. The Installation Guide is available on the Canon e-Support Center Web site.

  • Page 11: Dep Part Strategic Kits

    C7010VP/C7010VPS Series Durability Enhancement Program Guide V. DEP Part Strategic Kits The following DEP strategic part kits are available from Canon USA. Individual parts within the DEP part kit may be ordered separately however the 30% price reduction will not be applied.

  • Page 12: Upper Feed Unit Kit (Table 9)

    C7010VP/C7010VPS Series Durability Enhancement Program Guide Upper Feed Unit Kit (Table 9) Upper Feed Unit Kit F02-5944-000 Replacement Engine Area Part Name Part Number Quantity Interval Feed Unit (Upper) Transparency Sensor RH7‐7129‐020 14 million 9 million Pre‐Registration Feed Roll 1 FC9‐9476‐000...

  • Page 13: List Of Tables

    C7010VP/C7010VPS Series Durability Enhancement Program Guide VI. List of Tables Main Unit DEP Kits (Table 1) ......................2 Service Mode/Soft Counter Mode (Table 2) ..................3 Estimated Five-Year Total Print Volume (Table 3) ................5 Estimated Months Between DEP Service (Table 4) ................. 5 Main Unit (Table 5) ...........................
