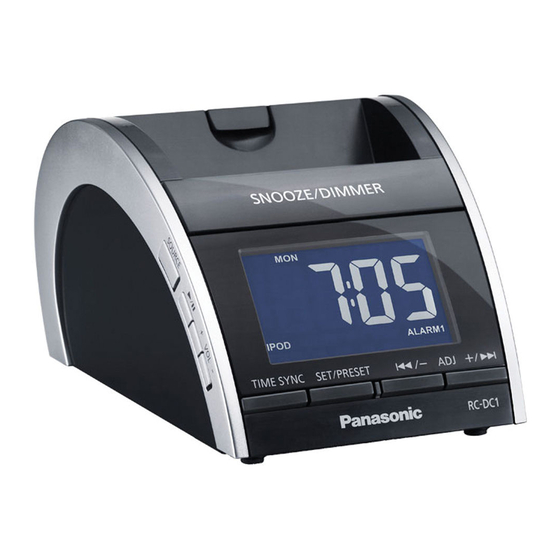

Panasonic RC-DC1 Operating Instructions

Operating Instructions
Clock Radio
Model No.
Panasonic Corporation
GA GN GS
Web Site: http://panasonic.net
RQTX1211-1B
Dear Customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions thoroughly before
connecting, operating or adjusting this product.
Keep this manual for future reference.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE,
• DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR
SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE APPARATUS.
• USE ONLY THE RECOMMENDED ACCESSORIES.
• DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION!
• DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN
CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD
DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
• DO NOT OBSTRUCT THE UNIT'S VENTILATION OPENINGS WITH
NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.
• DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED
CANDLES, ON THE UNIT.
• DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER.
For Australia and N.Z.
THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.
For others
THIS UNIT IS INTENDED FOR USE IN TROPICAL CLIMATES.
The socket outlet shall be installed near the equipment and easily accessible.
The mains plug of the power supply cord shall remain readily operable.
To completely disconnect this apparatus from the AC Mains, disconnect the power
supply cord plug from AC receptacle.
This product may receive radio interference caused by mobile telephones during use. If
such interference is apparent, please increase separation between the product and the
mobile telephone.
Product identifi cation marking
Product Location
Main unit Bottom
AC adaptor Bottom
–If you see this symbol–
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or
dealer and ask for the correct method of disposal.
RQTX1211-1B_gb.indd 1 RQTX1211-1B_gb.indd 1
Compatible iPod and iPhone
• iPod nano 5th generation (video camera) (8GB, 16GB)
• iPod touch 2nd generation (8GB, 16GB, 32GB, 64GB)
• iPod classic [120GB, 160GB (2009)]
• iPod nano 4th generation (video) (8GB, 16GB)
• iPod classic (160GB) (2007)
RC-DC1
• iPod touch 1st generation (8GB, 16GB, 32GB)
• iPod nano 3rd generation (video) (4GB, 8GB)
• iPod classic (80GB)
• iPod nano 2nd generation (aluminum) (2GB, 4GB, 8GB)
• iPod 5th generation (video) (60GB, 80GB)
• iPod 5th generation (video) (30GB)
• iPod nano 1st generation (1GB, 2GB, 4GB)
• iPod 4th generation (colour display) (40GB, 60GB)
En
• iPod 4th generation (colour display) (20GB, 30GB)
• iPod 4th generation (40GB)
• iPod 4th generation (20GB)
• iPod mini (4GB, 6GB)
L0610HH1060
• iPhone 3GS (16GB, 32GB)
• iPhone 3G (8GB, 16GB)
• iPhone (4GB, 8GB, 16GB)
Compatibility depends on the software version of your iPod or iPhone.
"Made for iPod" and "Made for iPhone" mean that an electronic accessory has
been designed to connect specifi cally to iPod, or iPhone, respectively, and has
been certifi ed by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with
safety and regulatory standards.
iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple
Inc., registered in the U.S. and other countries.
Safety precautions
Placement
Set the unit up on an even surface away from direct sunlight, high temperatures,
high humidity, and excessive vibration. These conditions can damage the cabinet
and other components, thereby shortening the unit's service life.
Place it at least 15 cm away from wall surfaces to avoid distortion and unwanted
acoustical effects.
Do not place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload the unit and cause a fi re.
Do not use a DC power source. Check the source carefully when setting the unit up
on a ship or other places where DC is used.
AC adaptor protection
Ensure the AC adaptor is connected correctly and not damaged. Poor connection
and lead damage can cause fi re or electric shock. Do not pull, bend, or place heavy
items on the lead.
Grasp the plug fi rmly when unplugging the adaptor. Pulling the AC adaptor can
cause electric shock.
Do not handle the plug with wet hands. This can cause electric shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause electric shock or
malfunction.
Do not let liquids get into the unit. This can cause electric shock or malfunction. If
this occurs, immediately disconnect the unit from the power supply and contact your
dealer.
Do not spray insecticides onto or into the unit. They contain fl ammable gases which
can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to
light, smoke appears, or any other problem that is not covered in these instructions
occurs, disconnect the AC adaptor and contact your dealer or an authorised
service centre. Electric shock or damage to the unit can occur if the unit is repaired,
disassembled or reconstructed by unqualifi ed persons.
Extend operating life by disconnecting the unit from the power source if it is not to
be used for a long time.
Supplied accessories
Please check and identify the supplied accessories.
1 AC adaptor 1 AM loop antenna
For Australia and N.Z.
For Hong Kong, Saudi Arabia and Kuwait
For others
Memory back-up battery
The back-up battery (CR2032, not included) saves the clock and alarm settings in
the event of a power interruption.
Inserting the battery
When there is no battery, the battery-weak indicator will be displayed until a battery
is inserted.
Bottom view
1
Keep the AC adaptor connected to the household mains socket when
unscrewing the screw on the cover of the battery holder using a
screwdriver.
2
Open the cover of the battery holder.
3
Insert a new battery with the (+) side facing up.
4
Close the cover of the battery holder and secure it with the screw.
Replacing the battery
The service life of this battery is approximately 1 month.
When the battery is weak, the battery-weak indicator will blink constantly on the
display.
Note:
• Do not heat or expose to fl ame.
• Do not leave the battery(ies) in an automobile exposed to direct sunlight for a long
period of time with doors and windows closed.
• Remove the battery if the clock radio is not going to be used for a long period of
time. Store in a cool, dark place.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer's instructions.
Warning
Keep the Button-Type battery out of the reach of children. Never put Button-
Type battery in mouth. If swallowed call your doctor.
Warning
Risk of fi re, explosion and burns. Do not recharge, disassemble, heat above
60°C or incinerate.
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about
some of the check points, or if the solutions indicated do not solve the problem,
consult your dealer for instructions.
Clock
Clock cannot be synchronised to iPod or iPhone's time.
• Make sure the iPod or iPhone is securely connected and turned on.
• Update your iPod or iPhone with the latest software.
Daylight saving time does not work.
• Make sure the clock has been set correctly.
• Press and hold [SLEEP] in clock mode to activate daylight saving time.
Alarm
The iPod, radio or buzzer alarm does not sound at the preset time.
• Check that "ALARM 1" or "ALARM 2" has been correctly activated.
The iPod or radio alarm is activated but there is no sound at the preset time.
• Check the alarm's volume setting.
iPod or iPhone
The iPod or iPhone cannot be operated with this unit.
• Make sure the iPod or iPhone has been securely connected and turned on.
• Update your iPod or iPhone with the latest software.
There is no sound from the iPod or iPhone.
• Make sure the iPod or iPhone has been securely connected.
• Adjust the volume.
The iPod or iPhone does not charge.
• Check the connections. Turn off and remove the iPod or iPhone from the dock
connector. Reinsert and turn it on again.
Radio
A noise or sound distortion is heard.
• Distance the unit away from any television, personal computer or device easily
infl uenced by magnetism.
A low hum is heard during AM broadcast.
• Separate the antenna from other cables and cords.
Reset
This function enables you to restore the main unit to the original factory settings or
when it is behaving abnormally.
Rear view
Press [RESET] with a paper clip or a pointed object.
Specifi cations
AMPLIFIER SECTION
RMS Output Power (Mono)
Front channel 2.6 W per channel (8 ), 1 kHz, 10% THD
TUNER SECTION
Preset memory FM 5 stations
AM 5 stations
Frequency modulation (FM)
Frequency range 87.50 MHz to 108.00 MHz (50 kHz step)
Antenna terminals 75 (unbalanced)
Amplitude modulation (AM)
Frequency range
For Australia and N.Z. 522 kHz to 1629 kHz (9 kHz step)
For others 522 kHz to 1629 kHz (9 kHz step)
520 kHz to 1630 kHz (10 kHz step)
SPEAKER SECTION
Type 1 way, 1 speaker system (Bass refl ex)
Speaker unit(s) Impedance 8
Full range 2.5 cm cone type
GENERAL
Power supply (AC adaptor) AC 100 to 240 V, 50/60 Hz
DC Output
Power consumption (with iPod or iPhone charging)
Main unit
Dimensions (W x H x D) 112 mm x 80 mm x 150 mm
Mass
Main unit 0.37 kg
AC adaptor 0.14 kg
Operating temperature range 0°C to +35°C
Operating humidity range 20% to 80% RH (no condensation)
Power consumption in standby mode:
Main unit 0.3 W (approximate)
AC adaptor 0.3 W (approximate)
Note:
1) Specifi cations are subject to change without notice.
Mass and dimensions are approximate.
2) Total harmonic distortion is measured by the digital spectrum analyser.
6/22/2010 5:39:03 PM 6/22/2010 5:39:03 PM
7.5 V
7 W
