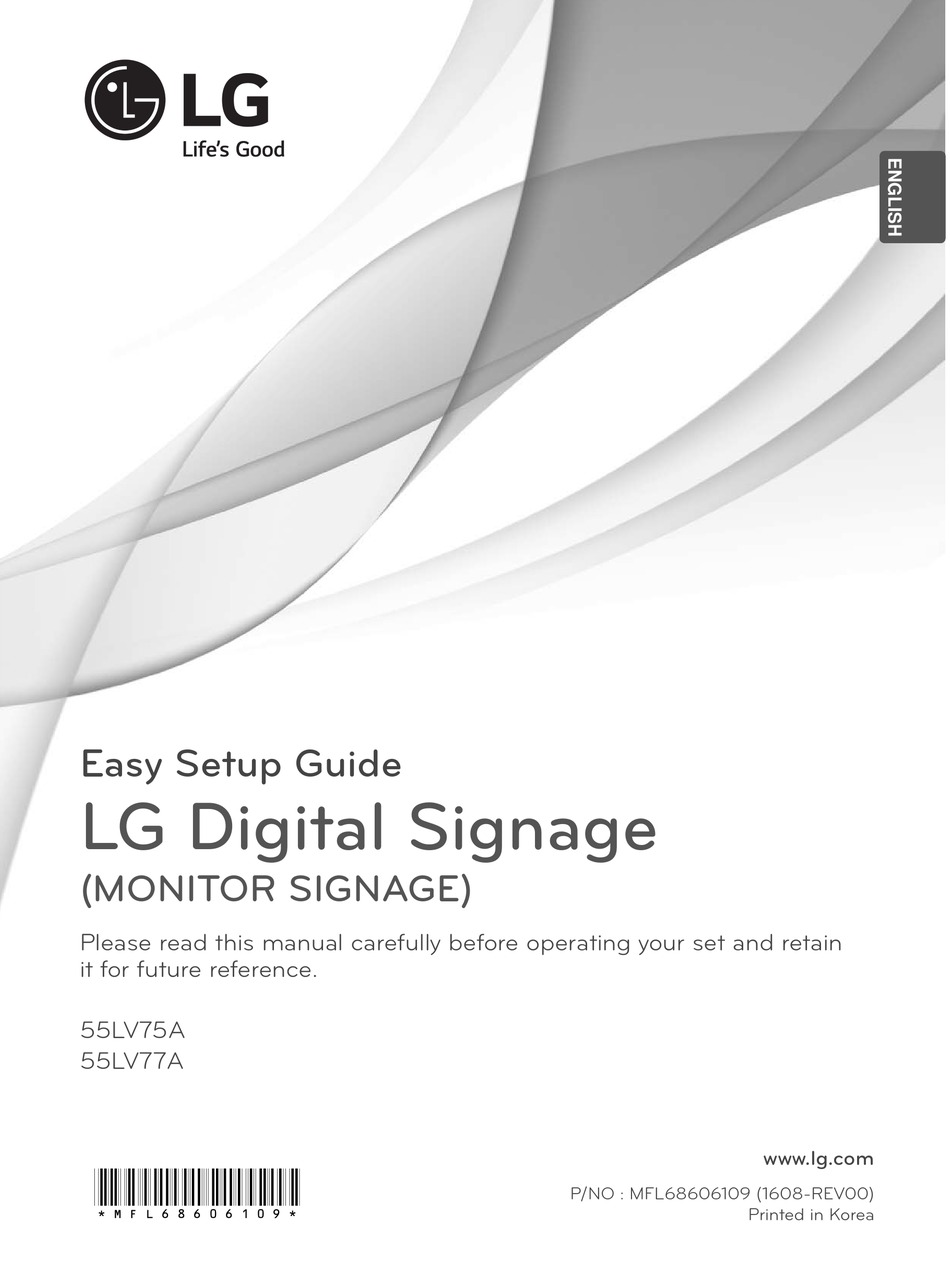

Easy Setup Guide LG Digital Signage (MONITOR SIGNAGE) Please read this manual carefully before operating your set and retain it for future reference. 55LV75A 55LV77A www.lg.com *MFL68606109* P/NO : MFL68606109 (1608-REV00) Printed in Korea...
- Downloading from the LG Electronics website. - Visit the LG Electronics website (https://www.lgecommercial.com/supersign) and download the latest software for your model. WARNING: This product contains chemicals known to the State of California to cause cancer and birth...
Page 3
ASSEMBLING AND PREPARING Dimensions (Width x Height x Depth) / Weight 1213.4 mm x 684.2 mm x 88.5 mm / 23 kg (47.7 inches x 26.9 inches x 3.4 inches / 50.7 lbs) To View the Owner’s Manual Insert CD-ROM in Computer. CD-ROM will open automatically.(for Windows only) If it does not run automatically, it is available to see the below sequence.
Page 4
ASSEMBLING AND PREPARING PRECAUTION IN MOVEMENT - The illustration may look different from the actual product. Adhere to the warning signs printed on the Box. Do not tumble the Set box sideward down. Do not Clamp Do not drop from clamping. 2 Persons needed for transport Load with care.
Page 5
ASSEMBLING AND PREPARING PRECAUTION IN HANDLING Precaution Move the Set as a team of 2 persons. When you move Remove the L-bracket on the corner of the Set be- the bare Set, please use one hand on grabbing the fore installation. When moving the Set, re-assemble handle and the other support under the Set.
Page 6
ASSEMBLING AND PREPARING Causes & Phenomena of the COF (CHIP ON FILM) DEFECT Line Defect The line defect would occur on your Set if you strike on ➙ ➙ Shock on Module Top Side Top COF Crack the edge of the Set. Vertical Line Defect Source PCB COF Cable...
ASSEMBLING AND PREPARING Installing the Product - The illustration may look different from the actual product. Cut Packing Strap of the Box. Cut Tape on the Box. Open the Box and remove the top packing. Remove the Upper Box. Open the Poly Bag. Undress the Poly Bag.
Page 8
ASSEMBLING AND PREPARING Lift up the Set using the SIDE/BACK Handle. Remove Bottom packing when lifting up the Set. With one hand under the set and the other hand grabbing the set, move the set. Lay the back of the Set down on the table.
Page 9
ASSEMBLING AND PREPARING Use the cushion or Pad when you lay the face of the Set downward. Connect IR receiver to use remocon. And then, connect power cord.
ASSEMBLING AND PREPARING How to Join Sets Tiling Displays Join other sets using screws for fixing the How to Mount the Set VESA wall mount in the same way as above. Example of 2 x 2 tiling Screws for attaching the VESA wall mount (M6) Set 4 joined to the rest of the sets (2 x 2 tiling)
REMOTE CONTROL REMOTE CONTROL The descriptions in this manual are based on the buttons of the remote control. Please read this manual carefully and use the Monitor set correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching ends to the label inside the compartment, and close the battery cover.
Page 12
REMOTE CONTROL ⓘ AUTO INFO Automatically adjusts picture Displays the input position and minimizes image information. instability.(RGB input only) SETTINGS W.BAL Accesses the main menus Enters the White Balance or saves your input and exit menu. menus. S.MENU (SuperSign Menu Key) This button does not apply to Selects menus or options and this model.
MAKING CONNECTIONS Connecting the Power Cord Power Button Connecting the External devices HD Receiver HDMI HDMI Component Component Component Speaker Memory storage Camcorder/ Camera Gaming device HDMI HDMI HDMI Component Component Display Port...
MAKING CONNECTIONS Daisy Chain Monitors DP Cable Use the cable provided with the product or use a DisplayPort certified cable version 1.1a or higher. Monitor 1 Monitor 2 Monitor 3 Monitor 4...
MULTIVISION CONFIGURATION MULTIVISION CONFIGURATION Set ID setup for each set. (* The model Function Setting 55LV75A does not support any functions for controlling the Fan.) IR Receiver connection. OPTION Move Back of the product. • Language • ISM Method : Normal •...
Page 17
LG Digital Signage Setup White Balance Adjust Password Change Confi guration Cloning Set ID Setup Tile Mode setup. (* The model 55LV75A does not support any functions for controlling the Fan.) OPTION Move • Language • ISM Method : Normal •...
Tile Mode On: An input image is enlarged according to the value in the H. Set Count and V. Set Count fields. (* The model 55LV75A does not support any When using 4 monitors functions for controlling the Fan.) ID 2 ID 2...
Set the Total Set ID in the Installation Menu. NOTE For example, if the Picture ID is assigned to LG Digital Signage Setup (V2.21) 2, the upper right display (Set ID: 2) can be ▲ • Factory Reset controlled by IR signals.
