System Setup (Cont.)
(Continued from previous page)
13. (IP output only) Complete OAT100R IP output configuration as follows:
a) If the Command > prompt is on display, type setup and press Enter to access
the Setup Menu.
b) At the Setup Command > prompt, type ipout and press Enter to access the IP
Output Confi guration Menu.
c) The IP Output Confi guration Menu offers two options for confi guring output IP
channels:
•
To manually confi gure the output IP channels, type set and press Enter at the
IP Output Command > prompt. For each tuner, you will need to specify a
multicast IP address and the multicast port number.
•
To auto-confi gure output IP channels from a base multicast IP address and
port number, type fi ll and press Enter at the IP Output Command > prompt.
Type the base multicast IP address and the multicast port number at the system
prompts. The system will then auto-increment the remaining IP channels.
Refer to the extended Installation & Setup Guide for further information on these
commands.
d) Once you have completed the output IP channel configuration as required, at the
IP Output Command > prompt, type apply and press Enter to confirm and
apply the configuration data to the system. Then, type exit and press Enter at
the next IP Output Command > prompt to return to the Setup Menu prompt.
e) Connect a CAT5E or better cable between the Feature Port on the OAT100R
rear panel and the institution's IP distribution network.
f)
Continue with step 14.
14. (Optional) For remote management purposes, you can set a static IP address for
the OAT100R Control Port as follows:
a) If the Command > prompt is on display, type setup and press Enter to access
the Setup Menu.
b) At the Setup Command > prompt, type setip and press Enter. The system will
display current network configuration, followed by the Network Configuration Menu.
c) Use the Network Configuration Menu "ip" and "dns" commands and follow the
system prompts to configure the Control Port. Refer to the extended Installation
& Setup Guide for further information on the commands.
Note: Review the New Network Configuration overview carefully before you
confirm the Control Port configuration settings. Ensure each of the addresses
was entered correctly.
18

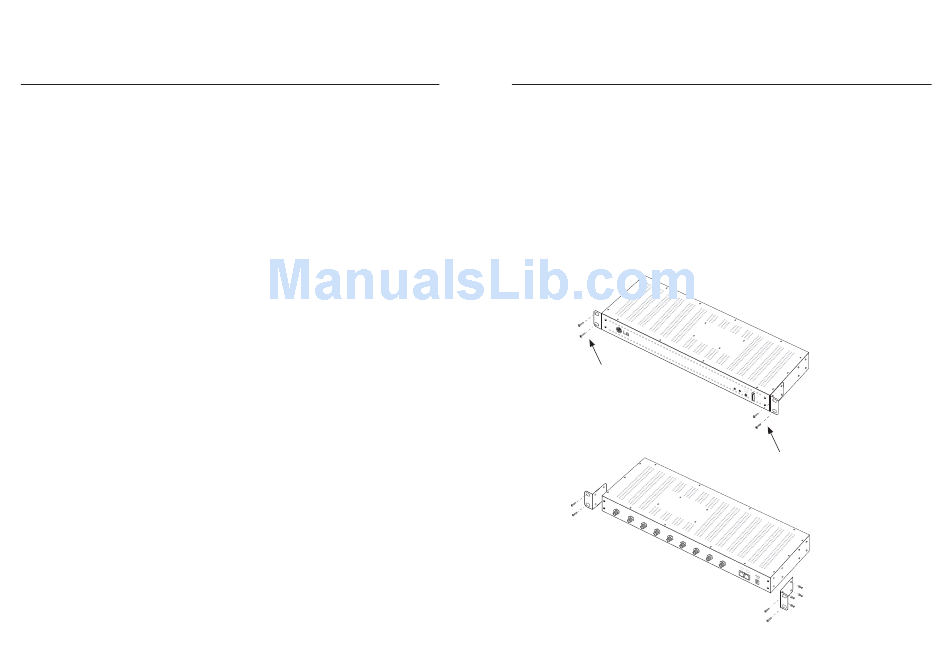

Typical Rack Installation
1. (Optional) As shipped, the OAT100R mounting brackets are attached fl ush with the
2. Carefully slide the chassis into a standard 19-inch equipment rack.
3. Use all four mounting screws to secure the chassis to the rack.
(Continued on next page)
206-4219
206-4219
front of the unit (see diagram a). If desired, the mounting brackets may be detached
from the unit and reattached, for example, so that they are fl ush with the rear of the unit
(see diagram b). If you wish to change the location/orientation of the mounting brackets,
carefully remove each of the four (M4 x 10 mm) screws and attendant washers (one
fl at and one lock washer per screw) holding each bracket in place. Then, use the same
screws and washers to reattach the mounting brackets in the desired location.
(a)
To rack
RF -O
UT
(b)
RF -IN
8
RF -IN
7
RF -IN
6
RF -IN
5
RF -IN
4
RF -IN
3
Rack Installation
PW
R
ST AT
US
To rack
RF -IN
2
RF -IN
1
Use fl at washer and
lock washer with each
M4 x 10 mounting
bracket screw.
11
