5.2 Installing the wireless router with an integral

antenna

Nokia RoofTop™ Wireless Router Installation Guide
Installing the wireless router with an integral antenna
There are two basic steps to installing the outdoor components:
• constructing the mounting and
• assembling the router and antenna.
To construct the mounting:
1.
Mount the wireless router bracket to the mounting point (it can be a
pole, chimney, vent pipe, etc.), ensuring that the bracket is fixed
securely.

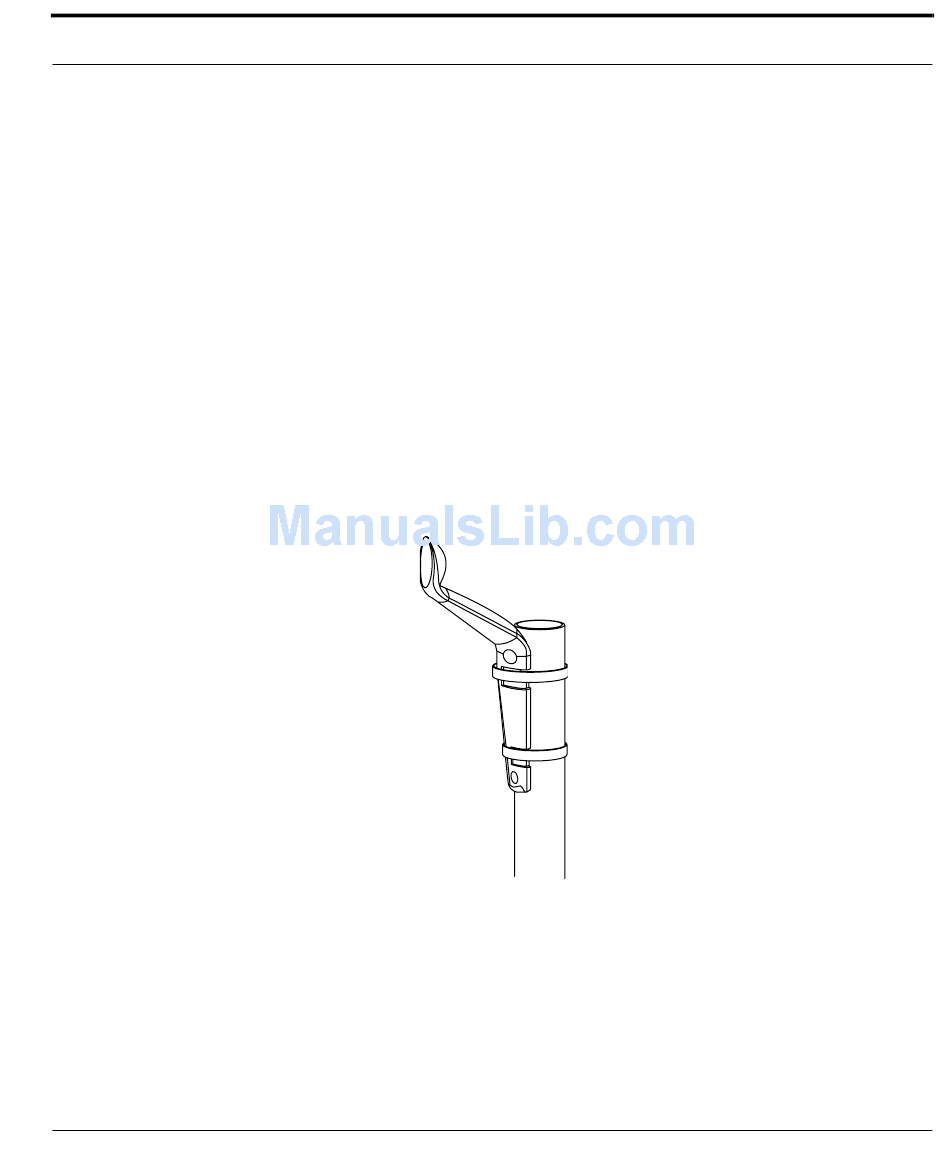

Router bracket fixed to mast
19
