Siemens S 564 Technical Manual

Socket outlet switch wave S 564
Product and Applications Description

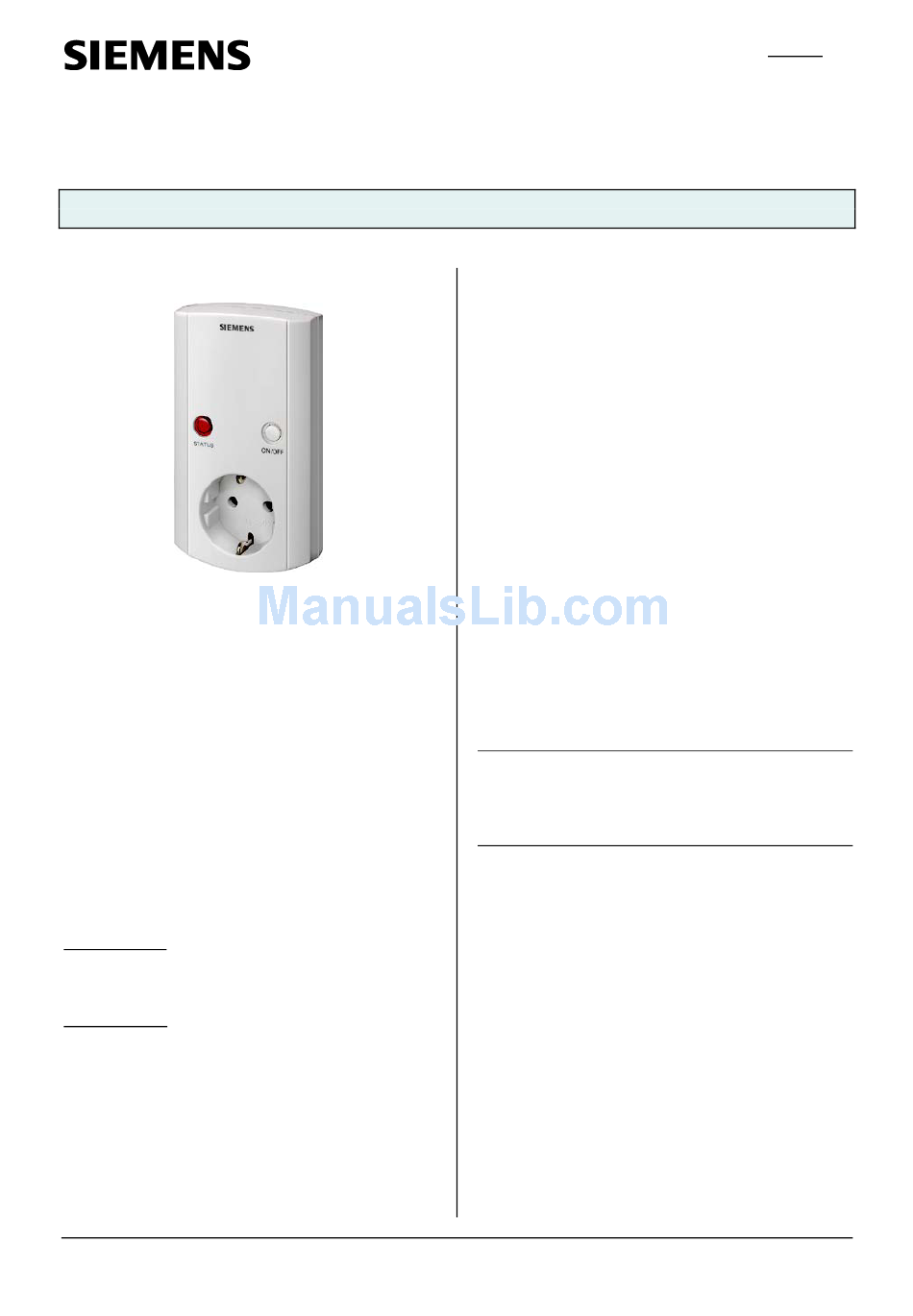

The socket outlet switch wave S 564 is an adapter plug
for the remote control of electrical devices connected to
socket outlets like floor lamps or radios by controlling a
relay via radio frequency.
The socket outlet switch wave is a product from the
range of GAMMA wave devices and therefore uses the
standardized KNX RF protocol.
Besides the remote operation using RF switches (with
function switching or scene control) or other RF sensors
like smoke detectors or door contacts, the socket outlet
switch wave can be controlled directly by a push button
on the device. A LED indicates the actual switching
status.
The commissioning of the socket outlet switch wave is
carried out without any additional means via push button
actions (Easy mode Push Button: EP).
There are two different operation modes for the socket
outlet switch wave:
Normal function
• Operation of the integrated socket outlet locally
• Remote operation of the integrated socket outlet via
RF switches or other RF senders
Special function
• Establishing connections with other radio control com-
ponents
• Deleting connections with other radio control compo-
nents
Operation
After a short operation of the push button (less than 10s)
the local socket outlet is switched ON or OFF respec-
tively.
Siemens AG
Automation and Drives Group
Electrical Installation Technology
P.O. Box 10 09 53, D-93009 Regensburg
After a long operation (at least 10s) the device is
switched to special function mode. In this mode the
socket outlet switch wave can be connected with other
devices or an established connection can be released.
If the push button is operated again long (at least 10s)
while in special function mode, all connections with other
devices will be deleted.
Installation Instructions
Caution:
• The device may be used in interior installations in dry
rooms only.
• Occasionally the transmission range may be influ-
enced by structural conditions (e.g. reinforced con-
crete) or electric / electronic sources of interference.
• A minimum distance of 0.5m must be maintained
between the transmitter and the relevant receivers.
• Though the radio transmission is carried out in the
safe 868MHz range, disruptions to the radio transmis-
sion cannot be excluded.
• The radio transmission is not suitable for security
applications.
V
• The device must not be opened.
• The device must not be combined with other adaptor
plugs
• The prevailing safety and accident regulations must be
observed.
Technical Specifications
Mechanical specifications
• Housing: plastic
• Mounting form: socket outlet adapter for countries
using socket outlets with side grounding contacts (DIN
norm)
• Dimensions (L x W x D):
12,8 x 7,2 x 7,5 cm (incl. contacts)
• Weight: approx. 140g
Power supply
Integrated power supply 230V AC +10% / -15%
S 564, 4 pages
© Siemens AG 2005
Subject to change without prior notice
Technical Product Information
WARNING
Update: http://www.siemens.de/gamma
instabus EIB
August 2005
5WG3 564-7AB11
Technical Manual
2.20.7.1/1
