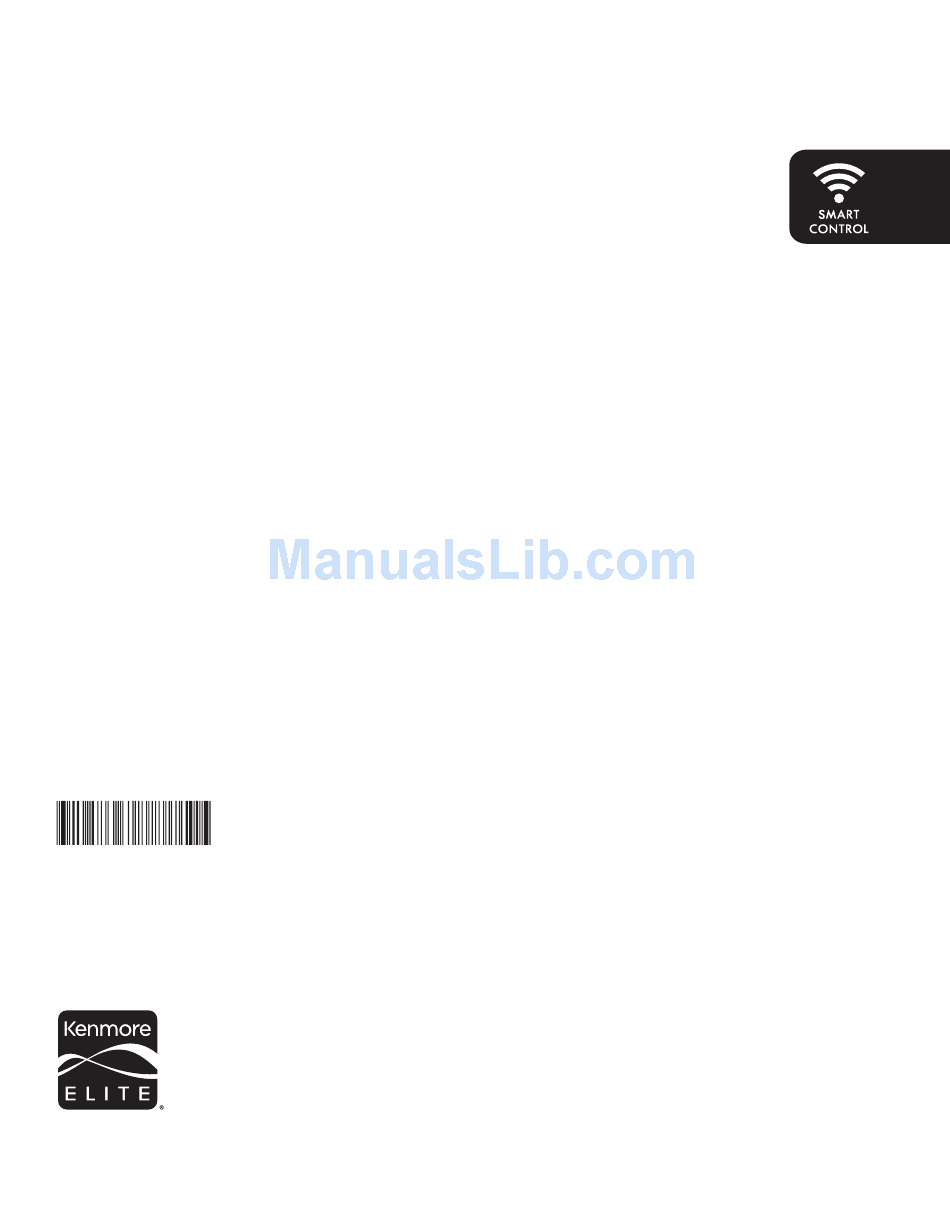

Use & Care Guide Manual de uso y cuidado Models/Modelos: 722.1467* Kenmore Elite ® Dishwasher Lavavajillas * = color number, número de color MFL69706502 Sears Brands Management Corporation Hoffman Estates, IL 60179 U.S.A. www.kenmore.com...
Page 2
TABLE OF CONTENTS WARRANTY ..............3 DISHWASHER SAFETY ............. 4 PARTS AND FEATURES .............6 Exterior Parts ................6 Interior Parts ................7 Product Specifications ............7 START-UP/QUICK REFERENCE .........8 CLEANING THE FILTERS ...........9 DISHWASHER EFFICIENCY TIPS ........10 DETERGENT AND RINSE AID ..........11 Detergent ..................
This warranty gives you specific legal rights, and you may For warranty coverage details to obtain free repair or also have other rights which vary from state to state. replacement, visit the web page: www.kenmore.com/ warranty Sears Brands Management Corporation...
DISHWASHER SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “WARNING”...
GROUNDING INSTRUCTIONS ■ For a grounded, cord-connected dishwasher: The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. If the dishwasher is equipped with a cord Tip Over Hazard having an equipment-grounding conductor and a grounding plug, the plug must be plugged...
PARTS AND FEATURES Exterior Parts 1 Control Panel 2 Door Handle 3 Front Cover 4 Lower Cover 5 Shipping Brace 6 Safety Cover 7 Status LED (3) 8 Base 9 Leveling Feet NOTE: Do not remove the safety cover at any time. Status LED •...
Interior Parts 1 Top Spray Arm 2 Upper Spray Arm 3 Lower Spray Arm 4 Filtration System 5 Detergent and Rinse Aid Dispenser 6 Drying Vent Cover 7 Cutlery & Utensil Rack 8 Top Rack 9 Silverware Basket 10 Bottom Rack TOP RACK BOTTOM RACK TOP RACK...
START-UP/QUICK REFERENCE Filters Provide Peak Performance Adding Dishes Cleaning the filters The dishwasher will start automatically, after a slight delay, periodically helps keep when the door is closed and latched. During the cycle, the the dishwasher working at display will indicate the estimated time remaining for the peak performance.
CLEANING THE FILTERS This dishwasher has the latest technology in dishwasher filtration. This filtration system minimizes sound and optimizes water and energy consumption while providing superior cleaning performance. Maintain the filter regularly to ensure peak cleaning performance throughout the life of the dishwasher. ■...
Cleaning Instructions IMPORTANT: Clean the filters with a soft brush under running water. Rinse filter under running water until most soils are removed. A soft brush may be required to get off hard to remove soil. Filter Reinstallation Instructions 1. To replace the assembled filters, position the spray arm so the wider vee is toward the front. 2.
DETERGENT AND RINSE AID Detergent If a prewash is desired, fill the recessed prewash compartment area on the lid with detergent. IMPORTANT: Extremely hard water mineral deposits (15 grains per U.S. gallon or more) can cause damage to your Add dishwashing detergent to the main wash compartment dishwasher and make it difficult to achieve good results.
Rinse Aid Dispenser Adjustment Rinse Aid The dispenser has five adjustment levels. The dishwasher is programmed at the factory for a rinse aid dispenser level of 2. This can be checked and altered by using the buttons on the control panel. 1.
LOADING Top Rack Loading Loading Recommendations Place cups and glasses in the rows between tines. Placing them over the tines can lead to breakage and water spots. To avoid damage to your delicate items, be sure china, crystal, stemware and other similar items do not touch during dishwasher operation.
Bottom Rack Loading Loading Recommendations The bottom rack is best suited for plates, pans, casseroles, and utensils. See recommended loading patterns shown. Load small items in the bottom rack only if they are secured in place. Load plates, soup bowls, etc., between tines. Load bowls securely between the rows of tines.
Silverware Basket The silverware basket has separators to avoid scratching and tarnishing of delicate silverware. Loading Silverware For best cleaning results, use the top separators in the basket when loading silverware. The separators will prevent nesting of silverware. Load sharp items, such as knives, pointing down. When unloading the dishwasher, it is best to start with the silverware basket.
Cutlery & Utensil Rack Loading Loading Recommendations The cutlery and utensil rack is best suited for flatware and most cooking or serving utensils. It can also fit small prep bowls and lids. The separators on the cutlery and utensil racks help keep flatware separated to avoid damage and improve cleaning.
DISHWASHER USE Cycles and Options Information Range of Estimated Time* Water Usage Cycles Displayed: Gallons H:MM (Liters) Smart Wash The most advanced and versatile cycle. This cycle senses the soil amount and 3.4-5.3 1:58 - 3:00 toughness of soil. This cycle is optimized to achieve outstanding cleaning with (13.1-20.1) minimal water and energy.
Page 18
Options Can be selected with Mixed Load Smart Wash This option automatically sets the spray intensity to soft for the upper spray arm Pots & Pans and strong for the lower spray arm. Place heavily soiled dishes like plates and Normal Wash bowls in the lower rack and lightly soiled dishes like cups and small plates in the Express Wash...
Dishwasher Control Section Delay Hours Use this option to run the dishwasher during off-peak hours. Contact your local utility provider to determine off-peak hours. Delaying the Start Time 1. Select a wash cycle and options. 2. Press Delay Hours to choose the number of hours to be delayed. NOTE: The delay time can be set from 1 to 12 hours, in one-hour increments.
Changing a Cycle after Dishwasher Is Started You can interrupt a cycle and restart your dishwasher from the beginning using the following procedure. 1. Open the door slightly to stop the cycle. Wait for the spraying action to stop, then open the door completely. 2.
It does this by letting you link with and manage your Kenmore Smart products on one app, all from trusted brands, from a smart phone, tablet or computer.
To obtain the source code that is contained in this product under LGPL and other open source licenses, visit http:// kenmore.com/opensource. In addition to the source code, all referred license terms, warranty disclaimers, and copyright notices are available for download.
WASHING SPECIAL ITEMS If you have doubts about washing a particular item, check with the manufacturer to see if it is dishwasher safe. Dishwasher Material Comments Safe? High water temperature and detergents can affect finish and color of Aluminum aluminum. Do not wash disposable aluminum pans in the dishwasher.
DISHWASHER CARE Cleaning Cleaning the Exterior In most cases, regular use of a soft, dry towel is all that is necessary to keep the outside of the dishwasher looking nice and clean. If the dishwasher has a stainless steel exterior, a stainless steel cleaner is recommended. Cleaning the Interior Hard water minerals can cause a white film to build up on the inside surfaces, especially just beneath the door area.
Drain Air Gap Some state or local plumbing codes require the addition of a drain air gap between a built-in dishwasher and the home drain system. Check the drain air gap when your dishwasher is not draining well. The drain air gap is usually located on top of the sink or counter top near the dishwasher.
DIAGNOSTICS Should you experience any problems with your dishwasher, If you experience problems with your dishwasher, call 1-844- it has the capability of transmitting data via your telephone 553-6667. Only use the Diagnostics feature when instructed to the Diagnostics Team. This gives you the capability of to do so by the Diagnostics Team.
TROUBLESHOOTING CHECK THESE POINTS TO HELP SAVE YOU TIME AND MONEY. Problem Possible Cause Solutions • Press the Start button. Start button is not pressed. • Make sure that the door is completely Door is not completely closed. closed and latched. Power supply or power cord is not Dishwasher will not operate.
Page 28
Problem Possible Cause Solutions • Use less detergent and use a rinse aid to Combination of excessive detergent and Cloudiness on glassware. hard water. minimize the problem. Black or gray marks on Aluminum items rubbing dishes during • Reposition the dishes. dishes.
Page 29
Problem Possible Cause Solutions Yellow or brown film • Eliminate the stain by using a stain removal on inside surfaces of Coffee or tea stains. product. dishwasher. • Check and refill the rinse agent dispenser if Dishes don’t dry. Rinse agent dispenser empty. empty.
Error Codes Problem Possible Cause Solutions • Check for a clogged, kinked or frozen water inlet hose. IE Error Water inlet problem. • Check water supply. • Check for a clogged, kinked or frozen drain Drainage problem. hose. OE Error •...
